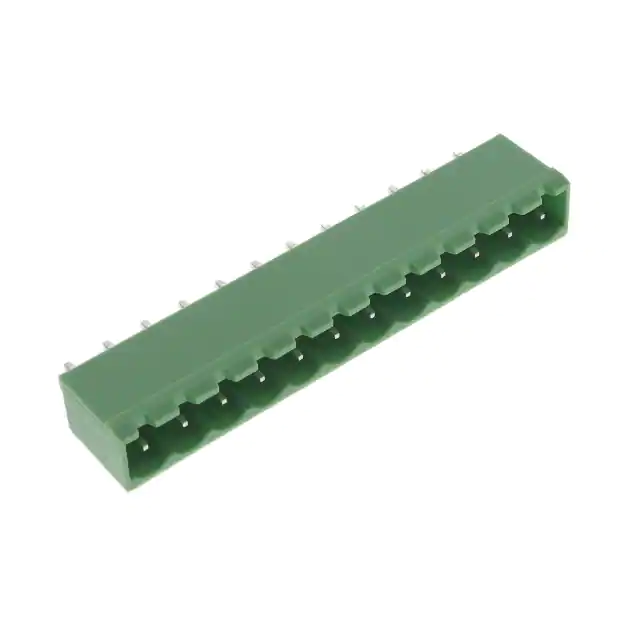

1-2351885-2

4 C 2 3 1 REVISIONS 2019 TE Connectivity. All Rights Reserved. P 1:1 DESCRIPTION LTR A DATE RELEASED FOR PRODUCTION DWN APVD RK 06UG2019 PS D D NOTES: 1. MATERIAL AND FINISH: HOUSING : POLYAMIDE 66, UL94V-0, COLOR GREEN. TERMINAL : COPPER ALLOY, TIN PLATED. 2. MECHANICAL MIN. PC BOARD HOLES DIAMETER : 1.5 mm 8.3 #0.3 3.8 #0.3 4.5 #0.3 3. ELECTRICAL RATED VOLTAGE RATED CURRENT INSULATION RESISTANCE DIM A±0.5 C 1.0 #0.1 : 300 V : 16 A : >2000 M Ohm (500V DC) 4. OPERATING TEMPERATURE RANGE: -40 $ C TO +105 $ C 5 5 3.3 #0.3 5.0 #0.1 NOT CUMULATIVE TOLERANCE. 81.6 16 1-2351885-6 71.6 14 1-2351885-4 12.0 #0.3 76.6 B 15 66.6 61.6 TOLERANCES UNLESS OTHERWISE SPECIFIED: 3.8 #0.3 DIMENSIONS: mm A RECOMMENDED PC BOARD LAYOUT MATERIAL 1470-19 (3/13) SEE NOTES - 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES FINISH - PRODUCT SPEC - APPLICATION SPEC - SEE NOTES - DIM A - WEIGHT CUSTOMER DRAWING 2351885-5 4 2351885-4 3 2351885-3 2 2351885-2 NO. OF POS PART NUMBER TE Connectivity NAME HEADER 180 DEG. 5.0mm TAIL LENGTH 4.5mm - SIZE - 2351885-6 5 16.6 12APR2019 RAGHAVENDRA.K CHK 01JUL2019 KARTHIK.JK APVD 02JUL2019 PRASHANTH.S 2351885-7 6 21.6 B 2351885-8 7 26.6 DWN 2351885-9 8 31.6 THIS DRAWING IS A CONTROLLED DOCUMENT. 1-2351885-0 9 36.6 11.6 1-2351885-1 10 46.6 1.50 1-2351885-2 11 51.6 0 +0.1 0 1-2351885-3 12 56.6 3.3 #0.3 1-2351885-5 13 41.6 5.00 C CAGE CODE A3 00779 PITCH A DRAWING NO 2351885 SCALE 3:1 RESTRICTED TO SHEET - 1 OF 1 REV A
