1-2355184-0

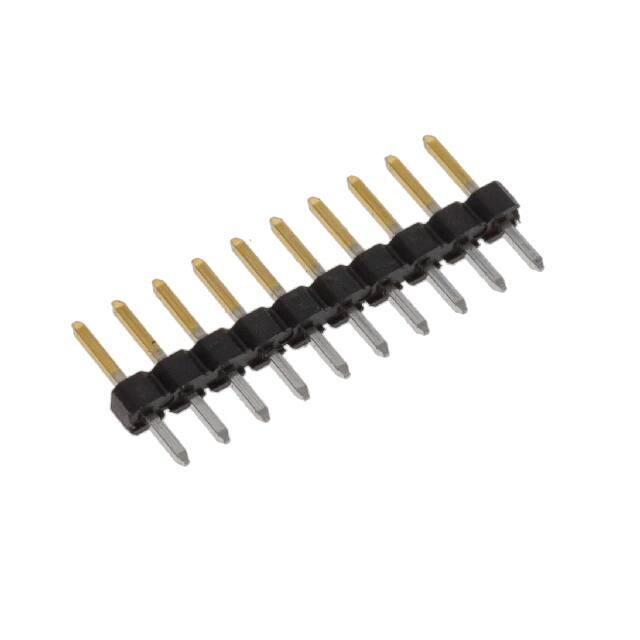

AMPMODU 2 mm BREAKAWAY HEADERS TE Connectivity (TE) AMPMODU 2 mm connector family offers a wide variety of reliable connectors for Board-to-Board and Wire-to-Board solutions. These 2 mm headers occupy 38 percent less space on a PCB than the standard 2.54 mm [0.100”] centerline, allowing customers to build more functionality onto their boards. Our breakaway headers are intermateable with other major brand receptacles in the market. They are available in variants suitable for automated surface mounting, through-hole-reflow and traditional throughhole mounting onto boards, providing customers with a spectrum of options for PCB assembly. The product offering includes single and double row options, vertical and right angle orientations, and comes in tube and tape & reel packaging to suit different types of product handling systems. KEY BENEFITS • 38% space saving on a PCB board compared to 2.54 mm [0.100”] centerline, allowing for extended functionality • Efficient and cost effective application on boards with automated surface mounting and through-hole-reflow manufacturing • Intermateable solution with other major brand receptacles INDUSTRIAL / AMPMODU 2 mm BREAKAWAY HEADERS AMPMODU 2 mm BREAKAWAY HEADERS APPLICATIONS MATERIALS • PLC / IO devices • Plating: 30 µ” [0.76 µm] gold  • Servo drives   15 µ” [0.38 µm] gold  • Material handling equipment   4 µ” [0.1 µm] gold flash  • Building and home automation   Tin  • Industrial controls • Contact Material: Phosphor bronze  • Robotics • Housing Material: High-temperature plastic (LCP), black  • Instrumentation and test equipment • Environmental: UL94 V0, low halogen  ELECTRICAL                          • Current Rating: 2A (max.)  • Dielectric Withstanding Voltage: 650VAC • Operating Voltage: 125VDC or 125VAC RMS  Operating environment class III SPECIFICATIONS • Product Specification: 108-64040  • Application Specification: 114-64040  MECHANICAL • RoHS & REACH compliant  • Operating Temperature: -40°C to 105°C (tin plated) • UL approval pending  -40°C to 125°C (gold plated) • VDE Approval • Solderability: Reflow capable up to 260°C  • Vibration: No electrical discontinuity greater than 1 microsecond  INDUSTRIAL / AMPMODU 2 mm BREAKAWAY HEADERS PAGE 2 AMPMODU 2 mm BREAKAWAY HEADERS SMART PART NUMBER DEFINITION 2MM - HB - _ _ - _ - _ - _ - _ PRODUCT SERIES 2MM 1 AMPMODU 2 mm series GENDER / TYPE HB 8 2 Breakaway headers S Single row Double row 3 NUMBER OF PINS PER ROW ## TB Tube without cap TBP Tube with cap (N/A for 2 and 3 positions per row) TRP Tape and reel with cap *select allowable Packaging from table DESIGN NAVIGATOR NUMBER OF ROWS D PACKAGING 4 02 thru 25 per row (enter two digits) PLATING 7 ORIENTATION & TERMINATION T Tin F 4µ" [0.1 µm] Gold (gold flash) M 15µ" [0.38 µm] Gold H 30µ" [0.76 µm] Gold TAIL LENGTH 5 VT Vertical through hole 00 N/A for surface mount VS Vertical surface mount 01 0.087“ [2.2 mm] HT Horizontal through hole 02 0.110“ [2.8 mm] 6 *see table DESIGN NAVIGATOR for guidance *select allowable Tail Length from table DESIGN NAVIGATOR SMART PN EXAMPLES • AMPMODU 2 mm, breakaway header, double row, 20 positions (2 x 10), vertical surface mount, tail length: N/A, tin, T&R with cap: 2MM-HB-D10-VS-00-T-TRP DESIGN NAVIGATOR Orientation & Termination Tail Length Packaging TB 01 0.087“ [2.2 mm] TBP TRP VT TB 02 0.110“ [2.8 mm] TBP TRP TRP VS 00 TBP TB 01 0.087“ [2.2 mm] TBP TRP HT TB 02 0.110“ [2.8 mm] TBP TRP INDUSTRIAL / AMPMODU 2 mm BREAKAWAY HEADERS PAGE 3 AMPMODU 2 mm BREAKAWAY HEADERS te.com © 2023 TE Connectivity. All Rights Reserved. AMPMODU, TE Connectivity, TE connectivity (logo) and EVERY CONNECTION COUNTS are trademarks owned or licensed by TE Connectivity. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. 08/23 VL INDUSTRIAL / AMPMODU 2 mm BREAKAWAY HEADERS
