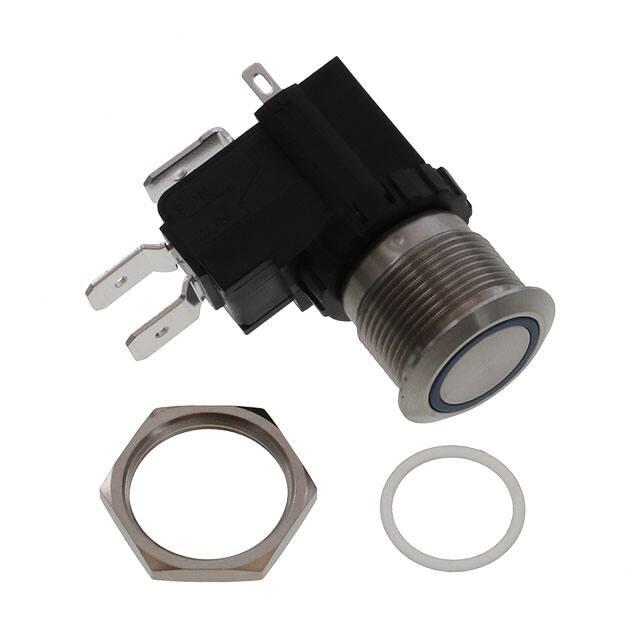

AVH Series –Anti-Vandal High Current Pushbutton Switches AVH Series –Anti-Vandal High Current Pushbutton Switches Applications • Machinery. • Automotive Electronics. • Strict Access Control Systems. • Shipping Equipment. • Medical Equipment. • Horticulture. • Bath Accessories. The AVH Series addresses high current applications. These high-quality Anti-Vandal switches are available in 19mm, 22mm and 25mm diameter bushings for a wide range of possible applications. In addition, AVH Series provide more options for operating, LED light types, light colors and LED voltages to fulfill the variety requirements. The AVH Switches are characterised by contact rating of 16A, 26A/ 125, 250VAC. Reference TE Customer Drawing for application instructions. Features • High current, 16A & 26A are available. • Flat Button Type. • • • • Momentary and Locking Actuation Available. Independent LED Control (7 color options). Bushing sizes, 19, 22 & 25mm are available. UL Recognized. s Document 2364568-0 Rev C Date: 10-FEB-2021 AVH Series – Type Classification Type AVH19 AVH22 AVH25 Bushing Size 19mm 22mm 25mm Actuation Momentary / Locking Rating 16A, 26A/ 125, 250VAC Contact Resistance Operation Temperature 50mΩ Max. -25°C to 85°C Mechanical Life 1,000,000 cycles, Momentary 500,000 cycles, Locking Electrical Life 50,000 cycles, 16A 10,000 cycles, 26A Sealing Silicone Operation Force 3.5±1.5N Travel 3.2mm Ingress Protection Pollution Degree Dimensions in millimetres [Inch] IP67, IK08 2, Marco and Micro Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help AVH Series –Anti-Vandal High Current Pushbutton Switches Bushings Types: 19mm Panel Cut-out 2.00 [.08] 15.6 [.61] Panel Thickness: 10.0mm [ .39] Maximum. 22mm Panel Cut-out 2.00 [.08] 17.30 [.68] Panel Thickness: 10.0mm [ .39] Maximum. 25mm Panel Cut-out 2.00 [.08] 17.30 [.68] Panel Thickness: 10.0mm [ .39] Maximum. Document 2364568-0 Rev C Date: 10-FEB-2021 Dimensions in millimetres [Inch] Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help AVH Series –Anti-Vandal High Current Pushbutton Switches LED Light Types: 19mm “O” Without LED “R” Ring, moving dia 15.5 [dia .61] dia 15.5 [dia .61] dia 13.0 [dia .51] dia 22.0 [dia .87] dia 22.0 [dia .87] “P” Power Symbol “E1” Ring + Power Symbol dia 15.5 [dia .61] dia 15.5 [dia .61] dia 13.0 [dia .51] dia 22.0 [dia .87] dia 22.0 [dia .87] Illuminated Power Symbol Illuminated Power Symbol 22mm “O” Without LED “R” Ring dia 17.75 [dia .70] dia 17.75 [dia .70] dia 25.00 [dia .98] “P” Power Symbol dia 25.00 [dia .98] dia 17.75 [dia .70] dia 25.00 [dia .98] Illuminated Power Symbol Document 2364568-0 Rev C Date: 10-FEB-2021 Dimensions in millimetres [Inch] Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help AVH Series –Anti-Vandal High Current Pushbutton Switches 25mm “O” Without LED “R” Ring “P” Power Symbol dia 19.80 [dia .78] dia 19.80 [dia .78] dia 19.80 [dia .78] dia 15.50 [dia .61] dia 15.50 [dia .61] dia 15.50 [dia .61] dia 28.00 [dia 1.10] dia 28.00 [dia 1.10] Ring dia 28.00 [dia 1.10] Illuminated ring Illuminated Power Symbol Terminal Types: “16” #187 terminal, 16A “26” #250 terminal, 26A dia 1.5 [dia .06] dia 1.5 [dia .06] 6.3 [.25] 4.8 [.19] 8.1 [.32] 6.5 [.26] 7.40 [.29] 6.2 [.24] 3.5 [.14] 3.5 [.14] 10.9 [.43] 11.7 [.46] Circuit Types: No LED LED Position 1 Document 2364568-0 Rev C Date: 10-FEB-2021 Position 1 Dimensions in millimetres [Inch] Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help AVH Series –Anti-Vandal High Current Pushbutton Switches Part numbering – How to order AVH - - - - F - - - - Series: AVH - 04 Compliance: 04 – RoHS Compliant Bushing Size: 19 – 19mm 22 – 22mm 25 – 25mm Rating: 16 – 16A 26 – 26A Contact: L – Locking M - Momentary LED Voltage: 0 – No LED 12 – 12V 24 – 24V Body Type: S – Stainless Steel (19mm) SS – Stainless Steel (22 & 25mm) Light Color: 0 – No LED 1 – White 3 – Red 5 – Yellow 6 – Green 7 – Blue A – Red & Green B – Red & Blue Button Type: Flat Light Type: O – No LED E – Ring, Moving P – Power Symbol E1 – Ring + Power Symbol -Example PN: AVH19MSFE3122604 Document 2364568-0 Rev C Date: 10-FEB-2021 Dimensions in millimetres [Inch] Dimensions Shown for reference purposes only. Specifications subject to change For Email, phone or live chat, go to: www.te.com/help
