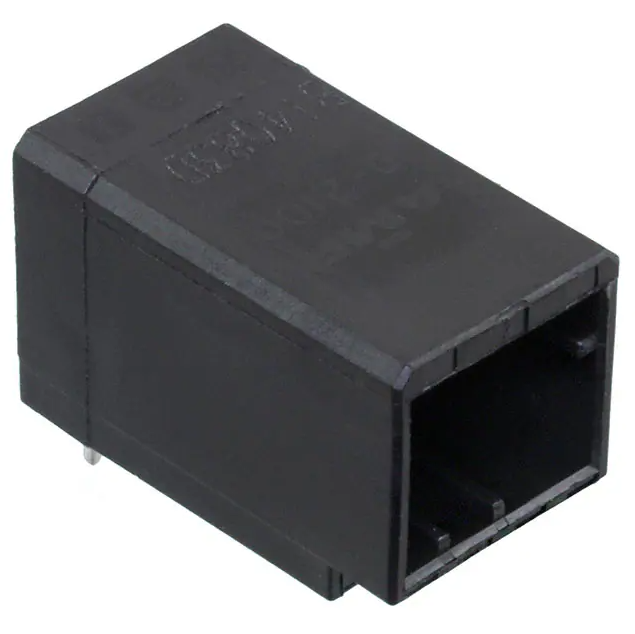

1376135-3

AMP Dynamic Series Connectors D-2000 Series (Wire-to-Board, Wire-to-Panel and Wire-to-Wire) List of Products by Application D-2000 Series connectors are the next smallest in Dynamic Series, yet they can meet requirements of connectors for most industrial applications. They can be used mainly for signal applications. Signal lines under 250 V are of 2.5 mm pitch, which can accept 18 AWG wires. (5 A max. per position) D-2000 Series have several unique characteristics such as center-lock method for effective use of PCB properties, contact-entrance method for low profile shapes, and others. D-2000 Series D-2100S Free-Hanging Type D-2100S Panel Type D-2100S 1-Row Type D-2100S Receptacle Housing D-2100S Board-Mounting Vertical Type D-2100D Free-Hanging Type D-2100D D-2100D Panel Type 2-Row Type D-2100D Receptacle Housing D-2100D Board-Mounting Vertical Type D-2100M Drawer Type Receptacle Housing Panel Mounting Screw Tab Housing Header Assembly Tab Assembly (with screw) Receptacle Assembly (with screw) Receptacle Assembly (with screw) 16 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) Performance Specifications Pitch Item 2.5mm 250 VAC Current Rating 1-position : 5A 3-position : 5A 6-position : 5A 8-position : 4.5A 12-position : 4A 20-position : 3.2A (when using #18 AWG wire) Contact Resistance 10 mΩ max. Dielectric Withstanding Voltage 1,500 V (1minute) Operating Temperature -55˚~+105˚C D-2000 Series Voltage Rating *When connectors are used singly. Material and Finish Description Material Finish Receptacle contact Tab contact Copper alloy Contact area 0.38 µm min. gold plating underplated nickel Tab post Copper alloy Contact area 0.38 µm min. gold plating — Contact tail tin plated underplated nickel Housing UL94V-0 rated glass filled polyester (PBT) 17 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) Performance Specifications (Continued) D-2000 Series Specifications and Instruction Sheet Specifications and Instruction Sheet Product Specification Testing Report Application Specification Instruction Sheet-Extraction Tool Instruction SheetHand Tools 108-5619, 108-5659 (Drawer Type) 501-5261 114-5258 411-5900 Instruction Sheet-Manual Tool Tool Part No. IS No. 408-8547 408-8547 91576-1 91595-1 *Remember to obtain Instruction Sheets when you choose to use these tools. Extraction Tool Part Number: 1276716-1 (411-5900) Keying Plug Part Number: 641994-1 Tab Contact Cutting Tool Part Number: 919041-2 Safety Specifications The safety specifications listed below are approved on specific part numbers. Contact our Sales Department to check if the part numbers you use are approved or not. Keep in mind that there are instances where values differ from those given by Tyco Electronics Specifications. D-2100 Series Series Specifications Specifications 108-5619 (Standard) 108-5659 (Drawer Type) UL File No. E28476 D-2100M Drawer Type Voltage Rating Current Rating Temperature Rating Voltage Rating Current Rating 250 V 5A (1 position) -55° to +105˚C 250 V 2.6A with #20 AWG 50 position Determined by Determined by requirements requirements of equipment in use. of equipment in use. — CSA Report No. LR7189 250 V #24~28 AWG : 3.3A #18~22 AWG : 5A — TÜV License No. R 9950679 125 V 5A -55° to +105˚C ( Temperature Rating ) -55° to +105˚C 18 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2 Contact and Application Tooling Crimp Type (Gold plating : 0.38 µm) Wire Range Wire Wire Ins. Range AWG mm2 Diameter Mark 28 0.08 26 0.12 24 0.20 22 0.30 20 0.50 1.11~1.87 18 0.85 0.88~1.5 Tab Contact (Used on Tab Housing) Contact Part Number* Receptacle Contact D-2000 Series Receptacle Contact (Used on Receptacle Housing) Application Tooling Part Number Tab Contact Mini-Applicator** Hand Tool ST. 1318106-1 1318110-1 ** — LP. 1318108-1 1318112-1 ** 91576-1 ST. 1318105-1 1318109-1 ** — LP. 1318107-1 1318111-1 ** 91595-1 S M Form contacts are for use with Mini-Applicators (automachines) and Loose-Piece contacts are for Hand Tools. * Strip **Mini-Applicators are for use with automachines. (For part numbers, contact Technical Support.) Application Tooling Hand Tool AMP-3K/40 and AMP-5K/40 Terminating Machines The crimping section incorporates Straight Action construction for improved reliability as with automachine. The AMP-3K/40 and AMP-5K/40 Terminators are designed for customers that require the increased output and quality of a semiautomatic machine at a competitive price. By incorporating the most commonly requested features as standard and offering a long list of optional equipment, these terminators offer flexibility to meet the specific needs of various applications at the lowest possible cost. Part No. : See the chart above. Minimum order quantity : 1 • 3,000 lb. [1361 kg] max. crimp force (AMP-3K/40) 5,000 lb. [2268 kg] max. crimp force (AMP-5K/40) • Toolless removal of applicators and guards • Jog capability • Quiet, fast operation — 80/76 dBA and cycle time less than 0.400 seconds • Accepts Heavy Duty Mini style applicators • Wide range of optional equipment such as toolless precision crimp height adjust, batch counter, CQM capability and work light • Order Catalog 1654856 for specifications and part numbers Mini-Applicator Part Number : Contact Technical Support Minimum order quantity : 1 19 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) Appearance Board mounting pitch: 2.5mm D-2100S Dielectric Withstanding Voltage: 1,500V (for one minute) Voltage Rating: 250 VAC Receptacle Housing D-2000 Series Tab Housing (Panel Type) Receptacle Housing Board-mounting Tab Header (Horizontal Type) Tab Housing (Free-hanging Type) Receptacle Housing Receptacle Housing Receptacle Housing Tab Housing (Panel Type) Receptacle Contact X Y X Board-mounting Tab Header (Free-hanging Type) (Horizontal Type) (Vertical Type) Tab Contact······For each line of contacts, refer to the appropriate pages. No. of Keying Receptacle Housing Pos. 3 Board-mounting Tab Header (Vertical Type) 1-1318120-3 2-1318120-3 1-1473074-3* Tab Housing Free-hanging Type Panel Type 1-1318117-3 1-1318116-3 2-1318116-3 2-1318117-3 — — Board-mounting Tab Header Horizontal Type Vertical Type 1376135-1 1318123-1 1376135-2 — 1318123-2 — *Drawer Type 20 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100S (Continued) Keying Keying is provided with this product (D-2100S) for use in helping prevent misinsertion. Keying Sign X Y Key Rib D-2000 Series Keying Sign Key Rib X-Type Y-Type 21 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100S (Continued) Mating Dimensions 23.8 37.8 17.69 30.69 24.3 Panel / Free-hanging Type Horizontal Type Vertical Type 2.5 3 Receptacle Housing Mating Tab Connector Part Number: ❏-1318116-❏ ❏-1318117-❏ ❏-1318123-❏ ❏-1376135-❏ 2 External Dimensions 1 D-2000 Series 17.19 B 12.03 20 D–2 Part Number of Receptacle Housing 3 ❏-1318120-3 1-1473074-3* Dimensions A 8.3 — 12.89 No. of Pos. B 8.9 11.8 A ❏ is for the following key codes: 1- (X-Type), 2- (Y-Type) *Drawer Type Drawer Type A Tab Housing 6.8 7.5 A 7.5 Circuit #1 2 1 3 2 1 30.69 30.69 3 Circuit #1 Mating Receptacle Housing Part Number: ❏-1318120-❏ 1-1473074-3 12 Panel Type 1 4.75 C C 9.45 9.45 6.6 F D±0.05 Free-Hanging Type 1.5 1.5 2.5 N=B 6.9 9.75±0.05 6.95 2.5 N=B 6.95 E±0.05 Panel Cutout No. of Pos. 3 22 Part Number of Tab Housing Panel Type Free-hanging Type ❏-1318116-3 **Applies only for panel type. Catalog 1242132 Revised 5-07 www.tycoelectronics.com ❏-1318117-3 A 10.2 Dimensions C D** 4 10.5 B 5 E** 16.5 F** 16.38 ❏ is for the following key codes: 1- (X-Type), 2- (Y-Type) Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100S (Continued) B Board-mounting Tab Header (Vertical Type) N=A±0.05 2.5 2.6 2.5±0.05 3.12 9.45 3–ø0.8±0.05 9.45 Mating Receptacle Housing Part Number: ❏-1318120-❏ 1-1473074-3 3.75±0.05 2.5 D-2000 Series A 2–ø2±0.05 B ROUND 2–ø3MIN Header Outline A±0.05 PC Board Layout 17.79 Acceptable Board Thickness : 1.6±0.3 D/C 3 No. of Pos. Part Number 3 1318123-❏ Board-mounting Tab Header (Horizontal Type) B 10.2 3.5±0.4 1 3.4±0.3 Circuit # Dimensions A 5 2 ❏ is for the following key codes: -1 (X-Type), -2 (Y-Type) Circuit # Mating Receptacle Housing Part Number: ❏-1318120-❏ 1-1473074-3 Header Outline ROUND 2–ø3MIN PC Board Layout Acceptable Board Thickness : 1.6±0.3 No. of Pos. Part Number 3 1376135-❏ Dimensions A 5 B 10.2 ❏ is for the following key codes: -1 (X-Type), -2 (Y-Type) 23 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100D Appearance Board mounting pitch: 2.5mm Dielectric Withstanding Voltage: 1,500V (for one minute) Voltage Rating: 250 VAC Receptacle Housing D-2000 Series Tab Housing (Panel Type) Receptacle Housing Board-mounting Tab Header (Horizontal Type) Tab Housing (Free-hanging Type) Receptacle Housing Receptacle Housing Receptacle Housing Tab Housing (Panel Type) Receptacle Contact 8 12 16 20 X Y X 1-1318119-3 2-1318119-3 1-1318119-4 Y X 2-1318119-4 1-1318118-6 2-1318118-6 3-1318118-6 Y Z X Y X Y Board-mounting Tab Header (Free-hanging Type) (Horizontal Type) (Vertical Type) Tab Contact······For each line of contacts, refer to the appropriate pages. Part Number of No. of Keying Receptacle Housing Pos. 6 Board-mounting Tab Header (Vertical Type) Part Number of Tab Housing Panel Type Free-hanging Type 1-1318114-3 1-1318115-3 2-1318114-3 2-1318115-3 1-1318114-4 1-1318115-4 2-1318114-4 1-1318114-6 1-1318118-8 2-1318118-8 2-1318114-6 — — — 1-1318118-9 2-1318118-9 1-1318114-9 2-1318114-9 2-1318115-4 1-1318115-6 2-1318115-6 — — — 1-1318115-9 2-1318115-9 Part Number of Board-mounting Tab Header Vertical Type Horizontal Type 1318124-1 1376136-1 1318124-2 1376136-2 1318125-1 1376009-1 1318125-2 1376009-2 1318126-1 1376020-1 1318126-2 1376020-2 1318126-3 — 1747994-1 — 1747994-2 — 1318127-1 1376137-1 1318127-2 1376137-2 24 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100D (Continued) Keying Keying is provided with this product (D-2100D) for use in helping prevent misinsertion. Keying Sign X Y Key Rib D-2000 Series Keying Sign Key Rib X-Type Y-Type 25 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100D (Continued) 37.8 Mating Dimensions 27.3 30.69 20.19 24.9 A A Horizontal Type Receptacle Housing 2.5 6 1 2 3 4 Dimensions B C 15.8 15.8 14.8 14.8 14.8 12.89 10.5 11.25 9.45 5 4 3 2 1 30.69 30.69 B A 6 B 11.25 A Circuit #1 A 9.45 A 6 5 4 3 2 1 Mating Receptacle Housing Part Number: ❏-1318119-❏ ❏-1318118-❏ A A Circuit #1 A 20 B 08.9 11.4 16.4 21.4 26.4 D-2 A 08.3 10.8 15.8 20.8 25.8 1- (X-Type), 2- (Y-Type), 3- (Z-Type - Only 12 position) Housing 5 C B B ❏ is for the following key codes: ■ Tab 4 ❏-1318119-3 ❏-1318119-4 ❏-1318118-6 ❏-1318118-8 ❏-1318118-9 3 6 8 12 16 20 2 2.5 Mating Tab Connector Part Number: ❏-1318114-❏ ❏-1376136-❏ ❏-1318115-❏ ❏-1376009-❏ ❏-1318124-❏ ❏-1376020-❏ ❏-1318125-❏ ❏-1376137-❏ ❏-1318126-❏ ❏-1747994-❏ ❏-1318127-❏ Part Number of Receptacle Housing Vertical Type 1 D-2000 Series Panel / Free-hanging Type No. of Pos. B A External Dimensions 17.79 B B 12 Panel Type 4.75 1 B B 13.2 13.2 E 8.6 C±0.05 1.5 Free-Hanging Type 1.5 X 13.5±0.05 10.7 8.9±0.05 X 10.7 D±0.05 Panel Cutout No. of Pos. 6 8 12 20 Dimensions Part Number of Tab Housing Panel Type ❏-1318114-3 Free-hanging Type ❏-1318115-3 ❏-1318114-4 ❏-1318114-6 ❏-1318114-9 ❏-1318115-4 ❏-1318115-6 ❏-1318115-9 ** A B C** 10.2 12.7 17.7 27.7 04.0* 04.0* 11.5* 11.5* 10.5 13.0 18.0 28.0 D** 16.5 19.0 24.0 34.0 E** 16.38 18.88 23.88 33.88 * Applies only for panel type. The dimension “B” for panel type is 6.0mm. ❏ is for the following key codes: 1- (X-Type), 2- (Y-Type) 26 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100D (Continued) B N=A±0.05 2.5 Board-mounting Tab Header (Vertical Type) 3.12REF 2.6 REF 12-ø0.8±0.05 2.5±0.05 13.2REF 3.75±0.05 2-ø2±0.05 2.5 A Round 2-ø3MIN B D-2000 Series Mating Receptacle Housing Part Number: ❏-1318119-❏ ❏-1318118-❏ 10.7 13.2 3.75±0.05 Header Outline A±0.05 PC Board Layout 17.79 Acceptable Board Thickness : 1.6±0.3 D/C 3.5±0.4 3.4±0.3 A B 6 5 4 3 2 1 Circuit # No. of Pos. Part Number 6 8 12 16 20 1318124-❏ 1318125-❏ 1318126-❏ 1747994-❏ 1318127-❏ Dimensions A 5.0 7.5 12.5 17.5 22.5 B 10.2 12.7 17.7 22.7 27.7 ❏ is for the following key codes: -1 (X-type), -2 (Y-Type) 6 pos. Board-mounting Tab Header (Horizontal Type) B ±0.05 5 2.6 6-ø0.8±0.05 Circuit # 0.75 ±0.05 2.5 6 5 4 3 2 1 Mating Receptacle Housing Part Number: ❏-1318119-❏ ❏-1318118-❏ ±0.05 2.5 ±0.05 10 20.19 ±0.05 6.94 Header Outline 1-ø3±0.05 ±0.05 2.5 Round 1-ø4MIN 20.19 B 2.5 8~20 pos. B Row # N-ø0.8±0.05 ±0.05 2.5 A ±0.05 ±0.05 2.5 B 13.2 14.7 10.7 0.75 2.6 A ±0.4 3.4 ±0.05 10 20.19 10 ±0.4 3.34 2.5 No. of Pos. Part Number 6 8 12 20 1376136-❏ 1376009-❏ 1376020-❏ 1376137-❏ Dimensions A B — 10.2 07.5 12.7 12.5 17.7 22.5 27.7 ±0.05 6.94 Header Outline A 2-ø3±0.05 Round 2-ø4MIN PC Board Layout Acceptable Board Thickness :1.6±0.3 ❏ is for the following key codes: -1 (X-type), -2 (Y-Type) 27 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100M Drawer Type Appearance Board mounting pitch : 2.5mm Dielectric Withstanding Voltage : 2.3kV (wire-to-wire type), 1.5kV (wire-to-board type) Current rating : 2.6A (with 20 AWG, 50 pos.) Application 1 Receptacle Housing Panel Mounting Screw Suitable for an application where the receptacle side is drawerable and the tab side is fixed. D-2000 Series *The receptacle housing is fixed on the panel with fixed screws. Part Number 1318577-1 1900167-1 1318579-1 Receptacle Housing (50 Pos.) Panel Mounting Screw Header Assembly (50 Pos.) Header Assembly Panel Mounting Screw Application 2 Tab Housing Receptacle Assembly (with screw) (50 Pos.) Panel Mounting Screw Tab Housing (50 Pos.) Receptacle Assembly (with screw) Application 3 The tab housing is fixed on the panel. The receptacle assembly is mated by turnable jackscrews. Can be used as a wire-to-wire connector with a panel or a bulkhead. Tab Assembly (with screw) Part Number 1376072-2 1376059-1 1318578-2 Can be used as a wire-to-wire connector. The tab and receptacle assemblies are mated with two jackscrews on both sides. Receptacle Assembly (with screw) (50 Pos.) Tab Assembly (with screw) (50 Pos.) Part Number 1376072-2 1376073-2 Receptacle Assembly (with screw) Product Specification: 108-5659 28 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100M Drawer Type 38~39 (Continued) Mating Dimensions D-2000 Series Panel/Free-Hanging Type Drawer Type External Dimensions Receptacle Housing Mating Header Assembly Part Number: 1318579-1 Panel Cutout No. of Pos. 50 Part Number 1318577-1 Note: When mounting panel from the front, apply clamping torque of less than 49N [11 lbf]. Tab Housing Mating Receptacle Assembly Part Number: 1376072-2 Panel Cutout Note: When mounting panel from the front, apply clamping torque of less than 49N [11 lbf]. Row # No. of Pos. 50 Part Number 1318578-2 29 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100M Drawer Type (Continued) Board-Mount Tab Header (Horizontal Type) ROUND 3–ø4MIN D-2000 Series Mating Receptacle Housing Part Number: 1318557-1 Header Outline Circuit Number PC Board Layout Applicable Board Thickness : 1.6+0.4 Row Number No. of Pos. 50 Part Number 1318579-1 Panel Mounting Screw Panel Mounting Screw Part Number 900167-1 Part Number 1376059-1 5.6 30 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2100M Screw Lock Type Receptacle Assembly (with screw) D-2000 Series Mating Tab Assembly Part Number: 1318578-2 1376073-2 Screw Housing No. of Pos. 50 Part Number 1376072-2 Tab Assembly (with screw) Mating Receptacle Assembly Part Number: 1376072-2 Housing Screw No. of Pos. 50 Part Number 1376073-2 31 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2000 Series D-2600 Series applicators are not needed, eliminating the need for new equipment costs. Low mating force and mating/ unmating and contact reliability continue to be superior to provide easy handling. Power lines (15A*/contact) and signal lines (5A*/contact) with different size contacts are combined in the Dynamic 2600 Series. Along with being able to mate different size wires at one time, it contributes to more compact sizes and fewer assembly steps, and it also makes maintenance more efficient. On top of that, the contact has complete compatibility with the Dynamic D-2000 and D-3000 Series so new components and Performance Characteristics Material and Finish Technical Documents Pitch — D-2: 2.5 mm / -3: 3.81 mm Voltage Rating — 250 VAC Current Rating — D-2: 3.2 A; D-3: 7.5 A Contact Resistance — 10 mΩ Max. Dielectric Withstanding Voltage — 1500 V 1 minute Operating Temperature — -55°C to +105°C Receptacle Contact — Copper alloy, gold plated over 1.27 µm nickel underplate PCB Tab Post — Copper alloy, 0.38 µm gold plated over 1.27 µm nickel underplate, Tab post tin plated Housing — Glass Filled Polyester (PBT), UL 94V-0 Product Specification 108-78301 Application Specification 114-5258 114-5148 D-2600 Series Connectors combine power and signal lines, which can dramatically improve productivity by reducing assembly steps. *The current ratings noted above are for 1 contact. The current rating is derated depending on the number of contacts. *When connectors are used singly. D-2 Contact (Refer to page 19) D-3 Contact (Refer to page 38) 32 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208 AMP Dynamic Series Connectors D-2000 Series (Continued) D-2600 Series (Continued) Mating Dimensions D-2000 Series Vertical Type Dimensions Receptacle Housing No. of Pos. Part Number 48 1827540-1 Dimensions A 58.65 B 51.0 Board Mount Tab Header (Vertical Type) PC Board Layout Acceptable Board Thickness : 1.0~1.6±0.1 No. of Pos. Part Number 48 1827538-1 Dimensions A 055.91 B 48.26 C 42.50 33 Catalog 1242132 Revised 5-07 www.tycoelectronics.com Dimensions are in millimeters unless otherwise specified. Dimensions are shown for reference purposes only. Specifications subject to change. USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-1106-0803 South America: 55-11-2103-6000 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-8706-080-208
