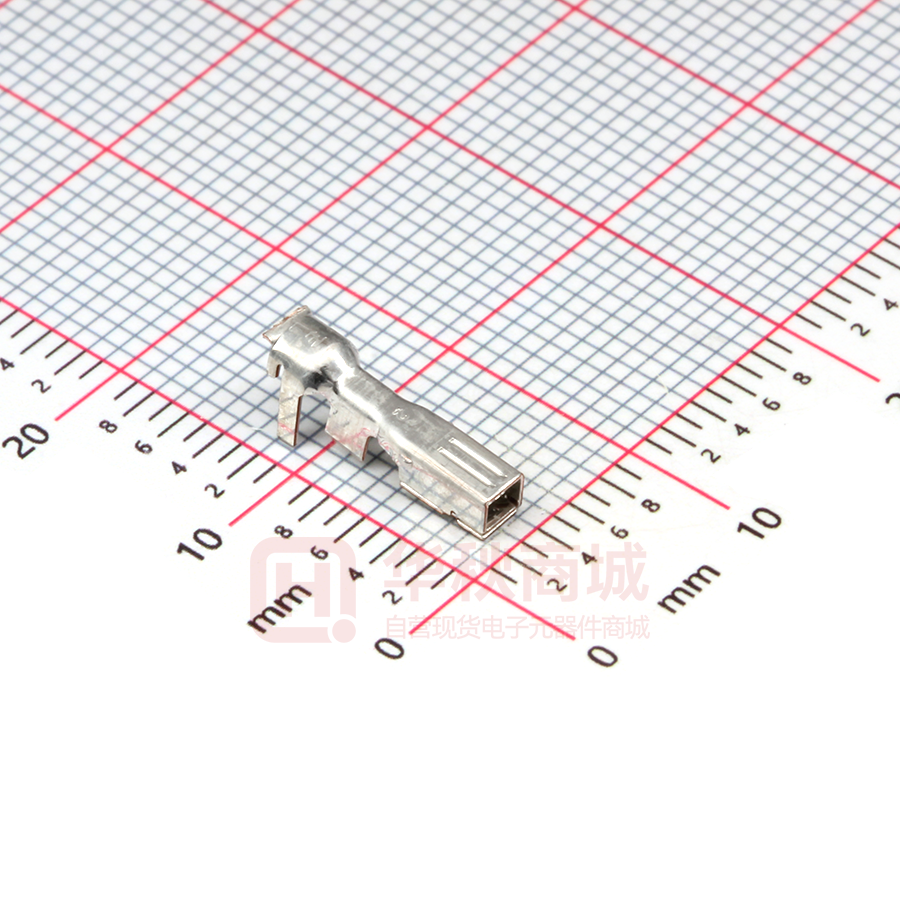

1376347-1

Introducing 6.0 mm GRACE INERTIA CONNECTOR 2 and 3 Positions, Wire-to-Board APPLIANCES /// GRACE INERTIA 6.0 mm GRACE INERTIA 2 and 3 Positions, Wire-to-Board TE Connectivity (TE)’s new GRACE INERTIA connector brings its error-proofing, locking design to 10A wire-to-board connections in 2 and 3 position configurations in a space-saving 6.0 mm centerline pitch. GRACE INERTIA connectors are designed to prevent contact between receptacle contacts and header contacts when improper mating is attempted. Additionally, the design employs inertia force that assists in mating the Key Features • 6.0 mm centerline pitch • Mating protection • Inertia lock design • Positive latching • Inner lock connector, preventing half mating. The 6.0 mm pitch delivers medium • Lock on mechanism power connections in a more compact design. • Keying function Electrical • Voltage Rating: 300 VAC or VDC Benefits • Current Rating: Up to 10 amps maximum • Compact pitch reduces overall connector size, saving valuable space on the printed circuit board Mechanical • 2 and 3 positions, wire-to-board • Centerline pitch: 6.0 mm (.236 in) • Wire Gauge: 24-16 AWG [.22-1.25 mm2] Materials • Housing: 6/6 nylon (glass filled) rated UL 94 V-0 • Contacts: Tin plated copper alloy • Operating temperature: -40°C to 105°C Standards • UL recognized, File No. E28476 Specifications • Product specification: 108-106193 • Application specification: 114-5292 Applications • Connector design prevents contact between receptacle contacts and header contacts prior to proper mating • No half-mating. Design drives mating halves together when spring latch inertia is overcome by the assembler • There is an audible “click” that signals when mating is complete, and plug and header are latched together • Appliances • Air conditioners • Refrigerators • Washing machines • Industrial equipment • Control cabinets • Industrial machinery • HVAC systems APPLIANCES /// GRACE INERTIA PAGE 2 6.0 mm GRACE INERTIA Mid-range power wire-to-board connections • Compact size saves space on PC board • Design prevents contact between receptacle contacts and header contacts prior to proper mating • Inertia locking mechanism drives housings together to help ensure full mating • Creates an audible “click” that assures mating • Latch securely locks mated halves together Product Offering Housing Product Image Type Style Flammability Part Number Plug Housing 2 position UL 94 V-O 2-2232875-1 Plug Housing 3 position UL 94 V-O 3-2232875-1 Note: Part numbers shown are for keying style A. Three other keying options are offered. See customer drawing for details. Header Product Image Type Style Flammability Part Number Vertical Header 2 position UL 94 V-O 2-2232876-1 Vertical Header 3 position UL 94 V-O 3-2232876-1 Note: Part numbers shown are for keying style A. Three other keying options are offered. See customer drawing for details. Receptacle Contact Product Image Type Wire Gauge Part Number Hand Tool Applicator Receptacle 24-20 AWG [.22 -.53 mm2] 1376348-1 1762773-1 1463049-2 Receptacle 20-16 AWG [.51 -1.25 mm2] 1376347-1 1729064-1 1366703-2 APPLIANCES /// GRACE INERTIA PAGE 3 TE Connectivity Technical Support Center USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 te.com © 2016 TE Connectivity Ltd. family of companies. All Rights Reserved. 1-1773873-1 APP CS 1/2016 TE Connectivity, the TE connectivity (logo) and GRACE INERTIA are trademarks of the TE Connectivity Ltd. family of companies.. While TE has made every reasonable effort to ensure the accuracy of the information in this document, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES REGARDING THE INFORMATION CONTAINED HEREIN, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. In no event will TE be liable for any direct, indirect, incidental, special or consequential damages arising from or related to recipient’s use of the information. It is the sole responsibility of the recipient of this information to verify the results of this information using their engineering and product environment, Recipient assumes and all risks associated with the use of the information. The dimensions in this document are for reference purposes only and are subject to change without notice. All specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. APPLIANCES /// GRACE INERTIA
