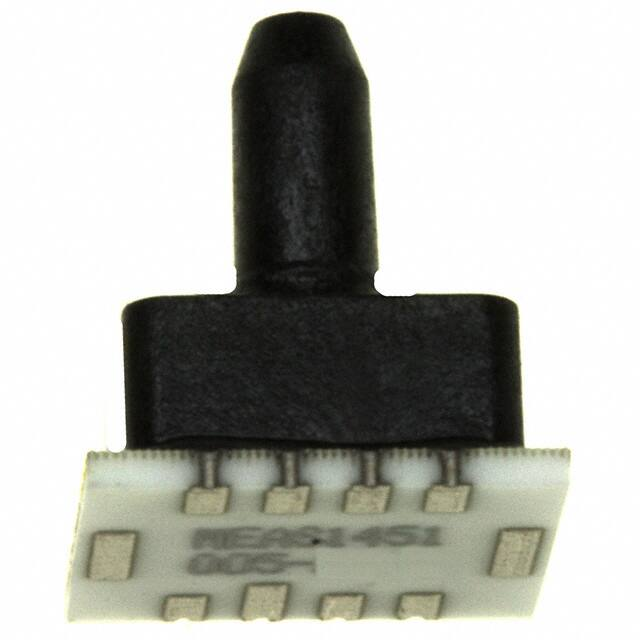

MS1451 SPECIFICATIONS     PC Board Mountable Pressure Sensor 0-60 mV Output Gage and Absolute Low Cost The MS1451 is a piezoresistive silicon pressure sensor packaged in a surface mount configuration. It is intended for high volume applications where small size, light weight, low cost, and compatibility with automated assembly equipment are required. The pressure sensor is available with a gage or absolute pressure sensing chip that is attached to a surface mountable ceramic substrate. A plastic cap is attached to the ceramic substrate, protecting the chip and providing the pressure port. The devices are shipped in plastic anti-static shipping tubes for use with automated production equipment. The drawing shows a standard tube version. Ports are also available with a narrow hole or a large hole to interface with the pressure media. SENSOR SOLUTIONS ///MS1451 08/2017 Page 1 MS1451 FEATURES Surface Mount Package ±0.25% Pressure Non Linearity 3 Pressure Port Options Solid State Reliability Low Power APPLICATIONS Altitude Measurement Barometric Pressure Medical Instrumentation Consumer Appliances STANDARD RANGES Range 0 to 5 0 to 15 0 to 30 0 to 50 0 to 100 0 to 250 0 to 500 psia W, N, T W, N, T W, N, T W, N, T W, N W, N psig W, N, T W, N, T W, N, T W, N, T W, N, T Port Options: W = Wide Hole (Gel Fill option available), N = Narrow Hole, T = Tube SENSOR SOLUTIONS ///MS1451 09/2017 Page 2 MS1451 PERFORMANCE SPECIFICATIONS Supply Voltage: 3 Vdc Ambient Temperature: 25°C (unless otherwise specified) PARAMETERS MIN TYP MAX UNITS NOTES Span 30 60 120 mV 1 Zero Pressure Output -25 25 mV Pressure Non Linearity -0.25 0.25 %Span Pressure Hysteresis -0.1 0.1 %Span Input & Output Resistance 3500 5000 6000 2 Ω Temperature Coefficient – Span -0.13 %/°C 3 Temperature Coefficient – Zero 0.05 %/°C 3 Temperature Coefficient – Resistance 0.15 %/°C 3 0.2 %Span 3 12.0 Vdc Thermal Hysteresis – Zero -0.2 Supply Voltage 3.0 Response Time (10% to 90%) 1.0 mS Output Noise (10Hz to 1kHz) 1.0 µV p-p Long Term Stability (Offset & Span) 0.5 %Span 5 6 Pressure Overload 3X Rated Operating Temperature -40 +125 °C Storage Temperature -50 +150 °C 0.3 grams Weight Soldering Temperature Media 250°C Max 5 Sec. Non-Corrosive Dry Gases Compatible with Silicon, Pyrex, RTV, Gold, LCP (Liquid Crystal Polymer), and Aluminum 4 7 Notes 1. Ratiometric to supply voltage. 2. Best fit straight line. 3. Over the temperature range 0-50°C with respect to 25°C. 4. For a zero-to-full scale pressure step change. 5. Long term stability over a one year period with constant voltage and temperature. 6. For sensors above 100 psi, the entire sensor is required to be inside the pressure chamber. 7. For mounting instructions, please refer to the application note “Mounting Instructions for SMT Pressure Sensors.” SENSOR SOLUTIONS ///MS1451 09/2017 Page 3 MS1451 DIMENSIONS CONNECTIONS SENSOR SOLUTIONS ///MS1451 09/2017 Page 4 MS1451 ORDERING INFORMATION ― 1451 015 A ― T F Model Name Pressure Range 005 015 030 050 100 250 500 Pressure Type A=Absolute G=Gage Pressure Port T=Tube W=Wide hole N=Narrow hole Coating F=Gel Fill 'Blank'=No Fill NORTH AMERICA EUROPE ASIA Measurement Specialties, Inc., a TE Connectivity company Tel: 800-522-6752 Email: customercare.frmt@te.com Measurement Specialties (Europe), Ltd., a TE Connectivity Company Tel: 800-440-5100 Email: customercare.bevx@te.com Measurement Specialties (China) Ltd., a TE Connectivity company Tel: 0400-820-6015 Email: customercare.shzn@te.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2015 TE Connectivity Ltd. family of companies SENSOR SOLUTIONS ///MS1451 All Rights Reserved. 09/2017 Page 5
