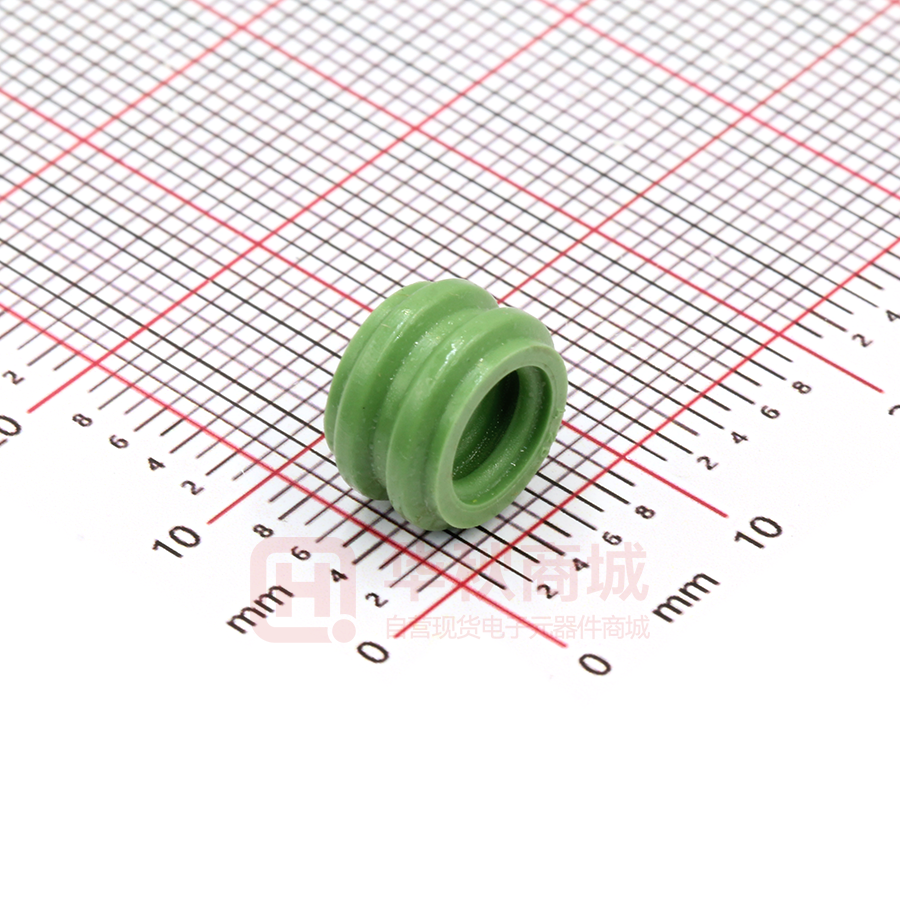

1587530-2

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 2 3 20 RELEASED FOR PUBLICATION BY TYCO ELECTRONICS CORPORATION. LOC HV ALL RIGHTS RESERVED. 1 REVISIONS DIST 00 P DESCRIPTION LTR A A1 D DATE DWN APVD ECO-07-029018 / ECR-07-029589 11DEC2007 DS AT ECO-20-008652 22JUN2020 CN AC D 1. MATERIAL: TYPE: INHERENTLY LUBRICATED SILICONE COLOR: SEE CHART DUROMETER: SEE CHART ( n9.75 ) 2. PART DIMENSIONS SHOWN ARE IN FREE STATE CONDITION 3. FEATURES DENOTED BY REFERENCE DIMENSIONS MUST BE INSPECTED FOR PRESENCE C C 4. PART MUST BE FREE OF EXCESSIVE FLASH, MIS-MATCH, STAINS, SCORES, SINK MARKS, OR OTHER VISUAL IMPERFECTIONS THAT MAY AFFECT PRODUCT FIT OR FUNCTION (6) 5 REMOVED ( nC) B B SECTION A-A BLUE 30 3.60 CABLE SEAL, HVA 1587530-3 GREEN 50 5.20 CABLE SEAL, SIZE C-D, HVA 1587530-2 YELLOW 30 4.30 CABLE SEAL, SIZE A-B, HVA 1587530-1 COLOR DUROMETER THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION IT IS SUBJECT TO CHANGE AND THE CONTROLLING ENGINEERING ORGANIZATION SHOULD BE CONTACTED FOR THE LATEST REVISION. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: mm A MATERIAL 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES NOTED FINISH 0.5 0.13 0.013 0.0001 - - DESCRIPTION DWN 26JAN2007 CHK 11DEC2007 D SIMPSON A TYLER J BOLEWITZ Harrisburg, PA 17105-3608 NAME PRODUCT SPEC - APPLICATION SPEC - WEIGHT SIZE - CUSTOMER DRAWING AMP 1470-19 REV 31MAR2000 Tyco Electronics - APVD PART NO CAGE CODE A3 00779 CABLE SEAL, HVA HVA TERMINATION A DRAWING NO 1587530 SCALE 4:1 RESTRICTED TO SHEET 1 OF 1 REV A1 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: TE Connectivity: 1587530-2
