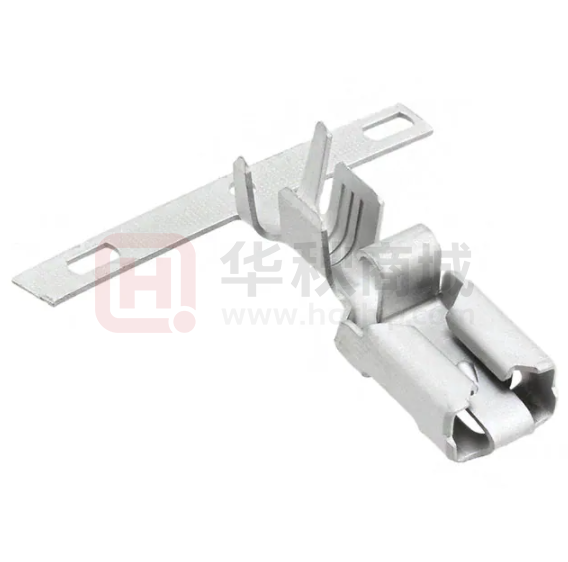

170234-2

| | | Search Products Documentation Resources My Account Home > Products > By Type > Product Feature Selector Customer Support > Product Details 170234 - 2 Product Details Quick Links Positive Lock Connectors Always EU RoHS/ELV Compliant 170234 ( Statement of Compliance ) Product Highlights: ? Receptacle ? Tab Fit = 6.35 x 0.81 mm ? Line = Mark I ? Receptacle Style = Straight ? Wire Range = 3.00 - 6.00 ² [ 12 - 10] mm [AWG] View all Features | Find Similar Products -2 Active Check Pricing & Availability Search for Tooling Product Feature Selector Contact Us About This Product Documentation & Additional Information Product Drawings: ? 250 POSITIVE LOCK RECEPTACLE (TIF, Japanese) Additional Information: ? Product Line Information Catalog Pages/Data Sheets: ? None Available Related Products: ? Tooling Product Specifications: ? 1- Position, Positive Lock Connector (PDF, English) ? JAPANESEE (PDF, English) ? 1 POSITION POSITIVE LOCK CONNECTOR (PDF, English) ? No title (PDF, English) Application Specifications: ? Crimping of Positive Lock Receptacle Contact (PDF, English) Instruction Sheets: ? None Available CAD Files: ( CAD Format & Compression Information ? 2D Drawing (DXF, Version E) ? 3D Model (IGES, Version E) ? 3D Model (STEP, Version E) ) List all Documents Product Features (Please use the Product Drawing for all design activity) Product Type Features: ? Product Type = Receptacle ? Tab Fit (mm [in]) = 6.35 x 0.81 [.250 x .032] ? Receptacle Style = Straight ? Insulation Diameter (mm [in]) = 3.78 - 4.90 [.149 - .192] ? Material = Brass ? Finish = Tin ? Keyed = No Body Related Features: ? Wire Range (mm [AWG]) = 3.00 - 6.00 ² [ 12 - 10] ? Position Keyed = None ? Stock Thickness (mm [in]) = 0.38 [0.015] Provide Website Feedback Industry Standards: ? RoHS/ELV Compliance = RoHS compliant, ELV compliant ? Lead Free Solder Processes = Not relevant for lead free process ? RoHS/ELV Compliance History = Always was RoHS compliant Packaging Related Features: ? Packaging Method = Strip Other: ? Line = Mark I ? Brand = AMP | Contact Customer Support Home | Customer Support | Suppliers | Site Map | Privacy Policy © 2008 Tyco Electronics Corporation All Rights Reserved | Browser Support
