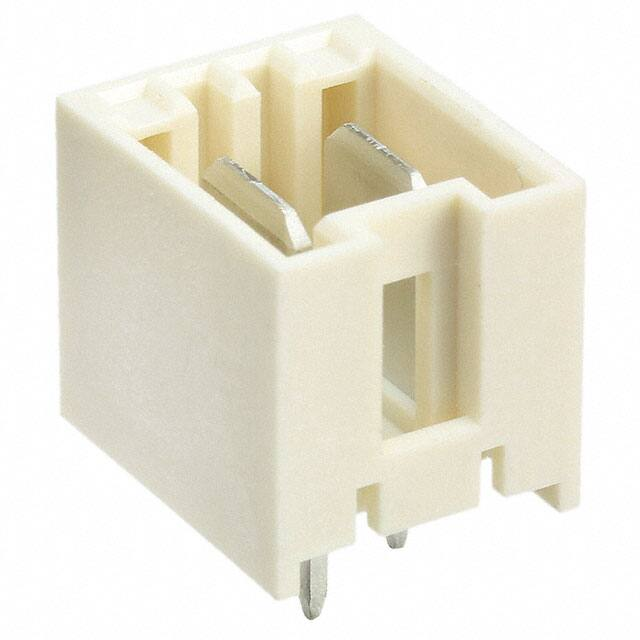

2-1971845-2

厂商：
HUMIREL(泰科)
封装：
-
描述：
CONN HEADER VERT 2POS 5MM

数据手册：

下载2-1971845-2.pdf

立即购买

详情介绍
数据手册
价格&库存

2-1971845-2 数据手册

Introducing PCB Connector that Meets RAST 5 Standard PCB Connector that Meets RAST 5 Standard with Vertical Through Hole Technology, available with tin or silver plating, external locking. KEY FEATURES ELECTRICAL • Designed to the RAST 5 Standard • Rated Current: 10A for Tin plated version; 16A for Silver plated version • Tin / Silver plating • Rated Voltage: 250V AC • 2-8 positions • Insulation Resistance: 5000M Ω • Available in multiple colors • Dielectric Strength: 3000V/m • 3 footprint layouts • Thousands of configurations of keying & latching & polarization • UL/VDE/CQC approval MATERIALS • Meets UL 94 V0 & GWT 750°C w/o flame • Housing: Meets Thermoplastic UL 94 V0 and IEC 60335-1 • Contact: Copper Alloy, Tin or Silver plating over Nickel APPLICATIONS • Front-loading washing machine STANDARDS AND SPECIFICATIONS • Dishwasher • Microwave oven • Refrigerator • According to RAST 5 Specification • Product Specification: 108-106080 te.com/products/RAST5t © 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. All Rights Reserved. TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or 7-1773465-5 CS 11/2012 company names might be trademarks of their respective owners. USA: 1-800-522-6752 Canada: +1-905-475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 TE Connectivity RAST 5 Tab Header Part Number Ordering: Example for X-1971845-Y PRODUCT OFFERING -3 Substitute dash number listed for “Y”, therefore a -3 signifies PN 1971845-3. 1- -3 Substitue first number for “X” and second number listed for “Y”, therefore a 1- -3 signifies PN 1-1971845-3. * Follow same numbering scheme throughout for other part numbers listed. External Locking - Fully Loaded TIN PLATED No. of Pos. X-1971845-Y X-1971895-Y 2 3 4 5 6 7 8 -2 -3 -4 -5 -6 -7 -8 1- -2 1- -3 1- -4 1- -5 1- -6 1- -7 1- -8 2- -2 2- -3 2- -4 2- -5 2- -6 2- -7 2- -8 3- -2 3- -3 3- -4 3- -5 3- -6 3- -7 3- -8 4- -2 4- -3 4- -4 4- -5 4- -6 4- -7 4- -8 5- -8 5- -2 5- -3 5- -4 5- -5 5- -6 5- -7 6- -2 6- -3 6- -4 6- -5 6- -6 6- -7 7- -7 7- -2 7- -3 7- -4 7- -5 7- -6 8- -2 8- -3 8- -4 8- -5 8- -6 9- -2 9- -3 9- -4 9- -5 9- -6 -2 -3 -4 1- -2 1- -4 2- -2 2- -4 3- -2 3- -4 4- -4 SILVER PLATED No. of Pos. X-1971846-Y X-1971896-Y 2 3 4 5 6 7 8 -2 -3 -4 -5 -6 -7 -8 1- -2 1- -3 1- -4 1- -5 1- -6 1- -7 1- -8 2- -2 2- -3 2- -4 2- -5 2- -6 2- -7 2- -8 3- -2 3- -3 3- -4 3- -5 3- -6 3- -7 3- -8 4- -2 4- -3 4- -4 4- -5 4- -6 4- -7 4- -8 5- -8 5- -2 5- -3 5- -4 5- -5 5- -6 5- -7 6- -2 6- -3 6- -4 6- -5 6- -6 6- -7 7- -7 7- -2 7- -3 7- -4 7- -5 7- -6 8- -2 8- -3 8- -4 8- -5 8- -6 9- -2 9- -3 9- -4 9- -5 9- -6 -2 -3 -4 1- -2 1- -4 2- -2 2- -4 3- -2 3- -4 4- -4 While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. te.com/products/RAST5t © 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company. All Rights Reserved. TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or 7-1773465-5 CS 11/2012 company names might be trademarks of their respective owners. USA: 1-800-522-6752 Canada: +1-905-475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015

下载 PDF

2-1971845-2

1. 物料型号：文档列出了多个型号，例如1971845-8、1971895-7等，每个型号可能对应不同的配置或颜色。

2. 器件简介：RAST 5系列的TAB母头组件，具有DIN风格的设计，垂直安装，符合TE Connectivity的标准。

3. 引脚分配：文档中提到PCB引脚以交错模式插入，起始于位置1（Cct1）。

4. 参数特性： - 接触材料为铜合金，厚度为0.8mm。 - 接触面处理包括镀锡、镀银以及镍底层镀层。 - 提供了不同颜色的型号，包括自然色、红色、蓝色等。

5. 功能详解： - 组件具有RAST 5兼容的键控、锁紧和极性化特征。 - 极性化和锁紧窗口的详细信息在文档中有图示说明。

6. 应用信息： - 组件为预生产部件，尚未发布用于生产。 - 提供了不同包装方式的部件型号，包括散装和管装。

7. 封装信息： - 提供了详细的尺寸和公差信息，以及推荐PCB布局设计。

8. 其他： - 文档中还提到了特定型号的插入力要求，以及与4P单形状MKI连接器的配合力。
