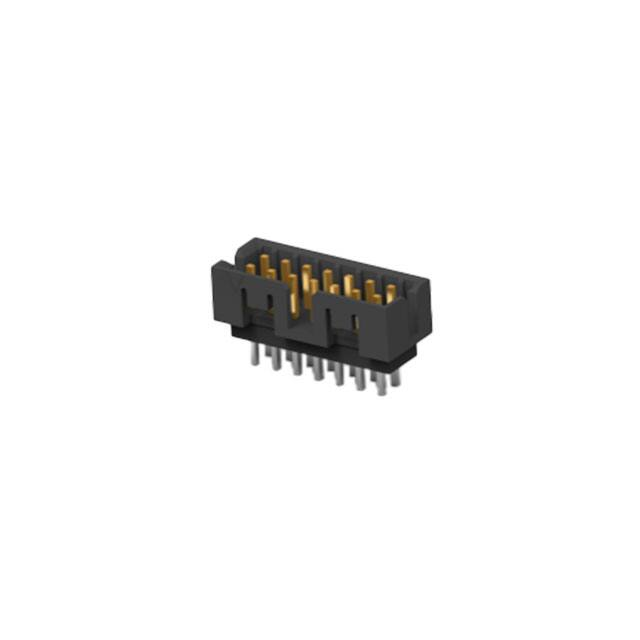

2-2842236-0

4 C 2 3 1 REVISIONS 2019 TE Connectivity. All Rights Reserved. P LTR A DIM "G" DESCRIPTION DATE RELEASE TO PRODUCTION DWN APVD AY 09DEC2019 PS 2.40 D NOTES: 1. MATERIAL HOUSING : HIGH TEMPERATURE THERMOPLASTIC, UL94-V0; COLOR- BLACK POST : COPPER ALLOY FINISH : MATING SIDE: MIN. 0.1 µm GOLD OVER NICKEL UNDER PLATING. SOLDER SIDE: MIN. 2.0 µm TIN OVER NICKEL UNDER PLATING. 2.50 #0.25 6.40 #0.20 3.60 D 1 2. PACKAGING: TUBE 3 TOLERANCE NOT CUMULATIVE. 2 2.00 #0.20 ( o0.50) 4.50 #0.20 C 2.00 #0.10 6.30 #0.20 3 2.00 #0.10 2.00 #0.10 C 3 DIM "F" # 0.20 DIM "E" # 0.3 B 0.80 #0.10 TYP 2.00 2.00 B RECOMMMENDED PCB HOLE PATTERN FOR THROUGH HOLE WAVE 2.00 2.00 2-2842236-0 AS SHOWN THIS DRAWING IS A CONTROLLED DOCUMENT. A 0.80 #0.05 TYP (FINISHED HOLE) DIMENSIONS: 1.20 MIN TYP RECOMMMENDED PCB HOLE PATTERN FOR THROUGH HOLE REFLOW/PIN-IN-PASTE 1471-9 (3/13) mm CONTACT PIN HOUSING DESCRIPTION 2 1 ITEM NO. MATERIAL SEE NOTES - TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 0.25 - - 12NOV2019 ANKIT YADAV CHK 25NOV2019 KARTHIK JK. APVD 27NOV2019 PRASHANTH S. DWN PRODUCT SPEC 108-64040 APPLICATION SPEC 2 $ 114-32259 WEIGHT CUSTOMER DRAWING 44 50.85 52.65 50 5-2842236-0 38 44.85 46.65 44 4-2842236-4 34 40.85 42.65 40 4-2842236-0 28 34.85 36.65 34 3-2842236-4 24 30.85 32.65 30 3-2842236-0 20 26.85 28.65 26 2-2842236-6 18 24.85 26.65 24 2-2842236-4 14 20.85 22.65 20 2-2842236-0 10 16.85 18.65 16 1-2842236-6 8 14.85 16.65 14 1-2842236-4 DIM "G" DIM "F" DIM "E" POS. TE PN. TE Connectivity NAME A AMPMODU 2mm SHROUDED HEADER, DUAL ROW, VERTICAL TH, 0.1 Au, TUBE - SIZE CAGE CODE A2 00779 RESTRICTED TO DRAWING NO 2842236 SCALE 5:1 SHEET 1 OF - 1 REV A
