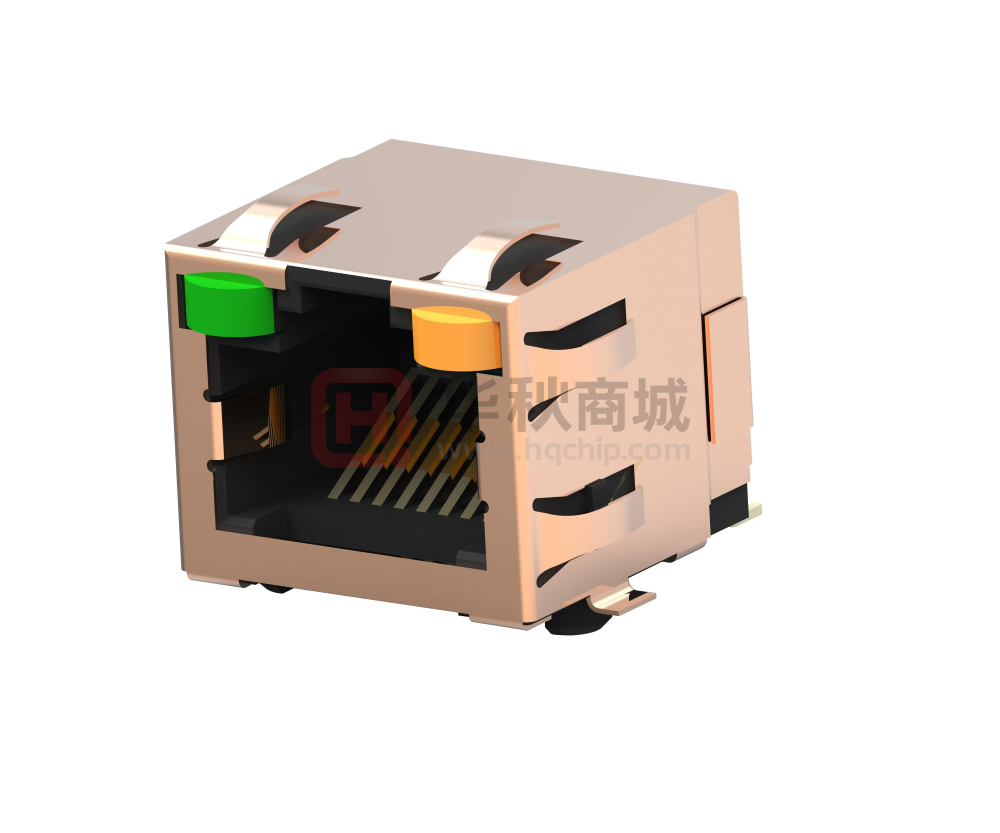

2-6339191-1

l!!!J My Cart 1 i!tl My Part Lists I Sign In/Register Have a Question? ·~' ~',. •. • Chat with a Product Information Specialist connectivity Products Industries Resources About TE ~« English (Change) [ What can we help you find? .- ......_ ..i:."'11111111 My Account Innovation Support Center Home > Products > Modular Jacks & Plugs > Product Feature Selector > Product Details 2-6339191-1 Product Details ~ Print CJ Share PCB Mounted Jacks - Single Port, Multi-port and Stacked (J Always EU RoHS/ELV Compliant ( Statement of Compliance) Quick Links ------~ ~ Pricing & Availability Search for Tooling Product Feature Selector ~ Contact Us About This Product ~ ~ Product Highlights: • Connector ~ Email • Preloaded • Single Port Configuration • 1 x 1 Jack Configuration • Jack Type = RJ45 2-6339191-1 View all Features TE Internal Number: 2·6339191·1 . / Active !!ti Add to My Part List ~ View 3D PDF Request Sample (:;? Find Similar Products .Jj Buy Product Documentation & Additional Information Product Ora\•Jings: Additional Information: • INVERTED MODULAR JACK ASSEMBLY, lxl, SHIELDED, SURFA ... (PDF, English) Catalog Pages /Data Sheets: • f\Jone Available • Product Line Information Related Products: • Tooling Product Specifications: • Inverted Six and Eight Position Surface Mount Shield ... (PDF, English) ,,. Application Specifications: • Modular Jacks with Integral Light Emi'!llng Diode (LED) (PDF, English) • Modular Jack Surface Mount Printed Circuit (PC) Boar... (PDF, English) Instruction Sheets: • f\Jone Available CAO files: ( CAO Format & Compression Information) • 20 Drawing (OXF, Version 0) • 3D Model (IGES, Version D) • 3D Model (STEP, Version D) List all Documents Product Features (Please use the Product Dra\ 1ing for all design activity) 1 Product Type features: • • • • • • • • • • • • • Housing features: Product Type = Connector Jack Type = RJ45 PCB Mounting Orientation = Side Entry (Right Angle) PCB Mount Style = Surface Mount Termination Method to PC Board = Solder Performance Category = Cat 5 LED = With Grounding Options = Panel Ground and PCB Ground Panel Stops = Without Keyed = No Profile = Standard Color = Black Shield Material = Copper Alloy • Housing Material = Liquid Crystal Polymer (LCP) • UL Flammability Rating = UL 94V·O Configuration features: • • • • • • • Preloaded = Yes Port Configuration = Single Jack Configuration = 1 x 1 Number of Positions = 8 Number of Contacts Loaded = 8 Number of PCB Ground Tabs = 2 Panel Ground Location = Top and Side Industry Standards: • RoHS/ELV Compliance = RoHS compliant, ELV compliant • Lead Free Solder Processes = Reflow solder capable to 245°C • RoHS/ELV Compliance History = Always was RoHS compliant Mechanical Attachment: • Panel Mount Retention = With • Flanged = No • Boardlock = With Identification f'l-!arking: • LEO Position 1 Color = Orange • LEO Position 2 Color = Green • LEO Position 3 Color = None Electrical Characteristics: • Shielded = Yes Packaging features: Termination features: • Packaging lvlethod = Tape lvlounted on Reel • Packaging Quantity = 200 Pieces (per 38 cm diameter reel) • Solder Tail Contact Plating = lvlatte Tin over Nickel Dimensions: Product Availability: • Region = Asia, North America • Height (mm [in)) = 13.34 (0.525) • PCB Thickness, Recommended (mm [in)) = 1.57 (0.062) Other: • Brand = AMP Body features: • Inverted Jack Face = Yes • Shield Plating = lvlatte Tin Contact features: • Contact Plating, Mating Area, Material = Gold Flash over Palladium Nickel • Contact Base lvlaterial = Phosphor Bronze Corporate Information Quick Links Customer Support About TE Distributor Inventory Email or Chat With Us Investors Product Cross Reference Find a Phone f\Jumber News Room Documents & Drawings Knowledge Base Supplier Portal Product Compliance Support Center Manage Your Account Careers Site Map Keep Me Informed Terms & Conditions Privacy Policy © 2013 Tyco Electronics Corporation, a TE Connectivity Ltd. company, All Rights Reserved 4'1r Provide Website Feedback
