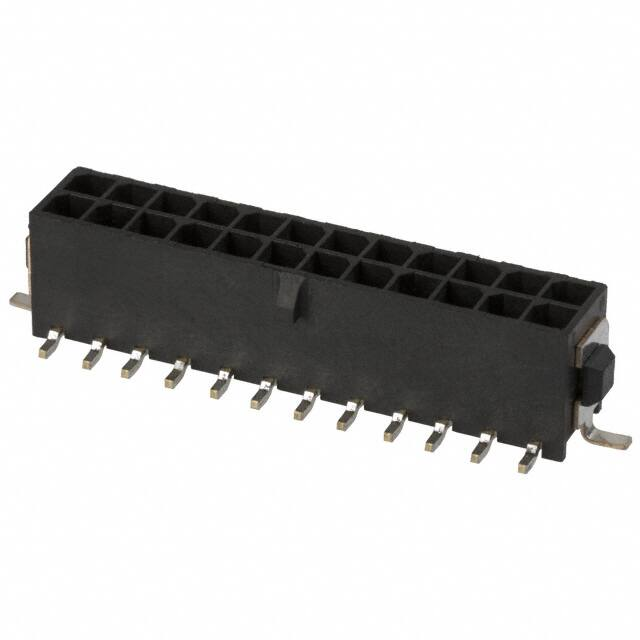

2-794638-4

7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 6 5 4 3 2 1 20 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. BY - P LTR DIM W DESCRIPTION DATE DWN K2 REVISED PER ECR-17-017609 04DEC2017 JB DZ K3 ECO-19-006502 30APR2019 AP WS -B- 3.00 TYP 11.28 10.60 D 1 MATERIAL; CONTACTS - BRASS. HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK. HOLDDOWNS - PHOSPHOR BRONZE. 2 PLATING; CONTACTS - 0.76µm MATING NICKEL HOLDOWNS - 2.54µm SCALE 5 6.00 REF 5:1 RECOMMENDED PC BOARD THICKNESS OF 1.57. 5 KAPTON VACUUM PICK UP BUTTON. 9 7 ALL SOLDERTAILS AND HOLDDOWNS. 8 PLATING; CONTACTS - 0.76µm MATING NICKEL HOLDOWNS - 2.54µm DIM X 9 # 0.39 D DIMENSION APPLIES TO SOLDERTAIL SURFACES AND STANDOFF SURFACES. CIRCUIT NO. 1 DIM Z MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL ON AREA. 2.54µm TIN-LEAD MINIMUM OVER 2.54µm MINIMUM ON SOLDER TAILS. TIN LEAD. 4 6 APVD MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL ON AREA. 2.54µm MATTE TIN MINIMUM OVER 2.54µm MINIMUM ON SOLDER TAILS. MATTE TIN. CIRCUIT NUMBER 1 IS LOCATED AT THE BOTTOM RIGHT WITH THE LATCH-LOCK ON TOP LOOKING INTO THE CAVITIES 6.86 -C- C LATCH-LOCK C HOUSING 9.24 CONTACT DIM V 6 # 0.35 0 7 +0.05 -0.15 HOLDDOWN 43.04 36.86 40.27 33.00 40.00 24 5- 794638 -4 40.04 33.86 37.27 31.00 37.00 22 5- 794638 -2 37.04 30.86 34.27 27.00 34.00 20 5- 794638 -0 34.04 27.86 31.27 24.00 31.00 18 4- 794638 -8 31.04 24.86 28.27 21.00 28.00 16 4- 794638 -6 28.04 21.86 25.27 18.00 25.00 14 4- 794638 -4 25.04 18.86 22.27 15.00 22.00 12 4- 794638 -2 22.04 15.86 19.27 12.00 19.00 10 4- 794638 -0 19.04 12.86 16.27 9.00 16.00 8 3- 794638 -8 16.04 9.86 13.27 6.00 13.00 6 3- 794638 -6 13.04 6.86 10.27 3.00 10.00 4 3- 794638 -4 10.04 3.86 7.27 - 7.00 2 3- 794638 -2 43.04 36.86 40.27 33.00 40.00 24 2- 794638 -4 40.04 33.86 37.27 30.00 37.00 22 2- 794638 -2 37.04 30.86 34.27 27.00 34.00 20 2- 794638 -0 34.04 27.86 31.27 24.00 31.00 18 1- 794638 -8 31.04 24.86 28.27 21.00 28.00 16 1- 794638 -6 28.04 21.86 25.27 18.00 25.00 14 1- 794638 -4 25.04 18.86 22.27 15.00 22.00 12 1- 794638 -2 22.04 15.86 19.27 12.00 19.00 10 1- 794638 -0 19.04 12.86 16.27 9.00 16.00 8 794638 -8 16.04 9.86 13.27 6.00 13.00 6 794638 -6 13.04 6.86 10.27 3.00 10.00 4 794638 -4 2 10.04 3.86 7.27 - 7.00 2 794638 -2 FINISH DIM V DIM W DIM Y DIM Z DIM X NO. OF POSN. PART NUMBER 8 8 8 DIM Z 1.27 8 0.08 TYP 8 8 ( 0.635 ) ( 1.715 ) B 8 3 8 8 EDGE OF BOARD 8 2.54 8 ( 1.27 ) 8 SUPERSEDED BY 5-794638-4 2 SUPERSEDED BY 5-794638-2 2 SUPERSEDED BY 5-794638-0 4.7 2 SUPERSEDED BY 4-794638-8 2 SUPERSEDED BY 4-794638-6 2 SUPERSEDED BY 4-794638-4 9.4 2 SUPERSEDED BY 4-794638-2 ( 0.825 ) 1.65 TYP 0.08 2 SUPERSEDED BY 4-794638-0 2 SUPERSEDED BY 3-794638-8 2 SUPERSEDED BY 3-794638-6 2 SUPERSEDED BY 3-794638-4 2.5 MIN 2 SUPERSEDED BY 3-794638-2 A 19-MAR-2003 K. WHITAKER CHK 19-MAR-2003 C. JONES APVD 19-MAR-2003 C. JONES DWN THIS DRAWING IS A CONTROLLED DOCUMENT. 3.0 3.43 TYP MIN EDGE OF BOARD DIMENSIONS: mm 4 TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES DIM Y RECOMMENDED PCB LAYOUT (COMPONENT SIDE) 4805 (3/13) 0.08 MATERIAL 0.13 - FINISH 1 SEE TABLE NAME 108-1836 APPLICATION SPEC 114-13000 WEIGHT - CUSTOMER DRAWING A TE Connectivity PRODUCT SPEC - B SIZE SURFACE MOUNT,VERTICAL,SURFACE MOUNT HOLDDOWN,ASSEMBLY,30 GOLD HEADER, DUAL ROW, MICRO MATE-N-LOK(TM) CAGE CODE A1 00779 DRAWING NO 794638 SCALE 8:1 SHEET 1 OF RESTRICTED TO - 1 REV K3
