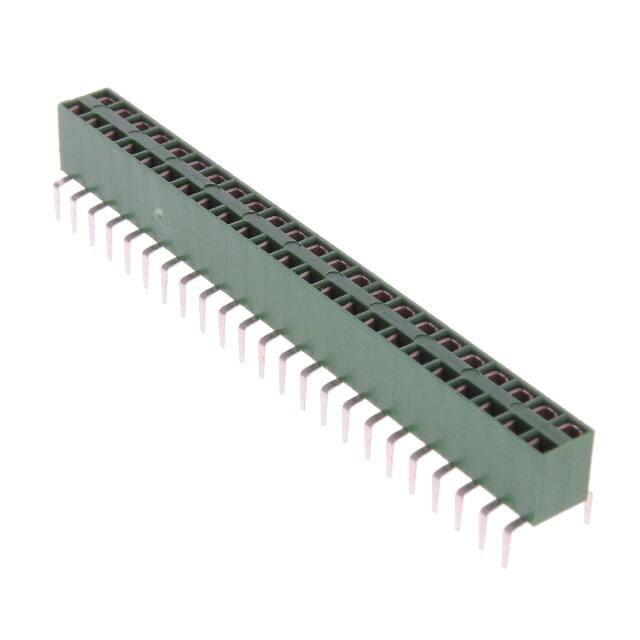

2-829264-3

4 1470-19 (3/13) PS (N-1)x2.54 2.54 (5.06) NOTES: 1 TO DETERMINE DIMENSIONS TAKE 2xN = NR. OF POS. FOR EXAMPLE: 2x10 POS; N x 2.54= 25.4mm FOR ORDER NO: USE BASIC - NR. + NR. OF POS. FOR EXAMPLE: 2x2POS. = 829264-2 (SHORTEST VERSION) 2x36POS. =3-829264-6 (LONGEST VERSION) HOUSING MATERIAL: PBT GREEN GLASS FILLED, UL 94V-0 CONTACT MATERIAL: PHOSPHOR BRONZE $ 2 ±0.08 (L-2.54) 8 0.0 0.9 SS 22MAR2019 APVD D PLATING: UNDER COATING: 1,3µm Ni AT CONT. PLACE: 0,8µm Au AT SOLDER-TYNES: 3.0-5.0µm Sn 3 7.62 0.25 C 4 MATES WITH 0.63 SQUARE/ROUND MODU POSTS 5 CONTACT POINT 6 RECOMMENDED PC BOARD THICKNESS: 1.6mm 7 HV100 CONNECTOR PACKED IN ANTI-STATIC BLISTER TRAY 8 OBSOLETE PARTS: OBSOLEET CIS STREAMLINING PER D.RENAUD/D.SINISI B 7.62 0.08 1.2 A DWN Nx2.54=L+0.3 -0.1 1 90 829264-2 -3 -4 -5 -6 -7 -8 -9 1-0 1-1 1-2 1-3 1-4 OBSOLETE 1-5 1-6 1-7 1-8 1-9 2-0 OBSOLETE 2-1 OBSOLETE 8 2-2 2-3 2-4 OBSOLETE 2-5 2-6 2-7 OBSOLETE 8 2-8 OBSOLETE 2-9 8 3-0 3-1 OBSOLETE 3-2 3-3 8 3-4 3-5 OBSOLETE 3-829264-6 OBSOLETE DATE PLASTIC MATERIAL SUPPLIER CHANGE (6.2) 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.80 53.34 55.88 58.42 60.96 63.50 66.04 68.58 71.12 73.66 76.2 78.74 81.28 83.82 86.36 88.90 91.44 DESCRIPTION LTR E 6.5 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 P PART NUMBER 2.2 5 L 2.54 0.08 B POS. PER ROW 'N' 3.05 0.2 C REVISIONS 2019 TE Connectivity. All Rights Reserved. 2.54 D 1 2.54 0.08 C 2 3 THIS DRAWING IS A CONTROLLED DOCUMENT. mm 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES MATERIAL RECOMMENDED PCB LAYOUT A.HO 26MAY1988 06DEC1990 M.SCHAARSCHMIDT APVD - TE Connectivity CHK TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: .08 0 DWN ±0.15 - FINISH 2 3 PRODUCT SPEC 108-19056 APPLICATION SPEC 3° - WEIGHT NAME HV100 CONNECTOR VERTICAL, 6.2mm TOP ENTRY, DUAL ROW, GOLD - SIZE - CUSTOMER DRAWING A3 CAGE CODE 00779 DRAWING NO A RESTRICTED TO 829264 SCALE 4:1 SHEET 1 OF 1 REV E
