2118310-1

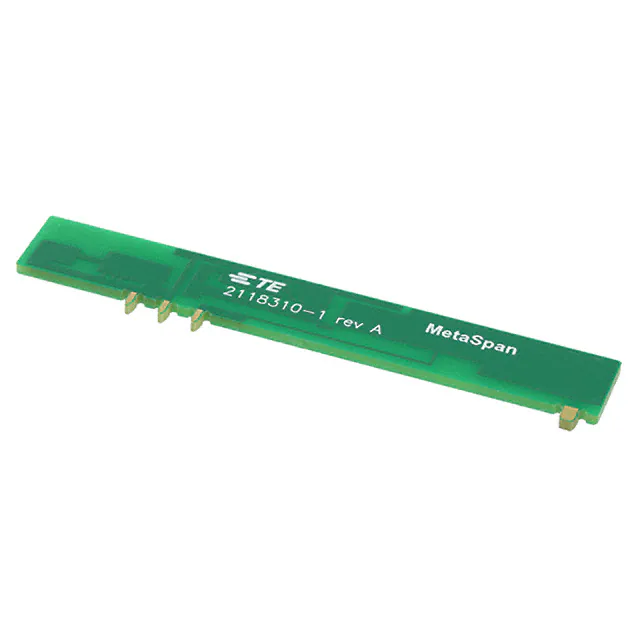

Antenna Solutions 698-960, 1710-2170 & 2300-2700 MHz LTE/Cell Band Antenna (includes frequencies of LTE, UMTS, US Dual, EU Triband, and WCDMA products) Part Number: 2118310-1 Product Facts • This MetaSpan antenna product uses metamaterial technology to cover virtually all cell bands in one compact antenna assembly. • RoHS compliant. Recommendations Specifications • Minimum or no matching circuits required. Frequency Range (MHz) Peak Gain VSWR Polarization Azimuth Beamwidth Power Handling Feed Point Impedance Size Weight Mounting Keep Out Area • Bandwidth and performance are dependent on ground plane size. Suggested minimum ground plane length from the antenna feed is 120 mm. • PCB ground is to be on top layer. Test Orientation in Free Space 698–960; 1710-2170; 2300–2700 +3.5 dBi < 3.0:1 tunable Linear Omni-directional 3 Watt cw 50 Ohms unbalanced 74.0 mm x 10.56 mm x 1.57 mm 2.55 g. Tab mounted with plated through holes. See page 2. See diagram on page 2. VSWR 5 VSWR *8pF *15pF 3 *15pF 1 698 1710 829 2205 Frequency (MHz) 960 2700 * Capacitors used to optimize low band performance Legend: 704 MHz 824 MHz 925 MHz 1755 MHz 1880 MHz 2170 MHz 2500 MHz 270º Elevation 0º 5dBi 0dBi -5dBi -10dBi -15dBi -20dBi -25dBi -30dBi 90º Legend: 704 MHz 824 MHz 925 MHz 1755 MHz 1880 MHz 2170 MHz 2500 MHz 180º Catalog: 1-1773726-4 Revised 04-14 www.te.com www.antenna.te.com 270º Efficiency 5dBi 0dBi *8pF -5dBi -10dBi -15dBi -20dBi -25dBi -30dBi 180º Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents. 100 0º Dimensions are shown for reference purposes only. Specifications subject to change. 90º Efficiency (%) Azimuth *15pF *8pF 50 *8pF 0 698 1710 2300 829 960 1940 Frequency (MHz) 2170 2500 2700 * Capacitors used to optimize low band performance USA: 1-800-522-6752 Canada: 1-905-475-6222 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 For other country numbers go to: www.te.com/supportcenter 1 Antenna Solutions 698-960, 1710-2170 & 2300-2700 MHz LTE/Cell Band Antenna (includes frequencies of LTE, UMTS, US Dual, EU Triband, and WCDMA products) Part Number: 2118310-1 Mounting Guide Dimensions: mm Diagram is not to scale NOTES: 1. 2. 3. 4. 5. Keep Out Area Suggested matching component pads. Antenna must be mounted on the edge of PCB. No copper allowed in designated area on all PCB layers – Capacitor used to optimize low band performance For more information please call TE. Approx. Dimensions Dimensions: mm Diagram is not to scale Dimensions: mm Diagram is not to scale © 2014 TE Connectivity family of companies. All Rights Reserved. 1-1773726-4–CSD–PDF–04-14 MetaSpan, TE (logo), and TE Connectivity are trademarks. Other logos, products and company names mentioned herein may be trademarks of their respective owners. 2 Catalog: 1-1773726-4 Revised 04-14 www.te.com www.antenna.te.com Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents. While TE has made every reasonable effort to ensure the accuracy of the information in this catalog, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. Dimensions are shown for reference purposes only. Specifications subject to change. 9565 Soquel Drive Aptos, CA 95003 (+ 831) 662-1174 www.antenna.te.com USA: 1-800-522-6752 Canada: 1-905-475-6222 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 For other country numbers go to: www.te.com/supportcenter
