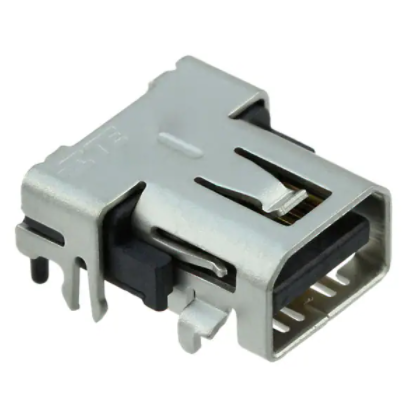

TE CONNECTIVITY (TE) Need Help? +1 800 522 6752 o r  Live Chat Track Your Order Search by part # or keyword  Products Industries & Solutions Shop TE Resources Sign In US-EN   ▲ Purchase items directly from TE.com Connectors  Audio & Video Connectors  DisplayPort 2129320-3 Mini Displayport Reverse Offset TE Internal #: 2129320-3 TE Internal Description: Mini Displayport Reverse Offset PCB Mount Orientation : Right Angle PCB Mount Location : Top We are here to help! Get in touch with our product experts.  CHAT WITH US  EMAIL US  CALL US Termination Method to Printed Circuit Board : Through Hole - Solder Screw Flange : Without PCB Mount Retention Type : Boardlock  Digital Datasheet  ORDER SAMPLES Compatible Parts & Tooling Documents Product Drawings Features Product Compliance Mini Displayport Reverse Offset  Mini Displayport Reverse Offset English CAD Files PCB Design Download symbol & footprint (SnapEDA) Download symbol & footprint (Ultra Librarian) 3D PDF  3D_CVM_CVM_2129320-3_B_c-2129320-3-b3d.pdf 3D Customer View Model  ENG_CVM_CVM_2129320-3_B_c-2129320-3b.2d_dxf.zip English  ENG_CVM_CVM_2129320-3_B_c-2129320-3b.3d_igs.zip English  ENG_CVM_CVM_2129320-3_B_c-2129320-3b.3d_stp.zip English Product Specifications Product Specification  ENG_SS_108-2351_H1.pdf English Product Specification  ENG_SS_108-57889_A.pdf English Product Environmental Compliance MD_2129320-3_0119201867_dmtec  ENG_PC_MD_2129320-3_C(478695).xlsx English MD_2129320-3_0119201867_dmtec  ENG_PC_MD_2129320-3_C(550698).xml English Please review product documents or contact us for the latest agency approval information. Please Note: Use the Product Drawing for all design activity. Product Type Features Connector System : Cable-to-Board Connector & Contact Terminates To : Printed Circuit Board Product Type : Connector Connector Type : Connector Assembly Connector Style : Receptacle Configuration Features PCB Mount Orientation : Right Angle Body Features Shell Material : Stainless Steel Contact Features Contact Base Material : Copper Alloy Number of Positions : 20 Contact Mating Area Plating Material : Gold Termination Features Termination Method to Printed Circuit Board : Mechanical Attachment PCB Mount Location : Top Through Hole - Solder Screw Flange : Without PCB Mount Retention Type : Boardlock Connector Mounting Type : Board Mount Housing Features Centerline (Pitch) : .6 mm [ .02 in ] Housing Material : High Temperature Thermoplastic Housing Color : Black Dimensions Tail Length : 1.4 mm [ .055 in ] Operation/Application Circuit Application : Signal Pick and Place : Without Pick and Place Cover Industry Standards Flammability Rating : UL 94V-0 Packaging Features Packaging Method : Reel Statement of Compliance Statement of Compliance pdf ABOUT TE CONNECTIVITY FOR PARTNERS SUPPORT CALL US LIVE CHAT UNITED STATES (EN)
