2142970-1

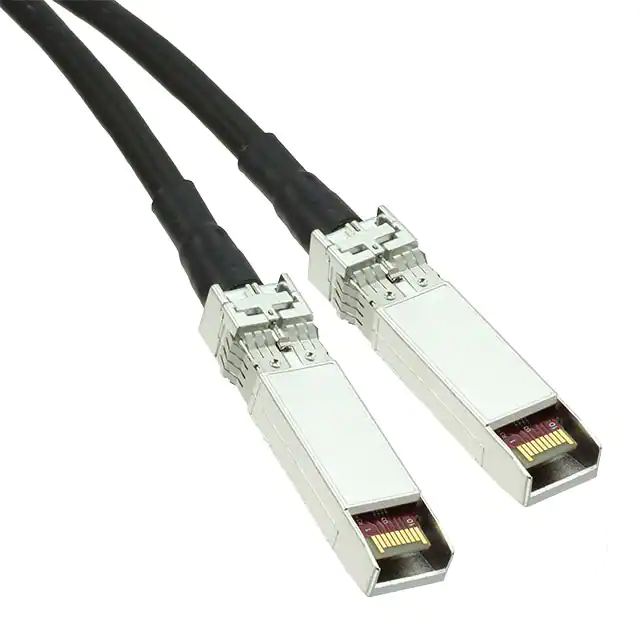

MICRO SFP+ CONNECTOR & CABLE ASSEMBLY micro SFP+ Connector and Cable Assembly TE Connectivity’s (TE) micro SFP+ connector and cable assembly empower you to dream big when designing your communication system. Through a footprint that’s up to 50% smaller than current SFP+ interconnects, the micro SFP+ interconnects allow you to increase faceplate density while freeing up additional PCB space due to the board connector’s shortened length. The products’ designs have also been enhanced to improve signal routing, minimize EMI and optimize automated manufacturing processes. • Increases Faceplate Density / Saves PCB Space: micro SFP+ is up to 50% smaller than current SFP+ connectors, in width and length, taking up as little as 15mm board space. One micro SFP+ frees up 19% more faceplate space than 1 SFP+ connector. • Improves Signal Integrity: The cable assembly and connector were designed with a staggered contact configuration that improves signal routing. Additionally, the bottom and top contacts have been further optimized for speed. • Reduces EMI: EMI is minimized through a die cast housing, cable shield crimped at 360 degrees, and an extended EMI shield over the cable’s plug. • Optimizes Manufacturing Processes: For manufacturing automation, the board interconnect combines the connector & cage into one finished product for automated of board placement. High temperature pin in paste soldering can be achieved as the product withstands up to 265 degrees Celsius. DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY Applications • Telecommunications: Cellular infrastructure, hubs servers and switches • Data communication: servers and storage equipment • Medical diagnostic equipment • Networking: Network interface, storage, power supplies and test and measurement equipment Specifications / Protocols • Electrically compliant to SFF-8431 • 10 Gigabit Ethernet and Gigabit Ethernet (IEEE802.3ae) • Fibre channel: 1, 2, 4 and 8 GFC • InfiniBand standard (10Gbps) • Fibre Channel over Ethernet (FCoE) • Serial data transmission Parts Reference Guide Minimum Part 2142969 2142970 Configuration Data Rate micro SFP+ to micro SFP+ micro SFP+ to SFP+ Maximum AWG Cable Length Cable Length Equalization 10 Gbps 26 0.5m 6.0m unEQ 10 Gbps 26 0.5m 6.0m unEQ Connector EMI Spring Part Number Configuration Finger Design Solder Tail Lightpipe 2246040-1 micro SFP Yes Yes No 2246041-1 micro SFP+ Yes Yes No DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY PAGE 2 Faceplate Space Savings Achieve more speed in the same space. Figure to the left shows four SFP+ connectors can be replaced with five micro SFP+ assemblies. PCB Space Savings The micro SFP+ is a little more than half the size of traditional SFP+ connectors. See figure on the right. Smaller Connector + Smaller Cable Assembly Overall footprint is up to 50% smaller than current SFP+ products PAGE 3 Micro SFP+ Board Connector Electrical • Board connector uses approximately 50% less PCB space • Connector height fits 15 mm board spacing practice Mechanical • Retention force: 90N maximum • Durability: 100 cycles minimum • Latch: Retractable pin Features • supporting data rates up to 10 Material • Cage design with EMI metal spring fingers • Cage features a solder tail design Speed: 22 position connector Gbps • Increased Faceplate Density / Saves PCB Space: • Board connector saves approximately 50% more PCB space • Connector height fits 15 mm board spacing practice • Improved Signal Integrity: Connector designed with staggered contact configuration for improved signal routing • Supports Manufacturing Automation • Integrated connector and cage design for one-step placement on to PCB • Connector withstands up to 265 degrees Celsius for high temperature pin in paste soldering • Cage features solder tail design • EMI Reduction: Cage designed with EMI metal springs • DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY Compliant pin version optional PAGE 4 Micro SFP+ Cable Assembly Electrical • UL rated 80°C: AWM Style 20626 80°C 30V VW-1 • Differential impedance: 100 ± 5 Ohms @ TDR • Mutual capacitance: 14 pF/ft nominal • Time delay: 1.35 ns/ft nominal • Time delay skew (within pair): 70 ps/8.5 m maximum • Time delay skew (between pair): 350 ps/8.5 m maximum • Attenuation (SDD21)2: 10 dB/8.5 m maximum @ 1.25 GHz • Conductor DC Resistance: 0.040 Ohms/ft nominal @ 20°C • Tested / functional to 10 GHz Mechanical • Operating temperature: 0 to +70 degrees Celsius • Storage temperature: -40 to +80 degrees Celsius • Bend radius: 3x outer diameter static / 5x outer diam- Features • brand TurboTwin parallel pair cable, the cable assembly supports data rates up to 10 Gbps; the cable assembly is direct attach for short reach eter dynamic • Cable outer diameter: 26 AWG = 0.205 inches applications • Inner shield: Aluminum / poly tape • Outer shield: Tin plated copper braid • Jacket material: Low Smoke Zero Halogen (LSZH) • Safety: UL recognized, CSA certified, RoHS compliant signal routing • Interface: PCB paddle card • Contact material: 30 μ Gold plated contact pads • Backshell material: Tin plated Zinc die cast • EMI spring: Tin plated copper alloy • Latch release: Molded thermoplastic pull tab EMI Reduction: • Cable features a 360 degree braid crimp to minimize EMI • Extended EMI shield over the cable’s connector further reduces amd REACH 2010 compliant • Improved Signal Integrity: Staggered contact configuration for improved Material • Speed: Designed with Madison Cable EMI • Flexibility: Available in wire size AWG 26; other sizes available on request • DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY Ease of Use: Quick-release cable latching system PAGE 5 Micro SFP+ Cable Assembly Electrical Performance WDP, VMA and VCR Measurements Passive micro SFP+ Cable Assemblies : WDP, VMA and VCR Measurements A passive copper cable assembly will be compliant with the SFP+ MSA Rev 4.1 if the dWDP number is less than 6.75dBe. The WDP measurements shown in the table below are for the indicated wire gauge and cable length of TE production assemblies. Any cable with the same wire gauge and shorter length than the length listed below will have a lower dWDP value. To be compliant with SFF 8431 Rev 4.1, the VMA must be less than 4.5 dB and the VCR must be greater than 33 dB. The VMA and VCR measurements shown in the table below are for the indicated wire gauge and cable length of TE production assemblies. Any cable with the same wire gauge and shorter length than the length listed below will also meet the VMA and VCR limits. Cable Length Cable Gauge (Meters) Vcm (mV rms) dWDP VMA (dB) VCR (dB) - 13.5 6.75 4.5 32.5 26 AWG 0.5 mtr 8.41 1.17 0.65 33.07 26 AWG 1 mtr 7.26 1.41 0.873 35.48 26 AWG 2 mtr 7.31 2.26 1.53 34.33 26 AWG 3 mtr 4.91 3.01 2.11 34.81 26 AWG 4 mtr 3.98 3.91 2.78 36.63 26 AWG 5 mtr 2.40 4.81 3.44 33.96 26 AWG 5 mtr 3.04 5.75 4.23 36.06 Specification Limits DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY PAGE 6 Frequently Asked Questions WHAT ARE THE PERFORMANCE REQUIREMENTS FOR THE CABLE ASSEMBLY? TE micro SFP+ copper passive cable assemblies meet the signal integrity requirements defined by the industry MSA SFF-8431. We can custom engineer cable assemblies to meet the requirements of a customer’s specific system architecture. WHAT WIRE GAUGE IS REQUIRED? TE offers micro SFP+ cable assemblies in wire gauges #26 other gauges on request to support customers’ specific cable routing requirements. Smaller wire gauges results in reduced weight, improved airflow and a more flexible cable for ease of routing. WHAT CABLE LENGTHS ARE REQUIRED? Cable length and wire gauge are related to the performance characteristics of the cable assembly. Longer cable lengths require heavier wire gauge, while shorter cable lengths can utilize a smaller gauge cable. ARE THERE ANY SPECIAL CUSTOMER REQUIREMENTS? Examples of special customer requirements include: custom cable lengths, EEPROM programming, labeling and packaging, length, company logo, signal output de-emphasis, and signal output amplitude. We can custom engineer cables to specific customer system architecture. DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY PAGE 7 For More Information te.com/products/microsfp+ TE Technical Support Center USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 te.com © 2015 TE Connectivity Ltd. family of companies. All Rights Reserved. Madison Cable, TurboTwin, TE Connectivity, TE, TE connectivity (logo) are trademarks of TE Connectivity Ltd. family of companies. Infiniband is a trademark of the InfiniBand Trade Association. 1-1773851-4 DTC DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY
