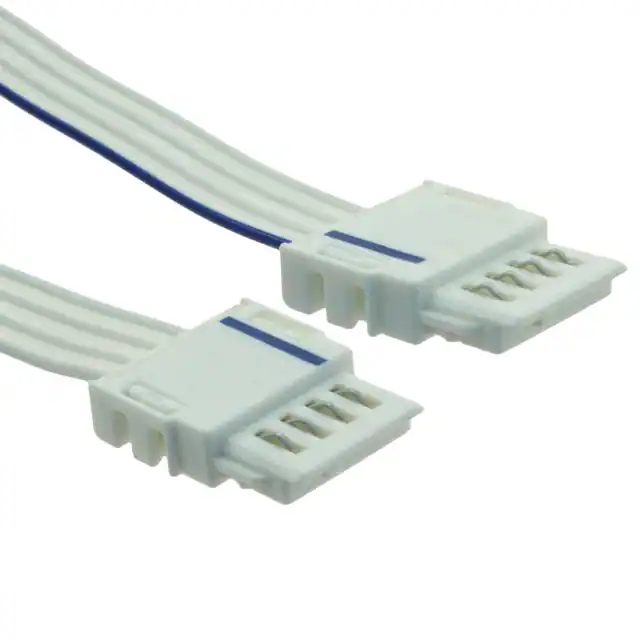

2154172-6

NEVALO SSL System CN58 LED Light Module (LLM) 4 LED, 350mA, 3000 CCT Features ›› Inter-changeable light modules and optics ›› 340 lumens in 3000K color temperature ›› 18, 25 and 45 degree optics ›› Mechanically keyed and color coded interconnect for easy installation ›› Protection with NEVALO driver »» Thermal shutdown »» Short circuit The NEVALO CN58 LED Light Module (LLM) offers plug-and-play versatility for flexibility, performance, and speed to market in a multi-lumen, energy efficient package. It is uniquely designed to allow inter-changeability by the lighting OEM designer to select between multiple lumen outputs, color temperatures, CRIs and beam distributions in the same package. Designed with thermal and electrical protection and when used with the NEVALO SSL System the CN58 LLM comes with a 5 year warranty. »» Input surge voltage »» Over voltage »» Over current ›› Lifetime: 50,000 hours minimum ›› Integrated thermal pad ›› Dry and damp location compatible ›› Accepts future and improved LEDs and optics ›› 5 year warranty with NEVALO system Electrical Characteristics APPLICATIONS ›› Residential and Light Commercial Component ›› Downlights ›› Track and Spots Material Maximum Forward Voltage 14 Volts Maximum Forward Current 350 mA MECHANICAL CONSTRUCTION Base Housing: Glass Filled PBT - White Thermal Pad: Silicone LED Board: Aluminum clad PCB Washer: Steel, Zinc Plated Screws: Steel, Zinc Plated Optic TIR: Optical grade acrylic Top Ring: Glass Filled PBT - White Compression Ring: Urethane ENVIRONMENTAL Storage Temperature: -40°C to 85°C Operating Temperature: -20°C to 85°C Humidity: 5-85% non-condensing ROHS Compliant: Yes ORDERING INFORMATION CCT (1) (K) LLM Lumen (lm) Typ/ includes Optics Tc=60° C LLM Lumen (lm) Typ/includes Optics Tc=25° C 3000 320 340 CRI Color Consistency SDCM Drive Current LLM Efficacy (2) (lm/W) Typ/includes Optics Tc=25° C 80 4 350mA 84 Beam NEVALO (3) Distribution System Angle Budget (degrees) Part Number 14 Spot 18° 2154196-1 2154196-2 2154196-3 3000 320 340 80 4 350mA 84 14 Narrow Flood 25° 3000 320 340 80 4 350mA 84 14 Flood 45° (1) CCT Tolerance: 3045K ± 100K (2) Individual results may vary from the typical values. (3) System Budget is a unique NEVALO SSL system feature that allows the appropriate LED Light Module (LLM) loading to the driver. Orange = 350mA and matches color coding on driver. nevalo.com te.com © 2011 Tyco Electronics Corporation. All Rights Reserved. 9-1773459-0 CIS PDF 03/2011 NEVALO, TE (logo) and TE Connectivity are trademarks of the TE Connectivity group of companies and its licensors. Other products, logos, and company names mentioned herein may be trademarks of their respective owners. NEVALO SSL System CN58 LED Light Module (LLM) 4 LED, 350mA, 3000 CCT APPROVALS DOCUMENTS Parameter Standard USA Safety Click for link to document UL 8750 Recognized (pending) International Safety CE mark to IEC 62031:2008 (pending) Product Specification 108-2451 Application Specification 114-13293 Instruction Sheet 408-10422 2154196-1 2154193-1 2154196-2 2154193-2 2154193-3 2154196-3 2154172-3 2154172-1 2154175-3 2154175-1 Customer Drawing WIRING BUS Configuration Length Part Number Straight to Straight 300mm 2154172-1 Straight to Right Angle Down 300mm 2154175-1 Use a factory assembled wiring bus to connect driver to LLM or build your own at the online configurator M3 THREAD FORMING SCREW 3x Ø 58.00 PRODUCT DIMENSIONS 120° M3 THREAD 2x FORMING SCREW 3x 5.6 REF 120° 2x 0.75 8x Ø 58.00 TOP RING WITH COMPRESSION RING 0.75 8x OPTIC TOP RING WITH COMPRESSION RING OPTIC 5.6 REF Ø 40.00 Ø 40.00 NEVALO INTERCONNECT C CENTER16.3 LINE OF LIGHT MODULE NEVALO INTERCONNECT 7.0 BASE HOUSING, SCREWS AND LIGHT ENGINE WITH THERMAL PAD BASE HOUSING, SCREWS AND LIGHT ENGINE WITH THERMAL PAD MOUNTING DIMENSIONS CENTER LINE OF LIGHT MODULE 16.3 17.5 7.0 DRILL TEMPLATE KIT Allows you to easily locate drill hole positions to attach LED light modules (LLM) to the light fixture. 17.5 120° 2x Ø 40.00 Ø 2.79 x 10.0mm DEEP 3x FOR M3 THREAD FORMING SCREWS nevalo.com te.com © 2011 Tyco Electronics Corporation. All Rights Reserved. 9-1773459-0 CIS PDF 03/2011 NEVALO, TE (logo) and TE Connectivity are trademarks of the TE Connectivity group of companies and its licensors. Other products, logos, and company names mentioned herein may be trademarks of their respective owners. NEVALO SSL System CN58 LED Light Module (LLM) 4 LED, 350mA, 3000 CCT 18° 3000K 18° 3000K 18° 3000K 4led 4led 350ma 350ma 3000cct 3000cct SPOTSPOT 18 18 Photometrics: 3000K CCT Spot 18° 18° 3000K Imperial Units Metric Units 0 Fc= 508 Fc= 508 2 ft 2 ft 508 Fc= 127 4 ft 4 ft 1016 2m Fc= 127 6 ft 4m Ø= 1.27 ft Ø= 1.27 ft 4m 27° 8 ft 3000K 27° 8 ft 3000K Ø= 2.53 ft Ø= 2.53 ft 6m 6m 27° 8m 3000K Ø= 1.9 m Ø= 1.9 m Lux= 31.8 Lux= 31.8 27° 8m 3000K Ø= 2.53 mØ= 2.53 m Fc= 20.3 Fc= 20.3 2032 Narrow Flood 25° Ø= 1.27 m Ø= 1.27 m Lux= 56.4 Lux= 56.4 Ø= 1.9 ft Ø= 1.9 ft Fc= 31.8 Fc= 31.8 Ø= 0.63 mØ= 0.63 m Lux= 127 Lux= 127 Fc= 56.4 Fc= 56.4 6 ft 1524 Lux= 508 Lux= 508 2m Ø= 0.63 ft Ø= 0.63 ft Lux= 20.3 Lux= 20.3 Ø= 3.17 m Ø= 3.17 m Ø= 3.17 ft Ø= 3.17 ft 10 m ft 10 m 4led10 4led 350ma 350ma 3000cct 3000cct NARROW NARROW FLOOD FLOOD 25 25 10 ft Imperial Units Metric Units 0 2 ft 2 ft 239 4 ft 4 ft 478 6 ft 717 6 ft Fc= 239 Fc= 239 Ø= 1.0 ft Ø= 1.0 ft Fc= 60 Fc= 60 Ø= 1.9 ft Ø= 1.9 ft Fc= 27 Fc= 27 43° 8 ft 3000K 10 ft 10 ft Flood 45° Ø= 1.0 m Ø= 1.0 m Lux= 59.8 Lux= 59.8 4m Ø= 1.9 m Ø= 1.9 m Lux= 26.6 Lux= 26.6 6m 6m Ø= 2.9 m Ø= 2.9 m Lux= 14.9 Lux= 14.9 Fc= 15 Ø= 3.8 ft Ø= 3.8 ft 43° 8m 3000K Fc= 9.6 956 2m 4m Ø= 2.9 ft Ø= 2.9 ft Fc= 15 43° 8 ft 3000K Lux= 239 Lux= 239 2m 43° 8m 3000K Ø= 3.8 m Ø= 3.8 m Fc= 9.6 Lux= 9.56 Lux= 9.56 4.8 ft Ø= 4.8 ft 10 m 4.8 m 10 m 4led 350ma 4led Ø=350ma 3000cct 3000cct FLOOD FLOOD 45 Ø= 45 Imperial Units Ø= 4.8 m Metric Units 0 2 ft 2 ft 112 4 ft 4 ft 224 6 ft 336 448 8 ft 10 ft 6 ft 8 ft 10 ft nevalo.com te.com © 2011 Tyco Electronics Corporation. All Rights Reserved. 9-1773459-0 CIS PDF 03/2011 NEVALO, TE (logo) and TE Connectivity are trademarks of the TE Connectivity group of companies and its licensors. Other products, logos, and company names mentioned herein may be trademarks of their respective owners. Fc= 110 Fc= 110 Ø= 1.6 ft Ø= 1.6 ft Fc= 27.4 Fc= 27.4 Ø= 3.2 ft Ø= 3.2 ft Fc= 12.2 Fc= 12.2 Ø= 4.7 ft Ø= 4.7 ft Fc= 6.86 Fc= 6.86 Lux= 110 2m 2m Ø= 1.6 m Lux= 110 Ø= 1.6 m Lux= 27.4 Lux= 27.4 4m 4m Ø= 3.2 m Lux= 12.2 6m 6m Ø= 4.7 m Ø= 3.2 m Lux= 12.2 Ø= 4.7 m Lux= 6.86 Lux= 6.86 Ø= 6.3 ft Ø= 6.3 ft Fc= 4.39 Fc= 4.39 Ø= 7.9 ft Ø= 7.9 ft 10 m 8m 8m Ø= 6.3 m Ø= 6.3 m Lux= 4.39 Lux= 4.39 10 m Ø= 7.9 m Ø= 7.9 m NEVALO SSL System CN58 LED Light Module (LLM) 4 LED, 350mA, 3000 CCT Thermal LLM Each LLM has a corresponding Thermal LLM which when placed in a lighting application can be connected to the NEVALO Thermal Test instrument. This unique accessory allows for an immediate thermal profile of the final product. LLM Part Number Thermal LLM board shown Thermal LLM Part Number Thermal Test Instrument Part Number 2154210-1 2154265-1 2154196-1 2154196-2 2154196-3 Thermal Test Instrument A complementary test instrument is used to confirm the thermal protection and performance of every LLM in your fixture. The evaluation tool includes Break Out Box, Thermal Monitor Testing Software, and Interconnect Cables. NEVALO SSL Thermal Ratings LLM Tcase LED Driver Shutdown 85 - 105°C Thermal Tool : Red > 85°C Thermal Tool : Yellow 75 - 85°C Thermal Tool : Green < 75°C Thermal Dot 88°C nevalo.com te.com © 2011 Tyco Electronics Corporation. All Rights Reserved. 9-1773459-0 CIS PDF 03/2011 NEVALO, TE (logo) and TE Connectivity are trademarks of the TE Connectivity group of companies and its licensors. Other products, logos, and company names mentioned herein may be trademarks of their respective owners.
