2201855-1

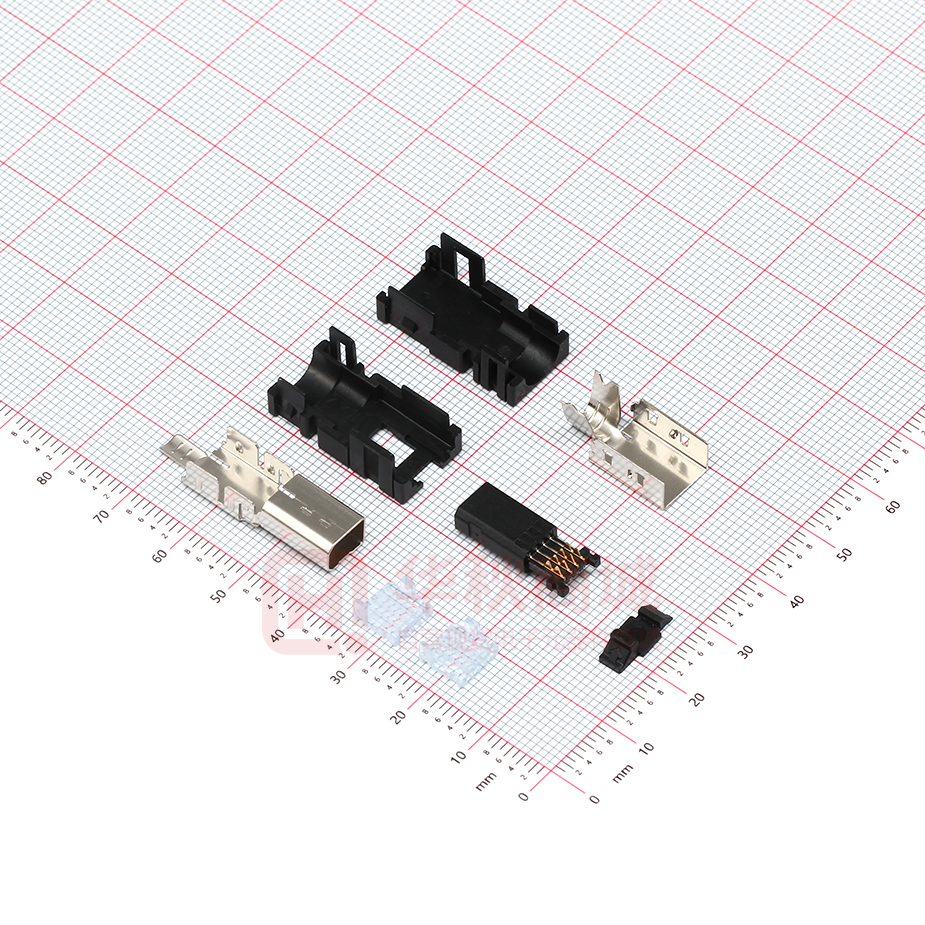

Introducing Industrial Mini I/O connector, Field Installable version TE’s Industrial Mini I/O Field Installable connector provides innovative and time-saving wire-termination alongside serving as a space saving and reliable I/O solution for industrial environments. TE’s Industrial Mini I/O connector is only one quarter the size of the conventional RJ45 plug and as a result, provides space saving and the flexibility to use limited space on the PCB more effectively. Designed with two points of contact, this connector is built for the stringent demands of an industrial and high vibration environment, enabling increased productivity through a reliable connection. With its innovative piercing termination, the Mini I/O Field Installable version decreases the time usually needed to terminate the wires through soldering and with an easy to use hand tool, the field assembly in virtually any environment is now possible. BENEFITS ELECTRICAL • Innovative and time-saving wire-termination • 8 position • Wire-to-board • Reliable connections in industrial and • 60 V rated • Current rating: 0.5 AMPS • 0.635 mm pitch vibration-prone environments • Space saving solution that allows for increased design flexibility • Available in different versions for varios MATERIALS • Shell: Copper alloy • Contact: Copper alloy • Housing: Thermoplastic applications STANDARDS AND SPECIFICATIONS KEY FEATURES • Meets Cat5e requirements when used in an Ethernet application product • Small, Compact Size (space savings) • Time Saving Wire Termination specification: 108-78955 • Application specification: 114-5506 • ­Enables wire-to-wire connections • Intermateable with existing receptacles (SMT, Right Angle, Straight, THR) • Keying interface to prevent mis-mating PRODUCT OFFERING Part Number Description 2201855-1 MINI I/O PLUG KIT TYPE I L 1-2201855-1 MINI I/O PLUG KIT TYPE II L APPLICATIONS 2201855-2 MINI I/O PLUG KIT TYPE i M • Industrial Communications 1-2201855-2 MINI I/O PLUG KIT TYPE II M • Motion & Drives 2201855-3 MINI I/O PLUG KIT TYPE I LM MIX • PLC’s 2201864-1 MINI I/O REC KIT TYPE I L • Robotics 1-2201864-1 MINI I/O REC KIT TYPE II L 2201864-2 MINI I/O REC KIT TYPE I M MECHANICAL 1-2201864-2 MINI I/O REC KIT TYPE II M • Operating temperature: -40 °C to +85 °C 2201864-3 MINI I/O REC KIT TYPE I LM MIX • Cable diameter: 7.1 mm Max 2229737-1 HAND TOOL • Wire size: 24 AWG Max • Latch retention force: 98 N (10 kg) PRODUCT DIMENSIONS • Plug Kit: 11.62 x 34 x 8.7 mm • Receptacle Kit: 11.7 x 35 x 13.5 mm While TE has made every reasonable effort to ensure the accuracy of the information in this document, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty orguarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this document are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. te.com/products/mini-io 1-1773733-2 CIS SG 08/2015 © 2014 TE Connectivity Ltd. Family of Companies. All Rights Reserved. TE Connectivity and the TE connectivity (logo) are trademarks. Other logos, product and/or company names might be trademarks of their respective owners. USA: 1-800-522-6752 Latin/S. America: +54 (0) 11-4733-2200 France: +33 (0) 1-3420-8686 Canada: +1-905-475-6222 Germany: +49 (0) 6251-133-1999 Netherlands: +31 (0) 73-6246-999 Mexico: +52 (0) 55-1106-0800 UK: +44 (0) 800-267666 China: +86 (0) 400-820-6015
