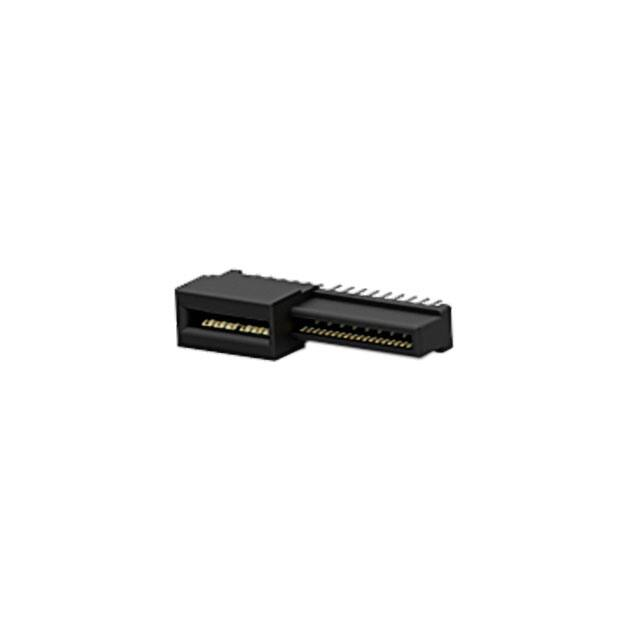

2204061-2

7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 BY - RELEASED FOR PUBLICATION 6 5 4 3 2 20 LOC REVISIONS DIST AA ALL RIGHTS RESERVED. 1 00 P LTR DESCRIPTION A A1 1. HOUSING: CONTACT: D A1 2. DATE DWN APVD INITIAL RELEASED 27FEB2013 AY SZ REV PER ECR-13-007783 13MAY2013 AY SZ GLASS FILLED POLYESTER, COLOR - BLACK, UL94V-0 @ 1.50mm MIN. THICKNESS HIGH CONDUCTIVITY COPPER ALLOY D FINISH: CONTACTS - GOLD PLATE 0.76µm MIN THK IN MATING AREA OVER NICKEL 1.27µm MIN THK. SOLDER TAILS - MATTE TIN PLATE 1.27µm MIN THK. OVER NICKEL 1.27µm MIN THK. 3 DIMENSION SPECIFIED BY CUSTOMER 4 NO SHARP EDGES PERMITTED 5. FOR INSERTION INTO PCB USE TE PRESS FIT TOOL PART NUMBER 2063547-1 6 PRODUCT SPECIFICATION 108-1548 APPLIES TO 36 CHAMP .050 SERIES SIGNAL CONTACTS. PRODUCT SPECIFICATION 108-2202 APPLIES TO 4 SEC II POWER CONTACTS. 7 APPLICATION SPECIFICATION 114-6061 APPLIES TO CHAMP .050 SERIES SIGNAL CONTACTS. APPLICATION SPECIFICATION 114-13018 APPLIES TO 4 SEC II POWER CONTACTS. C C B B 2204061-2 A A PART NO. THIS DRAWING IS A CONTROLLED DOCUMENT. DIMENSIONS: mm MATERIAL SEE NOTE 1 4805 (3/11) TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 0.13 - SEE NOTE 1 DWN 28MAY2008 CHK 28MAY2008 L.A.MAYER A.FRANTUM 28MAY2008 S.FLICKINGER APVD PRODUCT SPEC APPLICATION SPEC - WEIGHT NAME 6 - 1° TE Connectivity 7 - CUSTOMER DRAWING SIZE CONNECTOR ASSEMBLY, SEC II POWER, 4 POWER AND 36 SIGNAL, PRESS FIT CAGE CODE A1 00779 DRAWING NO RESTRICTED TO 2204061 SCALE 3:1 SHEET 1 OF - 3 REV A1 7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION 6 5 4 3 2 20 LOC AA ALL RIGHTS RESERVED. BY - 1 REVISIONS DIST 00 P LTR - DESCRIPTION DATE SEE SHEET 1 DWN APVD - - - 45.76 4.48 1.23 0.05 -M- D D 7.62 P2 P1 & N S1 S18 10.13 +0.13 -0.25 7.78 2.75 2.60 -NPOWER P4 P3 S36 16.55 0.05 S19 5.78 +0.13 -0.25 2.75 2.60 24.10 0.05 -PSIGNAL C C CARD SLOT ACCEPTS 2.36 # 0.24 PRINTED CIRCUIT BOARD -N- CARD SLOT ACCEPTS 2.36 # 0.20 PRINTED CIRCUIT BOARD -P- 9.12 15.49 5.54 6.05 10.07 4.12 1.52 -L- B -L3.18 0.51 0.40 TYP 2.81 5.63 SECTION K-K 5X 2.54 BOTH SIDES B 3.18 0.51 0.30 0.05 TYP (3.04 ) 0.32 0.01 TYP 1.36 TYP 1.27 TYP 4.57 1.36 0.84 0.03 TYP TYP 4.57 1.89 SECTION J-J SECTION (4.61 ) L-L A A THIS DRAWING IS A CONTROLLED DOCUMENT. DIMENSIONS: mm MATERIAL SEE NOTE 1 4805 (3/11) TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 0.13 - SEE NOTE 1 DWN 28MAY2008 CHK 28MAY2008 L.A.MAYER A.FRANTUM 28MAY2008 S.FLICKINGER APVD TE Connectivity NAME PRODUCT SPEC - APPLICATION SPEC 1° - WEIGHT SIZE - CUSTOMER DRAWING CONNECTOR ASSEMBLY, SEC II POWER, 4 POWER AND 36 SIGNAL, PRESS FIT CAGE CODE A1 00779 DRAWING NO RESTRICTED TO 2204061 SCALE 3:1 SHEET 2 OF - 3 REV A1 7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION 6 5 4 3 2 20 LOC AA ALL RIGHTS RESERVED. BY - 1 REVISIONS DIST 00 P LTR - 16.36 0.10 -T- DESCRIPTION DATE SEE SHEET 1 DWN APVD - - - 23.66 0.10 1.36 0.05 2X 6.35 0.05 -M- D D PAD P3 PAD P4 9.25 8.14 MIN PAD S19 PAD S36 11.65 (0.38 ) 4.88 MIN 4 1.33 0.18 C (0.38 ) 0.75 x45 $ 0.95 0.18 30 $TYP -S- 1.33 0.18 18X 0.81 0.03 1.89 C 0.95 0.18 (1.27 ) 7.62 2.36 0.24 ACROSS PADS 4.48 17 SPACES AT 1.27 = 21.59 RECOMMENDED DAUGHTER CARD CONFIGURATION SCALE 12X -Z- n1.07 0.03 AFTER PLATING CONFIGURATION P1 P2 3 B 2 3 1 2 S18 1 S2 S1 B 2X 4.57 5.62 S17 3 2.81 3 8:1 2 S20 P3 P4 3 1 2 1 .XXX 2X 1.36 S35 S36 S19 -X2.54 TYP 7.62 4.48 36X n0.80 0.08 17X 1.27 3 .XXX -Y- A 1.89 RECOMMENDED PCB LAYOUT SCALE 8:1 A THIS DRAWING IS A CONTROLLED DOCUMENT. DIMENSIONS: mm MATERIAL SEE NOTE 1 4805 (3/11) TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 0.13 - SEE NOTE 1 DWN 28MAY2008 CHK 28MAY2008 L.A.MAYER A.FRANTUM 28MAY2008 S.FLICKINGER APVD TE Connectivity NAME PRODUCT SPEC - APPLICATION SPEC 1° - WEIGHT SIZE - CUSTOMER DRAWING CONNECTOR ASSEMBLY, SEC II POWER, 4 POWER AND 36 SIGNAL, PRESS FIT CAGE CODE A1 00779 DRAWING NO RESTRICTED TO 2204061 SCALE 4:1 SHEET 3 OF - 3 REV A1
