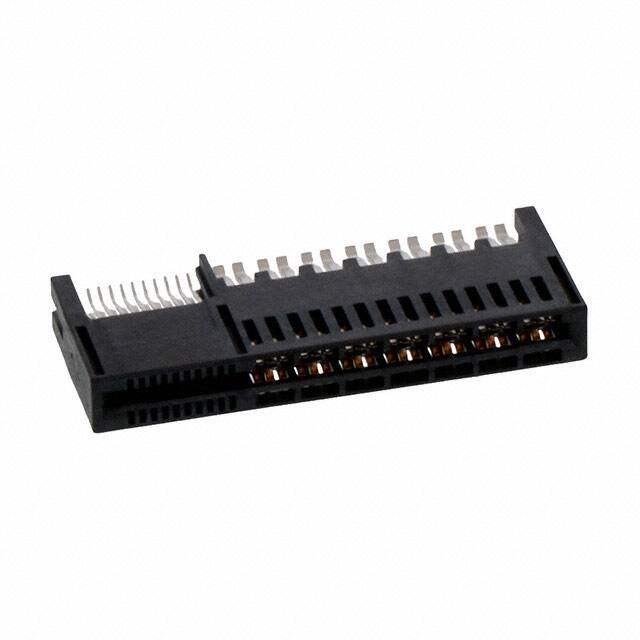

2204798-1

108–128052 Product Specification Rev. A Super Card Edge Connector 1 1.1 SCOPE. Content. This specification defines the performance, tests and quality requirements for the TE Connectivity (TE) Super Card Edge Connector 1.2 Qualification. When tests are performed on subject product, procedures specified in this specification shall be used. All inspections shall be performed using applicable inspection plan and product drawing. 2 APPLICABLE DOCUMENTS. The following documents form a part of this specification to the extend specified herein. Unless otherwise specified, latest edition of the document applies. In the event of conflict between the requirements in this specification and the product drawing, the product drawing shall take precedence. In the event of conflict between requirements of this specification and referenced documents, this specification shall take precedence. 2.1 TE Documents. 102-950 Quality Specification (Qualification of Separable Interface Connectors) 501-128055 Test report 109-1 General Requirements for Test Specifications 114-128056 Application Specification 2.2 Industry Documents EIA-364 Electrical Connector/Socket Test Procedures Including Environmental Classifications IEC-60512 Electronic Equipment-Test and Measurements 2.3 Reference Documents. 109-197 3 3.1 Test Specification (TE Test Specifications vs EIA and IEC Test Methods) REQUIREMENTS. Design and Construction: Products shall be of design, construction and physical dimensions as specified on the applicable product drawing. 3.2 Materials Materials used in the construction of this product shall be as specified on the applicable product drawing. - Tyco Electronics Shanghai, P.R.China All international rights reserved Tyco Electronics *Trademark R6-76 (Rev. 07-01) This information is confidential and propriety to Tyco Electronics and its worldwide subsidiaries and affiliates. It may not be disclosed to anyone, other than Tyco Electronics personnel, without written authorization from Tyco Electronics Corporation, Harrisburg, Pennsylvania USA This specification is a controlled document and subject to change. Contact the Engineering Control Organization for the latest revision. 1 of 6 LOC H 108-128053 . 3.3 Ratings: A. Operating Voltage: See Table 1 B. Current: C Temperature: -55°C to 125°C. Power Contact - 24A per contact (14 contacts total)) Signal Contact - 1A per contact (20 contacts total) Table 1 Module Type Power Signal Centerline Spacing(mm) 5.08 1.27 Contact Max Operating Voltage Between Contacts(V) 100 60 Per UL 60950, UL 840 Safety Extra Low Voltage (SELV) Circuits 3.4 Performance and Test description: The product is designed to meet electrical, mechanical and environmental performance requirements specified in this paragraph. Unless otherwise specified, all tests are performed at ambient environmental conditions. Test Description Initial examination of product Requirement Meets requirements of product-drawing and applicable instructions on customer drawing, and application specification. Final examination of product Meets visual requirements ELECTRICAL Low Level Contact Resistance Signal contact: 30 milliohms max. Power contact: 1.5 milliohms max. Procedure EIA-364-18 Visual examination and dimensional inspection per product drawings. EIA-364-18 Visual examination EIA-364-23 Subject specimens to 100 mA maximum and 20 mV maximum open circuit voltage Contact resistance (power contact) At 24A for power, 1milliohms maximum EIA-364-06 Insulation resistance 500 MΩ min for signal contact 5000 MΩ min for power contact Dielectric Withstanding Voltage Hot Swap Rev A R6-77 (Rev. 03-00) EIA-364-21 500+/-10% VDC, 2 minutes hold. Test between adjacent contacts One minute hold with no breakdown or EIA-364-20, Condition I. 1500 V flashover for power contact and 500V for signal contact at sea level. Test between adjacent contacts. Contact resistance change
