2213929-4

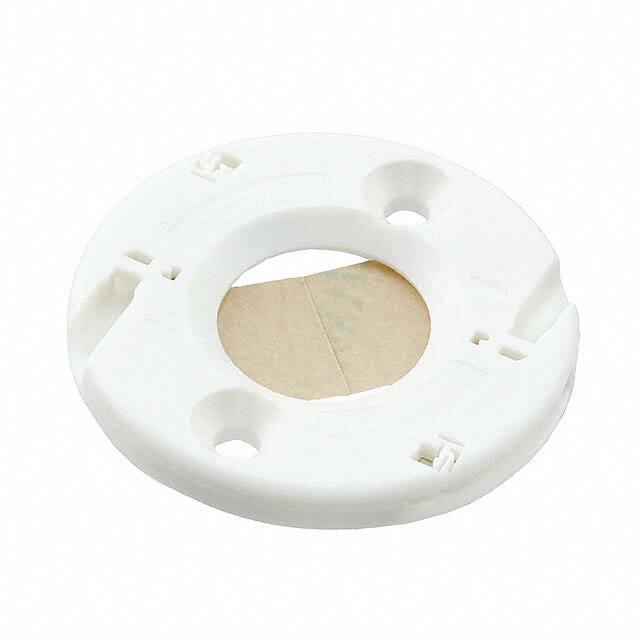

LUMAWISE LED HOLDER TYPE Z35 19*19mm and 16*19mm LED Board Sizes NEED PRODUCT GROUP PHOTO TE Connectivity (TE)’s LUMAWISE LED Holder Type Z35 is suitable for LED board sizes 19*19mm and 16*19mm from various LED manufacturers. This LED Holder offers higher level of integration via a solderless connection to chip-on-board (COB) LEDs using standard pan-head and countersunk screws. The Type Z35 LED holder enables quick and easy LED assembly through tape-in LED retention and provides easy attachment of secondary optics. TE’s LUMAWISE LED Holder is Zhaga book 11 inspired. Applications Benefits • Spot Lights • Street Lights • Track Lights • Runway Lights • Recessed Downlights • Architectural Lighting • High Bay Lights • Reading lamps • Retrofit Lamps • Sign and symbol luminaires • Wall Sconces • Area and object lighting • Current rating: 3A (max) • Voltage rating: 60 VDC Mechanical -40 to +105˚C • Uses M3 or #4-40 screws • Poke-in electrical contact support: through a solderless connection • Achieve quick and easy LED assembly through tape-in LED retention • Ease termination with integrated poke-in wire termination Electrical • Operating temperature range: • Enable a higher level of integration 18 AWG and 20 AWG solid, fused and stranded wire • 35 mm diameter by 3.6 mm height (max) Specifications • Product specification: 108-133062 • Application specifications: 114-133062 • UL 8754 approved • IEC 60838-2-2 approved Materials • Halogen free and red phosphorus free plastic housing material • UL 94 V0 rating INTELLIGENT BUILDINGS /// LUMAWISE LED HOLDERS TYPE Z35 • High-reflectivity, halogen free and red phosphorus free plastic housing material LUMAWISE LED HOLDERS TYPE Z35 Product Selection Information Part Number Description Attachment 2213929-3 Z35 MINI LED HOLDER 19*19 (A) PANHEAD* Pan Head Screw 2213929-4 Z35 MINI LED HOLDER 19*19 (A) CSK* Counter Sunk Screw 2213929-7 Z35 MINI LED HDR 19*19 (B) PANHEAD* Pan Head Screw 2213929-8 Z35 MINI LED HDR 19*19 (B) CSK* Counter Sunk Screw Part Number Description Attachment 2213929-5 Z35 MINI LED HOLDER 16*19 PANHEAD Pan Head Screw 2213929-6 Z35 MINI LED HOLDER 16*19 CSK Counter Sunk Screw *(A) vs. (B) - See product drawing for information Dimensions All dimensions are in mm This drawing is subject to change. For latest version, please visit TE.com. te.com © 2017 TE Connectivity. All Rights Reserved. LUMAWISE, TE, TE Connectivity, and the TE connectivity (logo) are trademarks of the TE Connectivity Ltd. family of companies. Other logos, product and Company names mentioned herein may be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. 1-1773924-2 FS 6/2017 INTELLIGENT BUILDINGS /// LUMAWISE LED HOLDERS TYPE Z35 USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 The Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015
