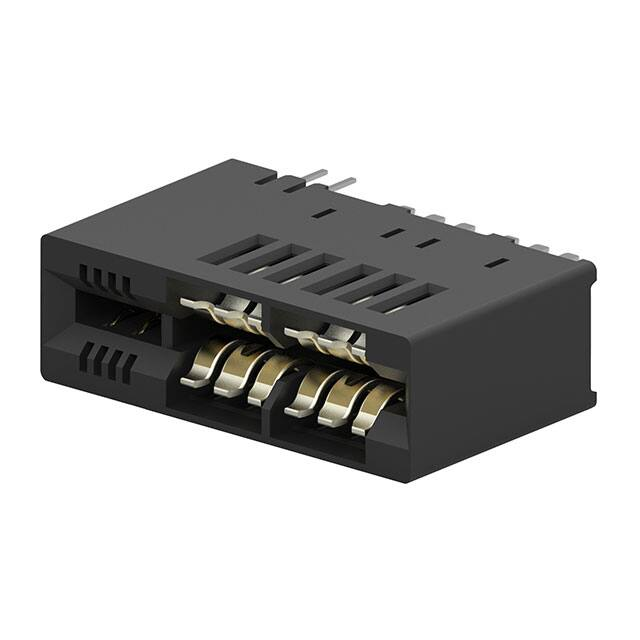

2214934-3

MULTI-BEAM CARD EDGE CONNECTORS TE Connectivity’s (TE) next generation MULTI-BEAM card edge connectors deliver the best overall power and signal density to address server market requirements for performance, profile and cost. MULTI-BEAM card edge connectors are also applicable in global data communication applications to decrease costs. These products are the next generation card edge connectors over the current SEC-II power card edge products and deliver superior current and signal density with a unique design. The scalable and modular features also support greater flexibility in configuration and PCB design. KEY BENEFITS • High density • Better connectivity tolerance • Modular design • Better performance APPLICATIONS • Data center • Telecommunications • Industrial automation devices • Power systems DATA AND DEVICES /// MULTI-BEAM CARD EDGE CONNECTORS MULTI-BEAM Card Edge Connectors PRODUCT FEATURES & BENEFITS High Density • Highest signal density in the market with 60% signal space savings • 30% power density improvement over legacy products • Smaller pitch: signal pitch 1.00mm, power pitch 7.26mm • Greater power contact, max. 43A Signal - up to 60% space savings Better Connectivity Tolerance • Better gatherability for blind-mate applications: +/-2.0mm (X), +/-1.54mm (Y) • More clearance between PCB pads for signal contact to prevent solder bridging, and 1.3mm larger pads for easier alignment • Support two PCB thickness: 1.57mm and 2.36mm Modular Design • Common power and signal contact module • Flexible configuration with different contact quantities and positions • Better scalability (AC & DC, low power & high power) Power - up to 30% space savings Better Performance • Excellent mechanical and electrical performance • Easy mating/un-mating with proper retention force • Low level contact resistance Specifications • Current rating: • Power contact: up to 43A • Signal contact: up to 2A PRODUCT CONFIGURATIONS • Voltage rating: • Power: 100V max. • Signal: 60V max. • Durability: 200 mating cycles • Mechanical shock: EIA-364-27 • Vibration: EIA-364-28 • Operating temperature: -55°C to 105°C • Low mating force • 6N max. per power contact • 1.5N max. per signal contact • PCB thickness: 1.57mm and 2.36mm • Material: high conductivity copper alloy and high temperature resin with RoHS compliance • Product spec: 108-32043 • Application spec: 114-128016 Vertical Straddle Right Angle ORDERING INFORMATION Part Number Configuration Positions Power Signal 2212112-1 Vertical 2x4 2x4 2214913-1 Vertical 2x13 2x24 2214913-4 Vertical 2x6 2x12 2214913-5 Vertical 2x4 2x4 2204072-1 Vertical 2x3 2x5 2214934-3 Vertical 2x2 2x4 2212078-1 Straddle 2x13 2x24 1-2212115-4 Right Angle 2x1 2x4 2212115-1 Right Angle 2x13 2x24 2214913-7 Vertical 2x2 2x6 © 2017 TE Connectivity Ltd. family of companies. All Rights Reserved. 1-2214934-4 Vertical 2x2 2x6 1-1773923-7  06/17   DND DATA AND DEVICES /// MULTI-BEAM CARD EDGE CONNECTORS te.com TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. PAGE 2
