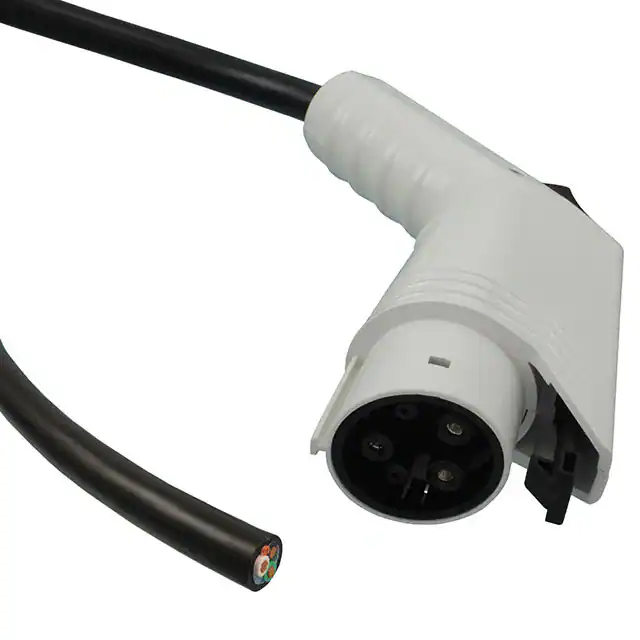

DiBO EV CHARGING Cable Assemblies for Type 1 TE Connectivity redesigned its EV Charging Cable Assemblies for Type 1 with an ergonomical design handle to fit security enclosures. KEY BENEFITS • Individual contact seals prevent moisture and potential corrosion operated solid state switches versus a mechanical switch allowing for an increased life expectancy and TE Madison Cable high flex cable for maximum flex life. of the crimping zone • Increased lifetime with magnetically operated solid- Contact assemblies are sealed with a liquid silicon rubber to prevent against corrosion and moisture inside the connector body. Product meets the SAE J1772 specifications, UL Recognized per UL 2251 and state switch • Latch, Inlet Lock Capable wide enough to meet the SAE spec RoHS Compliant. Designed with the end user in mind, materials provide a crush-resistant connector body, meet outdoor classification F1 (UL) and are resistant to common automotive fluids. for inlet locking • TE Madison Cable high cable designed to provide maximum life Environmental • IP protection when plugged in - IP44 APPLICATIONS • IP protection when not plugged in - IP66 US - Single-ended termination for integration into EVSE by Key Features equipment builder • Improved housing design STANDARDS AND • Housing seal for each contact SPECIFICATIONS • TPA Contact Retention • SAE 1772 Compliant • Integrated cable clamp exceeds SAE JI772 • UL Recognized Per UL 2251 • Internal cable strain relief • VDE • Latch, Inlet lock capable • RoHS Compliant • Materials are resistant to UV (FI) exposure and common automotive fluids TE CONNECTIVITY /// DiBO EV CHARGING Pending EV CHARGING Materials ENVIRONMENTAL • Contacts: Brass (500 MPa Stress) • IP protection when plugged in - IP44 • Housing: UL94-0 rated thermoplastic • IP protection when not • Materials are rated UV exposure performance 5Δe and are plugged in - IP66 resistant to common automotive fluids • 3 + 2 positions for 1-Phase charging CABLE INFORMATION • 10 AWG, Operating Electrical Specifications temperature 105 °C • 32 amps, 600 volts Mechanical Specifications • Housing seal for each contact (Liquid Silicon Rubber Seal) • TPA Contact Retention • 10,000 mating cycles • 3 color options (white, black and gray) • Customized colors (min volume required) Product Dimensions Color Housing Shell Description Cable TE Part No. 10Ft TE Part No. 15Ft TE Part No. 20Ft TE Part No. 25Ft White 32A, 600 volt 3C 10AWG + 1C 20AWG, black 2267185-1 2267185-2 2267185-3 2267185-4 Gray 32A, 600 volt 3C 10AWG + 1C 20AWG, black 2267220-1 2267220-2 2267220-3 2267220-4 Black 32A, 600 volt 3C 10AWG + 1C 20AWG, black 2267221-1 2267221-2 2267221-3 2267221-4 © 2015 TE Connectivity Ltd. Family of Companies. All Rights Reserved. DiBO, TE, TE Connectivity, and the TE connectivity (logo) are trademarks of the TE Connectivity Ltd. family of companies. Other logos, product and Company names mentioned herein may be trademarks of their respective owners. 1-1773865-1 9/2015 TE CONNECTIVITY /// DiBO EV CHARGING USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 The Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015
