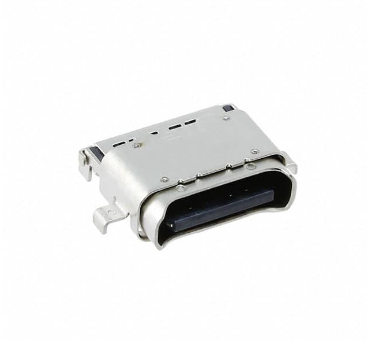

2295018-2

USB TYPE-C CONNECTORS TE Connectivity’s (TE) USB Type-C connectors are designed to an industry standard that provides a sleek, slim design small enough for handheld devices and small/home appliances, and robust enough for industrial applications. The USB Type-C connector features a reversible mating interface; the receptacle is designed to accept a plug in any direction, enabling easy, reliable mating. This connector supports a variety of different protocols, and with the use of adaptors, it is backwards compatible to HDMI, VGA, Display Port and other types of connections from the single USB Type-C port. We provide a distinctive Electromagnetic Interference (EMI) design on the back of the receptacle shell to help eliminate unwanted EMI leakage, as well as enhanced retention features, waterproof and splash proof options for better performance in rugged environments. APPLICATIONS BENEFITS • Small/Home Appliances • • Factory automation Distinctive design on the back of the receptacle shell for industry leading EMI performance • Industrial machinery • Enhanced board retention features for added durability • Data centers • IPX8 waterproof and IPX4 splash proof options available • Business equipment • • Lighting Available in one of the smallest dual row surface mount (SMT) footprints, saving valuable board real-estate • Tablets • Provide one interconnect solution for data, power and A/V • PCs and laptops • Designed with a flippable and reversible mating interface • Wearables • Support USB4 Gen 3, USB 3.1 Gen 1, USB 3.1 Gen 2 and USB 2.0 • Smart phones • Transfer data up to 40 Gbps • Medical devices • Deliver power up to 100W at 20V • A/V digital switches • Backward compatible to other USB connectors using converter cables or adaptors • Power packs and chargers • Automotive infotainment DATA AND DEVICES / USB TYPE-C CONNECTORS USB TYPE-C CONNECTORS Waterproof Dual Row SMT Receptacle Mid-Mount Hybrid Receptacle Top Mount Dual SMT Receptacle Splash Proof Dual Row SMT Receptacle MATERIALS RATINGS SPECIFICATIONS • Contact: Copper alloy • Voltage rating: 20V max • • Housing: Thermo plastic, UL 94 V-0 • Current rating: • Shell: Stainless steel • VBUS pins: 5A max, GND pins: 6.25A Product specs: 108-99061, 108-115109-2, 108-160251 • VCONN pins: 1.25A max • Signal pins contact: 0.25A min • Temperature rating: -30oC to 80oC PART NUMBER INFORMATION Description TE Part Number USB 3.1 Receptacle on Board Dual Row SMT, IPX8 2305018-2 USB 3.1 Receptacle Mid-Mount 0.485 Hybrid 2129691-1 USB 3.1 Receptacle Offset 0.65mm Dual Row SMT, Splash Proof 2295018-2 USB 3.1 Receptacle Offset 0.65mm Dual Row SMT 1-2295018-2 USB 3.1 Receptacle Mid-Mount 0.485 Hybrid 2129691-2 USB 3.1 Receptacle Top Mount CH1.6 2338792-1 USB 2.0 Receptacle Mid-Mount 16pos 2340901-1 USB 3.1 Receptacle Top Mount Dual SMT 1.63CH 2345986-1 USB 3.1 Receptacle Vertica 2337857-1 USB 3.1 Top Mount Dual SMT 1.63CH 15U 2345986-2 USB 3.1 Top Mount Dual SMT 1.63CH 30U 2345986-3 USB4.0 Gen3 Mid PCB Mount Receptacle 2385692-1 USB4.0 Gen3 Top Mount Dual SMT Receptacle 2388749-1 te.com/products/USBTypeC TE, TE Connectivity and TE connectivity (logo) are trademarks owned or licensed by the TE Connectivity Ltd. family of companies. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity's obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2021 TE Connectivity Ltd. family of companies All Rights Reserved. 1-1773868-8 08/21    DATA AND DEVICES / USB TYPE-C CONNECTORS
