2322260-1

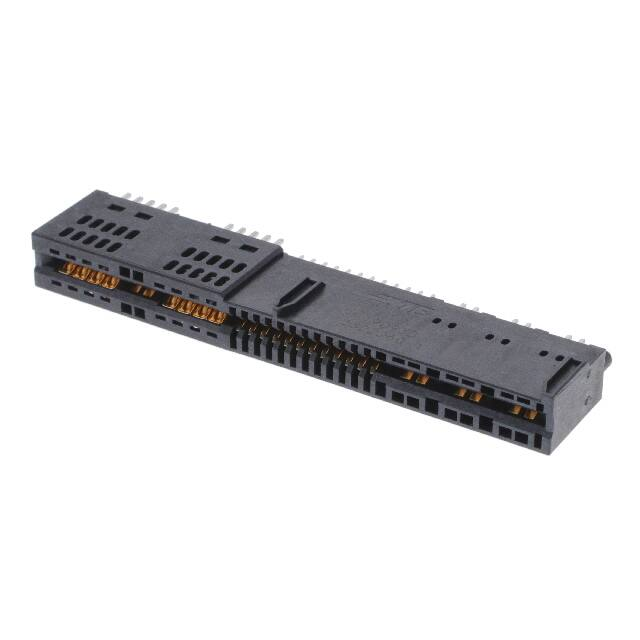

7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION 6 5 4 3 2 20 LOC - REVISIONS DIST - ALL RIGHTS RESERVED. 1 - P LTR A DESCRIPTION DATE FIRST RELEASE DWN APVD SZ 08JUN2018 SZ NOTES,UNLESS OTHERWISE SPECIFIED 1.MATERIAL: HOUSING - THERMOPLASTIC, GLASS PREINFORCED, COLOR, BLACK, UL 94V-0 CONTACTS- COPPER ALLOY. 83.00 2.FINISH: 0.35 D D MATING AREA - NOBLE METAL OVERALL NICKEL. SOLDER TAIL - MATTE TIN OVERALL NICKEL. 16.50 3.MARK P/N AND DATA CODE IN APPROX. AREA AS SHOWN. ( 3.0 ) 3 ( 2.94 ) 86.00 C C ( 2.00 ) 34.50 MAX 3.70 8.30 9.40 +0.10 -0.20 12.65 B B CONNECTOR ACCEPTS 1.6 # 0.14 mm PCB ( 15.15 ) 2.70 ( 21.02 ) ( 24.61 ) 16.50 ( 29.26 ) ( 34.07 ) AC-AC SECTION ( 37.50 ) 81.50 A THIS DRAWING IS A CONTROLLED DOCUMENT. PART NUMBER 01SEP2017 DWN SEAN ZHANG TE Connectivity CHK DIMENSIONS: mm MATERIAL 4805 (3/11) - TOLERANCES UNLESS OTHERWISE SPECIFIED: 0.40 0.20 0.10 - 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH - 01SEP2017 APVD SUNY ZHAO NAME PRODUCT SPEC 108-128060 APPLICATION SPEC 2 - WEIGHT SIZE - CUSTOMER DRAWING A 2322260-1 HIGE DENSITY HYBRID POWER CARD EDGE SOLDER TYPE LOW PROFILE CAGE CODE A1 00779 DRAWING NO 2322260 SCALE 1:1 SHEET RESTRICTED TO 1 OF - 2 REV A 7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 5 4 3 2 20 RELEASED FOR PUBLICATION - 6 LOC - ALL RIGHTS RESERVED. 1 REVISIONS DIST - P LTR - DESCRIPTION DATE SEE SHEET 1 DWN APVD - - - 11.00 1.00 TYP. 4.14 TYP. 1.10 5.00 11.00 TYP. FULL ROUND D 12.00 MIN. 14.00 MIN. ( 0.78 ) 12.00 SEE DETAIL A 6.00 D 1.60 0.14 6.625 18.92 2.00 16.085 C 8.24 2.95 TYP. 6.50 -P8.24 22.00 C 33.635 57.185 61.715 0.50 81.40 MIN -Q- 30 $ MAX RECOMMENDED CARD EDGE CONFIGURATION TYP.BOTH SIDE DETAIL A SCALE 10:1 58.49 38.47 31.41 B B 18.92 12.86 2.00 2.00 TYP. 8.24 4.30 2.20 8.24 TYP. NOTES FOR MOUNTING BOARD,UNLESS OTHERWISE SPECIFIED: 1.PLATED THROUGH HOLE, SIGNAL: 7.50 FINISHED HOLE SIZE:0.85mm. -N- DRILL HOLE SIZE:0.95 # 0.025mm. 3.50 2.PLATED THROUGH HOLE, POWER: 56X 1.20 0.05 24X 0.85 2X 3.00 0.05 NPTH FINISHED HOLE SIZE:1.2mm. DRILL HOLE SIZE:1.3 # 0.025mm. 3.COPPER PLATING THICKNESS:0.025~0.05mm. 83.00 -M- A 0.05 0.05 RECOMMENDED MOUNTING BOARD LAYOUT COMPONENT SIDE 4.SURFACE FINISH:OSP OR IMMERSION TIN PLATING IS RECOMMENDED. THIS DRAWING IS A CONTROLLED DOCUMENT. 01SEP2017 DWN SEAN ZHANG TE Connectivity CHK DIMENSIONS: mm MATERIAL 4805 (3/11) A - TOLERANCES UNLESS OTHERWISE SPECIFIED: 0.40 0.20 0.10 - 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH - 01SEP2017 APVD SUNY ZHAO NAME PRODUCT SPEC 108-128060 APPLICATION SPEC 2 - WEIGHT SIZE - CUSTOMER DRAWING HIGE DENSITY HYBRID POWER CARD EDGE SOLDER TYPE LOW PROFILE CAGE CODE A1 00779 DRAWING NO 2322260 SCALE 1:1 SHEET RESTRICTED TO 2 OF - 2 REV A
