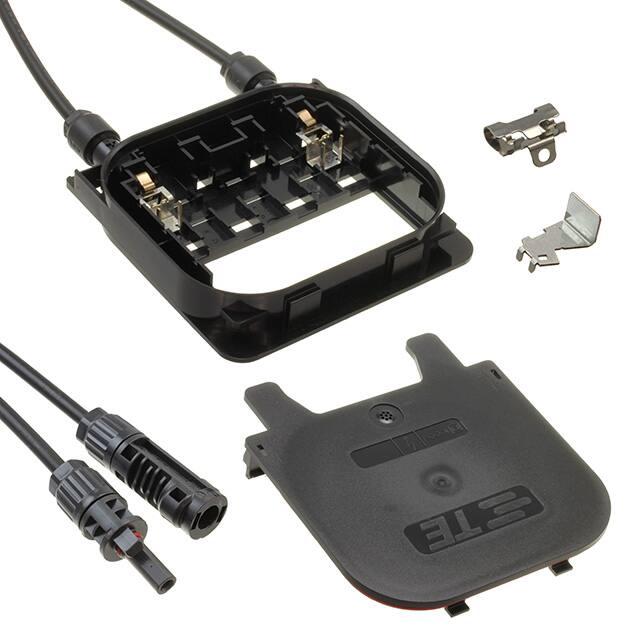

SOLARLOK PCB ENCLOSURE SMART JUNCTION BOX The SOLARLOK PCB enclosure smart junction box enables the integration of a Printed Circuit Board into the solution. The enclosure (junction box itself with no PCB) is TUV/IEC and UL approved. Special clips allow you to quickly and reliably connect your PCB to the solar panel foils. *Junction box is supplied with no printed circuit board. Applications Benefits • Solar panels • Allows customers to apply a specific PCB • Smart solar solutions • Enables the rework and replacement of the PCB Electrical • Withstanding Voltage: 1000V DC / 1500V DC (UL) IEC and UL approved separately depending upon the PCB enclosed • Rated Current: Depends on the designed electronics of the PCB • Provides a highly reliable enclosure for a PCB PV4-S connectors: • Provides waterproof protection and is rated IP68 (1 m / 24 hours) • Minimizes power loss by providing Mechanical • Operating Temperature: -40°C to 90°C • Protection Degree: IP65/67 low contact resistance Specifications • Product Specification: 108-133063 • Application Specification: 114-13303-1 • Instruction Sheet: 408-133063 • RoHS & REACH compliant Materials • Polyphenyl Ether (PPE) • Polystyrene (PS) Standards • Designed to meet UL3730 and IEC62790 INDUSTRIAL /// SOLARLOK MEDIUM JUNCTION BOX PCB Recommended Dimensions • Length x width: 51 mm x 94 mm (width = contact-rail-side) SOLARLOK MEDIUM JUNCTION BOX Product Selection Information Part Number Description Cable Length (millimeters) Contact and clip 2326862-1 MEDIUM SMART PCB JUNCTION BOX 1000 2 X CONTACT RAILS + 2 X S-CLIP 2326862-3 MEDIUM SMART PCB JUNCTION BOX 1000 4 X CONTACTS RAILS + 4 X S-CLIP Dimensions te.com © 2018 TE Connectivity. All Rights Reserved. SOLARLOK, TE, TE Connectivity, and the TE connectivity (logo) are trademarks of the TE Connectivity. Other logos, product and Company names mentioned herein may be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. 1-1773882-5 JN 11/2018 INDUSTRIAL /// SOLARLOK MEDIUM JUNCTION BOX USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico: +52 (0) 55-1106-0800 Latin/S. America: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 The Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015
