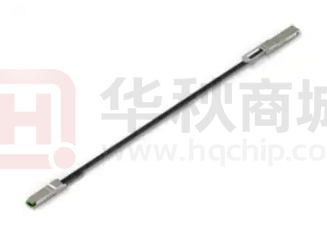

2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug 2333393-3  ACTIVE zQSFP+/QSFP28 TE Internal #: 2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug View on TE.com > Cable Assemblies > Copper Cable Assemblies > Pluggable I/O Cable Assemblies > QSFP28 to QSFP28 Cable Assembly: 30 AWG Cable Assembly Type: QSFP28 Equalized: No Wire Size: .051 mm² Outside Cable Diameter: 6.2 mm [ .244 in ] All QSFP28 to QSFP28 Cable Assembly: 30 AWG (6) Features Product Type Features Cable Assembly Category High Speed, Industry Standard Cable Assembly Type QSFP28 Connector Type (End A) QSFP28 Plug Connector Type (End B) QSFP28 Plug Cable Style Madison TurboTwin - Round Jacketed Configuration Features Number of Positions 16 Number of Pairs 8 Number of Signal Positions 16 Electrical Characteristics Impedance 100 Ω Signal Characteristics Data Rate  Body For support call+1 800Features 522 6752 25 Gb/s 10/15/2023 02:37AM | Page 1 2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug Body Features Equalized No Cable Color Black Cable Flammability Rating CL2 Dimensions Wire Size .051 mm² Outside Cable Diameter 6.2 mm[.244 in] Operation/Application Shielded Yes Halogen Free No Other Cable Assembly Configuration Double Ended Cable Assembly Length 1 m[3.28 ft] Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant with Exemptions EU ELV Directive 2000/53/EC Not Compliant China RoHS 2 Directive MIIT Order No 32, 2016 Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JAN 2022 (223) Does not contain REACH SVHC Halogen Content Not Low Halogen - contains Br or Cl > 900 ppm. Solder Process Capability Not reviewed for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on  For support call+1 800 522 6752 10/15/2023 02:37AM | Page 2 2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts  TE Part # 2170705-7 TE Part # 2170747-6 TE Part # 2170806-5 TE Part # 2-2170747-2 CAGE ASSY, QSFP28 1X1, SPRING, HS, LP CAGE ASSY, 1X4, QSFP28, SPRING, HS, LP CAGE ASSEMBLY, 1X2, QSFP28, SPRING, HS CAGE ASSY, 1X4, QSFP28, SPRING, HS, LP TE Part # 2170704-2 TE Part # 2227103-2 TE Part # 2227103-1 TE Part # 2170704-1 CAGE ASSY, QSFP28 1X1, SPRING, HS 1X2 CAGE ASSY BHND BZL QSFP28 1X2 CAGE ASSY BHND BZL QSFP28 CAGE ASSY, QSFP28 1X1, SPRING, HS TE Part # 2170704-5 TE Part # 1551892-1 TE Part # 2227104-1 TE Part # 2170703-7 CAGE ASSY, QSFP28 1X1, SPRING, HS Cage Assy Behind Bezel QSFP28 1X2 CAGE ASSY, BHND BEZEL, QSFP28 CAGE ASSEMBLY, QSFP28 1X1, SPRING TE Part # 2170790-4 TE Part # 2170703-6 TE Part # 1551891-1 TE Part # 1551920-1 CAGE ASSY, 1X4, QSFP28, SPRING, HS, LP CAGE ASSEMBLY, QSFP28 1X1, SPRING Cage Assy, Behind Bezel, QSFP28 zQSFP+ connector assembly For support call+1 800 522 6752 10/15/2023 02:37AM | Page 3 2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug TE Part # 2-2170808-3 TE Part # 2170704-4 TE Part # 2170806-2 TE Part # 2170806-3 QSFP28, 1X2, CAGE ASSY, SPRING, HS, LP CAGE ASSY, QSFP28 1X1, SPRING, HS CAGE ASSEMBLY, 1X2, QSFP28, SPRING, HS CAGE ASSEMBLY, 1X2, QSFP28, SPRING, HS Also in the Series zQSFP+/QSFP28 Heat Sinks(1) Pluggable I/O Cable Assemblies(81) QSFP, QSFP+ & zQSPF+(425) Customers Also Bought TE Part #DP86-005D TE Part #52928 TE Part #2-84952-0 TE Part #2318579-2 5 PSID MV DIFFERENTIAL PRESSURE SENSOR PIDG SPRSPD 22-16COM22-18MIL 5 1MM FPC HORZ.BTTM CONT.ASS.20P RCPT CONN R/A SMT 76 POSN QSFPDD WSHRS TE Part #1-2127931-4 TE Part #1-2159124-2 TE Part #2-1892903-7 TE Part #2-1892903-8 C/A, SFP+, GENERIC, 3.0M C/A, SFP+, GENERIC, 1.0M XLE REC PMT 6P+16S+4P XLE REC PMT 8S+4P TE Part #2-1892903-9 XLE REC PMT 8S+2P  Documents For support call+1 800 522 6752 10/15/2023 02:37AM | Page 4 2333393-3 QSFP28 Cable Assembly, 16 Positions, 3.28 ft [1 m], 25 Gb/s, Black Cable, Shielded, 30 AWG, .051 mm², Madison TurboTwin - Round Jacketed, QSFP28 Plug Documents Product Drawings QSFP 25GIG 30AWG 1 METER English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_2333393-3_A.2d_dxf.zip English Customer View Model ENG_CVM_CVM_2333393-3_A.3d_igs.zip English Customer View Model ENG_CVM_CVM_2333393-3_A.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Product Specification English  For support call+1 800 522 6752 10/15/2023 02:37AM | Page 5
