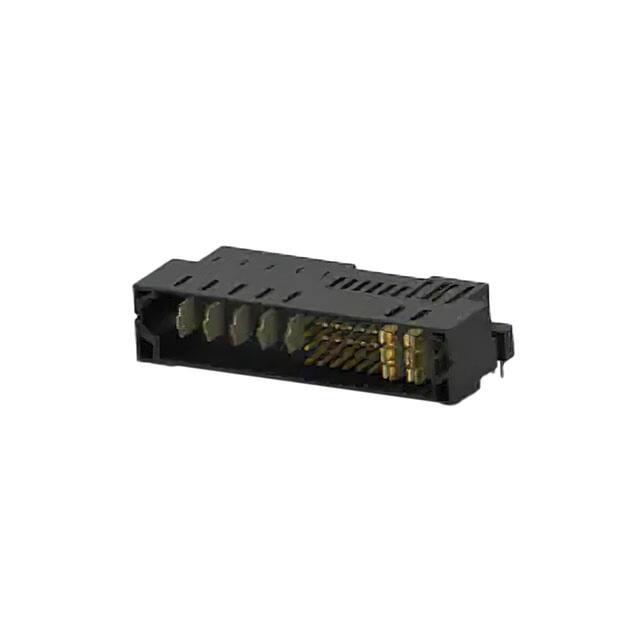

2334530-4 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Horizontal 2334530-4  ACTIVE MULTI-BEAM TE Internal #: 2334530-4 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Horizontal View on TE.com > Connectors > Power Connectors > Rectangular Power > Rectangular Power Connectors Rectangular Power Connector Type: Header Connector & Housing Type: Plug Connector System: Board-to-Board Connector & Contact Terminates To: Printed Circuit Board UL Flammability Rating: UL 94V-0 Features Product Type Features Header Type Fully Shrouded Rectangular Power Connector Type Header Connector & Housing Type Plug Connector System Board-to-Board Connector & Contact Terminates To Printed Circuit Board Configuration Features PCB Mount Orientation Horizontal Number of Power Positions 7 Number of Signal Positions 24 Number of Rows 6 Electrical Characteristics Operating Voltage 60 VDC Contact Features Contact Mating Area Plating Material  For support call+1 800 522 6752 Gold 01/02/2024 09:27PM | Page 1 2334530-4 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Horizontal Contact Mating Area Plating Material Gold Contact Current Rating (Max) 100 A Contact Retention Within Housing With Contact Type Blade, Pin PCB Contact Termination Area Plating Material Tin Housing Features Housing Color Black Housing Material LCP GF30 (Liquid Crystal Polymer) Dimensions .1 in Usage Conditions Operating Temperature Range -40 – 125 °C Industry Standards UL Flammability Rating UL 94V-0 Packaging Features Packaging Method Box & Tray Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free Solder Process Capability Wave solder capable to 265°C Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part  For support call+1 800 522 6752 01/02/2024 09:27PM | Page 2 2334530-4 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Horizontal limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts TE Part # 2334570-4 MBPLUS,R/A,REC.,SOLDER,5LP + 24S + 2P Customers Also Bought TE Part #2102453-1 TE Part #2102453-3 TE Part #6450560-3 TE Part #8682963001 CeeLok FAS-T, Recpt Assy PCB, Sq, Ni CeeLok FAS-T, Recpt Assy PCB, Sq, Ni, A MBXL R/A RCPT 1P+16S+1P 55A0112-24-2 TE Part #1-5767007-2 TE Part #1-530785-5 TE Part #2334570-4 TE Part #5-1633860-1 MICT,260PLUG,190,ASSY,.025,REC BOX PIN HDR ASSY 20 PS 075 CL MBPLUS,R/A,REC.,SOLDER,5LP + 24S + 2P CRIMPER, WIRE F TE Part #749108-3 TE Part #7-1437188-0 40 50SR CBL CONN TERM COVER FST-23A-12V6 Documents Product Drawings  MBPLUS,R/A,PLUG,SOLDER,5LP + 24S + 2P For support call+1 800 522 6752 01/02/2024 09:27PM | Page 3 2334530-4 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Horizontal Product Drawings MBPLUS,R/A,PLUG,SOLDER,5LP + 24S + 2P English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_2334530-4_A.2d_dxf.zip English Customer View Model ENG_CVM_CVM_2334530-4_A.3d_igs.zip English Customer View Model ENG_CVM_CVM_2334530-4_A.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Application Specification English  For support call+1 800 522 6752 01/02/2024 09:27PM | Page 4
