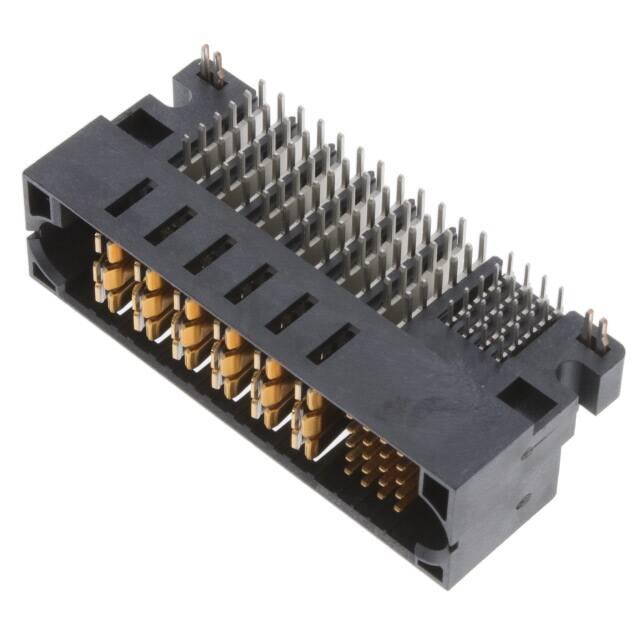

2334531-2 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Right Angle 2334531-2  ACTIVE MULTI-BEAM TE Internal #: 2334531-2 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Right Angle View on TE.com > Connectors > Power Connectors > Rectangular Power > Rectangular Power Connectors Rectangular Power Connector Type: Header Connector & Housing Type: Plug Connector System: Board-to-Board Connector & Contact Terminates To: Printed Circuit Board UL Flammability Rating: UL 94V-0 Features Product Type Features Header Type Fully Shrouded Rectangular Power Connector Type Header Connector & Housing Type Plug Connector System Board-to-Board Connector & Contact Terminates To Printed Circuit Board Configuration Features PCB Mount Orientation Right Angle Number of Power Positions 6 Number of Signal Positions 20 Number of Rows 4 Electrical Characteristics Operating Voltage 60 VDC Contact Features Contact Mating Area Plating Material  For support call+1 800 522 6752 Gold 01/02/2024 09:29PM | Page 1 2334531-2 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Right Angle Contact Mating Area Plating Material Gold Contact Current Rating (Max) 100 A Contact Retention Within Housing With Contact Type Blade, Pin PCB Contact Termination Area Plating Material Tin Housing Features Housing Color Black Housing Material LCP (Liquid Crystal Polymer) Dimensions Row-to-Row Spacing 2 mm Usage Conditions Operating Temperature Range -40 – 125 °C Industry Standards UL Flammability Rating UL 94V-0 Packaging Features Packaging Method Box & Tray Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Out of Scope China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2022 (224) Does not contain REACH SVHC Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free Solder Process Capability Wave solder capable to 265°C Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part  For support call+1 800 522 6752 01/02/2024 09:29PM | Page 2 2334531-2 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Right Angle limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts TE Part # 2334571-1 MBPLUS R/A RCPT 20S + 6P Customers Also Bought TE Part #1-2199230-6 TE Part #825457-3 TE Part #5821997-3 TE Part #969973-2 M.2 0.5PITCH 4.2H KEY M 30U AU MOD II HSG R.A. 3 POS 72 ME .050 VERT AU M/L PB-FREE 2x2P HV100 REC. CON, SMD, GOLD, BLISTER TE Part #2176327-9 TE Part #ER34182001 TE Part #EM7504-000 TE Part #2176526-1 CRGP 0805 47R 1% DWHF-4.5/1.5-0-STK SWFR-X4 Heat Shrink Tubing 3503G 2B 51R1 1% 5K RL TE Part #2-2176550-2 RLW73P A3 1% R56 200ppm 4k RL Documents Product Drawings  MBPLUS R/A HDR 20S + 6P For support call+1 800 522 6752 01/02/2024 09:29PM | Page 3 2334531-2 Rectangular Power Connectors, Header, Plug, Board-to-Board, Printed Circuit Board, UL 94V-0, -40 – 125 °C, 60 VAC, 60 VDC, Right Angle Product Drawings MBPLUS R/A HDR 20S + 6P English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_2334531-2_A1.3d_igs.zip English Customer View Model ENG_CVM_CVM_2334531-2_A1.2d_dxf.zip English Customer View Model ENG_CVM_CVM_2334531-2_A1.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Application Specification English Agency Approvals UL English  For support call+1 800 522 6752 01/02/2024 09:29PM | Page 4
