AMPLIMITE Stainless Steel
D-Subminiature Connectors
Rugged, Corrosion Resistant, Passivated Stainless Steel Connectors
for Demanding Applications
AEROSPACE, DEFENSE & MARINE /// AMPLIMITE STAINLESS STEEL D-SUBMINIATURE CONNECTORS
AMPLIMITE Stainless Steel
D-Subminiature Connectors
Rugged, Corrosion Resistant, Passivated Stainless Steel Connectors
for Demanding Applications
Description
TE Connectivity’s (TE) AMPLIMITE D-Subminiature connector
eliminates the use of toxic cadmium platings while providing
up to 500 hr salt spray resistance in a rugged passivated stainless
steel housing.
TE’s D-Subminiature connectors are available with either
20 or 22 AWG crimp contacts, and are designed to meet the
performance requirements of MIL-DTL-24308.
RUGGED
Applications
• Stainless steel housing designed
• Military Aerospace
to meet the requirements in
• Weapons Systems
MIL-DTL-24308
• Launching Systems
VERSATILE
• Available with standard 20 awg
• Military Ground Vehicles
• Marine
• Harsh Environments
crimp contacts or higher density 22
awg crimp contacts
ELECTRICAL
CORROSION RESISTANT
• Passivated stainless steel shell
that requires no protective or
toxic platings
• Provides enhanced protection
in applications where salt spray is
a concern
BROAD PORTFOLIO OFFERING
• Expands TE’s AMPLIMITE line
of rectangular connector
product offerings
RoHS COMPLIANT
•C
ontact Current Rating:
Size 20 – 7.5A
Size 22 – 5A
MECHANICAL/ENVIRONMENTAL
• Operating Temperature: -55°C to +125°C
MATERIALS
• Shell Housing: Stainless steel
• Inserts: PPS and PBT
• Contacts: Copper alloy
• Contact Plating: Gold over nickel
STANDARDS
• MIL-DTL-24308
TE Components . . . TE Technology . . . TE Know-how . . .
AMP | AGASTAT | CII | HARTMAN | KILOVAC | MICRODOT | NANONICS | POLAMCO | Raychem
SEACON | Rochester | DEUTSCH
Empower Engineers to Solve Problems, Moving the World Forward.
AEROSPACE, DEFENSE & MARINE /// AMPLIMITE STAINLESS STEEL D-SUBMINIATURE CONNECTORS
PAGE 2
AMPLIMITE Stainless Steel D-Subminiature Connectors
Ordering Information
TE Part No.
Material Description
2335889-1
AMPLIMITE SZ 1 PLUG. 9 POS, ST STL SHELL
2335889-2
AMPLIMITE SZ 2 PLUG. 15 POS, ST STL SHELL
2335889-3
AMPLIMITE SZ 3 PLUG. 25 POS, ST STL SHELL
2335889-4
AMPLIMITE SZ 4 PLUG. 37 POS, ST STL SHELL
2335889-5
AMPLIMITE SZ 5 PLUG. 50 POS, ST STL SHELL
2335890-1
AMPLIMITE SZ 1 RECEP 9 POS, ST STL SHELL
2335890-2
AMPLIMITE SZ 2 RECEP 15 POS, ST STL SHELL
2335890-3
AMPLIMITE SZ 3 RECEP 25 POS, ST STL SHELL
2335890-4
AMPLIMITE SZ 4 RECEP 37 POS, ST STL SHELL
2335890-5
AMPLIMITE SZ 5 RECEP 50 POS, ST STL SHELL
2335891-1
AMPLIMITE SZ 1 PLUG 15 POS, ST STL SHELL
2335891-2
AMPLIMITE SZ 2 PLUG 26 POS, ST STL SHELL
2335891-3
AMPLIMITE SZ 3 PLUG 44 POS, ST STL SHELL
2335891-4
AMPLIMITE SZ 4 PLUG 62 POS, ST STL SHELL
2335891-5
AMPLIMITE SZ 5 PLUG 78 POS, ST STL SHELL
2335891-6
AMPLIMITE SZ 6 PLUG 104 POS, ST STL SHELL
2335893-1
AMPLIMITE SZ 1 RECPT 15 POS, ST STL SHELL
2335893-2

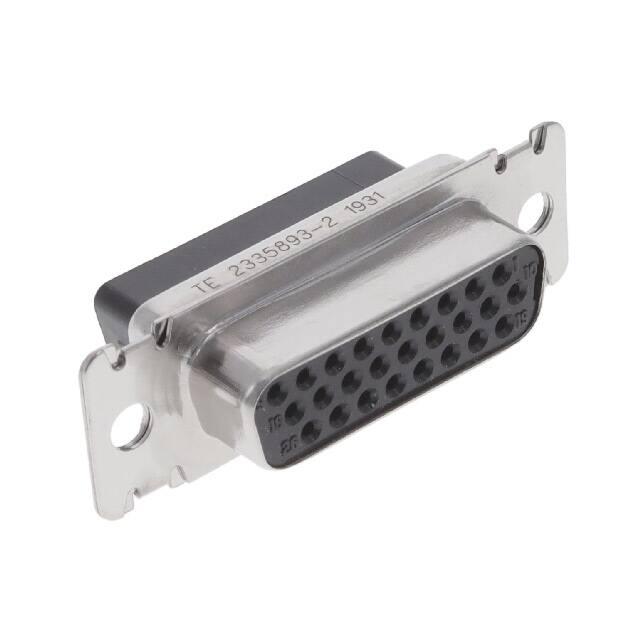

AMPLIMITE SZ 2 RECPT 26 POS, ST STL SHELL
2335893-3

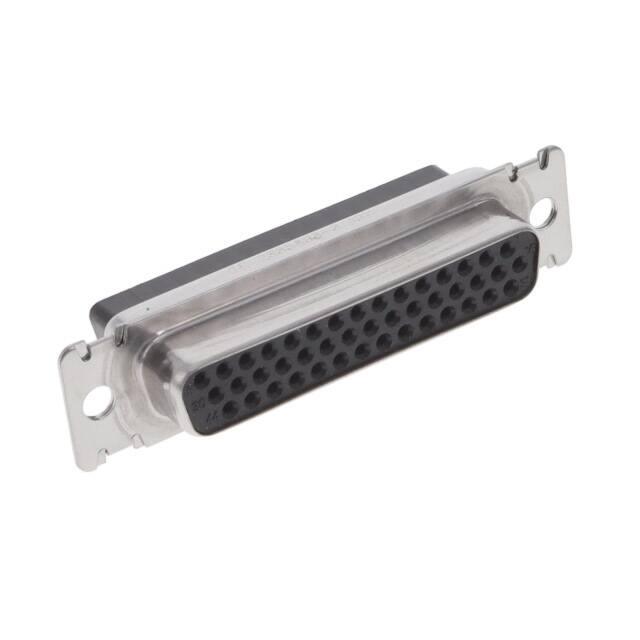

AMPLIMITE SZ 3 RECPT 44 POS, ST STL SHELL
2335893-4
AMPLIMITE SZ 4 RECPT 62 POS, ST STL SHELL
2335893-5

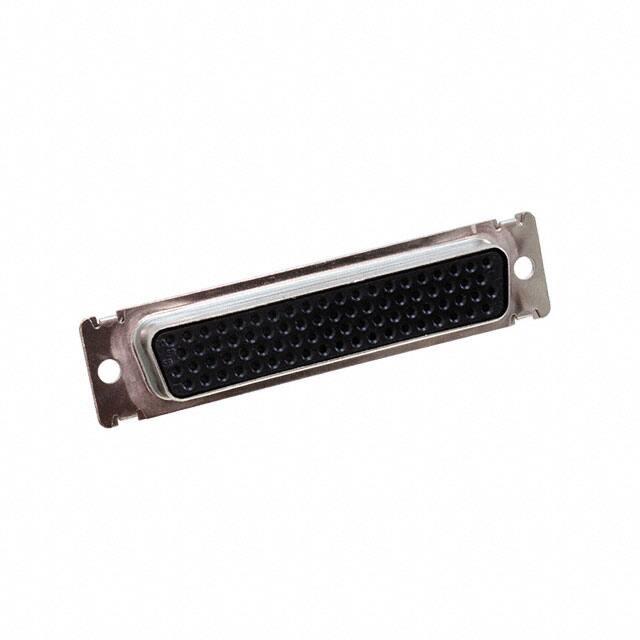

AMPLIMITE SZ 5 RECPT 78 POS, ST STL SHELL
