2337994-4
RJ45 Connectors, RJ45 with Integrated Magnetics, Multiple Ports, 1 x 2, RJ Type
Jacks & Plugs, Industrial RJ45 Mag Jack
2337994-4
ACTIVE

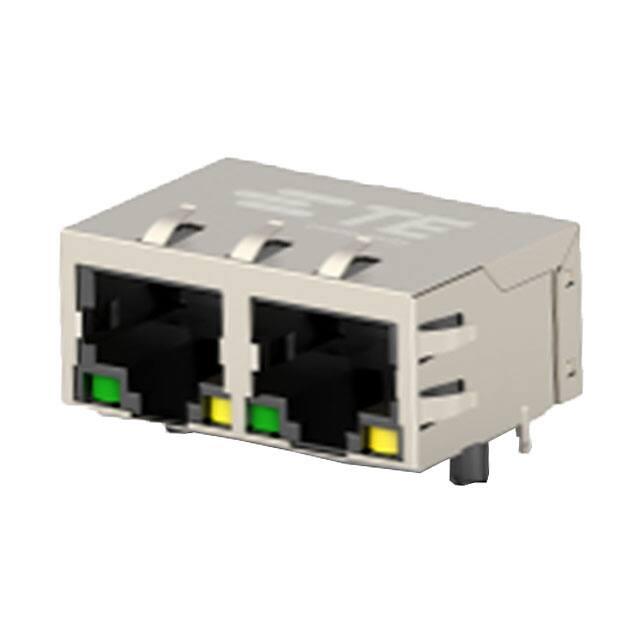

Industrial RJ45 Mag Jack
TE Internal #: 2337994-4
RJ45 Connectors, RJ45 with Integrated Magnetics, Multiple Ports, 1
x 2, RJ Type Jacks & Plugs, Industrial RJ45 Mag Jack
View on TE.com >
Connectors > Modular Jacks & Plugs > RJ45 Connectors
Modular Jack & Plug Interface Type: RJ45 with Integrated Magnetics
Port Configuration: Multiple Ports
Port Matrix Configuration: 1 x 2
Modular Jacks & Plugs Products: RJ Type Jacks & Plugs
Connector Contact Density: Standard
Features
Product Type Features
Modular Jack & Plug Interface Type
RJ45 with Integrated Magnetics
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Modular Connector Style
Jack
Grounding Options
PCB and Panel Ground
Connector & Contact Terminates To
Printed Circuit Board
Configuration Features
Panel Ground Location
Top and Side
Number of Panel Ground Tabs
7
Number of PCB Ground Tabs
2
Multiple Port Configuration
Ganged
Indicator Type
LED
Port Configuration
Multiple Ports
Port Matrix Configuration
1x2
Connector Contact Density
Standard
Number of Positions
8
Number
Loaded Positions
For support call+1
800 522of
6752
8
05/11/2024 06:17AM | Page 1
2337994-4
RJ45 Connectors, RJ45 with Integrated Magnetics, Multiple Ports, 1 x 2, RJ Type
Jacks & Plugs, Industrial RJ45 Mag Jack
Number of Positions
8
Number of Loaded Positions
8
PCB Mount Orientation
Right Angle
Signal Characteristics
Data Rate
10 Mb/s, 100 Mb/s
Body Features
LED Color (Top Left)
None
PCB Retention Feature Material
LCP
LED Color (Top Right)
None
Insulator Material
LCP
Shield Plating Finish
Matte
PCB Ground Tab Location
3.05 mm[.12 in]
LED Color (Bottom Left)
Green
LED Color (Bottom Right)
Yellow
Shield Plating Material
Nickel
Shield Material
Brass
Modular Jack Latch Orientation
Standard - Latch Down
Connector Profile
Standard
Contact Features
PCB Contact Termination Area Plating Material Finish
Matte
Contact Underplating Material
Nickel
PCB Contact Termination Area Plating Material
Tin
Contact Mating Area Plating Material
Gold
Contact Base Material
Copper Alloy
Contact Mating Area Plating Material Thickness
.76 µm[30 µin]
Termination Features
Termination Method to Printed Circuit Board
Through Hole - Solder
Mechanical Attachment
PCB Mount Retention Type
Boardlock
Housing Features
Mating Entry Location
Side
Housing Color
Black
Housing Material
LCP (Liquid Crystal Polymer)
Dimensions
For support call+1
800 522 6752
05/11/2024 06:17AM | Page 2
2337994-4
RJ45 Connectors, RJ45 with Integrated Magnetics, Multiple Ports, 1 x 2, RJ Type
Jacks & Plugs, Industrial RJ45 Mag Jack
Dimensions
Connector Height
13.76 mm[.542 in]
Usage Conditions
Operating Temperature Range
-40 – 85 °C[-40 – 185 °F]
Operation/Application
Shielded
Yes
Industry Standards
UL Flammability Rating
UL 94V-0
Performance Category
Cat 5
Packaging Features
Packaging Quantity
80
Packaging Method
Reel
Other
Shield Panel Ground Type
Shield has bottom panel grounds.
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JAN 2024
(240)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Solder Process Capability
Reflow solder capable to 260°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
For support call+1 800 522 6752
05/11/2024 06:17AM | Page 3
2337994-4
RJ45 Connectors, RJ45 with Integrated Magnetics, Multiple Ports, 1 x 2, RJ Type
Jacks & Plugs, Industrial RJ45 Mag Jack
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
