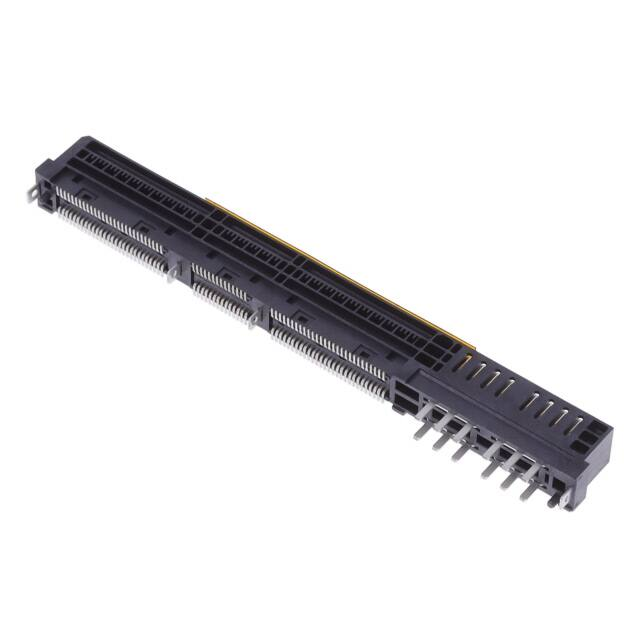

2338718-1

INTERNAL CABLED INTERCONNECT SOLUTIONS Connectors and Cable Assemblies Due to the latest high speed demands in networking equipment, TE Connectivity (TE) has developed one of the most flexible and highest performing internal cabled and card edge interconnect portfolios in the market. Our extensive portfolio consists of Sliver products (including versions for SFF-TA-1002), SlimSAS products, SlimSAS Low Profile (LP) products and Mini Cool Edge IO (MCIO) products. These connectors and cable assemblies can be used across many applications, data rates and protocols including PCI Express, SAS and Ethernet. This new technology simplifies design and helps lower overall costs by eliminating the need for re-timers and more costly lower-loss PCB materials while reaching speeds up to 56 Gbps with the use of TE high speed cable. Markets Applications • Data Center & Networking Equipment • Internal Cabled Solutions • Servers • Chip to Chip • Switches • Chip to I/O • Routers • Chip to Backplane • High Performance Computing (HPC) • Board to Board • Storage Devices • PCB Card Edge (BTB) Solutions • Wireless Base Stations and Radios • Supports Ethernet, PCIe, SAS, SATA, InfiniBand and Other Custom Protocols Sliver Interconnects for SFF-TA-1002 Ultimate flexibility in applications, data rates and protocols Vertical and right angle connector and cable solutions provide a flexible solution set in addition to allowing for both cabled and card edge interconnect designs. With a flexible pinout arrangement, multiple mounting and mating options and the support of present and future data rate protocols, the Sliver interconnect solution provides a variety of configuration options to address your application needs. Free up design space The 0.6mm contact pitch is up to 30% denser than most existing solutions, allowing you to fit more inside the box. Reliable connections The Sliver interconnect solution provides a robust connector housing design while an active latch provides additional connection security for data critical applications. Lower design costs Sliver connector and cable assemblies can lower overall costs by eliminating the need for re-timers and more costly lower loss PCB materials. DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 2 Application Design Flexibility Mid-Board Cable Applications Horizontal Card Edge Applications Backplane/Midplane Applications Vertical Card Edge Applications Low Profile PCIe Add-In Card Applications TE’s Sliver Interconnect Solution Consists of: Vertical Board Mount Connector Right Angle Board Mount Connector Card Edge Connector Straddle Mount Connector Right Angle Cable Plug Connector Straight Cable Plug Connector Orthogonal Connector Right Angle Power Module Key Features • 0.6mm pitch SMT connector design includes robust metal housing • 25G and 32G high speed, low-loss 30/33AWG cable • Vertical, right angle, lateral and card edge configurations with active latch • Supports 85 and 100 ohm impedance applications • Flexible pinout arrangement allows for mix of differential signal pairs and low speed single-ended sidebands • Flexible mounting and mating arrangements: • Cabled interconnects • Card edge interconnects • Vertical to right-angle, vertical to straight, right-angle to right- angle, and right-angle to straight receptacle-to-plug mating • Platform developed to be scalable in x4/x8 increments • Sliver: 50p (x8), 74p (x12), 124p (x20) • Sliver for SFF-TA-1002: 28p (x4), 56p (x4), 84p (x8), 140p (x16), 168p(x16+) • Supports present and future bandwidth needs without requiring requalification and redesign DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 3 Part Number Details Connectors TE Part Numbers Part Description 50 Position 74 Position 124 Position Vertical PCB Connector 2292096-1 2324787-1 TBD Right Angle PCB Connector 2292055-1 2292069-1 2323321-1 148 Position - - Vertical PCB Card Edge Connector 2297117-2 - - Right Angle PCB Card Edge Connector 2331498-1 - - Plug Kits TE Part Numbers Part Description Straight Plug Kit 50 Position 74 Position 124 Position 2317815-1 2317823-1 2339107-1 Cable Assemblies Part Description Data Impedance Rate TE Part Numbers Bulk Cable 50 Position 74 Position 124 Position 0.5 Meter 1 Meter 0.5 Meter 1 Meter 0.5 Meter 1 Meter Straight Cable Plug 25G 85 Discrete Pairs 2821742-1 2821742-2 2821376-1 2821376-2 - - Right Angle Plug 25G 85 Discrete Pairs 2821743-1 2821743-2 2821745-1 2821745-2 - - Straight-Right Angle Plugs 25G 85 Discrete Pairs 2821744-1 2821744-2 2821746-1 2821746-2 - - Straight Cable Plug 25G 100 Discrete Pairs 2821750-1 2821750-2 2821756-1 2821756-2 - - Right Angle Plug 25G 100 Discrete Pairs 2821751-1 2821751-2 2821757-1 2821757-2 - - Straight-Right Angle Plugs 25G 100 Discrete Pairs 2821752-1 2821752-2 2821758-1 2821758-2 - - Straight Cable Plug 12G 85 Ribbon 2820397-1 2820397-2 2820396-1 2820396-2 - - Right Angle Plug 12G 85 Ribbon 2820399-1 2820399-2 2821385-1 2821385-2 - - Straight-Right Angle Plugs* 12G 85 Ribbon 2821638-1 2821638-2 2821639-1 2821639-2 - - Straight Cable Plug 12G 100 Ribbon 2821747-1 2821747-2 2821753-1 2821753-2 - - Right Angle Plug 12G 100 Ribbon 2821748-1 2821748-2 2821754-1 2821754-2 - - Straight-Right Angle Plugs 12G 100 Ribbon 2821749-1 2821749-2 2821755-1 2821755-2 - - Straight Cable Plug 12G 85 Discrete Pairs - - - - 2324305-1 2324305-2 Contact your TE representative about custom cable assembly configurations. DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 4 Sliver Interconnects for SFF-TA-1002 The SFF-TA-1002 standard defines vertical, right angle, straddle mount and orthogonal connectors for servers and storage devices and has been adopted by several industry standards groups including COBO, Gen-Z, EDSFF and the Open Compute Project (OCP). Highest performing card edge connector for SFF-TA-1002 Our Sliver connectors have been adopted as the standard into SFF-TA-1002. The SFF-TA-1002 pinout supports EDSFF, PCIe, OCP NIC and other standards. Sliver for SFF-TA-1002 Vertical Connector Cable assemblies with push button and pull tab features Sliver cable assemblies with push button and pull tab features can be connected with SFF-TA-1002 receptacles. The pull tab cable assemblies are able to easily unlatch plugs from receptacles in high-speed cabled interconnects applications where there is not enough space to allow a finger in. They are interoperable with SFF-TA-1002 standard receptacles and can meet PCIe Gen 5 signal integrity requirement. These products are available in straight and right angle mating options. Sliver for SFF-TA-1002 Right Angle Connector Standardized designs Enable easy design in and multi-sourcing by consolidating fragmented pinouts and speeds. Supports high speed and density for next-generation silicon Sliver connectors for SFF-TA-1002 support high speeds through PCIe Gen 5, with a roadmap to PCIe Gen 6, PCIe Gen 7/ 128Gbps. They also support nextgeneration silicon PCIe lane counts where current products begin to max out. Sliver for SFF-TA-1002 Straddle Mount Connector Sliver Power Module The Sliver power module can be used with any SFF-TA-1002 vertical connector. This follows the same interface as EDSFF and can be used with a card edge or cable receptacle. Sliver for SFF-TA-1002 Orthogonal Connector Sliver Power Module shown with Cabled Receptacle Sliver Pull Tab Cable Assembly for SFF-TA-1002 Receptacle Right Angle Power Module Sliver Power Module shown with Card Edge DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 5 Part Number Details Card Edge Receptacles Part Description Orientation Standard Card Edge Receptacle Vertical Card Edge Receptacle + Power Vertical Card Edge Receptacle TE Part Numbers 56 Position 84 Position 140 Position 168 Position 196 Position 280 Position SFF-TA-1002 2327679-1 2327678-1 2327677-1 - - - N/A - - 2338718-1 - - - Vertical N/A - - - 2333799-1 - - Card Edge Receptacle Vertical SFF Derivative - - - - 2375538-1 2338461-1 Card Edge Receptacle Right Angle SFF-TA-1002 2327672-1 2327671-1 2327670-1 2336568-1 - - Card Edge Receptacle 1x1 SMT Orthogonal SFF-TA-1002, EDSFF 2339207-1 2339208 - - - - Card Edge Receptacle 1x4 SMT Orthogonal SFF-TA-1002, EDSFF 2339205-1 2339211-1 - - - - Card Edge Receptacle 1x1 PF Orthogonal SFF-TA-1002, EDSFF 2334227-1 TBD - - - - Card Edge Receptacle 1x4 PF Orthogonal SFF-TA-1002, EDSFF 2343147-1 TBD - - - - Card Edge Receptacle, 1.57mm Host PCB Straddle SFF-TA-1002, OCP NIC 3.0 - 2340326-1 2340324-1 2340321-1 - - Card Edge Receptacle, 1.57mm Host PCB Straddle N/A 2340331-1 - - - - - Card Edge Receptacle, 1.93mm Host PCB Straddle SFF-TA-1002, OCP NIC 3.0 - - 1-2340324-2 1-2340321-2 - - Card Edge Receptacle, 2.36mm Host PCB Straddle SFF-TA-1002, OCP NIC 3.0 - - 2-2340324-1 - - 28 Position 56 Position 84 Position 140 Position 168 Position 2331813-1 2332139-1 2384218-1 2-2340321-1 Receptacles for Cable Assemblies Part Description TE Part Numbers Orientation Standard Receptacle for Cable Assembly Vertical SFF-TA-1002 - 2332141-1 Receptacle for Cable Assembly Right Angle SFF-TA-1002 - 2332208-1 2331814-1 2332205-1 2369833-1 Receptacle for Cable Assembly Right Angle SFF Derivative 2345808-1 - - - - Card Edge Power Part Description 50 AMP Card Edge Assembly - Open Wall 50 AMP Card Edge Assembly Orientation Standard TE Part Numbers Vertical SFF Derivative 2344604-1 Right Angle SFF Derivative 2351970-1 50 AMP Card Edge Assembly - One End Wall Vertical SFF Derivative 2345506-1 4C High Power Card Edge Assembly Vertical SFF Derivative 2338718-1 Sliver Direct to Lead Frame Cable Assemblies TE Part Numbers Part Description Impedance Wire Size 56 Position 168 Position 0.5 Meter 1.0 Meter 0.5 Meter 0.3 Meter 4C+ RECEPTACLE ASSEMBLY to 4C+ PLUG 85 30 AWG - - 2373783-1 2373783-2 4C+ RECEPTACLE ASSEMBLY to MCIO & SLIVER 1C HYBRID 85 30 AWG - - 2421050-x 2421050-x 1C RECEPTACLE ASSEMBLY 85 30 AWG 2373744-1 2343284-2 - - 1C ORTHOGONAL 85 30 AWG 2428093-1 2428093-x - - DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 6 Sliver Cable Assemblies TE Part Numbers- Push Button Cable Assemblies Part Description Impedance Wire Size 56 Position 0.5 Meter 1.0 Meter 84 Position 0.5 Meter 1.0 Meter 140 Position 0.5 Meter 1.0 Meter Straight to Straight Cable 85 33 AWG 2340872-1 2340872-2 2340783-1 2340783-2 2340879-1 2340879-2 Straight to R/A Cable 85 33 AWG 2340873-1 2340873-2 2340930-1 2340930-2 2340880-1 2340880-2 R/A to R/A Cable 85 33 AWG 2340874-1 2340874-2 2340789-1 2340789-2 2340881-1 2340881-2 Lateral to Lateral Cable 85 33 AWG 2343284-1 2343284-2 2343286-1 2343286-2 2343288-1 2343288-2 Straight to Straight Cable 85 30 AWG 2340876-1 2340876-2 2340861-1 2340861-2 2340882-1 2340882-2 Straight to R/A Cable 85 30 AWG 2340877-1 2340877-2 2340863-1 2340863-2 2340884-1 2340884-2 R/A to R/A Cable 85 30 AWG 2340878-1 2340878-2 2340865-1 2340865-2 2340885-1 2340885-2 Straight to Straight Cable 100 33 AWG 2349831-1 2349831-2 2349835-1 2349835-2 2349841-1 2349841-2 Straight to R/A Cable 100 33 AWG 2349832-1 2349832-2 2349838-1 2349838-2 2349842-1 2349842-2 R/A to R/A Cable 100 33 AWG 2349833-1 2349833-2 2349839-1 2349839-2 2349843-1 2349843-2 Lateral to Lateral Cable 100 33 AWG 2349834-1 2349834-2 2349840-1 2349840-2 2349844-1 2349844-2 All cable assemblies can be used for SFF-TA-1002 receptacles. TE Part Numbers- Pull Tab Cable Assemblies Part Description Impedance Wire Size 56 Position 0.5 Meter 1.0 Meter 84 Position 0.5 Meter 1.0 Meter 140 Position 0.5 Meter 1.0 Meter Straight to Straight Cable 85 33 AWG 2361330-1 2361330-2 2361341-1 2361341-2 2361352-1 2361352-2 Straight to R/A Cable 85 33 AWG 2361332-1 2361332-2 2361343-1 2361343-2 2361354-1 2361354-2 R/A to R/A Cable 85 33 AWG 2361334-1 2361334-2 2361345-1 2361345-2 2361356-1 2361356-2 Lateral to Lateral Cable 85 33 AWG 2361336-1 2361336-2 2361347-1 2361347-2 2361358-1 2361358-2 Straight to Straight Cable 85 30 AWG 2361331-1 2361331-2 2361342-1 2361342-2 2361353-1 2361353-2 2361355-2 Straight to R/A Cable 85 30 AWG 2361333-1 2361333-2 2361344-1 2361344-2 2361355-1 R/A to R/A Cable 85 30 AWG 2361335-1 2361335-2 2361346-1 2361346-2 2361357-1 2361357-2 Straight to Straight Cable 100 33 AWG 2361337-1 2361337-2 2361348-1 2361348-2 2361359-1 2361359-2 Straight to R/A Cable 100 33 AWG 2361338-1 2361338-2 2361349-1 2361349-2 2361360-1 2361360-2 R/A to R/A Cable 100 33 AWG 2361339-1 2361339-2 2361350-1 2361350-2 2361361-1 2361361-2 Lateral to Lateral Cable 100 33 AWG 2361340-1 2361340-2 2361351-1 2361351-2 2361362-1 2361362-2 All cable assemblies can be used for SFF-TA-1002 receptacles. DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 7 SlimSAS, SlimSAS LP and MCIO Interconnects SlimSAS Internal Cable & Connectors • 0.6mm pitch • 22.4mm height (vertical receptacle, right angle plug) • Center latching • SFF-8654 compliant • Connector • 85 Ohm, 16G NRZ Support SAS and PCIe Protocols • 100 Ohm, SAS-4 • SlimSAS and SlimSAS LP solutions provide PCIe Gen 4 cable and connector capability. MCIO connectors can support PCIe Gen 5 • SlimSAS connectors are industry-standard (address SFF8654) products. MCIO and SlimSAS LP products can be sourced from TE or Amphenol Increase design flexibility • Can enable building block architectures in system design (can connect different functionality PCBs together) • Can provide flexibility of where/how to use signals in your system • Cable assembly • 100 Ohm: SAS-4 • 85 Ohm: PCIe gen 4 SlimSAS LP Internal Cable & Connectors • 0.6mm pitch • 13.45mm height (vertical receptacle, right angle plug) • Replaces PCB trace and PCB connector interfaces for a higher performing channel • Center latching • Straight, right angle and lateral exit cable options available for custom routing • Connector: 85 Ohm, 16G NRZ • Full portfolio enables hybrid-style cable assemblies • Cable assembly Save Space • 100 Ohm: SAS-4 • Low profile connector design can save space • 85 Ohm: PCIe gen 4 • 0.6mm pitch can balances manufacturability with density • Multiple cable exits for route-ability Part Number Details Receptacles Size Product Orientation Configuration Part Number 74p MCIO Vertical X8 2359366-X 124p MCIO Vertical X16 2360189-X 38p SlimSAS LP Vertical X4 2360221-X 74p SlimSAS LP Vertical X8 2359992-X 124p SlimSAS LP Vertical X16 2360229-X 74p SlimSAS Vertical X8 2356318-X 74p SlimSAS Right Angle X8 2356320-X 38P SlimSAS Vertical X4 2369957-X 38P SlimSAS Right Angle X4 2369958-X DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS 8 Cable Assemblies MCIO Internal Cable & Connectors • 0.6mm pitch Size Product Characteristics Part Number 74p MCIO Straight - Right Angle 85 Ohm, 30 AWG 2366780-1 • 13.95mm height (vertical receptacle, right angle plug) 74p MCIO Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366550-1 • Center latching 124p MCIO Straight - Right Angle 85 Ohm, 30 AWG 2366783-1 124p MCIO Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366557-1 • Addresses next gen industry standard: SFF-TA-1016 38p SlimSAS LP Straight - Right Angle 85 Ohm, 30 AWG 2366789-1 38p SlimSAS LP Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366861-1 74p SlimSAS LP Straight - Right Angle 85 Ohm, 30 AWG 2366784-1 74p SlimSAS LP Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366559-1 124p SlimSAS LP Straight - Right Angle 85 Ohm, 30 AWG 2366786-1 124p SlimSAS LP Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366598-1 74p SlimSAS Straight - Right Angle 85 Ohm, 30 AWG 2366833-1 74p SlimSAS Lateral Left - Lateral Right 85 Ohm, 30 AWG 2366835-1 • Connector • 92 Ohm, 32G NRZ, roadmap to 112G PAM-4 • 85 Ohm +/- 10% version in development • Cable assembly • 100 Ohm: 56G PAM-4, SAS-4 • 85 Ohm: PCIe gen 4, PCIe gen 5 Custom cable assemblies available on demand Future additions include right angle MCIO and 100 Ohm SlimSAS connectors te.com TE Technical Support Center TE Connectivity, TE, and TE Connectivity (logo) are trademarks of the TE Connectivity Ltd. family of companies. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. USA: 1.800.522.6752 Canada: 1.905.475.6222 Mexico: 52.0.55.1106.0800 Latin/S. America: 54.0.11.4733.2200 Germany: 49.0.6251.133.1999 UK: 44.0.800.267666 France: 33.0.1.3420.8686 Netherlands: 31.0.73.6246.999 China: 86.0.400.820.601 The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. ©2021 TE Connectivity Ltd. family of companies. All Rights Reserved. 1-1773871-5  09/22 DATA AND DEVICES / INTERNAL CABLED INTERCONNECT SOLUTIONS
