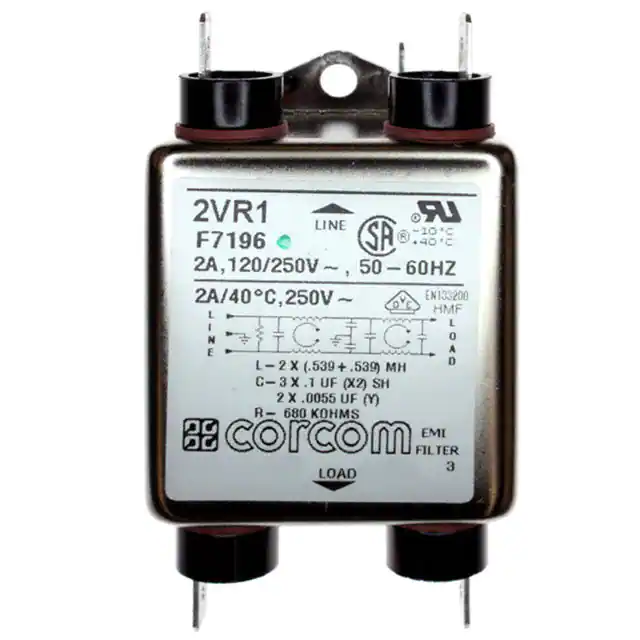

2VR1

Catalog: 1654001 Issue Date: 06.2011 Corcom Product Guide Two-stage General Purpose RFI Power Line Filter R Series VR7/7M UL Recognized CSA Certified VDE Approved 1 VR3/ER3 RFI Power Line Filters 10VR6 VR1/ER1 R Series Specifications • Dual T section RFI filter provides premium performance • Well suited for low impedance loads where noisy RFI environments are present Maximum leakage current each Line to Ground: VR Models ER Models @120 VAC 60 Hz: .4 mA .21 mA @250 VAC 50 Hz: .7 mA .36 mA • Controls pulsed, continuous and/or intermittent interference Hipot rating (one minute): Line to Ground: Line to Line: • ER models offer low leakage current without deterioration of insertion loss Rated Voltage (max): 250 VAC Operating Frequency: 50/60 Hz 2250 VDC 1450 VDC Rated Current: Ordering Information 10E R 7 M Suffix M – Metric inserts (style 8 only) Omit for standard or none C – Ground choke (select models) Input / Output Style 1 – .250 [6.3] spade terminals 3 – Wire leads 6 – Threaded bolt 7 – IEC inlet* (line side) .250 [6.3] spade terminals (load side) R Series Leakage current designation E – Low leakage (
