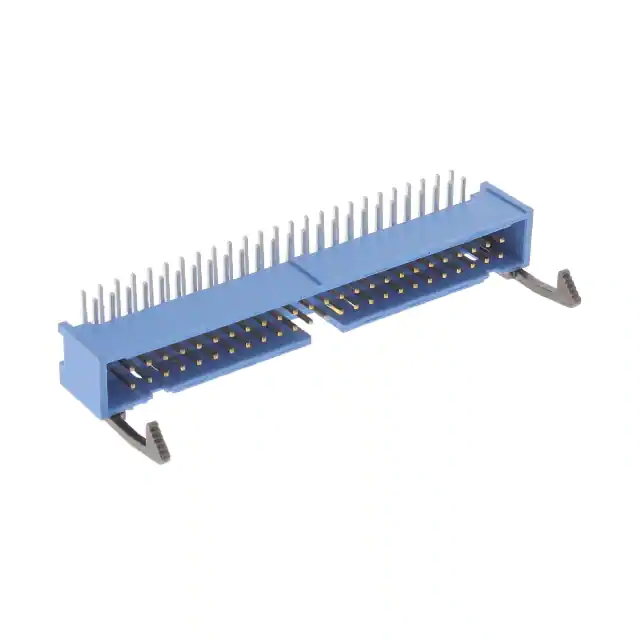

3-1761607-5

Sign In Search By: lkji Part Number m n lkj Text m n Tips Go Enter a complete or partial part number... Products Documentation Resources My Account Customer Support Home > Products > By Type > Ribbon and Flat Flex Wire Connectors Product Details for 3 - 1761607 - Ribbon Cable About Us > Product Feature Selector -5 Pin and Pinless Headers (AMP RoHS Compliant 3 - 1761607 > Product Details - LATCH) (Statement of Compliance) Check Pricing & Availability Search for Tooling View Mating Products (18) Product Feature Selector Contact Us About This Product Product Highlights: ? Connector Type = Pin Headers ? Low Profile ? Number of Positions = 50 ? 2.54 x 2.54 mm Centerline, Matrix ? PCB Mount Angle = Right Angle -5 Active Quick Links View all Features Documentation & Additional Information Product Drawings: ? HEADER ASSEMBLY, RIGHT ANGLE, LONG EJECT LATCH, LOW ... (PDF, English) Additional Information: ? Product Line Information Related Products: ? Tooling ? Mating Products (18) Catalog Pages/Data Sheets: ? None Available Product Specifications: ? None Available Application Specifications: ? None Available Instruction Sheets: ? None Available CAD Files: ( CAD Format & Compression Information ? 3D Model (STEP, Version B) ? 3D Model (IGES, Version B) ? 2D Drawing (DXF, Version B) ) List all Documents Product Features (Please use the Product Drawing for all design activity) Product Type Features: ? Connector Type = Pin Headers ? Profile = Low ? Number of Positions = 50 ? PCB Mount Angle = Right Angle ? PCB Retention Feature = Without ? Mating Polarization Method = Center, Dual Polarizing Bar ? Mating Connector Lock = Without ? Housing Style = 4 - Sided ? Ejection Latches = With ? Post Size (mm [in]) = 0.64 [.025] ? Shrouded = Yes ? Mating Polarization = With ? Shrouded End Dimension (mm [in]) = 3.81 [0.150] Termination Related Features: ? Termination Post Length (mm [in]) [0.102] Body Related Features: ? Centerline, Matrix (mm [in]) [.100 x .100] ? Daisy Chain = With Languages : English | = 2.60 = 2.54 x 2.54 Contact Related Features: ? Contact Mating Area Plating = Gold (30) over Nickel ? Contact Shape = Square ? Contact Material = Phosphor Bronze Housing Related Features: ? Housing Material = Thermoplastic ? Housing Flammability Rating = UL 94V ? Housing Color = Blue -0 Industry Standards: ? RoHS/ELV Compliance = RoHS compliant, ELV compliant ? Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260° C, Wave solder capable to 265°C ? RoHS/ELV Compliance History = Always was RoHS compliant Conditions for Usage: ? Temperature Rating = Standard Other: ? Brand = AMP Deutsch | Español | Português (do Brasil) | ??????? | Italiano | ? ? ? ? ( ? ? ) | ? ? ( ? ? ) | ? ? ? Country Sites : China | Japan © 2006 Tyco Electronics Corporation All Rights Reserved Home | Customer Support | Supplier | Site Map | Privacy Policy | Browser Support
