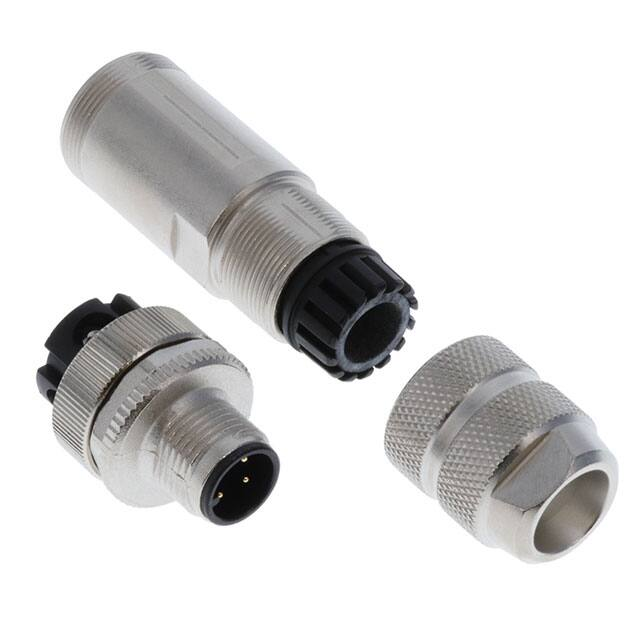

M8/M12 CONNECTOR SYSTEM AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM TE CONNECTIVITY’S M8 / M12 Connector System for machine industrial automation and control applications provides a solution for the increasing needs of sensor connections that safely and reliably ensures the communication in industrial environments . This connector system also finds applications outside of its traditional industries where a compact reliable connection system with environmental protection is required . TE’s solution includes an extensive connector range of PCB headers, cable assemblies and I/O boxes, and provides users with an interface that supports higher bandwidth needs – meeting the requirements of up to 10Gb/s . TE Connectivity also offers shielded and un-shielded Cat5e and Cat6A cable assembly variants . A predefined offering in length of 1, 3, 5 and 10 meters covers a vast range of customer needs on the market . For rewiring on site a range of field serviceable connectors are provided, allowing versatile systems to be quickly and easily established . Additional styles are available on request including alternative mounting arrangements for panel mount connectors and double ended cable assemblies . TE’S INDUSTRIAL COMMUNICATIONS PRODUCTS PLAY A VITAL ROLE IN FACTORY AUTOMATION. TE’s industrial Communications prod- ment, our industrial communications industrial Ethernet products, TE’s solu- ucts are widespread throughout to- solutions are also found throughout tions are also ideal for vision systems, day’s networked factories, and play a the automotive and food and beverage common in security equipment and critical role in driving the efficiency of industries, as well as in the many man- mail sortation devices. many manufacturing processes. Used ufacturing applications of industrial ro- extensively in material handling equip- bots. With the development of smaller AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM TE M8/M12 CONNECTOR SYSTEM – APPLICATIONS MACHINERY FACTORY AUTOMATION TE’s M8/M12 Connector System includes a broad range of straight, angled, LED and multiposition field installable and board connectors that are easily intermateable . Next to cable assemblies for Serial and Bus communication, TE also offers Industrial Ethernet patch cables with overmolded X-coded M12 connectors that are available for future proof applications with up to 10 Gb/s data transmission . Customized cable assemblies offer a solution for your specific needs in different lengths, temperatures or flexibility . When communication simply needs to work in industrial environments, TE’s M8/M12 system and complete Industrial Communications portfolio offer proven reliability that meet industry standards . Whether it is for controllers and sensors or robotics and molding machines, the M8/M12 connector system offers you a solution that is time-saving, error-free and without the use of tools . PAGE 3 CONTENTS CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 • M8 Field Installable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 • M12 Straight Field Installable A, B, D Code . . . . . . . . . . . . . 8-9 • M12 Angled Field Installable A, B, D Code. . . . . . . . . . . . . 10-11 • M12 Straight Field Installable . . . . . . . . . . . . . . . . . . . . . . . . 12-13 • M12 Angled Field Installable. . . . . . . . . . . . . . . . . . . . . . . . . 14-15 • M8 Panel Mount Solder PCB. . . . . . . . . . . . . . . . . . . . . . . . .  16-17 • M8 Panel Mount Wire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 • M12 Panel Mount Solder PCB. . . . . . . . . . . . . . . . . . . . . . . . . 19-21 • M12 Panel Mount Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 • M12 X-Coded Field Installable. . . . . . . . . . . . . . . . . . . . . . . . . . . 23 • Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25 CABLE ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 • M8 Series Male. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 • M8 Series Female . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 • M12 Series Male Straight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 • M12 Series Female Straight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 • M12 Series Male Angled. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 • M12 Series Female Angled. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 • M12 Series Male to Female Y-cables . . . . . . . . . . . . . . . . . . . . 33 • M8 Male to M12 Female Series . . . . . . . . . . . . . . . . . . . . . . . . . 33 • M8 Female to M12 Male Series . . . . . . . . . . . . . . . . . . . . . . . . . 33 • M12 Male to M12 Female Series. . . . . . . . . . . . . . . . . . . . . . . . . 34 • M8 Female to M8 Male Series LED. . . . . . . . . . . . . . . . . . . . . . 35 • M12 Female to M12 Male Series LED. . . . . . . . . . . . . . . . . . . . . 35 • Cable Assembly Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 I/O MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 • M8 – With Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 • M8 – With M12 Plug Connection. . . . . . . . . . . . . . . . . . . . . . . . . 39 • M8 – For Homerun Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 39 • M12 – With Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 • M12 – With M12/M23 Plug Connection. . . . . . . . . . . . . . . . . . . 40 • M12 – No Cable/With Cable Gland. . . . . . . . . . . . . . . . . . . . . . . 41 • I/O Module Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 • M8/M12 Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M8/M12 CONNECTORS TE’s M8/M12 connectors continues to fill the ongoing needs for sensor connection in Industrial Machinery and Factory Automation . A connection standard for many years, these products also find applications outside of their traditional industries where a compact reliable connection system with environmental protection is required . TE’s M8/M12 connector portfolio includes A, B, D, S, T, and X-coded (up to 10 Gb/s) versions to serve various customer needs . The connectors are also available in shielded and unshielded versions, to support Gigabit Ethernet applications . M8/M12 – THE CODINGS A-coding: B-coding: D-coding: S-coding: T-coding: X-coding: Actuator-sensor plug connections for DeviceNet, IO link and Profibus Ambient temperature for M8: -40 °C to 85 °C Ambient temperature for M12: Fieldbus connections for Profibus and Interbus -40 °C to 85 °C Current rating: 4 and 5 pins: 4 A per pin Industrial Ethernet, Profinet, Ethernet/IP and EtherCat 8 and 12 pins: 2 A per pin IP rating: IP67/IP68 Motor, Frequency-convertors, motor operated switches, PSUs for Power, 620 V, 12 A As specifications vary for different Fieldbus comp, passive distribution boxes, motors, PSUs for Power, 63 V, 12 A Application Specifications for M8 M12 Cat6A, high-speed 10Gbit rugged industrial Ethernet applications IEC 61076-2-109 Product Specifications: parts, please refer to your TE contact for detailed information. Connectors and Cable Assemblies: 114-32127, 114-137008, 114-137144 Connectors: 108-3641, 108-19483, 108-106140 Size Pins X-coded: 108-137008 Rated Maximum Current per pin Polution grade M8 3 60 V 4 A 3 M8 4 30 V 4 A 3 M12 3 250 V 4 A 3 M12 4 250 V 4 A 3 M12 5 125 V 4 A 3 M12 8 60 V 2 A 3 M12 12 30 V 2 A 3 PAGE 5 TE Part Number Definition M12 Screw type connector PN T  4  1  1  X  X  X  X  XX  X  -  XXX Sequence number: 000 (default) Contact plating: 1: Gold (3u’’) 2: Silver Number of Contacts: 02: 2 poles 03: 3 poles … Cable Outlet Types: 1: PG7 2: PG9 Body Material Type: 0: Plastic 1: Metal Code Type: 0: A code 4: B code 5: D code Application Type: 0: Straight Female 1: Straight Male 2: Right Angle Female 3: Right Angle Male AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M8 Field Installable Male Series Female Series All dimensions in mm. TE Part Number M8 Male Screw Connection, Straight TE Part Number M8 Female Screw Connection, Straight 3-Pole PG7 2120954-1 3-Pole PG7 2120956-1 4-Pole PG7 1-2120954-1 4-Pole PG7 1-2120956-1 M8 Male Right Angle M8 Female Right Angle 3-Pole PG7 2120955-1 3-Pole PG7 2120957-1 4-Pole PG7 1-2120955-1 4-Pole PG7 1-2120957-1 M8 Male Panel, Solder, Front Mounting, M8 Fastening Thread M8 Female Panel, Solder, Front Mounting, M8 Fastening Thread 3-Pole M8 2120958-1 3-Pole M8 2120959-1 4-Pole M8 1-2120958-1 4-Pole M8 1-2120959-1 Temperature range: -40 to +85 degree. PAGE 7 M12 Straight Field Installable A, B, D Code Male Series All dimensions in mm. TE Part Number TE Part Number A coding – M12 Male Screw Connection, Straight, Unshielded A coding – M12 Male Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4111001021-000 PG9 T4111002021-000 PG7 T4111001031-000 PG9 T4111002031-000 PG7 T4111001041-000 PG9 T4111002041-000 PG7 T4111001051-000 PG9 T4111002051-000 PG9 T4111002081-000 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4111011021-000 PG9 T4111012021-000 PG7 T4111011031-000 PG9 T4111012031-000 PG7 T4111011041-000 PG9 T4111012041-000 PG7 T4111011051-000 PG9 T4111012051-000 PG9 T4111012081-000 B coding – M12 Male Screw Connection, Straight, Unshielded B coding – M12 Male Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4111401021-000 PG9 T4111402021-000 PG7 T4111401031-000 PG9 T4111402031-000 PG7 T4111401041-000 PG9 T4111402041-000 PG7 T4111401051-000 PG9 T4111402051-000 3-Pole 4-Pole 5-Pole PG7 T4111411021-000 PG9 T4111412021-000 PG7 T4111411031-000 PG9 T4111412031-000 PG7 T4111411041-000 PG9 T4111412041-000 PG7 T4111411051-000 PG9 T4111412051-000 D coding – M12 Male Screw Connection, Straight, Unshielded D coding – M12 Male Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4111501021-000 PG9 T4111502021-000 PG7 T4111501031-000 PG9 T4111502031-000 PG7 T4111501041-000 PG9 T4111502041-000 PG7 T4111501051-000 PG9 T4111502051-000 3-Pole 4-Pole 5-Pole PG7 T4111511021-000 PG9 T4111512021-000 PG7 T4111511031-000 PG9 T4111512031-000 PG7 T4111511041-000 PG9 T4111512041-000 PG7 T4111511051-000 PG9 T4111512051-000 Temperature range: -25 to +85 degree. Products can also be obtained with silver-plated contacts upon request. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM Female Series All dimensions in mm. TE Part Number TE Part Number A coding – M12 Female Screw Connection, Straight, Unshielded A coding – M12 Female Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4110001021-000 PG9 T4110002021-000 PG7 T4110001031-000 PG9 T4110002031-000 PG7 T4110001041-000 PG9 T4110002041-000 PG7 T4110001051-000 PG9 T4110002051-000 PG9 T4110002081-000 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4110011021-000 PG9 T4110012021-000 PG7 T4110011031-000 PG9 T4110012031-000 PG7 T4110011041-000 PG9 T4110012041-000 PG7 T4110011051-000 PG9 T4110012051-000 PG9 T4110012081-000 B coding – M12 Female Screw Connection, Straight, Unshielded B coding – M12 Female Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4110401021-000 PG9 T4110402021-000 PG7 T4110401031-000 PG9 T4110402031-000 PG7 T4110401041-000 PG9 T4110402041-000 PG7 T4110401051-000 PG9 T4110402051-000 3-Pole 4-Pole 5-Pole PG7 T4110411021-000 PG9 T4110412021-000 PG7 T4110411031-000 PG9 T4110412031-000 PG7 T4110411041-000 PG9 T4110412041-000 PG7 T4110411051-000 PG9 T4110412051-000 D coding – M12 Female Screw Connection, Straight, Unshielded D coding – M12 Female Screw Connection, Straight, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4110501021-000 PG9 T4110502021-000 PG7 T4110501031-000 PG9 T4110502031-000 PG7 T4110501041-000 PG9 T4110502041-000 PG7 T4110501051-000 PG9 T4110502051-000 3-Pole 4-Pole 5-Pole PG7 T4110511021-000 PG9 T4110512021-000 PG7 T4110511031-000 PG9 T4110512031-000 PG7 T4110511041-000 PG9 T4110512041-000 PG7 T4110511051-000 PG9 T4110512051-000 Temperature range: -25 to +85 degree. Products can also be obtained with silver-plated contacts upon request. PAGE 9 M12 Angled Field Installable A, B, D Code Male Series All dimensions in mm. Temperature range: -25 to +85 TE Part Number TE Part Number A coding – M12 Male Screw Connection, Angled, Unshielded A coding – M12 Male Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4113001021-000 PG9 T4113002021-000 PG7 T4113001031-000 PG9 T4113002031-000 PG7 T4113001041-000 PG9 T4113002041-000 PG7 T4113001051-000 PG9 T4113002051-000 PG9 T4113002081-000 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4113011021-000 PG9 T4113012021-000 PG7 T4113011031-000 PG9 T4113012031-000 PG7 T4113011041-000 PG9 T4113012041-000 PG7 T4113011051-000 PG9 T4113012051-000 PG9 T4113012081-000 B coding – M12 Male Screw Connection, Angled, Unshielded B coding – M12 Male Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4113401021-000 PG9 T4113402021-000 PG7 T4113401031-000 PG9 T4113402031-000 PG7 T4113401041-000 PG9 T4113402041-000 PG7 T4113401051-000 PG9 T4113402051-000 3-Pole 4-Pole 5-Pole PG7 T4113411021-000 PG9 T4113412021-000 PG7 T4113411031-000 PG9 T4113412031-000 PG7 T4113411041-000 PG9 T4113412041-000 PG7 T4113411051-000 PG9 T4113412051-000 D coding – M12 Male Screw Connection, Angled, Unshielded D coding – M12 Male Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4113501021-000 PG9 T4113502021-000 PG7 T4113501031-000 PG9 T4113502031-000 PG7 T4113501041-000 PG9 T4113502041-000 PG7 T4113501051-000 PG9 T4113502051-000 3-Pole 4-Pole 5-Pole PG7 T4113511021-000 PG9 T4113512021-000 PG7 T4113511031-000 PG9 T4113512031-000 PG7 T4113511041-000 PG9 T4113512041-000 PG7 T4113511051-000 PG9 T4113512051-000 Temperature range: -25 to +85 degree. Products can also be obtained with silver-plated contacts upon request. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM Female Series All dimensions in mm. TE Part Number TE Part Number A coding – M12 Female Screw Connection, Angled, Unshielded A coding – M12 Female Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4112001021-000 PG9 T4112002021-000 PG7 T4112001031-000 PG9 T4112002031-000 PG7 T4112001041-000 PG9 T4112002041-000 PG7 T4112001051-000 PG9 T4112002051-000 PG9 T4112002081-000 3-Pole 4-Pole 5-Pole 8-Pole PG7 T4112011021-000 PG9 T4112012021-000 PG7 T4112011031-000 PG9 T4112012031-000 PG7 T4112011041-000 PG9 T4112012041-000 PG7 T4112011051-000 PG9 T4112012051-000 PG9 T4112012081-000 B coding – M12 Female Screw Connection, Angled, Unshielded B coding – M12 Female Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4112401021-000 PG9 T4112402021-000 PG7 T4112401031-000 PG9 T4112402031-000 PG7 T4112401041-000 PG9 T4112402041-000 PG7 T4112401051-000 PG9 T4112402051-000 3-Pole 4-Pole 5-Pole PG7 T4112411021-000 PG9 T4112412021-000 PG7 T4112411031-000 PG9 T4112412031-000 PG7 T4112411041-000 PG9 T4112412041-000 PG7 T4112411051-000 PG9 T4112412051-000 D coding – M12 Female Screw Connection, Angled, Unshielded D coding – M12 Female Screw Connection, Angled, Shielded 2-Pole 2-Pole 3-Pole 4-Pole 5-Pole PG7 T4112501021-000 PG9 T4112502021-000 PG7 T4112501031-000 PG9 T4112502031-000 PG7 T4112501041-000 PG9 T4112502041-000 PG7 T4112501051-000 PG9 T4112502051-000 3-Pole 4-Pole 5-Pole PG7 T4112511021-000 PG9 T4112512021-000 PG7 T4112511031-000 PG9 T4112512031-000 PG7 T4112511041-000 PG9 T4112512041-000 PG7 T4112511051-000 PG9 T4112512051-000 Temperature range: -25 to +85 degree. Products can also be obtained with silver-plated contacts upon request. PAGE 11 M12 Straight Field Installable Male Series All dimensions in mm. TE Part Number A coding – M12 Male Screw Connection, Straight 3-Pole 4-Pole 5-Pole TE Part Number A coding – M12 Male Screw Connection, Straight, Shielded PG7 2-2271110-1 4-Pole PG7 3-2271111-2 PG9 2-2271110-2 5-Pole PG7 4-2271111-2 PG7 3-2271110-1 8-Pole PG7 5-2271111-2 PG9 3-2271110-2 12-Pole PG9 6-2271111-2 PG7 4-2271110-1 PG9 4-2271110-2 B coding – M12 Male Screw Connection, Straight, Shielded 8-Pole PG9 5-2271110-2 4-Pole PG7 3-2271113-2 12-Pole PG9 6-2271110-2 5-Pole PG7 4-2271113-2 B coding – M12 Male Screw Connection, Straight D coding – M12 Male Screw Connection, Straight, Shielded 4-Pole 4-Pole 5-Pole PG7 3-2271112-1 PG9 3-2271112-2 PG7 4-2271112-1 S coding – M12 Male Screw Connection, Straight, Shielded PG9 4-2271112-2 3-Pole PG7 plus PE 3-2271115-2 2120951-1 T coding – M12 Male Screw Connection, Straight, Shielded 4-Pole Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 3-2172096-2 Female Series All dimensions in mm. TE Part Number TE Part Number A coding – M12 Female Screw Connection, Straight A coding – M12 Female Screw Connection, Straight, Shielded 3-Pole 4-Pole 5-Pole PG7 2-2271116-1 4-Pole PG9 3-2271117-2 PG9 2-2271116-2 5-Pole PG9 4-2271117-2 PG7 3-2271116-1 8-Pole PG9 5-2271117-2 PG9 3-2271116-2 12-Pole PG9 6-2271117-2 PG7 4-2271116-1 PG9 4-2271116-2 B coding – M12 Female Screw Connection, Straight, Shielded 8-Pole PG9 5-2271116-2 4-Pole PG7 3-2271119-2 12-Pole PG9 6-2271116-2 5-Pole PG7 4-2271119-2 B coding – M12 Female Screw Connection, Straight D coding – M12 Female Screw Connection, Straight, Shielded 4-Pole 4-Pole 5-Pole PG7 3-2271118-1 PG9 3-2271118-2 PG7 4-2271118-1 S coding – M12 Female Screw Connection, Straight, Shielded PG9 4-2271118-2 3-Pole PG7 plus PE 3-2271121-2 2120950-1 T coding – M12 Female, Screw Connection, Straight, Shielded 4-Pole 3-2172097-2 Temperature range: -40 to +85 degree. PAGE 13 M12 Angled Field Installable Male Series All dimensions in mm. TE Part Number A coding – M12 Male Screw Connection, Angled 3-Pole TE Part Number A coding – M12 Male Screw Connection, Angled, Shielded PG7 2-2271122-1 4-Pole PG7 3-2271123-2 PG9 2-2271122-2 5-Pole PG7 4-2271123-2 PG7 3-2271122-1 8-Pole PG7 5-2271123-2 PG9 3-2271122-2 12-Pole PG9 6-2271123-2 PG7 4-2271122-1 PG9 4-2271122-2 B coding – M12 Male Screw Connection, Angled, Shielded 8-Pole PG9 5-2271122-2 4-Pole PG7 3-2271125-2 12-Pole PG9 6-2271122-2 5-Pole PG7 4-2271125-2 4-Pole 5-Pole B coding – M12 Male Screw Connection, Angled D coding – M12 Male Screw Connection, Angled, Shielded 4-Pole 4-Pole 5-Pole PG7 3-2271124-1 PG9 3-2271124-2 PG7 4-2271124-1 PG9 4-2271124-2 Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM PG7 3-2271127-2 PG9 3-2271133-2 Female Series All dimensions in mm. TE Part Number TE Part Number A coding – M12 Female Screw Connection, Angled A coding – M12 Female Screw Connection, Angled, Shielded 3-Pole PG7 2-2271128-1 4-Pole PG7 3-2271129-2 PG9 2-2271128-2 5-Pole PG7 4-2271129-2 PG7 3-2271128-1 8-Pole PG7 5-2271129-2 PG9 3-2271128-2 12-Pole PG9 6-2271129-2 PG7 4-2271128-1 PG9 4-2271128-2 B coding – M12 Female Screw Connection, Angled, Shielded 8-Pole PG9 5-2271128-2 4-Pole PG9 3-2271131-2 12-Pole PG9 6-2271128-2 5-Pole PG9 4-2271131-2 4-Pole 5-Pole B coding – M12 Female Screw Connection, Angled D coding – M12 Female Screw Connection, Angled, Shielded 4-Pole 4-Pole 5-Pole PG7 3-2271130-1 PG9 3-2271130-2 PG7 4-2271130-1 PG9 4-2271130-2 PG7 3-2271133-2 Temperature range: -40 to +85 degree. PAGE 15 M8 Panel Mount Solder PCB Male Series Female Series All dimensions in mm. TE Part Number TE Part Number M8, Male, Rear Mount, PCB, R/A, Unshielded M8, Female, Rear Mount, PCB, R/A, Unshielded 3-Pole 2-2172067-2 3-Pole 2-2172068-2 4-Pole 3-2172067-2 4-Pole 3-2172068-2 M8, Male, Rear Mount, PCB, R/A, Shielded M8, Female, Rear Mount, PCB, R/A, Shielded 3-Pole 2-2172093-2 3-Pole 2-2172091-2 4-Pole 3-2172093-2 4-Pole 3-2172091-2 Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM Male Series Female Series All dimensions in mm. TE Part Number TE Part Number M8, Male, Rear Mount, PCB, Straight, Unshielded M8, Female, Rear Mount, PCB, Straight, Shielded 4-Pole 3-Pole 2-2172089-2 4-Pole 3-2172089-2 3-2172069-2 M8, Male, Rear Mount, PCB, Straight, Shielded 3-Pole 2-2172092-2 4-Pole 3-2172092-2 Temperature range: -40 to +85 degree. PAGE 17 M8 Panel Mount Wire Female Series Male Series All dimensions in mm. TE Part Number M8, Male, Rear Mount, Wire, Straight TE Part Number M8, Female, Rear Mount, Wire, Straight 3-Pole 2-2172090-2 3-Pole 2-2172088-2 4-Pole 3-2172090-2 4-Pole 3-2172088-2 Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M12 Panel Mount Solder PCB Male Series Female Series All dimensions in mm. TE Part Number TE Part Number A coding M12 Male, Rear Mounting M16 x 1.5, Straight A coding M12 Female, Rear Mounting M16 x 1.5, Straight 4-Pole PG9 3-2271140-2 4-Pole PG9 3-2271143-2 5-Pole PG9 4-2271140-2 5-Pole PG9 4-2271143-2 8-Pole PG9 5-2271140-2 8-Pole PG9 5-2271143-2 12-Pole PG9 6-2271140-2 12-Pole PG9 6-2271143-2 B coding M12 Male, Rear Mounting M16 x 1.5, Straight B coding M12 Female, Rear Mounting M16 x 1.5, Straight 4-Pole PG9 3-2271141-2 4-Pole PG9 3-2271144-2 5-Pole PG9 4-2271141-2 5-Pole PG9 4-2271144-2 D coding M12 Male, Rear Mounting M16 x 1.5, Straight D coding M12 Female, Rear Mounting M16 x 1.5, Straight 4-Pole 4-Pole PG9 3-2271142-2 PG9 3-2271145-2 Temperature range: -40 to +85 degree. PAGE 19 M12 Panel Mount Solder PCB Male Series All dimensions in mm. TE Part Number TE Part Number A coding – M12, Male, Rear Mount, PCB, R/A, Unshielded B coding – M12, Male, Rear Mount, PCB, R/A, Unshielded 4-Pole 3-2172062-2 5-Pole 5-Pole 4-2172062-2 4-2172082-2 B coding – M12, Male, Rear Mount, PCB, R/A, Shielded A coding – M12, Male, Rear Mount, PCB, R/A, Shielded 5-Pole 4-2172063-2 4-Pole (45 degrees) 3-2172094-2 4-Pole 3-2172081-2 B coding – M12, Male, Rear Mount, PCB, Straight, Shielded 5-Pole 4-2172081-2 5-Pole 8-Pole 5-2172081-2 4-2172073-2 D coding – M12, Male, Rear Mount, PCB, R/A, Unshielded A coding – M12, Male, Rear Mount, PCB, Straight, Unshielded 4-Pole 3-2172086-2 4-Pole 3-2172070-2 5-Pole 4-2172070-2 D coding – M12, Male, Rear Mount, PCB, R/A, Shielded 8-Pole 5-2172070-2 4-Pole 3-2172065-2 A coding – M12, Male, Rear Mount, PCB, Straight, Shielded D coding – M12, Male, Rear Mount, PCB, Straight, Shielded 4-Pole 3-2172080-2 4-Pole 5-Pole 4-2172080-2 8-Pole 5-2172080-2 Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 3-2172084-2 Female Series All dimensions in mm. TE Part Number TE Part Number A coding – M12, Female, Rear Mount, PCB, R/A, Unshielded B coding – M12, Male, Rear Mount, PCB, R/A, Unshielded 4-Pole 3-2172072-2 5-Pole 5-Pole 4-2172072-2 4-2172083-2 B coding – M12, Male, Rear Mount, PCB, R/A, Shielded A coding – M12, Female, Rear Mount, PCB, R/A, Shielded 5-Pole 4-2172064-2 4-Pole (45 degrees) 3-2172095-2 4-Pole 3-2172079-2 B coding – M12, Male, Rear Mount, PCB, Straight, Shielded 5-Pole 4-2172079-2 5-Pole 8-Pole 5-2172079-2 4-2172074-2 D coding – M12, Male, Rear Mount, PCB, R/A, Unshielded A coding – M12, Female, Rear Mount, PCB, Straight, Unshielded 4-Pole 3-2172087-2 4-Pole 3-2172071-2 5-Pole 4-2172071-2 D coding – M12, Male, Rear Mount, PCB, R/A, Shielded 8-Pole 5-2172071-2 4-Pole 3-2172066-2 A coding – M12, Female, Rear Mount, PCB, Straight, Shielded D coding – M12, Male, Rear Mount, PCB, Straight, Shielded 4-Pole 3-2172078-2 4-Pole 5-Pole 4-2172078-2 8-Pole 5-2172078-2 3-2172085-2 Temperature range: -25 to +85 degree. PAGE 21 M12 Panel Mount Wire Female Series Male Series All dimensions in mm. TE Part Number TE Part Number A coding M12 Male, Front Mounting M16 x 1.5 with wires 0.25 200 mm A coding M12 Female, Front Mounting M16 x 1.5 with wires 0.25 200 mm 4-Pole 3-2271134-2 4-Pole 3-2271137-2 5-Pole 4-2271134-2 5-Pole 4-2271137-2 8-Pole 5-2271134-2 8-Pole 5-2271137-2 12-Pole 6-2271134-2 12-Pole 6-2271137-2 B coding M12 Male, Front Mounting M16 x 1.5 with wires 0.25 200 mm B coding M12 Female, Front Mounting M16 x 1.5 with wires 0.25 200 mm 4-Pole 3-2271135-2 4-Pole 3-2271138-2 5-Pole 4-2271135-2 5-Pole 4-2271138-2 D coding M12 Male, Front Mounting M16 x 1.5 with wires 0.25 200 mm D coding M12 Female, Front Mounting M16 x 1.5 with wires 0.25 200 mm 4-Pole 4-Pole PG9 3-2271136-2 T coding M12 Male, Front Mounting M20 x 1.5 4-Pole 3-2271139-2 T coding M12 Female, Front Mounting M20 x 1.5 2120947-1 Temperature range: -25 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 4-Pole 2120946-1 M12 X-Coded M12 X-Coded PCB Connector M12 Pin Connector Cable Assembly All dimensions in mm. Description TE Part Number M12 X-Coded PCB Connector TE Part Number M12 Pin Connector Cable Assembly Female Panel Mount Solder PCB Connector 2232331-1 Female Panel Mount Solder Wire 2271195-1 M12 X-Coded Field Installable Connector Male Connector installable (IDC): 5.5 - 9 mm cable diameter Length 2120952-1 1 m 2241021-1 2 m 2241021-2 3 m 2241021-3 4 m 2241021-4 5 m 2241021-5 10 m 2241021-6 PRELIMINARY Temperature range: -40 to +85 degree. PAGE 23 Accessories Dust Caps 2823563-1 2823064-1 2823065-1 All dimensions in mm. TE Part Number Dust Caps M8, Dust Cap, Female, IP67, without sleeve 2823563-1 M12, Dust Cap, Female, IP67, without sleeve 2823064-1 M12, Dust Cap, Female, IP67, with sleeve 2823065-1 Temperature range: -40 to +85 degree. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM Nuts for Panel Mount connectors 2823423-1 2823066-1 All dimensions in mm. TE Part Number Nuts for Panel Mount connectors Nut for M8 Panel Mount connector 2823423-1 Nut for M12 Panel Mount connector 2823066-1 PAGE 25 M8/M12 CABLE ASSEMBLIES TE’s M8/M12 cable assemblies are available as single-ended or double-ended and as straight or angled versions. Various cable types, colors and lengths offer a flexible design that can be used in combination with TE’s male/female connectors and I/O Modules. Standard (IEC): Connector Contacts: IEC 61076-2-104 for all M8 series and Current rating per contact is 4 A IEC 61076-2-101 for all M12 series Shielding: Yes/No Operating temperature: Refer to drawing Connectors: -25°C to +85°C Suitable Cable Diameter: Cables: Refer to drawing - PVC: -5°C to + 80°C Flexible IP Rating: -30°C to + 80°C Fixed IP65/67 - PUR: -25°C to + 80°C (90°C max. 10.000h) Flexible Application Areas: -40°C to + 80°C (90°C max. 10.000h) Fixed PUR:  For use in less demanding environments with required oil, chemical and lubricant resistance PUR/PVC: For use assembly and production lines requiring higher cut, abrasion and chemical resistance PVC: For use in demanding environments with required resistance to oils, cehmicals and abrasion. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M8 Cable Assemblies M8 Series Male TE Part Number Description Available In 2273000 M8 x 1.0 Straight plug Pigtail 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273002 M8 x 1.0 Straight plug Pigtail 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm mm 39 mm 39 20 mm mm 20 mm 20 TE Part Number Description Available In 2273004 M8 x 1.0 Straight plug Pigtail Shielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273006 M8 x 1.0 Straight plug Pigtail 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 3942 mm 42 mm mm 20 mm mm 2020 mm TE Part Number Description Available In 2273008 M8 x 1.0 Angled plug Pigtail 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273010 M8 x 1.0 Angled plug Pigtail 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 20 mm 25 mm 25 mm TE Part Number Description Available In 2273014 M8 Male Panel Mount Rear 3 positions Panel Mount, Lengths: 0.2 m 2273230 M8 Male Panel Mount Rear 4 positions Panel Mount, Length: 0.2 m 10 mm 10 mm 39 mm 20 mm PAGE 27 M8 Cable Assemblies M8 Series Female TE Part Number Description Available In 2273001 M8 x 1.0 Straight socket Pigtail 3 and 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 32mm mm 32 20mm mm 20 mm 20 TE Part Number Description Available In 2273005 M8 x 1.0 Straight socket Pigtail Shielded 3 and 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 35 mm 35 mm 20 mm 20mm mm 20 TE Part Number Description Available In 2273009 M8 x 1.0 Angled socket Pigtail 3 and 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 20 mm 25 mm TE Part Number Description Available In 2273012 M8 x 1.0 Angled socket Pigtail LED 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 25 mm 20 mm 25 mm TE Part Number Description Available In 2273013 M8 Female Panel Mount Rear 3 positions Panel Mount, Length: 0.2 m 2273015 M8 Female Panel Mount Rear 4 positions Panel Mount, Length: 0.2 m 10 mm 16 mm 39 mm AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 20 mm M12 Cable Assemblies M12 Series Male Straight TE Part Number Description Available In 2273022 M12 x 1.0 Straight plug Pigtail Unshielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273028 M12 x 1.0 Straight plug Pigtail Unshielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273034 M12 x 1.0 Straight plug Pigtail Unshielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273040 M12 x 1.0 Straight plug Pigtail Unshielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m mm 394141 mm mm 20mm mm 20 20 mm A-coded TE Part Number Description Available In 2273042 M12 x 1.0 Straight plug Pigtail Shielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273044 M12 x 1.0 Straight plug Pigtail Shielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273046 M12 x 1.0 Straight plug Pigtail Shielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273048 M12 x 1.0 Straight plug Pigtail Shielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 47.5 mm 47.5 mm 20 mm 20mm mm 20 TE Part Number Description Available In 2273051 M12 Male Panel Mount Rear 4 positions PVC, Lengths: 0.2 m 2273052 M12 Male Panel Mount Rear 5 positions PVC, Length: 0.2 m 39 mm 26.1 mm 26.1 mm A-coded 20 mm B-coded PAGE 29 M12 Cable Assemblies M12 Series Female Straight TE Part Number Description Available In 2273023 M12 x 1.0 Straight socket Pigtail Unshielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273029 M12 x 1.0 Straight socket Pigtail Unshielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273035 M12 x 1.0 Straight socket Pigtail Unshielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273041 M12 x 1.0 Straight socket Pigtail Unshielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 38 mm 38 mm 20 mm 2020 mm mm A-coded TE Part Number Description Available In 2273043 M12 x 1.0 Straight socket Pigtail Shielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273045 M12 x 1.0 Straight socket Pigtail Shielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273047 M12 x 1.0 Straight socket Pigtail Shielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273049 M12 x 1.0 Straight socket Pigtail Shielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 44.544.5 mmmm 20 mm 20 mm 20 mm TE Part Number Description Available In 2273054 M12 Female Panel Mount Rear 4 positions PUR, Length: 0.2 m 2273055 M12 Female Panel Mount Rear 5 positions PUR, Length: 0.2 m 39 mm 44.5 mm 20 mm A-coded 20 mm A-coded 23 mm AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M12 Series Male Angled TE Part Number Description Available In 2273076 M12 x 1.0 Angled plug Pigtail Unshielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273082 M12 x 1.0 Angled plug Pigtail Unshielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273088 M12 x 1.0 Angled plug Pigtail Unshielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273094 M12 x 1.0 Angled plug Pigtail Unshielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 20 mm A-coded 39 mm TE Part Number Description Available In 2273096 M12 x 1.0 Angled plug Pigtail Shielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273098 M12 x 1.0 Angled plug Pigtail Shielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273100 M12 x 1.0 Angled plug Pigtail Shielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273102 M12 x 1.0 Angled plug Pigtail Shielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 39 mm A-coded 39 mm 39 mm PAGE 31 M12 Cable Assemblies M12 Series Female Angled TE Part Number Description Available In 2273077 M12 x 1.0 Angled socket Pigtail Unshielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273083 M12 x 1.0 Angled socket Pigtail Unshielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273089 M12 x 1.0 Angled socket Pigtail Unshielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273095 M12 x 1.0 Angled socket Pigtail Unshielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 20 mm A-coded 39 mm TE Part Number Description Available In 2273097 M12 x 1.0 Straight socket Pigtail Shielded 3 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273099 M12 x 1.0 Straight socket Pigtail Shielded 4 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273101 M12 x 1.0 Straight socket Pigtail Shielded 5 positions PUR or PVC, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 2273103 M12 x 1.0 Straight socket Pigtail Shielded 8 positions PUR, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 20 mm A-coded 39 mm TE Part Number Description 2273104 M12 x 1.0 Straight socket Pigtail Shielded LED 4 positions PUR, 2 LED, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m Available In 2273105 M12 x 1.0 Straight socket Pigtail Shielded LED 4 positions PUR or PVC, 3 LED, Lengths: 1.5 m / 3.0 m / 5.0 m / 10.0 m 39 mm 20 mm A-coded 39 mm 39 mm AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M12 Series Male to Female Y-cables TE Part Number Description Available In 2273107 M12 Y conn Male to 2 x M12 Female A 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded A-coded M8 to M12 Cable Assemblies M8 Male to M12 Female Series TE Part Number Description Available In 2273108 M8 Straight plug to M12 Straight socket Unshielded 3 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273109 M8 Strght plug to M12 Straight socket Unshielded 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded 39mm mm 39 M8 Female to M12 Male Series TE Part Number Description Available In 2273110 M8 Straight socket to M12 Straight plug Unshielded 3 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273111 M8 Straight socket to M12 Straight plug Unshielded 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 41 mm41 mm A-coded PAGE 33 M12 to M12 Cable Assemblies M12 Male to M12 Female Series TE Part Number Description Available In 2273112 M12 Straight plug to M12 Straight socket Unshielded 3 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273113 M12 Straight plug to M12 Straight socket Unshielded 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273114 M12 Straight plug to M12 Straight socket Unshielded 5 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273115 M12 Straight plug to M12 Straight socket Unshielded 8 positions PUR, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded A-coded 4141 41 mm mm mm TE Part Number Description Available In 2273116 M12 Straight plug to M12 Angled socket Unshielded 3 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273117 M12 Straight plug to M12 Angled socket Unshielded 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273118 M12 Straight plug to M12 Angled socket Unshielded 5 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded 41 mm A-coded TE Part Number Description Available In 2273120 M12 Angled plug to M12 Straight socket Unshielded 3 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273121 M12 Angled plug to M12 Straight socket Unshielded 4 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 2273122 M12 Angled plug to M12 Straight socket Unshielded 5 positions PUR or PVC, Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded 39 39mm mm A-coded AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M8 to M8 Cable Assemblies M8 Female to M8 Male Series LED TE Part Number Description Available In 2273124 M8 Angled socket to M8 Straight plug 2 LED 3 positions PUR, PVC, PUR/PVC and Welding Spark resistant Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m 25 mm 42 mm M12 to M12 Cable Assemblies M12 Female to M12 Male Series LED TE Part Number Description Available In 2273125 M12 Angled socket to M12 Straight plug 2 LED 3 positions PUR, PVC, PUR/PVC and Welding Spark resistant Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded 39 mm 41 mm A-coded TE Part Number Description 2273126 M12 Angled socket to M12 Straight plug 3 LED 4 positions PUR, PVC, PUR/PVC and Welding Spark resistant Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m Available In 2273127 M12 Angled socket to M12 Straight plug 3 LED 5 positions PUR or PVC, PUR/PVC and Welding Spark resistant Lengths: 0.3 m / 0.6 m / 1.0 m / 1.5 m / 2.0 m A-coded 39 mm 41 mm A-coded PAGE 35 Cable Assembly Notes AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM I/O MODULES Complementary to the M8/M12 cable assemblies and connectors, TE offers compact I/O modules for Industrial applications. The I/O modules are well accepted in the Industrial Automation industry and the concept of TE’s I/O modules is simple, efficient and cost effective. Standard (IEC): IEC 61076-2-104 for all M8 series and IEC 61076-2-101 for all M12 series Ambient temperature: -25°C to +85°C for the connectors (for cable assemblies please refer to specific drawings) Connector Contacts: Current rating per contact is 4 A Shielding: Yes/No Refer to drawing Suitable Cable Diameter: Refer to drawing IP Rating: IP65/67 Sensor Type: PNP PAGE 37 M8 – With Cables M8 Series Complete 45.5 2273129 Complete 45.5 2273130 Description Positions TE Part Number PUR cable 3.0 m 3 pos 10 way 2273129-1 PUR cable 5.0 m 3 pos 10 way 2273129-2 PUR cable 10.0 m 3 pos 10 way 2273129-3 PUR cable 15.0 m 3 pos 10 way 2273129-4 PUR/PVC cable 3.0 m 3 pos 10 way 2-2273129-1 PUR/PVC cable 10.0 m 3 pos 10 way 2-2273129-2 PUR cable 5.0 m 3 pos 10 way 2273130-1 PUR cable 3.0 m 4 pos 10 way 2273132-1 PUR cable 10.0 m 4 pos 10 way 2273132-2 PUR/PVC cable 3.0 m 4 pos 10 way 1-2273132-1 PUR/PVC cable 10.0 m 4 pos 10 way 1-2273132-2 PUR cable 5.0 m 3 pos 4 way 2273133-1 PUR cable 10.0 m 3 pos 4 way 2273133-2 PUR/PVC cable 5.0 m 3 pos 4 way 1-2273133-1 PUR/PVC cable 5.0 m 3 pos 6 way 2273137-1 PUR cable 3.0 m 3 pos 6 way 2273138-1 PUR cable 5.0 m 3 pos 6 way 2273138-2 PUR/PVC cable 3.0 m 3 pos 8 way 2273142-1 PUR/PVC cable 5.0 m 3 pos 8 way 2273142-2 PUR/PVC cable 10.0 m 3 pos 8 way 2273142-3 PUR cable 3.0 m 3 pos 8 way 1-2273142-1 PUR cable 5.0 m 3 pos 8 way 1-2273142-2 PUR cable 10.0 m 3 pos 8 way 1-2273142-3 PUR cable 15.0 m 3 pos 8 way 1-2273142-4 PUR cable 5.0 m 3 pos 8 way 2273144-1 PUR cable 10.0 m 3 pos 8 way 2273144-2   Complete 45.5  Complete 45.5 2273132 2273133 Complete 45.5 2273137 Complete 45.5 Complete 45.5 2273138 Complete 45.5 2273142 All dimensions in mm. AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 2273144 M8 – With M12 Plug Connection M8 Series Description Positions TE Part Number Dist. box M8 3 pos 10 way M12 12 pos. conn 2273131-1 Dist. box M8 3 pos 04 way M12 12 pos.conn 2273134-1 Dist. box M8 3 pos 04 way M12 8 pos. conn 2273135-1 Dist. box M8 3 pos 06 way M12 12 pos. conn 2273139-1 Dist. box M8 3 pos 06 way M12 8 pos. conn 2273140-1 Dist. box M8 3 pos 08 way M12 12 pos. conn 2273146-1 2273134 Complete 31.5 2273139 2273135 Complete 31.5 Complete 31.5 2273131 Complete 31.5 2273140 2273146 Complete 31.5 Complete 31.5 M8 – For Homerun Connection M8 Series Description Positions TE Part Number Distr box M8 3 pos 10 way PNP 3 pos 10 way 2273128-1 Distr box M8 connection cap no cable Nil 2273136-1 Inline or side mounting 3 pos 8 way 2273141-1 PUR cable 3.0 m 4 pos 8 way 2273147-1 2273128 30 2273141 2273147 2273136 Complete 45.5 189 All dimensions in mm. .5 20 PAGE 39 M12 – With Cable M12 Series Description Positions TE Part Number PUR/PVC cable 5.0 m 4 pos 4 way 2273150-1 PUR/PVC cable 10.0 m 4 pos 4 way 2273150-2 PUR/PVC cable 5.0 m 5 pos 4 way 2273153-1 PUR/PVC cable 10.0 m 5 pos 4 way 2273153-2 With PUR/PV Homerun Cable 10.0 m 5 pos 4 way 2273155-1 PUR/PVC cable 3.0 m 4 pos 8 way 2273157-1 PUR/PVC cable 5.0 m 4 pos 8 way 2273157-2 PUR/PVC cable 10.0 m 4 pos 8 way 2273157-3 PUR/PVC cable 15.0 m 4 pos 8 way 2273157-4 PUR/PVC cable 3.0 m 5 pos 8 way 2273163-1 PUR/PVC cable 5.0 m 5 pos 8 way 2273163-2 PUR/PVC cable 10.0 m 5 pos 8 way 2273163-3 PUR/PVC cable 15.0 m 5 pos 8 way 2273163-4 PUR/PVC cable 20.0 m 5 pos 8 way 2273163-5 PUR cable 3.0 m 5 pos 8 way 1-2273163-1 PUR cable 5.0 m 5 pos 8 way 1-2273163-2 PUR cable 10.0 m 5 pos 8 way 1-2273163-3 PUR cable 15.0 m 5 pos 8 way 1-2273163-4 PUR cable 20.0 m 5 pos 8 way 1-2273163-5 PUR/PVC cable 5.0 m 5 pos 8 way 2273164-1 2273150 Complete 32 Complete 32 2273153 2273155 Complete 32 2273157 Complete 32 Complete 32 Complete 32 2273164 2273163 M12 – With M12/M23 Plug Connection M12 Series Description Positions TE Part Number Without homerun cable 4 pos 8 way 2273158-1 Distr box M12 4-5 pos 8 way M12/12p PNP 4-5 pos 8 way 2273161-1 Distr box M12 5 pos 4 way M23/19p PNP 5 pos 4 way 2273165-1 Complete 36.5 2273161 Complete 36.5 2273165 AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM 2273158 Complete 36.5 M12 – No Cable/With Cable Gland M12 Series Description Positions TE Part Number With plug cap 4 pos 4 way 2273151-1 Without homerun cable 5 pos 4 way 2273152-1 With plug cap 5 pos 4 way 2273154-1 Without homerun cable 4 pos 8 way 2273156-1 With plug cap 4 pos 8 way 2273159-1 With plug cap 4 pos 8 way 2273160-1 Without homerun cable 5 pos 8 way 2273162-1 With plug cap 5 pos 8 way 2273166-1 With plug cap 5 pos 8 way 2273167-1 2273151 Complete 48 2273154 2273152 Complete 48 2273156 2273160 Complete 48 2273159 Complete 48 2273162 2273167 Complete 48 2273166 Complete 48 All dimensions in mm. PAGE 41 I/O Module Notes AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM M8/M12 Website te.com/m8m12 FIND THE PART NUMBERS AND INFORMATION YOU ARE LOOKING FOR Additional Information View the video Read more about the connector and cable assembly See our M8/M12 connector system video and learn about portfolio on the M8/M12 website - in many different the product features, benefits and applications. languages. Download the product flyer Find the products If you are looking for a specific product or part number, the Find all information you need at one glance in the M8/M12 M8/M12 website is the place to look. Find the images, connector system product flyer. drawings, technical specifications and much more. PAGE 43 te.com TE, TE Connectivity, TE connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. While TE has made every reasonable eff ort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty, or guarantee that the information is accurate, correct, reliable, or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fi tness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifi cations are subject to change without notice. Consult TE for the latest dimensions and design specifications. © 2016  TE Connectivity Ltd. family of companies  All Rights Reserved. 1-1773701-8   06/2016    Original: WR AUTOMATION & CONTROL /// M8 / M12 CONNECTOR SYSTEM CATALOG TE Connectivity Automation & Control Pfnorstr. 1 D-64293 Darmstadt Germany +49 6151 607 1999 www.te.com
