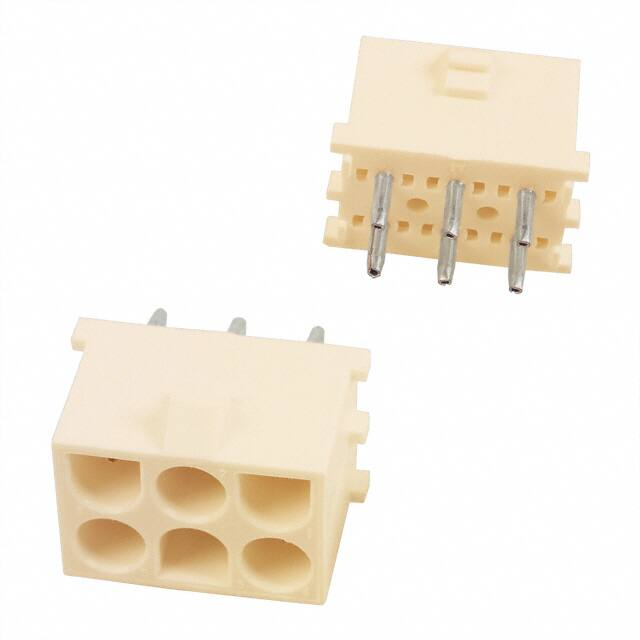

350585-2

7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY - 6 5 4 3 2 20 LOC CM ALL RIGHTS RESERVED. 1 REVISIONS DIST 00 P LTR DESCRIPTION DATE DWN APVD R1 REVISED PER ECR-12-011660 24JAN2013 KH TM R2 REVISED PER ECR-21-119230 08NOV2021 SS VS 1. PARTS MATE WITH HOUSING 480704. 2. PARTS COMPLY TO AMP SOLDERABILITY SPECIFICATION 109-11-3. 3 D CONTACT 6 REQ'D 13.97 [ .550 ] HOUSING CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN 0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND TIN LEAD ON SOLDER TAIL END. D 4 CIRCUIT IDENTIFICATION CHARACTERS ARE ADJACENT TO THE INDICATED CAVITIES, BUT LOCATION AND ORIENTATION MAY DIFFER FROM PRINT. 5 CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN 0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND MATTE TIN ON SOLDER TAIL END. 6. DIMENSIONS IN BRACKETS ARE IN INCHES. 7 4 SUPERSEDED BY 350585-4 8. DIMENSIONS SHOWN REPRESENT PRODUCT IN DRY CONDITION. ADDITIONAL 2% GROWTH DUE TO END USE LOCATION MOISTURE ABSORPTION MAY OCCUR AND SHOULDE BE ACCOUNTED FOR. 0.76 [ .030 ] 20.32 [ .800 ] 13.97 [ .550 ] C C 2.01-1.85 [.079-.073] POINT OF MEASUREMENT 2.26-2.08 [.089-.082] 0.13 [ .005 ] CUT-OFF TAB B 1.52 [ .060 ] 5.47 -6.22 [ .215 -.245 ] B SECTION A-A SCALE 10:1 2.29 [ .090 ] 3 4.57 [ .180 ] 5 B-B SECTION 6.35 [ .250 ] 7 1.78 0.07 [ .070 .003 ] A 6.35 [ .250 ] PHOSPOR BRONZE,GOLD 5 NYLON, UL94V-2, NATURAL 350585 -4 PHOSPOR BRONZE,GOLD 3 NYLON, UL94V-2, NATURAL 350585 -2 PHOSPOR BRONZE, PRE-TIN NYLON, UL94V-2, NATURAL 350585 -1 PIN CONTACT MATERIAL AND FINISH HOUSING MATERIAL AND COLOR PART NUMBER THIS DRAWING IS A CONTROLLED DOCUMENT. DIMENSIONS: 3 DIMENSIONAL MODEL SCALE 4:1 mm[INCHES] RECOMMENDED MOUNTING HOLE PATTERN FOR 1.57 [.062] THICK P.C. BOARD 4805 (3/11) MATERIAL SEE TABLE - TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 0.13[.005] 0 $ 30' SEE TABLE - DWN 02SEP2005 CHK 02SEP2005 APVD 02SEP2005 K. WHITAKER S. RIDGILL S. RIDGILL TE Connectivity NAME PRODUCT SPEC - APPLICATION SPEC - WEIGHT SIZE - CUSTOMER DRAWING PIN HEADER ASSEMBLY, 6 CIRCUIT, UNIVERSAL MATE-N-LOK(TM) CAGE CODE A1 00779 DRAWING NO 350585 SCALE 5:1 SHEET RESTRICTED TO 1 OF 1 REV R2 A
