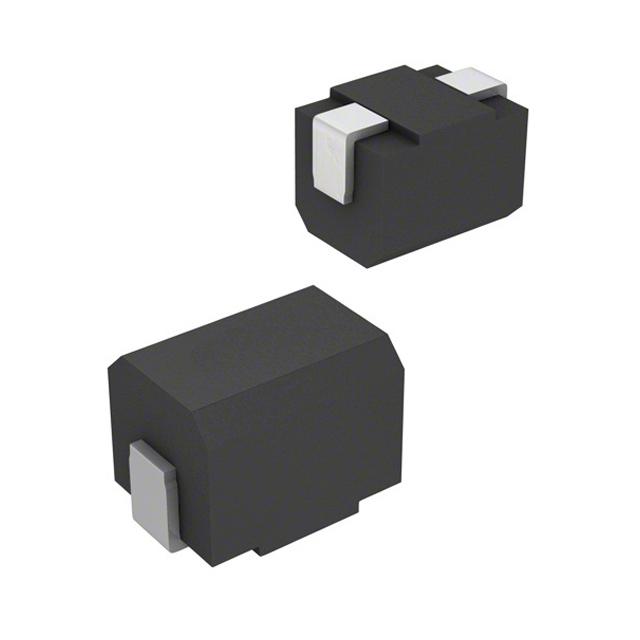

3613C220K

3613C220K 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 3613C220K  ACTIVE Sigma | Sigma 3613 TE Internal #: 1624094-8 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 View on TE.com > Passive Components > Inductors > Molded SMD Inductors Inductance: 22 µH Current Rating (Max): 180 mA DC Resistance: 3.2 Ω Inductor Quality Factor: 50 Product Length: 4.5 mm [ .177 in ] Features Product Type Features Package Size Code 1812 Element Type Wire Wound Electrical Characteristics Self Resonant Frequency 13 MHz Inductance 22 µH Current Rating (Max) 180 mA DC Resistance 3.2 Ω Passive Component Tolerance 10 % Dimensions Product Length 4.5 mm[.177 in] Product Width 3.2 mm[.125 in] Product Height 3.2 mm[.125 in] Usage Conditions Operating Temperature Range -30 – 100 °C Packaging Features Packaging Method Taped & Reeled Other Inductor Quality Factor  For support call+1 800 522 6752 50 01/02/2024 09:03AM | Page 1 3613C220K 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 Inductor Quality Factor 50 Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Not Low Halogen - contains Br or Cl > 900 ppm. Solder Process Capability Reflow solder capable to 245°C Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts  TE Part # 1-1624094-5 TE Part # 2-1624094-2 TE Part # 1-1624094-2 TE Part # 1624094-2 3613C 3.3UH 10% 3613C 0.22UH 20% 3613C 2.2UH 10% 3613C 100UH 10% For support call+1 800 522 6752 01/02/2024 09:03AM | Page 2 3613C220K 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 TE Part # 1624094-1 TE Part # 1624094-6 TE Part # 1624094-9 TE Part # 1-1624094-3 3613C 10UH 10% 3613C 1.0UH 10% 3613C 220UH 10% 3613C 33UH 10% TE Part # 1-1624094-6 TE Part # 1-1624094-8 TE Part # 2-1624094-4 TE Part # 2-1624094-5 3613C 47UH 10% 3613C 4.7UH 10% 3613C 0.47UH 20% 3613C 0.68UH 20% TE Part # 2-1624094-3 TE Part # 1624094-5 TE Part # 1-1624094-7 TE Part # 1-1624094-9 3613C 0.33UH 20% 3613C 150UH 10% 3613C 470UH 10% 3613C 5.6UH 10% TE Part # 1-1624094-4 TE Part # 2-1624094-7 3613C 330UH 10% 3613C 8.2UH 10% Also in the Series Sigma 3613 Molded SMD Inductors(19) Customers Also Bought  For support call+1 800 522 6752 01/02/2024 09:03AM | Page 3 3613C220K 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 TE Part #1473005-1 TE Part #5103309-6 TE Part #1-1624094-8 TE Part #5-1676481-3 SEMI HARD TRAY DDR SOCKET 200P A/L LOW PRO HDR 26P VERT BLACK 3613C 4.7UH 10% CPF 0603 820R 0.1% 25PPM 1K RL TE Part #7-1623933-4 TE Part #5-2176331-7 CFR50 5% 8M2 CRGP 2512 470K 1% Documents Product Drawings 3613C 22UH 10% English CAD Files Customer View Model ENG_CVM_CVM_1624094-8_BB.2d_dxf.zip English 3D PDF 3D Customer View Model ENG_CVM_CVM_1624094-8_BB.3d_igs.zip English Customer View Model ENG_CVM_CVM_1624094-8_BB.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Datasheets & Catalog Pages 1309350_PASSIVE_COMPONENT English Moulded Chip Inductor 18:12 - Type 3613C Series - Tyco Electronics Passives English Product Environmental Compliance Product Compliance English  Product Compliance For support call+1 800 522 6752 01/02/2024 09:03AM | Page 4 3613C220K 22 µH Molded SMD Inductor, 180 mA, 3.2 Ω DC Resistance, 50, Length .177 in [4.5 mm], Width 3.2 mm [.125 in], Height .125 in [3.2 mm], 10 %, Sigma 3613 Product Compliance English  For support call+1 800 522 6752 01/02/2024 09:03AM | Page 5
