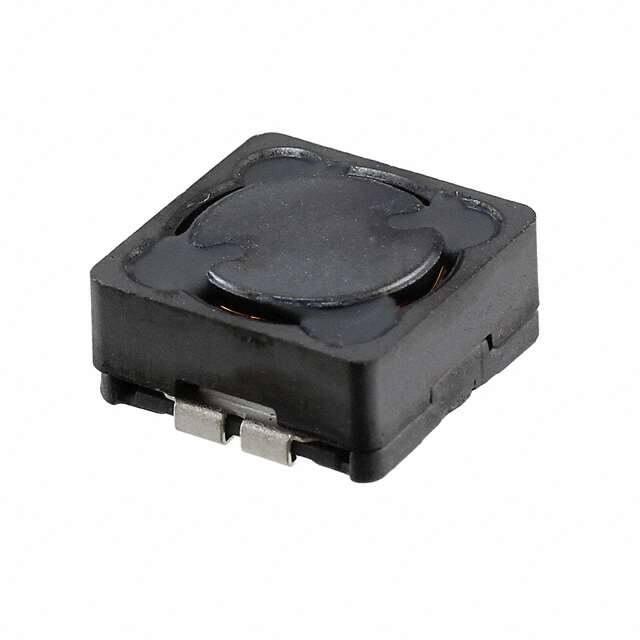

Shielded SMD Power Inductors Type 3631 Series Key Features I Very High Current Capability I Wide Value Range I Available in 6 different styles I Up to 14A I Down to 4mm height I High reliability I Taped and Reeled The 3631 series of SMD shielded Power Inductors are designed to handle high current and have been designed for use in SMD power circuits. With the superior ferrite core material and its low profile construction we can ensure excellent inductance characteristics coupled with proven Tyco Sigma quality. Electrical Characteristics - 3631A Series 1773153 CIS BI 06/2011 Inductance Code Inductance (μH) Tolerance Test Freq. (Hz) R.D.C. (mΩ) Max. I.D.C. (A) Max. 2R5 2.5 ±20% 1K 24.0 5.00 5R0 5.0 ±20% 1K 35.0 4.00 7R5 7.5 ±20% 1K 40.0 3.50 100 10.0 ±20% 1K 54.0 3.00 120 12.0 ±20% 1K 65.0 2.80 150 15.0 ±20% 1K 70.0 2.70 180 18.0 ±20% 1K 82.0 2.60 220 22.0 ±20% 1K 95.0 2.40 250 25.0 ±20% 1K 120.0 2.00 330 33.0 ±20% 1K 145.0 1.80 390 39.0 ±20% 1K 160.0 1.65 500 50.0 ±10% 1K 200.0 1.50 560 56.0 ±10% 1K 240.0 1.40 680 68.0 ±10% 1K 280.0 1.30 750 75.0 ±10% 1K 330.0 1.20 101 100.0 ±10% 1K 400.0 1.00 121 120.0 ±10% 1K 500.0 0.90 151 150.0 ±10% 1K 580.0 0.80 181 180.0 ±10% 1K 750.0 0.70 221 220.0 ±10% 1K 840.0 0.65 271 270.0 ±10% 1K 1000.0 0.60 331 330.0 ±10% 1K 1340.0 0.54 391 390.0 ±10% 1K 1500.0 0.50 471 470.0 ±10% 1K 1980.0 0.45 561 560.0 ±10% 1K 2200.0 0.40 681 680.0 ±10% 1K 2400.0 0.35 821 820.0 ±10% 1k 3000.0 0.30 Dimensions are in millimeters and inches unless otherwise specified. Values in brackets are standard equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, go to: te.com/help Shielded SMD Power Inductors Type 3631 Series Electrical Characteristics - 3631B Series Inductance Code 2R5 5R0 7R5 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 Inductance (μH) 2.5 5.0 7.5 10.0 12.0 15.0 18.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 120.0 150.0 180.0 220.0 270.0 330.0 390.0 470.0 560.0 680.0 820.0 1000.0 1200.0 1500.0 Tolerance ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% Test Freq. (Hz) 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1k 1K 1K 1K R.D.C. (mΩ) Max. 16.0 22.0 25.0 35.0 38.0 42.0 50.0 62.0 68.0 90.0 100.0 130.0 155.0 170.0 185.0 220.0 260.0 320.0 330.0 460.0 520.0 660.0 870.0 970.0 1320.0 1500.0 1700.0 2300.0 2650.0 3500.0 I.D.C. (A) Max. 6.20 4.70 3.80 3.30 3.00 2.80 2.50 2.30 2.00 1.90 1.75 1.60 1.45 1.30 1.20 1.10 1.00 0.90 0.80 0.70 0.65 0.60 0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 Test Freq. (Hz) 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K 1K R.D.C. (mΩ) Max. 11.4 14.0 18.0 21.0 25.0 36.0 40.0 43.0 48.0 62.0 76.0 85.0 110.0 135.0 150.0 170.0 190.0 240.0 270.0 380.0 400.0 650.0 670.0 850.0 900.0 1000.0 1150.0 1650.0 2000.0 2350.0 I.D.C. (A) Max. 7.80 6.80 6.50 5.40 4.90 4.50 3.90 3.60 3.40 3.00 2.70 2.50 2.30 2.10 1.90 1.70 1.50 1.40 1.30 1.10 1.00 0.90 0.85 0.80 0.70 0.65 0.60 0.55 0.40 0.36 Electrical Characteristics - 3631C Series Inductance Code 2R5 4R5 6R5 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 1773153 CIS BI 06/2011 Dimensions are in millimeters and inches unless otherwise specified. Values in brackets are standard equivalents. Inductance (μH) 2.5 4.5 6.5 10.0 12.0 15.0 18.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 120.0 150.0 180.0 220.0 270.0 330.0 390.0 470.0 560.0 680.0 820.0 1000.0 1200.0 1500.0 Tolerance ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±15% ±10% ±10% ±10% ±10% ±10% ±10% ±10% Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, go to: te.com/help Shielded SMD Power Inductors Type 3631 Series Environmental Characteristics - A, B, C, Series Storage Temp: -50°C to +125°C Operating Temp: -25°C to +105°C Rated Current: Base on temp. rise & ΔL/L=10% typ. Temp. Rise: 40°C max. Dimensions A, B, C Series Series A ±0.3 B ±0.3 C ±0.5 D ±0.2 E (typ) F (ref) G (ref) H (ref) 3631A 12.7 12.7 5.0 5.0 8.1 6.0 7.0 4.0 3631B 12.7 12.7 6.0 5.0 8.1 6.0 7.0 4.0 3631C 12.7 12.7 8.0 5.0 8.1 6.0 7.0 4.0 Electrical Characteristics - 3631D Series 1773153 CIS BI 06/2011 Inductance Code Inductance (μH) Tolerance Test Freq. (Hz) 1R2 1.20 ±30% 100K 8.0 9.20 9.80 2R4 2.40 ±30% 100K 11.5 7.80 8.00 3R5 3.50 ±30% 100K 13.0 7.50 7.60 4R7 4.70 ±30% 100K 15.5 6.80 7.00 6R1 6.10 ±30% 100K 17.0 6.60 6.80 7R6 7.60 ±30% 100K 19.0 6.00 6.20 100 10.0 ±20% 1K 20.0 5.50 5.50 120 12.0 ±20% 1K 23.0 5.20 5.00 150 15.0 ±20% 1K 27.0 5.00 4.60 180 18.0 ±20% 1K 36.0 4.20 3.90 220 22.0 ±20% 1K 43.0 4.00 3.70 270 27.0 ±20% 1K 45.0 3.60 3.30 330 33.0 ±20% 1K 60.0 3.00 2.80 390 39.0 ±20% 1K 70.0 2.80 2.70 470 47.0 ±20% 1K 86.0 2.60 2.50 560 56.0 ±20% 1K 100.0 2.30 2.20 680 68.0 ±20% 1K 110.0 2.10 2.10 820 82.0 ±20% 1K 145.0 1.95 1.90 101 100.0 ±20% 1K 180.0 1.70 1.70 Dimensions are in millimeters and inches unless otherwise specified. Values in brackets are standard equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. R.D.C. (mΩ) Max. Irms (A) Isat (A) For email, phone or live chat, go to: te.com/help Shielded SMD Power Inductors Type 3631 Series Electrical Characteristics - 3631E Series Inductance Code Inductance (μH) Tolerance Test Freq. (Hz) R.D.C. (mΩ) Max. Irms (A) Isat (A) 1R5 1.5 ±30% 100K 9.5 9.20 9.00 3R3 3.3 ±30% 100K 15.0 6.80 6.50 4R7 4.7 ±20% 100K 18.0 6.00 5.60 5R6 5.6 ±20% 100K 20.0 5.40 5.10 6R8 6.8 ±20% 100K 23.0 5.20 4.70 100 10.0 ±20% 100K 32.0 4.00 4.00 150 15.0 ±20% 100K 47.0 3.50 3.20 220 22.0 ±20% 100K 67.5 3.00 2.60 330 33.0 ±20% 100K 97.0 2.30 2.10 470 47.0 ±20% 100K 135.0 2.00 1.80 680 68.0 ±20% 100K 200.0 1.50 1.50 101 100.0 ±20% 100K 300.0 1.25 1.20 R.D.C. (mΩ) Max. Irms (A) Isat (A) Electrical Characteristics - 3631F Series Inductance Code Inductance (μH) Tolerance Test Freq. (Hz) 1R1 1.1 ±30% 100K 6.5 10.2 14.0 2R4 2.4 ±30% 100K 10.0 9.2 10.5 3R3 3.3 ±30% 100K 12.0 8.8 9.8 4R5 4.5 ±30% 100K 13.5 8.5 9.0 5R6 5.6 ±30% 100K 16.0 8.0 8.5 7R5 7.5 ±30% 100K 17.5 6.4 7.0 100 10.0 ±20% 1K 19.5 6.0 6.3 150 15.0 ±20% 1K 28.5 5.2 5.0 220 22.0 ±20% 1K 38.6 4.3 4.1 330 33.0 ±20% 1K 57.0 3.5 3.3 470 47.0 ±20% 1K 80.0 2.9 2.8 680 68.0 ±20% 1K 120.0 2.4 2.3 101 100.0 ±20% 1K 150.0 2.1 2.0 Environmental Characteristics - D, E, F Series Storage Temp: -40°C to +125°C Operating Temp: 1773153 CIS BI 06/2011 -40°C to +125°C (Temp. Rise Included) Rated Current: Base on temp. rise & ΔL/L=25% typ. Temp. Rise: 40°C typ. Dimensions are in millimeters and inches unless otherwise specified. Values in brackets are standard equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, go to: te.com/help Shielded SMD Power Inductors Type 3631 Series Electrical Characteristics - 3631G Series Inductance Code Inductance (μH) DC Resistance (milli Ohm max) Rated Current (A max) 1R2 2R4 1.2 7.0 9.80 2.4 11.5 8.00 3R5 3.5 13.5 7.50 4R7 4.7 15.8 6.80 6R1 6.1 17.6 6.60 7R6 7.6 20.0 5.90 100 10 21.6 5.40 120 12 24.3 4.90 150 15 27.0 4.50 180 18 39.2 3.90 220 22 43.2 3.60 270 27 45.9 3.40 330 33 64.8 3.00 390 39 72.9 2.75 470 47 100 2.50 560 56 110 2.35 680 68 140 2.10 820 82 180 1.95 101 100 220 1.70 121 120 250 1.60 151 150 280 1.42 181 180 450 1.30 221 220 390 1.16 271 270 560 1.06 331 330 640 0.95 391 390 700 0.88 471 470 980 0.79 561 560 1070 0.73 681 680 1460 0.67 821 820 1640 0.60 102 1000 1820 0.55 Environmental Characteristics - G Series 1773153 CIS BI 06/2011 Inductance Measuring Frequency: 1,0-8.2μH (7,96MHz) 10μH (1KHz 1Vrms) Inductance Tolerance: J ±5%, K ±10%, L ±15%, M ±20%, N ±30% Inductance Drop: 20% typ. or temperature rise Δt ≤ 40°C at rated current Operating Temperature Range: -40°C to +85°C Electrical Specifications: at 25°C Dimensions are in millimeters and inches unless otherwise specified. Values in brackets are standard equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, go to: te.com/help Shielded SMD Power Inductors Type 3631 Series Dimensions D, E, F, G Series Series A ±0.3 B ±0.3 C ±0.5 D ±0.3 E (typ) F (ref) G (ref) H (ref) 3631D 12.5 12.5 6.0 5.0 7.0 6.8 5.4 2.9 3631E 12.5 12.5 4.0 5.0 7.0 6.8 5.4 2.9 3631F 12.5 12.5 7.5 5.0 7.0 6.8 5.4 2.9 3631G 12.0 12.0 8.0 max 4.9±0.2 2.0 7.4 5.4 2.6 Reliability Test D, E, F Series Test Item Specification Test Condition Temperature Cycling: ΔL/L ≤±20% Room Temp. 15 minutes -25± 2°C 30 minutes Room Temp. 15 minutes 85± 2°C 30 minutes Total: 50 cycles Humidity Resistance Test: ΔL/L ≤±20% Temperature: 40± 2°C Humidity: 90 ~ 95% Applied Current: Per spec. Time: 500 hours High Temp. Resistance Test: ΔL/L ≤±20% Temperature: 85± 2°C Applied Current: Per spec. Time: 500 hours How to Order 3631 A 2R5 K T Common Part Style Inductance Tolerance Package K - ±10% 3631 A, B, C, D, E, F or G See Relevant Table for Inductance Code L - ±15% M - 20% T - Taped and Reeled N - 30% TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks. Other logos, product and Company names mentioned herein may be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications.
