Use two halves of strain relief attach the strain relief
around the outer cable jacket. Different sizes of the
strain relief can be mixed together to give the best fit.
For cable diameters exceeding 9mm, assy without
the strain relief or with just one strain relief half is applicable
Use two halves of strain relief attach the strain relief
around the outer cable jacket. Different sizes of the
strain relief can be mixed together to give the best fit.
For cable diameters exceeding 9mm, assy without
the strain relief or with just one strain relief half is applicable
Strip the cable outer jacket 18mm
Strip the cable outer jacket 18mm
C
C
Shape the braided sheild to two pigtails
Mount connector and cable
into the backshell
Bend cable shield back on the
outside of strain relief. If not using any strain
relief from the supplied set, use same
proceedure around the cable outer
jacket
Shape the braided sheild to two pigtails
148.5
Bend cable shield back on the
outside of strain relief. If not using any strain
relief from the supplied set, use same
proceedure around the cable outer
jacket
Assemble the other half
screwing force: 100-120 Ncm.
Assemble the other half
screwing force: 100-120 Ncm.
Mount connector and cable
into the backshell.
B
B
SIDE 1
SIDE 2
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
mm
A
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
-
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
MATERIAL
FINISH
-
DWN
07/03/02
CHK
07/03/02
APVD
07/03/02
AJ BEKEN
C NEALE
FWK
07/03/2002
09:55
EB001189
-
NAME
PRODUCT SPEC
APPLICATION SPEC
0.5
SIZE
WEIGHT
-
CUSTOMER DRAWING
1470-19 (3/11)
TE Connectivity
LEAFLET
ASSEMBLY INSTRUCTIONS

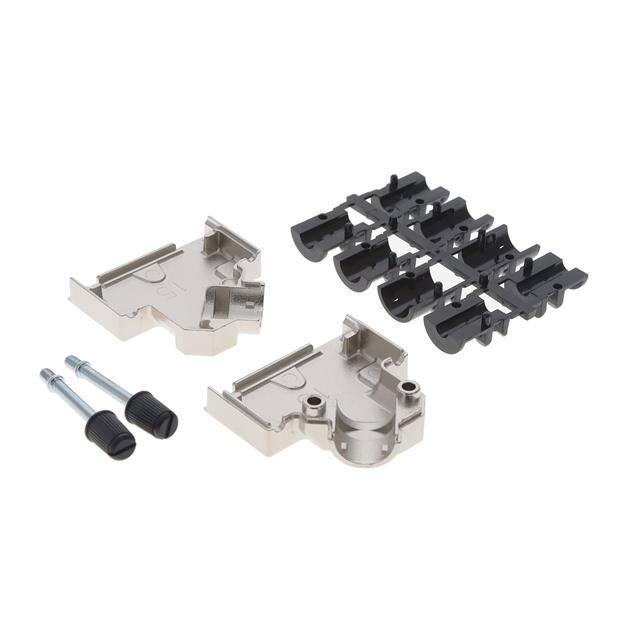

ADK BACKSHELL
CAGE CODE
A300779
A
RESTRICTED TO
DRAWING NO
1478530
SCALE
-
NTS
SHEET
1
OF
1
REV
B
