MS4525
SPECIFICATIONS
FEATURES
PSI Pressure Ranges
PCB Mountable
High Level Analog Output
Barbed Pressure Ports
APPLICATIONS
Blocked Filter Detection
Altitude and Airspeed Measurements
Medical Instruments
Fire Suppression System
Panel Meter
Air Movement/Environmental Controls
Pneumatic Controls
SENSOR SOLUTIONS /// MS4525
PCB Mounted Pressure Transducers
Amplified Ratiometric Analog Output
Differential, Gage, Absolute, Compound, &
Vacuum
Temperature Compensated
3.3 or 5.0 VDC Supply Voltage
The MS4525 is a small, ceramic based, PCB mounted
pressure transducer from TE Connectivity. The transducer is
built using our proprietary UltraStable™ process and the latest
CMOS sensor conditioning circuitry to create a low cost, high
performance transducer designed to meet the strictest
requirements from OEM customers.
The MS4525 is fully calibrated and temperature compensated
with a total error band (TEB) of less than 1.0% over the
compensated range. The sensor operates from single supply of
either 3.3 or 5.0VDC and requires a single external component for
proper operation.

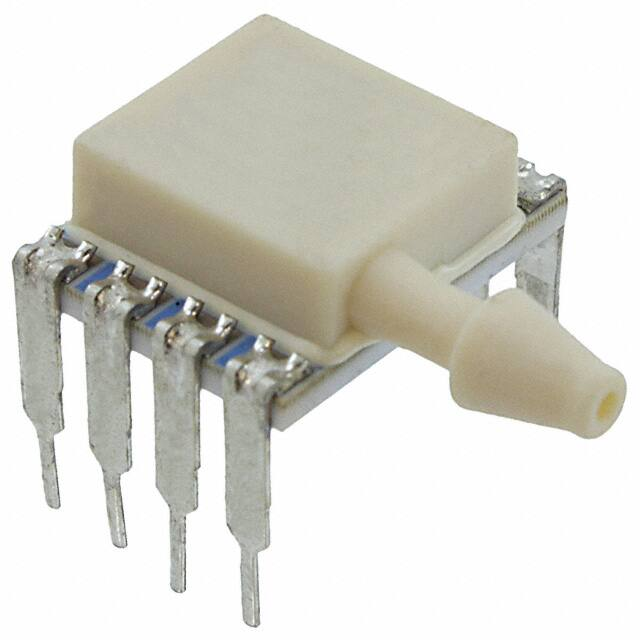

The rugged ceramic transducer is available in side port, top port,
and manifold mount and can measure absolute, gage,
differential, or compound pressure from 1 to 150psi. The 1/8”
barbed pressure ports mate securely with 3/32” ID tubing.
04/2019
Page 1
MS4525
STANDARD RANGES (PSI)
Pressure
1
2
5
15
30
50
100
150
Absolute
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
Gage
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
Differential
DS, SS, TP
DS, SS, TP
DS, SS, TP
DS, MM
DS, MM
DS, MM
DS, MM
DS, MM
Compound
Vacuum
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP, DS
Option Availability
-F
-F
-F
-F
-F
-F
-F
-F
See Package Configurations: DS= Dual Side Port, SS= Single Side Port, TP= Top Port, MM= Manifold Mount
Pin Style “L” is only available SS and MM port types.
Pin Style “C” is only available SS, TP and MM port types.
BLOCK DIAGRAM
SENSOR SOLUTIONS /// MS4525
04/2019
Page 2
MS4525
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage
Output Current
Load Resistance (RL)
Storage Temperature
Humidity
Overpressure
Burst Pressure
ESD
Solder Temperature
Conditions
TA = 25 °C
TA = 25°C
TA = 25°C
TA = 25°C
TA = 25 °C, both Ports
TA = 25 °C, Port 1
HBM
Min
2.7
Max
5.5
3
10
-40
+125
95
Not to Exceed 300
-4
+4
250°C, 5 sec max.
Unit
V
mA
kΩ
°C
%RH
psi
psi
kV
Notes
Non Condensing
See Table 1
EN 61000-4-2
TABLE 1- BURST PRESSURE BY RANGE AND PACKAGE STYLE
Range
001
002
005
015
030
050
100
150
DS
20
20
15
45
90
150
300
300
TP, SS, MM
20
20
20
90
200
300
300
300
Unit
psi
psi
psi
psi
psi
psi
psi
psi
ENVIRONMENTAL SPECIFICATIONS
Parameter
Mechanical Shock
Mechanical Vibration
Thermal Shock
Life
MTTF
SENSOR SOLUTIONS /// MS4525
Conditions
Mil Spec 202F, Method 213B, Condition C, 3 Drops
Mil Spec 202F, Method 214A, Condition 1E, 1Hr Each Axis
100 Cycles over Storage Temperature, 30 minute dwell
1 Million FS Cycles
>10Yrs, 70 ºC, 1.188 Million Pressure Cycles, 120%FS
Pressure
04/2019
Page 3
MS4525
PERFORMANCE SPECIFICATIONS
Supply Voltage1: 5.0V or 3.3 VDC
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
MAX
UNITS
NOTES
0.500
4.500
V
1,2,3
0.250
4.750
Accuracy
-0.25
0.25
%Span
2
Total Error Band (TEB)
-1.0
1.0
%Span
3,5
3
mA
5
±0.5
%Span
Output
MIN
Supply Current
Long Term Stability (Offset & Span)
TYP
Compensated Temperature
-10
+85
ºC
Operating Temperature
-25
+105
ºC
Response Time
1
mS
Weight
3
grams
Start time to data ready
Media
5
4
5
ms
Non-Corrosive Dry Gases Compatible with Ceramic, Silicon, Borosilicate Glass,
RTV, Gold, Aluminum and Epoxy. See “Wetted Material by Port Designation” chart
below.
Notes
1. Proper operation requires an external capacitor placed as shown in Connection Diagram. Output is ratiometric to supply voltage
variations of less than 10%.
2. The maximum deviation from a best fit straight line (BFSL) fitted to the output measured over the pressure range at 25°C. Includes all
errors due to pressure non linearity, hysteresis, and non repeatability.
3. Total error band includes all accuracy errors, thermal errors over the compensated temperature range, and span and offset calibration
tolerances. For ideal sensor output with respect to input pressure, reference Pressure Transfer Function charts below. TEB values are
valid only at the calibrated supply voltage.
4. For errors beyond the compensated temperature range, see Extended Temperature Multiplier chart below.
5. This product can be configured for custom OEM requirements, contact factory for lower power consumption or higher accuracy.
6. Long term stability over a year period with constant voltage and temperature
7. Pressure connection: barbed ports are designed for use with tubing 3/32” ID, 60-70A durometer (PVC).
8. For details on environmental conditions and pressure type descriptions, reference to relative tables.
CONNECTION DIAGRAM
Notes:
1.
Place 100nF capacitor between Supply and GND to within 2 cm of sensor.
SENSOR SOLUTIONS /// MS4525
04/2019
Page 4
MS4525
PRESSURE AND TEMPERATURE TRANSFER FUNCTION
Sensor Output at Significant Percentages, (Vs=5.00)
OUTPUT (%Vs)
0
5
10
50
90
95
100
Output Type A (psi)
PMIN-(PMAX-PMIN)*10/80
Output Type B (psi)
PMIN-(PMAX-PMIN)*5/90
PMIN
PMIN
PMAX
PMAX+(PMAX-PMIN)*10/80
PMAX
PMAX+(PMAX-PMIN)*5/90
Voltage (V)
0.000
0.250
0.500
2.500
4.500
4.750
5.000
Sensor Output at Significant Percentages, (Vs=3.30)
Output (%Vs)
0
5
10
50
90
95
100
SENSOR SOLUTIONS /// MS4525
Output A (psi)
PMIN-(PMAX-PMIN)*10/80
Output B (psi)
PMIN-(PMAX-PMIN)*5/90
PMIN
PMIN
PMAX
PMAX+(PMAX-PMIN)*10/80
PMAX
PMAX+(PMAX-PMIN)*5/90
04/2019
Voltage (V)
0.000
0.165
0.330
1.650
2.970
3.315
3.300
Page 5
MS4525
% Output (%Vs)
0
5
10
50
90
95
100
% Output (%Vs)
0
5
10
50
90
95
100
SENSOR SOLUTIONS /// MS4525
Sensor Output at Significant Percentages, (Vs=5.00)
Output Type A [psiG]
Output Type B [psiG]
1.6875
0.833
0
0
-15
-15
Sensor Output at Significant Percentages, (Vs=3.30)
Output Type A [psiG]
Output Type B [psiG)]
1.6875
0.833
0
0
-15
-15
04/2019
Voltage [V]
0.000
0.250
0.500
2.500
4.500
4.750
5.000
Voltage [V]
0.000
0.165
0.330
1.650
2.970
3.315
3.300
Page 6
MS4525
EXTENDED TEMPERATURE MULTIPLIER CHART
PACKAGE, PINOUT & PRESSURE TYPE CONFIGURATION
SENSOR SOLUTIONS /// MS4525
04/2019
Page 7
MS4525
Pin Name
SUPPLY
OUTPUT
GND
Pin
2
3
4
1, 5-8
Function
Positive Supply Voltage
Analog Output
Ground
No Connection
Pressure Type Description
Pressure Type
Absolute
Pmin
0psiA
Pmax
+Prange
Differential/
Bidirectional
Gage
-Prange
+Prange
0psiG
+Prange
Compound
-15psiG
+Prange
Vacuum
-15psiG
+0psiG
Description
Output is proportional to the difference between 0psiA (P min) and pressure applied
to Port 1.
Output is proportional to the difference between Port 1 and Port 2. Output swings
positive when Port 1> Port 2. Output is 50% of supply voltage when Port 1=Port 2.
Output is proportional to the difference between 0psiG (P min) and Port 1. Output
swings positive when Port 1> Port 2.
Output is proportional to the difference between -15psiG pressure (Pmin) and
pressure applied to Port 1.
Output is inversely proportional to the difference between -15psiG (Pmin) and
pressure applied to Port 1.
Prange is equal to the maximum full scale pressure specified in the ordering information.
WETTED MATERIAL BY PORT DESIGNATION
Style
DS, MM
SS, TP, SM
Port
Port 1
Port 2
Port 1
Ceramic
X
X
X
Silicon
X
X
X
Material
Borosilicate Glass
RTV
X
X
X
X
X
X
Gold
Aluminum
X
X
X
X
Epoxy
X
X
X
"X" Indicates Wetted Material
SENSOR SOLUTIONS /// MS4525
04/2019
Page 8
MS4525
DIMENSIONS
(in INCHES [mm])
Model: MS4525-DSvoxxxyP
Model: MS4525-DSvoxxxyS
SENSOR SOLUTIONS /// MS4525
04/2019
Page 9
MS4525
Model: MS4525-SSvoxxxyP
Model: MS4525-SSvoxxxyS
SENSOR SOLUTIONS /// MS4525
04/2019
Page 10
MS4525
Model: MS4525-TPvoxxxyP
Model: MS4525-TPvoxxxyS
SENSOR SOLUTIONS /// MS4525
04/2019
Page 11
MS4525
Model: MS4525-SSvoxxxyL
Model: MS4525-MMvoxxxyL
SENSOR SOLUTIONS /// MS4525
04/2019
Page 12
MS4525
Model: MS4525-MMvoxxxyP
Model: MS4525-MMvoxxxyS
SENSOR SOLUTIONS /// MS4525
04/2019
Page 13
MS4525
Model: MS4525-SSvoxxxyC
Model: MS4525-TPvoxxxyC
SENSOR SOLUTIONS /// MS4525
04/2019
Page 14
MS4525
Model: MS4525-MMvoxxxyC
AVAILABLE OPTIONS
Gel Coat (-F Option)
The MS4525 is designed for nonionic and clean dry air applications. Select this option for added protection in
high humidity or slightly corrosive environments with the application of a silicone gel elastomer to sensor and
ASIC. For questions concerning media compatibility, contact the factory.
SENSOR SOLUTIONS /// MS4525
04/2019
Page 15
MS4525
ORDERING INFORMATION
4525 – TP 3 A 030 C P F
Option Type
Package Type
SS
Single Sideport
DS
Dual Sideport
TP
Top Port
MM
Manifold Mount
F
[Blank]
Gel Coating
No Option
Pin Type
Supply Voltage
P
Thru Hole
S
J lead
3
3.3VDC
L
In Line
5
5.0 VDC
C
Castellation
Pressure Type
Output Type
G
Gage
A
10% to 90%
A
Absolute
B
5% to 95%
D
Differential
C
Compound
V
Vacuum
Pressure Range [psi]
001
002
005
015
030
050
100
150
NORTH AMERICA
EUROPE
ASIA
Measurement Specialties, Inc.,
a TE Connectivity company
Tel: 1 800-522-6752
Email: customercare.frmt@te.com
Measurement Specialties (Europe), Ltd.,
a TE Connectivity Company
Tel: +31 73 624 6999
Email: customercare.bevx@te.com
Measurement Specialties (China) Ltd.,
a TE Connectivity company
Tel: 86 0400-820-6015
Email: customercare.shzn@te.com
TE.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein
might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse
of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015
TE Connectivity Ltd. family of companies
SENSOR SOLUTIONS /// MS4525
All Rights Reserved.
04/2019
Page 16
