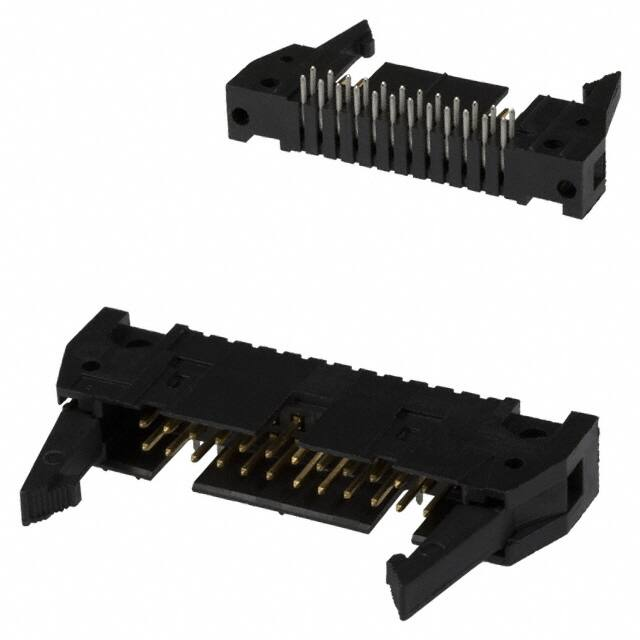

Sign In Search By: lkji Part Number m n lkj Text m n Tips Go Enter a complete or partial part number... Products Documentation Resources My Account Customer Support Home > Products > By Type > Ribbon and Flat Flex Wire Connectors Product Details for 499786 - Ribbon Cable About Us > Product Feature Selector > Product Details -5 Pin and Pinless Headers (AMP - LATCH) 5 of 6 RoHS/ELV Compliant (Find RoHS Compliant Alternates/Compliance Statement) 499786 Check Pricing & Availability Search for Tooling Product Feature Selector Contact Us About This Product Product Highlights: ? Connector Type = Universal Ejection Pin Headers ? Standard Profile ? Number of Positions = 24 ? 2.54 x 2.54 mm Centerline, Matrix ? PCB Mount Angle = Right Angle View all Features -5 Active Quick Links Documentation & Additional Information Product Drawings: ? HEADER ASSY, UNIVERSAL, AMP - LATCH (PDF, English) Additional Information: ? Product Line Information Catalog Pages/Data Sheets: ? None Available Related Products: ? Tooling Product Specifications: ? Connector, AMP - LATCH, Header, .100 x .100 Inch Grid English) (PDF, Application Specifications: ? None Available Instruction Sheets: ? AMP* INSTALLATION PROCEDURES FOR AMP - LATCH* UNIVERSA... (PDF, English) CAD Files: ( CAD Format & Compression Information ? 3D Model (STEP, Version F) ? 3D Model (IGES, Version F) ? 2D Drawing (DXF, Version F) ? Footprint (IGES, Version O) ) List all Documents Product Features (Please use the Product Drawing for all design activity) Product Type Features: ? Connector Type = Universal Ejection Pin Headers ? Profile = Standard ? Number of Positions = 24 ? PCB Mount Angle = Right Angle ? PCB Retention Feature = Without ? Mating Polarization Method = Center, Dual Polarizing Bar, Military ? Mating Connector Lock = With ? Housing Style = 4 - Sided ? Ejection Latches = With ? Post Size (mm [in]) = 0.64 [.025] ? Shrouded = Yes ? PCB Thickness (mm [in]) = 1.57 [0.062] ? Mating Polarization = With ? Latch Type = Long ? Mating Connector Lock Type = Latch Termination Related Features: ? Termination Post Length (mm [in]) [0.110] Body Related Features: ? Centerline, Matrix (mm [in]) [.100 x .100] Languages : English | = 2.79 Contact Related Features: ? Contact Mating Area Plating = Gold (15) ? Contact Shape = Square ? Contact Termination Area Plating = Tin - Lead Housing Related Features: ? Housing Material = Thermoplastic ? Housing Flammability Rating = UL 94V ? Housing Color = Black -0 Industry Standards: ? RoHS/ELV Compliance = ELV compliant, 5 of 6 Compliant ? Lead Free Solder Processes = Wave solder capable to 240°C, Wave solder capable to 260° C, Wave solder capable to 265°C Conditions for Usage: ? Temperature Rating = Standard Other: ? Brand = AMP = 2.54 x 2.54 Deutsch | Español | Português (do Brasil) | ??????? | Italiano | ? ? ? ? ( ? ? ) | ? ? ( ? ? ) | ? ? ? Country Sites : China | Japan © 2006 Tyco Electronics Corporation All Rights Reserved Home | Customer Support | Supplier | Site Map | Privacy Policy | Browser Support
