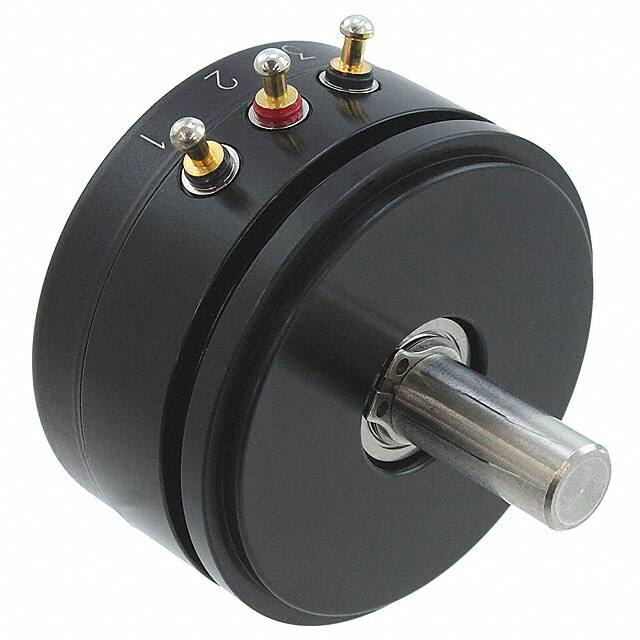

6015 ROTARY SERIES 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ • Precision Position Potentiometer 1-7/16” Dia. Servo Mount SPECIFICATIONS Industrial / Military Grade Rotary Position Sensor Rotational Operating Life 100 x 106 Revolutions Min. Anodized Aluminum Housing FEATURES Stainless Steel Shaft & Ball Bearings  Greater Reliability General Requirements IAW MIL-PRF-39023  Less Space (1-7/16” Dia. Sizes)  Output Smoothness MEAS rotary potentiometer designs provide various non-linear tapers, taps, multi-sections, and electrical angles while maintaining great reliability.  Mechanical Stops Option ELECTRICAL CHARACTERISTICS  Resolution  Special Linearity Options  Long Life  Various Non-Linear Tapers, Taps, Multi-sections, Electrical Angles, Special Total Resistance TE CONNECTIVITY SENSORS /// 6015 ROTARY SERIES RESISTANCE 1KΩ to 20KΩ ±10% ACTIVE ELECTRICAL ANGLE 340° ELECTRICAL CONTINUITY ANGLE 344° MIN INDEPENDENT LINEARITY ±0.1% END VOLTAGE 0.5% MAX VOLTAGE RESOLUTION VIRTUALLY INFINITE OUTPUT SMOOTHNESS 0.1% MAX RESISTANCE TEMP. COEFFICIENT 400 PPM/°C MAX POWER RATING @ 70°C 1.5 WATT MAX WIPER CONTACT CURRENT 10mA MAX DIELECTRIC STRENGTH 1000 VRMS @ 60Hz INSULATION RESISTANCE 100mΩ MIN @ 500VDC 7/20/2017 Page 1 6015 ROTARY SERIES 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ • Precision Position Potentiometer 1-7/16” Dia. Servo Mount MECHANICAL CHARACTERISTICS MECHANICAL ROTATION CONTINUOUS STARTING TORQUE 0.30 Oz.-In. MAX RUNNING TORQUE 0.20 Oz.-In. MAX TOTAL WEIGHT (1-GANG) 2.0 Oz. MAX PILOT RUNOUT 0.001 In. TIR SHAFT RUNOUT 0.001 In. TIR SHAFT ENDPLAY 0.003 MAX SHAFT RADIAL PLAY 0.001 In. TIR LATERAL RUNOUT 0.002 In. TIR STANDARD MATERIALS HOUSING AND COVER ANODIZED ALUMINUM SHAFT & BALL BEARINGS STAINLESS STEEL RESISTANCE ELEMENT CO-MOLDED CONDUCTIVE PLASTIC ELECTRICAL CONTACTS MULTI-FINGER PRECIOUS METAL SOLDER TERMINALS GOLD PLATED BRASS ENVIRONMENTAL CHARACTERISTICS OPERATING TEMP. RANGE -65°C to +125°C ROTATIONAL OPERATING LIFE 100 x 106 REVOLUTIONS MIN. Dimensions are in inches, tolerances are: Angular = ±2° .XX = ±.01 .XXX = ±.005 .XXXX = ±.0005 TE CONNECTIVITY SENSORS /// 6015 ROTARY SERIES 7/20/2017 Page 2 6015 ROTARY SERIES 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ • Precision Position Potentiometer 1-7/16” Dia. Servo Mount AVAILABLE OPTIONS / CUSTOMIZATION  Resistance Values o 500Ω to 60KΩ  Tolerances o As low as ±5%  Special Linearity o As low as 0.075% o Absolute (Indexed) o Or Independent over specified regions  Additional Taps, Current or Voltage  Current Limit Resistors  Internal Circuit Components o Caps, Diodes, etc.  Special Electrical Angles o Up to 355° MAX  Wire Leads or Cable in place of Terminals  Special Transfer Functions o Non-Linear Outputs o Load Compensation o Trig, Log, & Exponential Outputs  Multi-gang Construction o Up to 6 on a common shaft (+.320 Length per gang) or concentric shafting  Shaft Modifications o Rear Extensions o Flats o Slots o Steps  Special Torque or Detent Requirements  Mounting Features o Anti-rotation Pins o Bolt Flanges o Threaded Holes  Rotational Stops Limiting Shaft Travel  Ancillary Devices o Clutches o Spring Returns o Brakes o Switches  Environmental Capabilities o Moisture Seals o High Shock & Vibe ORDERING INFORMATION Model Number: Resistance: 6015-1000-030 1KΩ ±10% 6015-1001-030 2KΩ ±10% 6015-1002-030 5KΩ ±10% 6015-1003-030 10KΩ ±10% 6015-1004-030 20KΩ ±10% NORTH AMERICA Measurement Specialties, Inc., a TE Connectivity Company Phone +1-800-522-6752 Email: customercare.grsv@te.com TE.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Accustar, American Sensor Technologies, AST, ATEXIS, DEUTSCH, IdentiCal, TruBlue, KPSI, Krystal Bond, Microfused, UltraStable, Measurement Specialties, MEAS, Schaevitz, TE Connectivity, TE, and the TE connectivity (logo) are trademarks of the TE Connectivity Ltd. family of companies. Other logos, product and company names mentioned herein may be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. TE CONNECTIVITY SENSORS /// 6015 ROTARY SERIES 7/20/2017 Page 3
