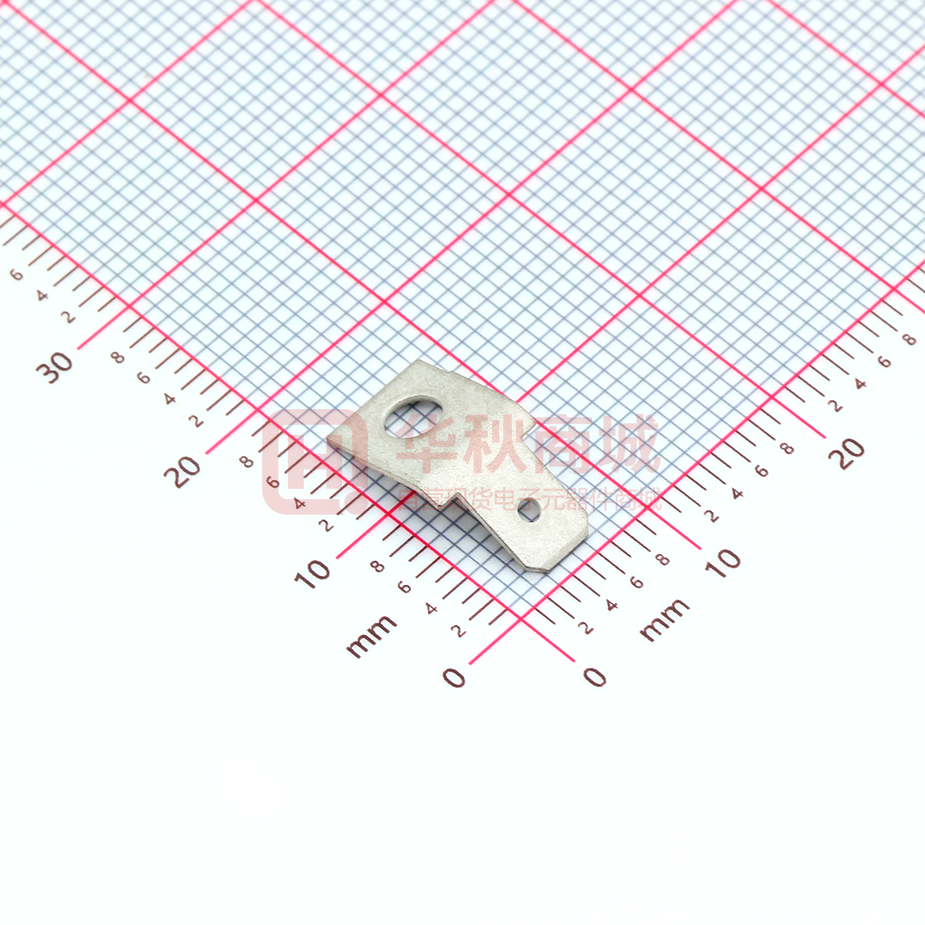

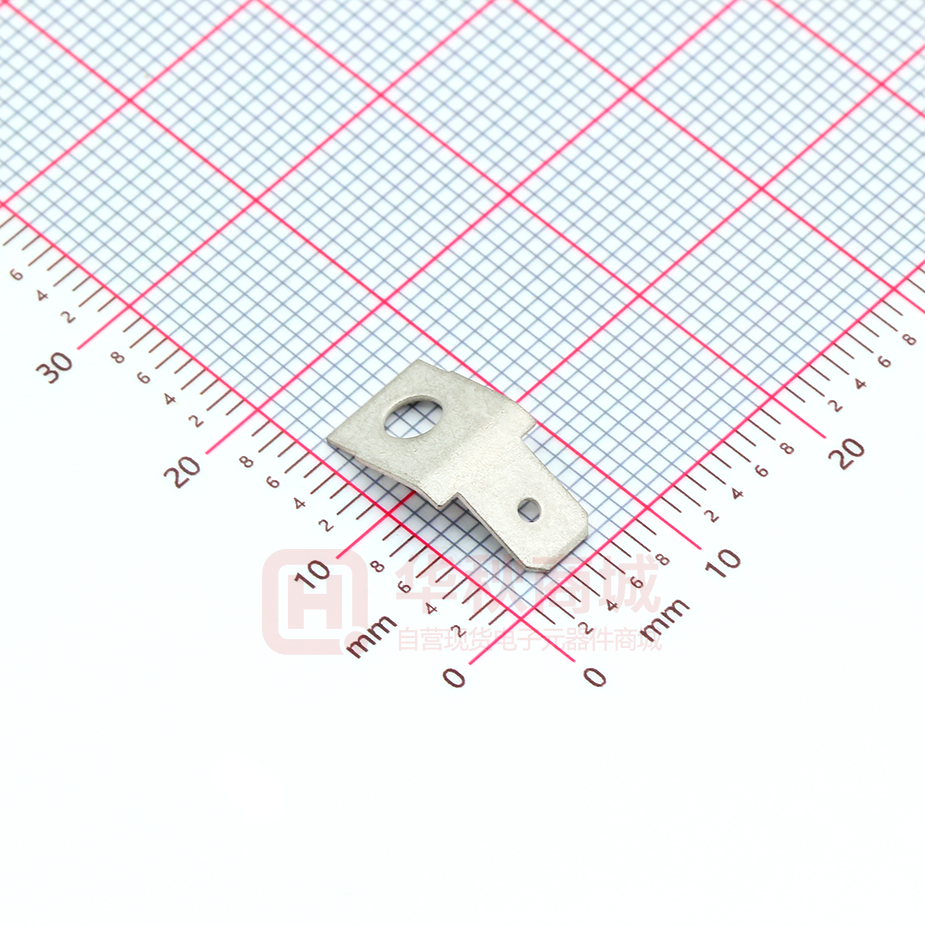

61761-2

FASTON Terminals (Insulated and Uninsulated) FASTON Tabs 312 and 250 Series (High Temperature 700° F / 371° C Max.) S FASTON Tabs TE offers a variety of FASTON tabs in an assortment of configurations. The product line includes various weld type tabs, stud mounted tabs and wire crimp tabs. Also included in the product offering are high temperature tabs and test tabs. H L W E Style A Style B The TE high-temperature tab is designed to crimp to heating element wire. The tab end protrudes through a ceramic/high-temperature housing for mating with either a standard 250 or 312 FASTON receptacle. S H W L E Stock Thickness — .032 [0.81] Style C Series Solid Wire Range AWG 312 22-15 Style A C 22-15 A 20-15 A 20-15 B 22-15 C 250 250 1 Tab Thickness .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 L 1.570 39.88 1.570 39.88 1.500 38.10 1.500 38.10 1.500 38.10 1.500 38.10 Dimensions W E S .312 .387 .500 7.92 9.83 12.70 .312 .387 .375 7.92 9.83 9.53 .250 .312 .500 6.35 7.92 12.70 .250 .312 .500 6.35 7.92 12.70 .250 .312 .500 6.35 7.92 12.70 .250 .312 .370 6.35 7.92 9.40 Material and Finish H Hole Hole Dimple Hole Dimple Dimple Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Terminal Part No.1 63300-1 63390-1 63301-1 63522-1 63104-1 1217006-1 Contact technical support for tooling application. .070 [1.78] .390 [9.91] .640 [16.26] Recommended Housing Dimensions Note: All part numbers are RoHS compliant. 32 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 250 Series Wire Crimp Tabs Dimple ole Dimple Hole CL L A — 250 Series Flag FASTON Tab Wire Range AWG Style 22-18 B A B 18-14 C 14-12 1 B B — 250 Series Wire Crimp Tab Tab Thickness .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 .032 0.81 Insulation Diameter .080-.120 2.03-3.05 .080-.120 2.03-3.05 .080-.125 2.03-3.18 .110-.150 2.79-3.81 .110-.150 2.79-3.81 .120-.170 3.05-4.32 .120-.170 3.05-4.32 .120-.170 3.05-4.32 .110-.170 2.79-4.32 .110-.170 2.79-4.32 Material and Finish C — 250 Series Wire Crimp Tab Stock Thickness .015 0.38 .015 0.38 .032 0.81 .015 0.38 .015 0.38 .032 0.81 .032 0.81 .032 0.81 .015 0.38 .015 0.38 Brass Brass, Tin Plated Brass, Tin Plated Brass Brass, Tin Plated Brass Brass, Tin Plated Brass Brass, Tin Plated Brass, Silver Plated FASTON Tabs .250 [6.35] .250 [6.35] L (Overall Length) .815 20.70 .815 20.70 .500 12.70 .810 20.57 .810 20.57 .775 19.69 .775 19.69 .775 19.69 .810 20.57 .810 20.57 Terminal Part No. R R R — X X 42475-3 — X X 42475-4 X — X 42770-2 — X X 42474-3 — X X 42474-4 X — X 41411 X — X 41412 X — X 63761-11 — X X 61281-3 — X X 61362-2 Hole. 205 Series Wire Crimp Tabs Hole Stock Thickness — .020 [0.51] .205 [5.21] .250 [6.35] .675 [17.15] A — 205 Series Wire Crimp Tab 1 Wire Range AWG Style 18-14 A Tab Thickness .020 0.51 .020 0.51 Insulation Diameter .120-.150 3.05-3.81 .120-.150 3.05-3.81 Material and Finish Brass, Tin Plated Brass, Tin Plated R R R Terminal Part No. X — X 62531-1 X — X 63223-11 No hole. Note: All part numbers are RoHS compliant. 33 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 187 Series Wire Crimp Tabs Hole .187 [4.75] .675 [17.15] .250 [6.35] FASTON Tabs A — 187 Series Wire Crimp Tab Wire Range AWG Style 22-18 A 18-14 1 Tab Thickness .020 0.51 .020 0.51 .020 0.51 .020 0.51 .032 0.81 A Insulation Diameter .080-.120 2.03-3.05 .080-.120 2.03-3.05 .120-.150 3.05-3.81 .120-.150 3.05-3.81 .120-.150 3.05-3.81 Material and Finish Brass, Tin Plated Stock Thickness .020 0.51 .020 0.51 .020 0.51 .020 0.51 .032 0.81 Brass Brass Brass, Tin Plated Brass, Tin Plated R R R Terminal Part No. X — X 42490-3 X — X 42490-4 X — X 60850-1 X — X 60850-2 X — X 61687-21 Premilled dual stock thickness, tab .032 [0.81], body .020 [0.51]. 110 Series Wire Crimp Tabs .110 [2.79] L .310 [7.87] .110 2.79 A - 110 Series Wire Crimp Tab Wire Range AWG Style 26-22 A Tab Thickness .020 0.51 .020 0.51 .032 0.81 .020 0.51 .020 0.51 .032 0.81 .020 0.51 B 22-18 A B 20-16 1 2 A Insulation Diameter — — — — — .070-.130 1.78-3.30 — B — 110 Series Wire Crimp Tab with Insulation Support Material Stock and Finish Thickness Brass, .020 Tin Plated 0.51 Brass, .020 Tin Plated over Copper 0.51 Brass, .020 Tin Plated 0.51 Brass, .020 Pre-Tin Plated 0.51 Brass, .020 Pre-Tin Plated 0.51 Brass, .032 Tin Plated 0.81 Brass, .020 Pre-Tin Plated 0.51 L (Overall Length) .490 12.45 .490 12.45 .490 12.45 .485 12.32 .570 14.48 .625 15.88 .570 14.48 R R R Terminal Part No. X — X 62887-1 X — X 62887-2 X — X 63932-12 X — X 62122-1 X — X 62384-1 X — X 63138-1 — — — 1217118-11 .052 [1.32] dia. hole. No insulation support. .060 Series Wire Crimp Tabs .455 [11.56] Stock Thickness — .032 [0.81] L .060 [1.52] A - .060 Series Wire Crimp Tab 1 Wire Range AWG Style 23-19 A 22-16 A Tab Thickness .032 0.81 .032 0.81 Insulation Diameter — — Material and Finish Brass, Tin Plated Brass, Tin Plated L (Overall Length) .740 18.80 .740 18.80 R R R Terminal Part No. X — X 63497-11 X — X 63893-1 AMPLIVAR connector type serrations for magnet wire. Note: All part numbers are RoHS compliant. 34 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) AMPLIVAR Tabs (For Use with Magnet Wire) 187 Series FASTON Tabs Board Thickness — A = .062–.072 [1.57–1.83] FASTON Tabs Stock Thickness — A = .020 [0.51] B = .032 [0.81] A Wire Range AWG mm2 Style Dim. L Material 22-16 0.3-1.4 Tin Plated Brass 15-12 1.6-3.0 Tin Plated Brass A 1.015 25.78 1.015 25.78 Part Number R R — — 62447-1 — — 62445-1 250 Series FASTON Tabs Stock Thickness — .032 [0.81] Wire Range AWG 18-14 16-12 1 Material mm2 1.0-1.7 1.3-3.0 Part Number R R Tin Plated Brass Tin Plated Brass — — — — 63349-11 62922-11 Varnish resistant coating. .250 [6.35] .125-.130 [3.18-3.30] A Style A CMA Wire Range AWG 200-566 27.5-23 mm2 — Material Tin Plated Brass Dimensions L E T .580 .342 45° 14.73 8.69 R R — — Part Number 63136-1 Note: All part numbers are RoHS compliant. 35 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 250, 205 and 187 Series FASTON Tabs (Mates with all 250, 205 and 187 Series FASTON Receptacles) .250 [6.35] .230 [5.84] T .078 [1.98] FASTON Tabs 250 and 187 Series Weld Type Tabs W .450 [11.43] W L W .250 [6.35] A Style W .250 6.35 .187 4.75 .250 6.35 .187 4.75 A B C 1 C B Dimensions L .635 16.13 .450 11.43 .825 20.96 .250 6.35 T .295 7.49 .250 6.35 .375 9.53 .230 5.84 Stock Thickness Material and Finish .032 0.81 .032 0.81 .032 0.81 .020 0.51 Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Nickel Plated Steel Terminal Part No. R R 42559-11 X X 63771-1 — — 1217002-1 — — 61960-1 X X No weld rib. 250 Series Stud Mount Type Tabs Stock Thickness — .032 [0.81] Dimple (Both Sides) .250 [6.35] .250 [6.35] .315 [8.00] A Style Dimensions L E .715 .170 18.16 4.32 .715 .170 18.16 4.32 .940 .125 23.88 3.18 .940 .125 23.88 3.18 .400 .170 10.16 4.32 .400 .170 10.16 4.32 Stud Diameter B .177 4.50 — .171 4.34 — .130 3.30 .145 3.68 .300 7.62 .300 7.62 .171 4.34 .330 8.38 .375 9.53 .203 5.16 .197 5.00 .330 8.38 .330 8.38 .375 9.53 .375 9.53 A B B Material and Finish Terminal Part No. R R T .295 7.49 .295 7.49 .280 7.11 .280 7.11 .295 7.49 .295 7.49 Tin Plated Brass 42822-4 X X .170 4.32 .295 7.49 Brass Tin Plated Brass 60465-1 60465-2 X X X X .170 4.32 .170 4.32 .295 7.49 .295 7.49 Tin Plated Brass 61365-1 X X Tin Plated Brass 61499-1 X X Brass 63038-2 X — Tin Plated Brass 63038-1 X X Brass 1217558-1 — — Tin Plated Brass 1217558-2 — — Tin Plated Brass 42822-2 X X Note: All part numbers are RoHS compliant. 36 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 250 Series Stud Mount Type Tabs (Continued) .250 [6.35] Stock Thickness — .032 [0.81] Dimple (Both Sides) .315 [8.00] C .250 [6.35] .315 [8.00] D Style Stud Diameter .097 2.46 .130 3.30 C .171 4.34 D E .203 5.16 .125 3.18 .171 4.34 .130 3.30 FASTON Tabs .250 [6.35] .315 [8.00] E B .250 6.35 .330 8.38 .270 6.86 Dimensions L E .440 .093 11.18 2.36 .440 .170 11.18 4.32 .440 .110 11.18 2.79 T .295 7.49 .295 7.49 .295 7.49 Material and Finish Terminal Part No. Brass 41339-1 X X Tin Plated Brass 42095-1 X X R R Tin Plated Brass 42117-2 X X .330 8.38 .440 11.18 .170 4.32 .295 7.49 Brass Tin Plated Brass 42214-1 42214-2 X X X X .313 7.95 .472 11.99 .235 5.97 .330 8.38 .068 1.73 .656 16.67 .394 10.00 .440 11.18 .440 11.18 .615 15.62 .125 3.18 .250 6.35 .295 7.49 .295 7.49 .205 5.20 .295 7.49 Tin Plated Brass 62314-2 X X Tin Brass 63971-1 — — Brass 41398-1 X X Brass 62166-1 X X Tin Plated Brass 42506-2 X X — .125 3.18 .120 3.05 .093 2.36 .250 [6.35] .315 [8.00] F Style Pairs 2 F 4 Stud Diameter .130 3.30 .171 4.34 .130 3.30 Dim. L .690 17.53 .690 17.53 1.455 36.96 Material and Finish Terminal Part No. Tin Plated Brass 41478 X X Brass 41617 X X Tin Plated Brass 41484 X X R R Note: All part numbers are RoHS compliant. 37 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) .290 [7.37] .250 [6.35] 250 Series Stud Mount Type Tabs (Continued) .315 [8.00] Stock Thickness — .032 [0.81] Dimple (Both Sides) FASTON Tabs G Style Stud Diameter .130 3.30 .130 3.30 .130 3.30 .130 3.30 .130 3.30 .130 3.30 .130 3.30 Pairs 1 2 3 4 1 2 G 3 — 1 1 Dim. L .315 8.00 .690 17.53 1.065 27.05 1.440 36.58 .315 8.00 .690 17.53 1.065 27.05 Material and Finish Terminal Part No. Brass 41290-41 X X Brass 41291-41 X X Brass 41292-41 X X Brass 41370-41 X X Tin Plated Brass 41480-41 X X Tin Plated Brass 41481-41 X X R R Tin Plated Brass 41482-41 X X 42115-41 42115-61 41619-41 42802-11 X X X X X X X X 60080-21 X X .130 3.30 — .171 4.34 .315 8.00 Tin Plated Brass Brass Brass Tin Plated Brass .097 2.46 .315 8.00 Tin Plated Brass In continuous strip-form. .250 [6.35] .315 [8.00] .425 [10.80] .470 [11.94] .343 [8.71] H Style Stud Diameter Material and Finish Terminal Part No. H .130 3.30 Brass 62261-1 205 Series Stud Mount Type Tabs .295 [7.49] X X .125 [3.18] .250 [6.35] Tab Thickness — .032 [0.81] R R .300 [7.62] .205 [5.21] .322 [8.17] Stud Diameter Material and Finish Terminal Part No. .145 3.68 .130 3.30 Brass 62168-1 X X Brass 61836-1 X X R R Note: All part numbers are RoHS compliant. 38 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 187 Series Stud Mount Type Tabs — .435 [11.05] .187 [4.75] .295 [7.49] Hole in Tab .125 [3.18] .250 [6.35] .433 [11.00] .300 [7.62] .187 [4.75] .295 [7.49] .320 [8.13] B .295 [7.49] .295 [7.49] .187 [4.75] .102 [2.59] .125 [3.18] .187 [4.75] .250 [6.35] .605 [15.37] .300 [7.62] C Style A B C D 1 2 Stud Diameter .130 3.30 .197 5.00 .145 3.68 .130 3.30 .145 3.68 .171 4.34 .130 3.30 .145 3.68 FASTON Tabs A D Stock Thickness .020 0.51 .020 0.51 .020 0.51 .020 0.51 .020 0.51 .020 0.51 .020 0.51 .020 0.51 Material and Finish Tin Plated Brass Tin Plated Brass Tin Plated Brass Tin Plated Brass Terminal Part No. R R 61951-1 X X 61914-1 X X 61407-3 X X 61761-22 X X Brass 62576-12 X X Tin Plated Brass Tin Plated Brass Tin Plated Brass 61664-12 X X 63946-1 — — 1742041-1 — — Weld tab. Bent 45°. Note: All part numbers are RoHS compliant. 39 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 250 Series Test Tabs .250 [6.35] (Mate with all “250” Series FASTON Receptacles) FASTON Tabs The mechanical tab is mounted onto TE gauge 100505 for testing of receptacle insertion/ extraction requirements. Double-ended test tabs are also available for electrical and temperature rise testing. TE has readily available a variety of UL 310 constructed tabs for mechanical testing of FASTON, Ultra-Fast FASTON and Positive Lock receptacles. These tabs are designed for electrical test setups as outlined in UL 310 (See instruction sheet 408–7432 for recommended procedure mechanical test). .250 [6.35] Mechanical A Style A B 1 2 3 .032 0.81 .020 0.51 .032 0.81 L .625 15.88 .635 16.13 .625 15.88 Dimensions E .125 3.18 .125 3.18 .125 3.18 T .295 7.49 .295 7.49 .295 7.49 .032 0.81 1.010 25.65 — — Stud Diameter Stock Thickness .125 3.18 .145 3.68 Electrical B Material and Finish R R Terminal Part No. Brass X X 60447-11,3 Brass — — 63633-12 Brass — — 63274-12 Tin Plated Steel Brass Brass — — — — — — 62627-13 62627-23 62627-32 Mechanical test tab for use with TE gauge number 100505. Test tab with hole for Positive Lock. Dimple. 205 Series Test Tabs .205 [5.21] .205 [5.21] Electrical B Mechanical A Style Hole Diameter A .125 3.18 B 1 .145 3.68 Stock Thickness .020 0.51 .032 0.81 .020 0.51 .032 0.81 .020 0.51 .032 0.81 B — — — — — — Dimensions L E .605 .090 15.37 2.29 .605 .090 15.37 2.29 1.276 — 32.41 1.276 — 32.41 1.276 — 32.41 1.276 — 32.41 T .295 7.49 .295 7.49 Material and Finish R R Terminal Part No. Brass X X 60613-11 Brass X X 60613-21 — Tin Plated Steel — — 60921-4. — Brass — — 60922-1. — Brass — — 60921-1. — Tin Plated Steel — — 60922-5. Mechanical test tab for use with TE gauge number 100505. Note: All part numbers are RoHS compliant. 40 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tabs (Continued) 187 Series Test Tabs (Mates with all “187” Series Receptacles) .187 [4.75] .187 [4.75] Mechanical A A B 1 Pairs Stud Diameter Dimensions E T Stock Thickness L .020 0.51 .605 15.37 .090 2.29 .295 7.49 .032 0.81 .605 15.37 .090 2.29 .295 7.49 .020 0.51 1.276 32.41 — — .032 0.81 1.276 32.41 — — .125 3.18 — .145 3.68 1 Material and Finish R R Brass Tin Plated Brass Brass Brass Tin Plated Brass Brass Tin Plated Steel Tin Plated Brass Brass Tin Plated Steel X — — X X — X — X X X — — X X — X — X X Terminal Part No. FASTON Tabs Style Electrical B 60443-11 60443-51 63248-11 60443-21 60443-61 63248-21 60920-41 60920-51 62298-11 62298-21 Test tab with hole. 125 Series Test Tabs (Mates with all “125” Series Receptacles) .125 [3.18] Mechanical A Style Pairs Stud Diameter Stock Thickness A — .125 3.18 .020 0.51 Dimensions L E T .570 .090 .295 14.48 2.29 7.49 Material and Finish R R Brass — — Terminal Part No. 63747-1 110 Series Test Tabs (Mates with all “110” Series Receptacles) .110 [2.79] .110 [2.79] Mechanical A Style A B Stud Diameter .125 3.18 .145 3.68 Electrical B Stock Thickness .020 0.51 .032 0.81 .016 0.41 .020 0.51 .020 0.51 L .570 14.48 .570 14.48 .570 14.48 1.151 29.24 1.151 29.24 Dimensions E .090 2.29 .090 2.29 .090 2.29 T .295 7.49 .295 7.49 .295 7.49 — — Material and Finish R R Terminal Part No. Brass X X 62061-1 Brass — — 62061-2 Brass — — 62061-3 — Tin Plated Steel X X 62628-1 — Brass X X 62628-2 Note: All part numbers are RoHS compliant. 41 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015 FASTON Terminals (Insulated and Uninsulated) FASTON Tab TabsAdapters (Continued) 250 Series Fits Tab — .032 [0.81] A B .250 [6.35] FASTON Tabs .067 [1.70] .182 [4.62] .296 [7.52] .301 [7.64] .250 [6.35] .295 [7.49] .710 [18.03] .705 [17.91] .031 [0.79] .302 [7.67] .187 [4.75] D C W Dimensions L E .018 0.46 Recpt. .032 0.81 Tabs .650 16.51 .770 19.56 .305 7.75 .018 0.46 .300 7.62 .700 11.78 — Style Stock Thickness A B C D E E .016 0.41 .016 0.41 .016 Recpt. 0.41 .032 Tabs 0.81 .018 Recpt. 0.46 .032 0.81 Tabs Material and Finish R R Terminal Part No. Brass X X 61765-1 Tin Plated Brass X X 61765-21 — Tin Plated Brass X X X X 61810-2 63918-12 — — Nickel Plated Steel — — 151302-2 — — — Brass (90°) — — 152422-1 — — — Brass — — 726308-1 .301 7.65 .705 17.91 .305 7.75 Brass X X 1742597-13 No tab stop on receptacle. Fits .025 [0.64] thick tab. 3 .187 [4.75] tab – .250 [6.35] receptacle. 1 2 187 Series .560 [14.22] .221 [5.61] .187 [4.75] .650 [16.51] .650 [16.51] .250 [6.35] E A Style A E Stock Thickness .013 0.33 Recpt. .020 0.51 Tabs .013 Recpt. 0.33 .032 0.81 Tabs .013 0.33 Recpt. .032 0.81 Tabs Receptacle Fits Tab Material and Finish .020 0.51 Tin Plated Brass X X 61045-2 .032 0.81 Tin Plated Brass X X 63699-1 .032 0.81 Tin Plated Brass X X 1217933-1 R R Terminal Part No. Note: All part numbers are RoHS compliant. 42 Catalog 82004 Revised 3-11 www.te.com Dimensions are shown for reference purposes only. Specifications subject to change. Dimensions are in inches and millimeters unless otherwise specified. USA: +1 (800) 522-6752 Canada: +1 (905) 475-6222 Mexico/C. Am.: +52 (0) 55-1106-0800 Latin/S. Am.: +54 (0) 11-4733-2200 Germany: +49 (0) 6251-133-1999 UK: +44 (0) 800-267666 France: +33 (0) 1-3420-8686 Netherlands: +31 (0) 73-6246-999 China: +86 (0) 400-820-6015
