Printed Circuit Board (PCB) Pin Receptacles
Product Facts
■
Components with pin
contact can be easily
inserted into the printed
circuit board after the pin
receptacles are flow
soldered
■
The receptacles hold the
pins from the components
without the necessity of
soldering
■
Components can be easily
removed from the printed
circuit board for
replacement or repair
■
Components with pin
contacts may be mated
and unmated 10 times
■
The receptacle contacts
are securely clinched to
the printed circuit board
prior to soldering
■
The receptacles are
machine applied by
semiautomatic and
automatic insertion
equipment
■
Components may be
inserted from either side of
the printed circuit board
Technical Documents
Product Specification
108-1411
Application Specification
114-2127
The Printed Circuit Board
Pin Receptacle provides a
reliable and cost effective
means of attaching components with pin contacts
to a printed circuit board.
Components are held in
place without solder allowing for their easy removal
from the printed circuit
board for replacement or
repair. Receptacle contacts
are inserted and securely
clinched to the printed
circuit board by means of
semiautomatic or automatic
machines.
4
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board (PCB) Pin Receptacles (Continued)
Material and Finish
Tin plated phosphor bronze
A
B
C
Mating
Pin Dia.
PCB
Thickness
.088-.093
2.24-2.36
.098
2.49
.063-.079
1.60-2.01
.063-.079
1.60-2.01
A
.236
5.99
.236
5.99
Dimensions
B
.276
7.01
.276
7.01
C
.181
4.60
.181
4.60
Receptacle
Part No.
Insertion
Head1
63566-1
904608-1
63572-1
853439-3
1For
use with either AMP FHIS Bench Machine 464300-1 or AMP Comp-U-Sertor II Machine 122300-1.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
Recommended PCB Layout
.400 ± 0.10
[.157 ± .004]
+0.30
-0.00
.200
2 Plcs. Ref.
[.079]
3.00 Dia.
[.118]
[-+.012
.000]
+0.00
-0.10
6.30
[.248]
10.00
[.394] Min.
[-+.000
.004]
2.10 ± 0.10
[.083 ± .004]
2.00
1.60
[ .079
.063 ]
5
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board (PCB) Receptacles
Product Facts
■
Receptacles accept all
.250 x .016 [6.35 x 0.41]
thick terminal configurations
■
Receptacles available for
.250 x .032 [6.35 x 0.81]
thick FASTON tab terminals
■
Receptacles available for
prepless termination of
24-22 AWG [0.2 - 0.4 mm2]
solid wire using
displacement crimp
technique
■
Available in tin-plated brass
■
No tooling needed to insert
or remove terminals
■
Continuous strip contacts
allow high-speed
application with single or
multiple-head insertion
machines
■
An economical means
of retrofitting and field
replacing wire-to-board
connections
Technical Documents
Product Specification
108-2005 Receptacle, Spade, PCB
Application Specifications
114-2001 Receptacle, PCB
114-2037 Receptacle, PCB, Clinchable
The Printed Circuit Board
Receptacle is used in wireto-printed circuit board
terminations. Wires may be
terminated with terminals
having tongue widths and
thicknesses of .250 x .016
[6.35 x 0.41] and FASTON
tab terminals of .250 x .032
[6.35 x 0.81]. These
terminated wires are
plugged into the receptacle
and may be removed and
replugged as required. An
added feature is the ability
of one receptacle to accept
a 24-22 AWG [0.2-0.4 mm2]
unterminated solid wire as
well as a terminated wire.
The receptacle has
applications in all industries
requiring wire-to-pc board
applications both in new
equipment and existing
equipment. The purpose
of its design is to allow
field replacement without
costly retrofitting. In new
equipment, the pc board
receptacle can be used to
give flexibility in selection of
wire termination, including
tongue, fork, open barrel,
and FASTON tabs. This
receptacle also has the
ability to replace screw
and nut arrangements. In
existing equipment, the
receptacle is just as
versatile and can be used
for field replacement where
the original wire termination
remains the same, but the
board layout changes. In
essence, it allows you to plug
the previously terminated
wires into the new model
without costly changes to
wire termination tooling.
The pc board receptacle is
a cost saving design that
gives you a wide selection
of wire termination
alternatives. It is used in
new equipment which
provides versatility of
connection and in old
equipment to allow field
replacements of units
without costly retrofitting.
In all cases installation of
wire-to-board termination is
accomplished without tools.
For additional savings, the
receptacle is designed to
be inserted into your board
by high-speed application
equipment, then wave
soldered giving you the
lowest applied cost.
6
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board (PCB) Receptacles (Continued)
Material and Finish
Tin plated brass
B
C
A
D
.100
[2.54] Dia. Board Hole
.
Dimensions
B
C
Strip Form
Inserter
Receptacle
Applicator2
62745-1
—
62111-2
467322-1
462751-13
467322-2
Loose Piece
Accepts
A
Max.
.250 x .016
6.35 x 0.41
Terminals
.290
7.37
.292
7.42
.012
0.30
.190
4.83
.290
7.37
.292
7.42
.012
0.30
.190
4.83
62199-2
467322-1
—
.390
9.91
.318
8.08
.025
0.64
.275
6.99
62172-21
—
—
.250 x .016
6.35 x 0.41
24-22 AWG
Solid Wire
.250 x .032
6.35 x 0.81
FASTON Tab
Terminals
D
Max.
Receptacle
62806-1
1For
.123±.002 [3.12±0.05] board hole only.
use with AMP “U” Frame Machine 691679-1.
3With clinchable pcb tabs.
2For
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
7
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles
Product Facts
■
Full line of PCB tabs and
receptacles
■
Straight and right-angle
tabs available in .250,
.187 and .110 series
■
Receptacles produced in
.250/.205 x .032 or .025.
Standard or low insertion
force receptacles available
■
Strip product for automatic
insertion
■
Compatible with industry
insertion equipment or full
line of equipment available
from Tyco Electronics
Tyco Electronics now offers
a complete line of Printed
Circuit Board tabs and
receptacles. Tyco Electronics
PCB product can be found
in switches and on control
boards around the world.
Our product offering
includes .250, .187 and
.110 series vertical tabs,
.250 and .187 right-angle
tabs and .250/.205 vertical
receptacles. Product is
available in loose piece and
strip form. In a short time,
our product offering has
grown from a handful of part
numbers to dozens of parts.
We continue to add to our
product family as design
changes, innovation and
customers‘ requirements
expand.
Insertion equipment is
available for our entire strip
product. The semiautomatic,
air-powered Modular
Insertion System (MIS)
Bench machine is available
for customers with moderate
insertion requirements. The
compact, fully automatic
Comp-U-Sertor II machine
is available for applications
where larger volumes will
be inserted and where
programmable,
microprocessor controlled
equipment is desired.
Insertion heads for both
pieces of equipment are
interchangeable, requiring
less equipment investment.
Tyco Electronics will also
custom build a complete
“pass through” system for
high-end customer
applications.
The Tyco Electronics
product has been designed
to be compatible with
industry insertion equipment.
In many cases, this product
will work as a “drop in”
replacement for existing
product. In some cases,
slight modifications or
minor tooling changes are
necessary. Please consult
Technical Support or the
Global Application Tooling
Group for more details.
Tyco Electronics is one of
the only companies that
offers printed circuit board
tabs and receptacles as
well as the crimp to wire
receptacles and tabs that
offer a complete solution for
your packaging needs.
8
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
250 Series Printed Circuit
Board Tabs
Hole
Stock Thickness — .032 [0.81]
Board Hole Size —
.055 ± .002 [1.40 ± 0.05] Dia.
E
.200
[5.08]
W
.312
7.92
1
2
3
Dimensions
L
K
.502
.125
12.75
3.18
.547
.157
13.89
3.99
.552
.150
14.02
3.81
E
.312
7.92
.312
7.92
.312
7.92
.295
7.49
.622
15.80
.125
3.18
.312
7.92
.280
7.11
.487
12.37
.532
13.51
.125
3.18
.175
4.45
.312
7.92
.312
7.92
.622
15.80
.125
3.18
.452
11.48
Material
and Finish
Terminal Part No.
Strip2
Loose Piece1
R
R
Tin Plated Brass
X
X
63839-13
—
Tin Plated Brass
X
X
63986-1
—
Tin Plated Brass
—
—
1217566-1
Tin Plated Brass
X
—
X
—
—
—

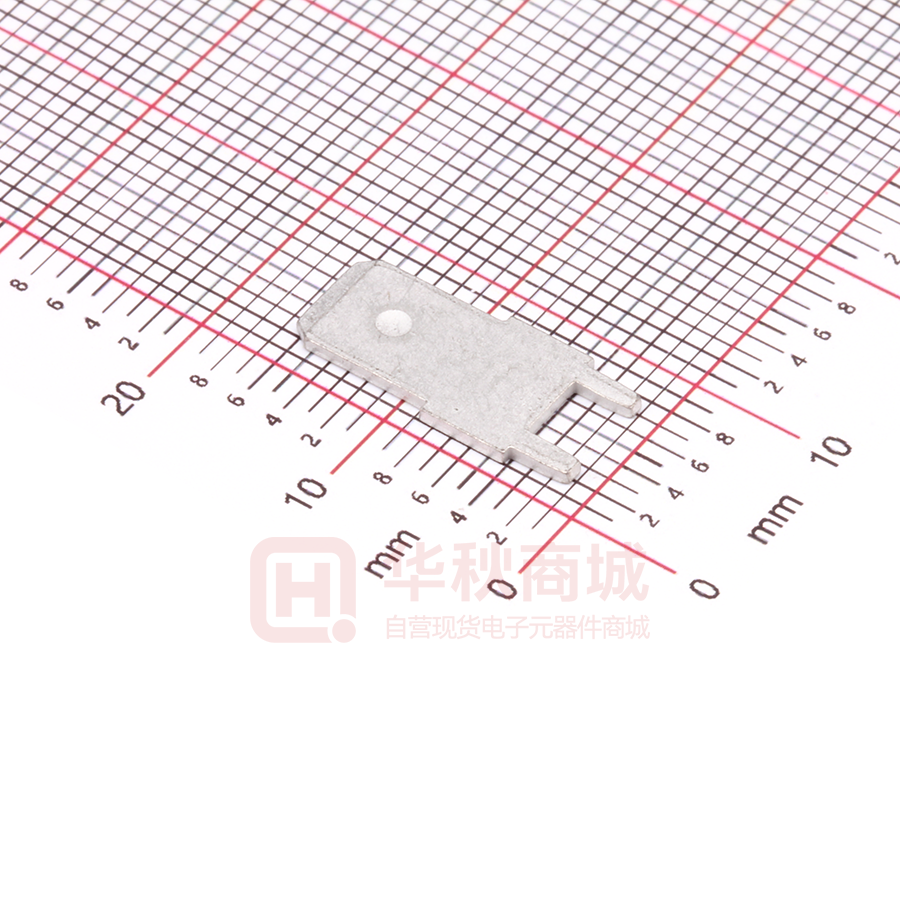

62409-13
1217056-1
Tin Plated Brass
X
X
62650-13
—
Tin Plated Brass
X
X
63650-13
Tin Plated Brass
X
—
X
—
—
63755-13
—
—
63900-1
—
Board Hole Size:.060/.053 [1.52/1.35] Dia.
Insertion equipment available.
Dimple.
Stock Thickness — .032 [0.81]
Board Hole Size —
.100 ± .002 [2.54 ± 0.05] Dia.
Dimple
.312
[7.92]
.430
[10.92]
.330
[8.38]
Material
and Finish
R
R
Tin Plated Brass
1
X
X
Terminal Part No.
Loose Piece
Strip1
63066-1
63067-1
Insertion equipment available.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
9
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
250 Series Printed Circuit
Board Tabs (Continued)
Hole
K
Stock Thickness — .032 [0.81]
Board Hole Size —
.055 ± .002 [1.40 ± 0.05] Dia.
E
L
.200
.312 [5.08]
[7.92]
1
2
L
Dimensions
K
E
X
X
X
X
X
X
X
X
Terminal Part No.
Strip1
Loose Piece
63862-12
1742188-12
63824-1
63849-1
—
1217136-1
—
1217421-1
.552
14.02
.150
3.81
.312
7.92
Tin Plated Brass
.582
14.78
.180
4.57
.312
7.92
Tin Plated Brass
.650
16.51
.710
18.03
.150
3.81
.150
3.81
.410
10.41
.470
11.94
Tin Plated Brass
X
X
1217126-12
—
.780
26.18
.150
3.81
.540
13.72
Tin Plated Brass
X
X
1217125-1
1217169-1
Tin Plated Brass
X
X
X
X
1217127-1
—
—
1217167-1
Material
and Finish
R
R
Insertion equipment available.
Dimple.
Stock Thickness — .032 [0.81]
Board Hole Size —
.055 ± .002 [1.40 ± 0.05] Dia.
.312
[7.92]
L
.125
[3.18]
.200
[5.08]
Dimension
L
1.062
26.97
1.207
30.66
Material
and Finish
R
R
Terminal
Part No.
Tin Plated Brass
X
X
63949-1
Tin Plated Brass
X
X
63950-1
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
10
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
L
250 Series Printed Circuit
Board Tabs (Continued)
Hole
Right-Angle Printed Circuit
Board Tabs
Stock Thickness — .032 [0.81]
Board Hole Size —
.055 ± .002 [1.40 ± 0.05] Dia.
.150
[3.81]
E
.200
[5.08]
Dimensions
E
L
.312
.800
7.92
20.32
.358
.630
9.09
16.00
.738
1.00
18.74
25.40
1
Material
and Finish
Tin Plated Brass
X
X
63951-1
1217754-1
Tin Plated Brass
—
—
—
928814-1
Tin Plated Brass
—
—
63952-1
—
Insertion equipment available.
W
205 Series
Printed Circuit Board Only
.125
[3.18]
Stock Thickness — .020 [0.51]
Board Hole Size —
.100 – .095 [2.54 – 2.41] Dia.
.250
[6.35]
.205
[5.21]
Dimensions
L
W
.525
.070
13.34
1.78
.545
.160
13.84
4.06
1
L
Material
and Finish
Tin Plated Brass
X
X
62411-11
Tin Plated Brass
X
X
60284-21
.250
[6.35]
L
Stock Thickness — .016 [0.41]
.200
[5.08]
.295
[7.49]
.330
[8.38]
.290
[7.37]
.295
[7.49]
Fits
Tab
Style
A
.032 (LIF)
0.81
.
.
.032
0.81
.
.025 (LIF)
0.64
.
.025
0.64
B
C
2
.
.
.
.020
0.51
.
.250 x .016
6.35 x 0.41
Spade
.100
[2.54]
.062
[1.57]
A
A
1
Terminal
Part No.
R
R
Loose piece only.
.250/.205 Printed Circuit
Board Receptacles
Note: Part Numbers are RoHS
compliant except: ⽧Indicates
non-RoHS compliant.
Terminal Part No.
Strip1
Loose Piece
R
R
.295
[7.49]
B
Dimensions
A
L
.075
.480
1.91
12.19
.075
.480
1.91
12.19
.075
.480
1.91
12.19
.510
12.95
.075
1.91
.480
12.19
Material
and Finish
C
R
Strip
R
Part No.
Loose Piece
Tin Plated Brass
—
—
63968-1
—
Tin Plated Brass
—
—
63969-1
1217080-1
Tin Plated Brass
—
—
63994-1
—
Tin Plated Brass
—
—
1217137-12
—
Tin Plated Brass
—
—
1217180-1
—
—
—
1217107-11
—
—
—
—
—
Tin Plated
Phos Bronze
—
—
Tin Plated Brass
62751-1
62806-1
Horizontal mount.
.180 [4.57] length — solder legs.
11
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
187 Series
Printed Circuit Board Tabs
Stock Thickness — .020 [0.51]
.187
[4.75]
.187
[4.75]
A
B
.187
[4.75]
C
Type
Board
Thickness
A
B
C
1
2
.055
1.38
.062
1.57
.062
1.57
.062
1.57
T
.250
6.35
.250
6.35
—
.250
6.35
Dimensions
L
E
.332
.250
8.43
6.35
.332
.250
8.43
6.35
.545
.250
13.84 6.35
.332
.250
8.43
6.35
Material
and Finish
R
Terminal
Part No.
H
.283
7.19
.283
7.19
Pre-Tin Brass
X
X
61543-12
Pre-Tin Brass
X
X
62403-12
—
Tin Plated Brass
X
X
61907-11
.303
7.70
Pre-Tin Brass
X
X
62221-12
R
Loose piece only.
Insertion equipment available.
.045
[1.14]
.250
[6.35]
.200
[5.08]
.125
[3.18]
1
2
Tab
Thickness
Board
Hole Size
.032
0.81
.053-.057
1.35-1.45
.020
0.51
.050-.054
1.27-1.37
Dimensions
L
H
.487
.280
12.37
7.11
.487
.285
12.37
7.24
.440
.312
11.18
7.92
Material
and Finish
Tin Plated
Brass
Tin Plated..
Brass
Tin Plated
Brass
R
R
Terminal Part No.
Loose Piece
Strip2
X
X
63525-11
1217057-11
X
X
63603-1
1217131-1
X
X
63838-1
—
Dimple.
Insertion equipment available.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
12
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
187 Series
Printed Circuit Board Tabs
Hole
.150
[3.81]
(Continued)
E
.312
[7.92]
.490
12.45
.250
6.35
Tin Plated Brass
X
—
X
—
Terminal Part No.
Loose Piece
Strip3
63860-11
—
1742361-1
—
.710
18.03
.635
16.13
.470
11.94
.395
10.03
Tin Plated Brass
X
X
1217124-1
—
Tin Plated Brass
—
—
—
1217332-12
.490
12.45
.250
6.35
Tin Plated Brass
X
X
1742362-1
Tab
Thickness
.032
0.81
.020
0.51
L
.200
[5.08]
L
Dimensions
E
Material
and Finish
R
R

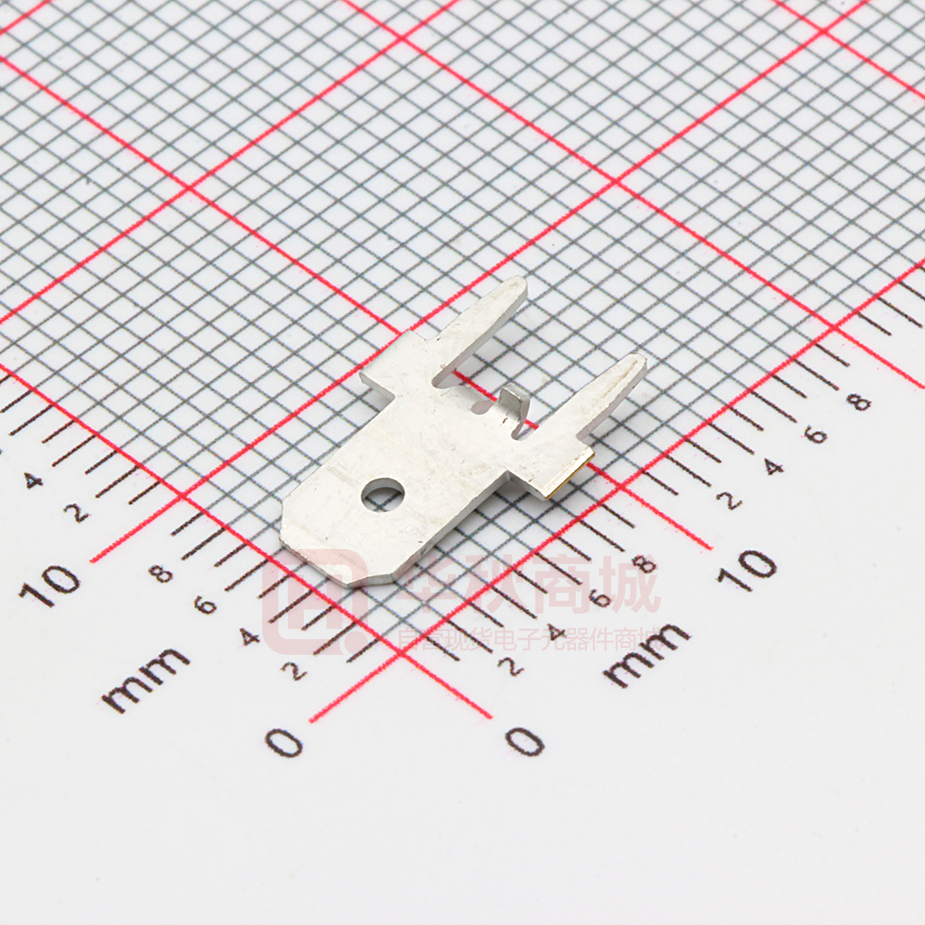

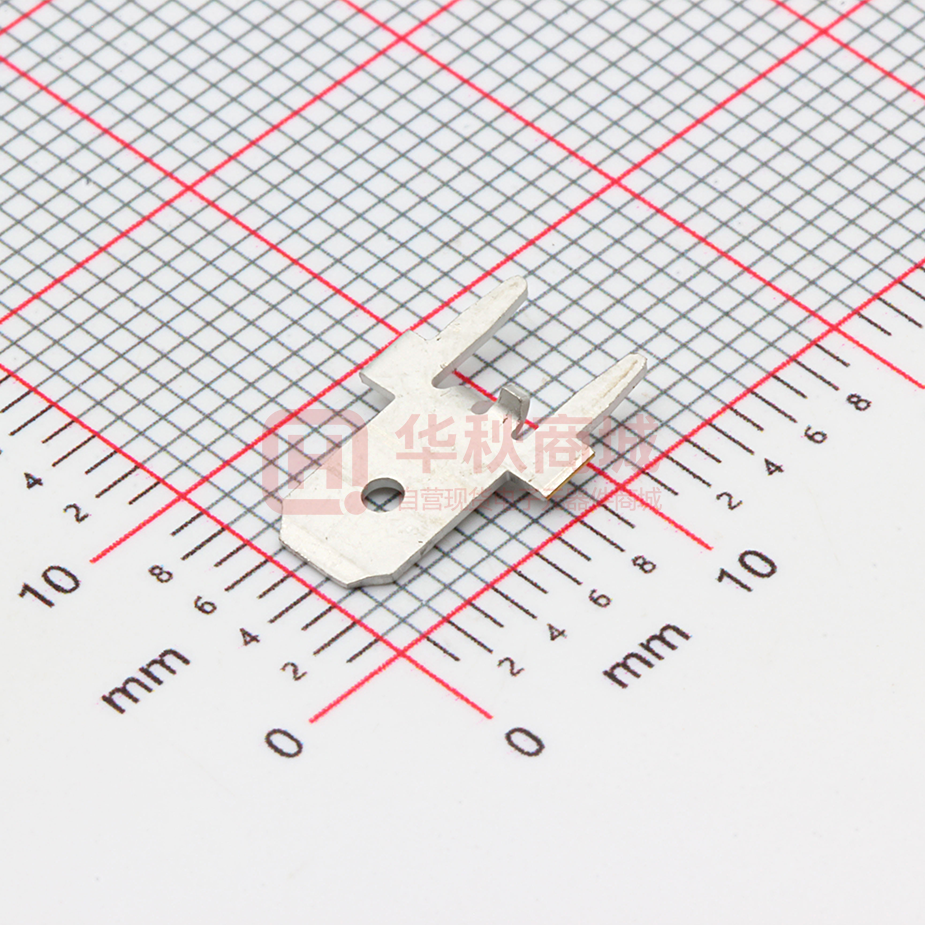

63982-1
Dimple.
No hole or dimple.
3 Insertion equipment available.
1
2
Right-Angle Printed Circuit
Board Tabs
.575
[14.61]
.122-.128
[3.10-3.25]
.250
[6.35]
.055
Hole
[1.40]
.187
[4.75] .294
[7.47]
.045-.050
[1.14-1.27]
.150
[3.81]
.200
[5.08]
1
Stock
Thickness
Board
Hole Size
Material and Finish
.032
0.81
.053-.057
1.35-1.45
Tin Plated Brass
.020
0.51
.050-.054
1.27-1.37
Tin Plated Brass
R
R
X
—
X
—
X
—
X
—
Terminal
Part No.
1217061-1.
1217756-11
1217062-1.
1217156-11
Loose piece.
Tab Caps 187 and 250
Series
.380
[9.62]
.155
[3.94]
1
Tab Size
Material
UL 941
Color
“187” Series
.020 [0.51] Thick
“250” Series
.032 [0.81] Thick
Nylon
V2
Natural
Nylon
V2
Natural
Dimensions
T
W
.320
.260
8.13
6.60
.380
.320
9.65
8.13
Insulator
Part No.
360041-1
360042-1
Flammability rating.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
13
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
.110 Series Printed Circuit
Board Tabs
.110
[2.79]
Stock Thickness — .020 [0.51]
L
.110
[2.79]
L
.280
[7.11]
.280
[7.11]
A
B
.158
[4.01]
.280
[7.11]
.110
[2.79]
.110
[2.79]
L
.280
[7.11]
C
D
A
Mating Hole
Diameter
.060-.055
1.52-1.40
Dim.
L
.490
12.45
Tin Plated Brass
X
X
61134-31
B
.067-.063
1.70-1.60
.485
12.32
Tin Plated Brass
X
X
X
X
61968-12
62437-11
Tin Plated Brass
X
X
62395-12
Tin Plated Brass
X
X
63756-12,3.
Tin Plated Brass
—
—
63794-14.
Tin Plated Brass
—
—
Pre-tin/
Pre-copper
X
X
62669-12
Tin Plated Brass
—
—
1217577-12
Style
C
D
.044-.048
1.12-1.22
.067-.073
1.70-1.85
.062-.068
1.57-1.73
.490
12.45
.622
15.80
.910
23.11
.622
15.80
.490
12.45
.545
13.84
Material
and Finish
Terminal
Part No.
R
R
1217514-1
Loose piece only.
Insertion machine available.
3 .032 [0.81] Stock.
4 .060 [1.52] Tab width.
1
2
Right-Angle Printed Circuit
Board Tabs
.528
[13.41]
.118
[3.00]
Tab Width — .114 [2.90]
.114
[2.90]
.197
[5.00]
Tab
Thickness
.032
0.81
.020
0.51
PCB Hole
Dia. +0/-.01 [+0/-.03]
.055
1.40
.051
1.30
.315
[8.00]
Material
and Finish
R
R
Terminal
Part No.
Tin Plated Brass
—
—
725963-2
Tin Plated Brass
—
—
725996-2
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
14
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
FASTON RAST 5 Tab Header
Assembly, 250 Series
Product Facts
■
.250 x .032 [6.3 x 0.8]
FASTON Tabs built on 5 mm
centerlines
■
Shrouded Header Assembly
that conforms to the
European RAST 5 Standard
■
Mating Tyco Electronics
Connector Families include
Positive Lock RAST 5
Connector System,
AMP Standard Timer
RAST 5, AMP multifitting,
AMP multifitting MKII,
AMP MONO-SHAPE TAB
MKI, and AMP MONO-SHAPE
MKII
■
Vertical and Right-Angle
Versions available in
2 through 8 positions
■
Tin Plated Brass Tabs are
Standard, Silver Plated Tab
Versions are available upon
Request
■
Lead Free Design is RoHS
and ELV Compliant
■
UL 94 V-0 Housing meets
Glow Wire IEC 60695-1
Section 30.2.3 – 750°
NO FLAME
■
Component Recognition
USR and CSR under
File No. E28476
■
VDE tested according to
DIN EN61984 (VDE0627):
2002-09; EN61984: 2001
VDE Reg. No. B718
The FASTON RAST 5 Tab
Header Assembly system is
designed to provide a
RAST 5 interface to a
Printed Circuit Board. The
RAST 5 Standard defines
and standardizes the
connector mating interface.
250 Series Tabs are placed
on 5mm center lines with a
plastic shroud that has
keying, polarization, and
locking features that help
prevent mismating of the
corresponding RAST 5
female receptacle housing.
The header assembly is
designed to accept any
RAST 5 compliant female
receptacle system or
individual quick connects.
The most common
application for this product
is for household appliance
controls where OEMs want
to minimize the possibility
of crossed wires. It is also
suited for other applications
such as gaming, vending,
and exercise equipment
controls as well as
residential, commercial and
industrial HVAC and light
industrial equipment. The
system comes fully
assembled and is easily
press fit into the board for
the soldering operation.
Preassembly of the tabs
into the Header ensures tab
perpendicularity to the
board. The solder leg PCB
layout is based on the
Industry Standard for
similar systems available on
the market. To further
enhance correct placement
onto the board, the vertical
system includes a plastic
post which allows Header
placement to be polarized.
Material
UL 94 V-0, 6/6 Nylon
See Tyco Electronics Catalogs
296599, 889803, 1308197,
1308209 for the complete line of
RAST products.
15
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
FASTON Printed Circuit Board Tabs and Receptacles (Continued)
FASTON RAST 5 Tab Header
Assembly, 250 Series
.587
[14.90]
A
(Continued)
A
.504
[12.80]
.504
[12.80]
.587
[14.90]
.660
[16.70]
.705
[17.90]
Vertical Orientation
.098
[2.50]
PCB Tab Position 1
Right-Angle Orientation
Ø .098 Hole for
[2.50] Polarizing Peg
.197
Typ.
[5.00]
PCB Tab Position 1
.197
Typ.
[5.00]
.049
[1.25]
.049
[1.25]
.252
[6.40]
.049
[1.25]
.197
Typ.
[5.00]
Ø .053 ± .001 Typ.
[1.35 ± 0.05]
.197
Typ.
[5.00]
.049
[1.25]
.394
[10.00]
Ø .053 ± .001 Typ.
[1.35 ± 0.05]
Edge of PCB
Vertical Orientation PCB Layout
(Ref.) from Component Side
No. of
Positions
2
3
4
5
6
7
8
Right-Angle Orientation
PCB Layout
(Ref.) from Component Side
RAST 5
Configuration
Dim. A
02-A
02-B
02-C
02-E
02-G
02-I
02-P
03-A
03-B
03-D
—
04-A
04-B
04-C
04-F
04-G
—
05-B
—
—
—
06-A
06-D
07-C
—
—
—
08-D
—
08-C
.484 [12.30]
.484 [12.30]
.484 [12.30]
.484 [12.30]
.484 [12.30]
.484 [12.30]
.484 [12.30]
.681 [17.30]
.681 [17.30]
.681 [17.30]
.681 [17.30]
.878 [22.30]
.878 [22.30]
.878 [22.30]
.878 [22.30]
.878 [22.30]
.878 [22.30]
1.075 [27.30]
1.075 [27.30]
1.075 [27.30]
1.075 [27.30]
1.272 [32.30]
1.272 [32.30]
1.469 [37.30]
1.469 [37.30]
1.469 [37.30]
1.469 [37.30]
1.665 [42.30]
1.665 [42.30]
1.665 [42.30]
Part Numbers
Vertical
Right-Angle
521382-2
521384-2
1-521382-2
1-521384-2
2-521382-2
2-521384-2
3-521382-2
3-521384-2
4-521382-2
4-521384-2
5-521382-2
5-521384-2
6-521382-2
6-521384-2
521382-3
521384-3
1-521382-3
1-521384-3
2-521382-3
2-521384-3
3-521382-3
3-521384-3
521382-4
521384-4
1-521382-4
1-521384-4
2-521382-4
2-521384-4
3-521382-4
3-521384-4
4-521382-4
4-521384-4
5-521382-4
5-521384-4
521382-5
521384-5
1-521382-5
1-521384-5
2-521382-5
2-521384-5
3-521382-5
3-521384-5
521382-6
521384-6
1-521382-6
1-521384-6
521382-7
521384-7
1-521382-7
1-521384-7
2-521382-7
2-521384-7
3-521382-7
3-521384-7
521382-8
521384-8
1-521382-8
1-521384-8
2-521382-8
2-521384-8
Refer to the Tyco Electronics Customer Drawing for additional details.
For more information related to the RAST 5 Standard, see Tyco Electronics Literature Distribution no. 1308243.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
16
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP-BARREL Terminals
Product Facts
■
Unique insulation
displacement technology
■
Eliminates wire
preparation—no stripping
or soldering
■
Capable of being wavesoldered to pc board with
other components, enabling
wires to be terminated at a
more conducive time and
location
■
Anti-solder wicking design
■
Accepts a wide range of
wire sizes, solid or stranded
■
Available in single and
two-wire version
■
Reusable terminal
■
Available in loose-piece or
strip version
■
Semiautomatic insertion
machine for strip version
■
Simple, rugged low cost
wire insertion tool
■
Recognized Under
Component Recognition
Program of Underwriters
Laboratories. Inc.
— File No. E28456
R
Technical Documents
Product Specification
108-6043 .070 [1.78] Diameter Terminal
108-6044 .090 [2.29] Diameter Terminal
108-6025 .125 [3.18] Diameter Terminal
108-6026 .156 [3.96] Diameter Terminal
Application Specification
114-6000 AMP-BARREL Terminals
Instruction Sheets
408-3187
408-6505
408-6553
AMP-BARREL Terminals
solve the problem of
interconnecting discrete
wires to printed circuit
boards without permanently
soldering them in place,
and provide cost savings
by eliminating the need for
two-piece terminal systems,
terminal strips or expensive
space-consuming modular
connectors.
These unique insulation
displacement terminals are
suitable for most printed
circuit boards from .047
[1.19] to .125 [3.18] thick
and are mounted in a
space-saving, free-standing
manner wherever required.
AMP-BARREL Terminals
may be obtained in loose
piece or strip form for
semiautomatic machine
insertion. Upon insertion,
they are hand or wavesoldered with other
components without fear of
solder wicking into the wire
termination area.
Termination is achieved by
placing the end of a pre-cut
unstripped wire horizontally
to the board at the top of
the AMP-BARREL Terminal.
Insertion to the proper
depth is accomplished by
the use of a simple, lowcost screwdriver type tool
or low cost plastic stuffer
cap. These caps use a
standard Phillips type
screwdriver to terminate the
wire. When left in place on
the terminal they provide
strain relief and insulation.
They may be removed and
reused for field changes
and/or repairs. The high
compliancy of the terminal
assures a highly reliable,
stable interconnection
and withstands extreme
temperature, vibration
and shock.
AMP-BARREL Terminals
offer the added benefit of
accepting a wide wire
range, solid or stranded,
within the same terminal.
The .125 [3.18] diameter
AMP-BARREL Terminal
accepts a wire range of
28-18 AWG [0.08-0.8 mm2]
with a maximum insulation
diameter of .086 [2.18].
It is made of high strength,
high ductility, pre-tinned
phosphor bronze and
accepts one or two wires
of the same type that may
vary in size by one wire
gauge. The C-shaped
cross-slot assures a reliable
two-wire termination.
This product also offers a
wire cutoff version which
allows the wire to be placed
across the top of the
terminal where the hand tool
terminates and trims the
wire in one action.
Similarly constructed, but
of smaller size, are the
.070 [1.78] and .090 [2.29]
diameter AMP-BARREL
Terminals. These terminals
accept, respectively, wire
sizes of 28-26 AWG [0.080.15 mm2] with a maximum
insulation diameter of .036
[0.91] and 28-22 AWG [0.080.4 mm2] with a maximum
insulation diameter of .053
[1.35]. They also will accept
two wires of the same
gauge and type.
The .156 [3.96] diameter
AMP-BARREL Terminal
accepts a wire range of
24-18 AWG [0.2-0.8 mm2]
with a maximum insulation
diameter of .115 [2.92]. It
is made of tin-lead plated
brass and will accept one
wire per terminal.
All AMP-BARREL Terminals
are reusable. This feature is
extremely important when
correcting wiring errors,
making field repairs or
modifications.
17
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP-BARREL Terminals (Continued)
.070 [1.78] and .090 [2.29]
Terminals
D
C
Material and Finish
A
Pretinned phosphor bronze
B
E
.125 [3.18] Terminals
Wire Cut
D
D
See Detail A
Detail A
Material and Finish
C
C
Pretinned phosphor bronze
A
A
B
with Insulation
Cutting Feature
in Wire Slot
B
E
E
with Wire Cutoff Feature
Standard
D
.156 [3.96] Terminals
Material and Finish
Tin plated brass
A
E
Terminal
Size
.070
1.78
.090
2.29
.125
3.18
Standard
.125
3.18
With wire
cut-off
features
.156
3.96
Conductor (solid or stranded)
Wire Size Range
Max.
Wire per
Ins. O.D.
Terminal
AWG
mm2
28-26
0.08-0.15
28-22
0.08-0.4
28-18
0.08-0.8
.036
0.91
.053
1.35
.086
2.18
1 or 2
1 or 2
1 or 2
PC Board
Thk. Range
Mtg. Hole Dia.
A
.047-.062
1.19-1.57
.047-.094
1.19-2.39
.062-.094
1.57-2.39
.062-.125
1.57-3.18
.062-.094
1.57-2.39
.062-.125
1.57-3.18
.035-.040
0.89-1.02
.050-.054
1.27-1.37
.061-.065
1.55-1.65
.061-.065
1.55-1.65
.061-.065
1.55-1.65
.061-.065
1.55-1.65
.280
7.11
.340
8.64
.458
11.63
**
.458
11.63
**
Terminal Dimensions
B
C
D
E
Part Nos.
Loose Pc.
Strip
.090
2.29
.120
3.05
.118
3.00
.118
3.00
.118
3.00
.118
3.00
.175
4.45
.210
5.33
.325
8.26
.325
8.26
.325
8.26
.325
8.26
.070
1.78
.090
2.24
.125
3.18
.125
3.18
.125
3.18
.125
3.18
.042
1.07
.056
1.42
.067
1.70
.067
1.70
.067
1.70
.067
1.70
1742255-1
1742255-2
1742254-1
1742254-2
552699-1*
—
—
552699-2*
552699-4
—
—
552699-5
554935-2*
28-18
0.08-0.8
.086
2.18
1 or 2
.062-.094
1.57-2.39
.061-.065
1.55-1.65
**
.118
3.00
.325
8.26
.125
3.18
.067
1.70
—
24-18
0.2-0.8
.115
2.92
1
.062-.094
1.57-2.39
.078-.082
1.98-2.08
.390
9.91
.125
3.18
.250
6.35
.156
3.96
.084
2.13
1742253-1
1742253-2
*Has tough insulation cutting feature in wire slot (see Detail A in illustration). These barrels are not recommended for smaller standard wires.
**Cutoff is adjustable depending on board thickness.
Notes:
1. .070 [1.78] and .090 [2.29] terminals accept two wires of the same gauge and type.
2. The .125 [3.18] terminal accepts two wires of the same type that may vary in size by one wire gauge.
3. .070 [1.78] and .090 [2.29] terminals have a solder resist material on the inside of barrel which prevents solder wicking.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
18
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP-BARREL Terminals (Continued)
Recommended Printed
Circuit Board Dimensions
(for use in .047 [1.19] to .125 [3.18] pc
boards)
C
A
B
Terminal Size
.070
1.78
.090
2.29
.125
3.18
.156
3.96
A
.100
2.54
.150
3.81
.200
5.08
.220
5.59
Minimum Hole Spacing
B
.050
1.27
.075
1.91
.100
2.54
.110
2.79
C
.105
2.67
.135
3.43
.175
4.45
.190
4.83
Wire Stuffer Caps
Product Facts
■
■
■
Insulates
Provides strain relief
Acts as field service repair tool
Material
Thermoplastic
Wire Size Range
AWG
mm2
28-26
0.08-0.15
28-22
0.08-0.4
22-18
0.4-0.8
28-24
0.08-0.2
24-18
0.2-0.8
Color
Natural
Natural
Yellow
Natural
Natural
For Use With
Terminal Part No.
1742255
1742254
552699
552699
1742253
Wire Stuffer Cap
Part No.
553593-1
553594-1
230707-1
230707-3
553595-1
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
19
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP-BARREL Terminals (Continued)
Application Tooling
Wire Insertion Tool
Precut, unstripped wires
are easily terminated in the
AMP-BARREL Terminal with
a simple screwdriver type
tool. It properly positions the
wire to the correct depth in
the terminal. For two wire
applications, the second
wire pushes the first wire
into the lower section of
the terminal.
For improved comfort, a
slip-on cushion grip is
available.
The Wire Insertion Tool
should be used for wire
termination only; it should
not be used to seat
terminals onto the pc board.
Cushion Grip
Material and Finish
Elastomer
Wire Size Range
AWG
mm2
Color Code
on Tool Shaft
22-18
0.4-0.8
Yellow
24-18
0.2-0.8
Red
28-24
0.08-0.2
White
28-22
0.08-0.4
Blue
28-26
0.08-0.15
Green
For use with
Terminal Part No.
552699-1, 552699-2
552699-4, 552699-5
1742253-1 and
1742253-2
552699-1, 552699-2
552699-4, 552699-5
1742254-1 and
1742254-2
1742255-1 and
1742255-2
22-26
0.4-0.15
None
554935-2
Wire Insertion
Tool Part Nos.
231890-1
552714-1
552714-2
552714-3
552714-4
552714-5
Part No. 231279-1
Manual Terminal
Insertion Kit
Each insertion kit consists
of a ram and pedestal
assembly for use in a
standard drill press. The
ram assembly holds the
terminal and provides a firm
seat during insertion. It fits
into the drill chuck. The
pedestal assembly sits on
the drill table and supports
the pc board during
insertion.
Kit No. 230549-3 for .070 [1.78]
AMP-BARREL Terminal
Part No. 1742255-1
Kit No. 230549-4 for .090 [2.29]
AMP-BARREL Terminal
Part No. 1742254-1
Kit No. 230549-1 for .125 [3.18]
AMP-BARREL Terminals
Part Nos. 552699-1 and 552699-4
Kit No. 230549-2 for .156 [3.96]
AMP-BARREL Terminal
Part No. 1742253-1
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
20
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
QUADRA-MATE Wire-to-Printed Circuit Board Terminal
Product Facts
■
Redundant wire insulation
displacement termination
■
Built-in strain relief
■
Accepts 28-24 AWG
[0.09-0.2 mm2]
■
Feed-thru connections allow
wiring flexibility
■
Free-standing
■
Low board profile (less than
¼" [6.35 mm] high)
■
Available in loose piece or
strip form
■
Mass termination
adaptability
■
Capable of being reused
■
Low applied costs
Applications
■
Electronic games
■
Computer
■
Telephone equipment
■
Business machines
■
Electronic control
equipment
The QUADRA-MATE Wireto-Printed Circuit Board
Terminal is an extension of
the MAG-MATE connector
program, and is designed
to terminate discrete wires
to a pc board via insulation
displacement slot
technology. It is capable of
accepting solid or stranded
wire and permits wire end
or feed-thru terminations.
The terminal features four
slots for redundant wire
terminations and strain
relief. The terminals are
installed in random
positions or in rows on the
edge of a pc board either
by hand tool, semiautomatic
or fully-automatic machines.
The terminal is compact in
design and readily
adaptable to a wide variety
of materials and plating
selections, as well as
terminating techniques
such as daisy chaining,
single ending and on-board
jumping and programming.
The .100 [2.54] wide
terminal has an overall
height of approximately
.210 [5.33] and occupies
less than .120 x .130 [3.05 x
3.3] of board area and
accommodates wire sizes
28-24 AWG [0.09-0.2 mm2]
(see table).
The terminals are supplied
in both loose piece and
strip form and are easily
assembled to the pc board
in conjunction with on-board
components prior to wave
soldering. With the terminal
being an integral part of the
board, insertion of the
unstripped wire into the four
insulation displacement
slots is accomplished by
use of a simple hand tool
(see table).
Technical Documents
Thermal Shock Data for
Wire-to-Board Terminal
Average Termination Resistance—
Milliohms (.001 ohm)
of 1st and 5th Wire Insertions
Application Specification
114-2051
Product Specification
108-2032
Competitive
Terminal
Wire-to-Board
Terminal
24 AWG [0.2 mm2]
Solid Wire ––––––––
PVC Insulation
24 AWG [0.2 mm2]
Stranded Wire –– –– –– ––
PVC Insulation
1 cycle = 1/2 hour at –65° and 1/2 hour at +125°C
Cycles of Thermal Shock
21
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
QUADRA-MATE Wire-to-Printed Circuit Board Terminal (Continued)
Typical Assembly
.190
[4.83]
Material and Finish
.100
[2.54]
Terminal – Brass, tin plated over
copper underplate
Other plating and terminal materials
available. Contact Tyco Electronics.
Max. Ins. Dia. — .060 [1.52]
.130
[3.30]
.065
[1.65]
.015
Max.
[0.38]
Cut-off Tabs
2 Plcs.
.207
[5.26]
.170
[4.32]
.320
[8.13]
.040
[1.02]
8° ± 2°
.013 ± .001
[0.330 ± 0.025]
Wire Size (AWG) over mm2
Part Numbers
7-Strand
Solid
Fused
Loose
Piece
Strip
24
0.2
26
0.14
28
0.09
24-26
0.2-0.13
26-28
0.13-0.08
28
0.08
26
0.13
28
0.09
28
0.09
62977-1
63007-1
63024-1*
63003-1*
63025-1*
63004-1*
Wire to Term.
Hand Tool
274377-1
(Heavy Duty)
Semiautomatic insertion of strip parts to pc board is accomplished using mini-insertion head, Part No. 803371-1 in “U”
frame applicator, Part No. 691679-1. For more sophisticated application equipment including cable makers and C.N.C.
machines, contact Tyco Electronics.
* Available upon request, contact Tyco Electronics.
Recommended PC Board
Applications
Note: Wire slots are designed to
terminate wire sizes and
types with polyvinyl chloride
(PVC) insulation, Class 12B.
For other wire sizes and
insulation types, contact
Tyco Electronics for
application approval.
.200
[5.08]
Min.
.156
[3.96]
Min.
.187
[4.75]
Min.
.187
[4.75]
Min.
See Application
Spec. 114-2051
For Drilled Hole
Diameter
Edge of Printed
Circuit Board
See Application
Spec. 114-2051
For Drilled Hole
Diameter
Single Line Applications
Edge of Printed
Circuit Board
.300
[7.62]
Min.
High Density Applications
Note: Part Numbers are RoHS
compliant except: ⽧Indicates
non-RoHS compliant.
22
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board Disconnects
Product Facts
■
Quick connect or disconnect
■
Automatic or semiautomatic
application of strip form
receptacles to wire
■
Receptacles for wire size
range 28 AWG [0.08] thru
17 AWG [1.0] and tinsel wire
■
Automatic or semiautomatic
insertion of strip form pins
to printed circuit boards
■
Solid or formed pins, singleor double-sided printed
circuit board capability
■
Choice of materials and
platings
Technical Documents
Product Specification
108-1025
108-1059
Application Specification
114-1008
Instruction Sheets
408-7850
408-7951
408-7963
408-7698
408-7850
408-7377
408-7345
Tyco Electronics printed
circuit disconnect embodies
the dual features of
automation and the ability to
make quick wiring changes.
The special formed pins,
available in .058 [1.47] and
.093 [2.36] diameters, can
be inserted in a printed
circuit board quickly and
reliably by fully automatic or
semiautomatic machinery.
The solid pin family, in .058
[1.47] diameter, is attached
manually; its knurled edge
retains it mechanically in
the board until soldering is
complete. All pins must
be soldered to insure
mechanical and electrical
reliability. Pins may be used
for either single or doublesided pc boards. The
receptacles are applied
quickly and efficiently to
wire using semiautomatic
AMP-O-LECTRIC or fully
automatic AMPOMATOR
machines.
All receptacles feature a
precision wire crimp with
an insulation crimp for high
mechanical strength. A
variety of wire and insulation
ranges are available as
listed. The combination of
the pin and receptacle
enables users to bring a
variety of wires to a printed
circuit board and offers
the capability of a quick
connect or disconnect.
The product is ideal for use
in prototype and production
applications, particularly
where wiring changes
or rapid pc board
interconnections are
required. Specific users
include radio, television,
test equipment, computer
and business machine
industries.
23
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board Disconnects (Continued)
B
B
A
B
B
B
A
A
A
A
C
C
C
C
C
Type B
Type A
Type D
Type C
Type E
.058 [1.47] Diameter Solid Pins
Type
Hole
Diameter
Pc Board
Thickness
A
.062-.059
1.57-1.50
.062-.059
1.57-1.50
.125
3.18
.0312
0.79
A
A
.195
4.95
.195
4.95
Dimensions
B
.385
9.78
.260
6.60
C
.110
2.79
.110
2.79
Material
and Finish
Part Nos.
Loose Piece
Brass, Tin
3-60753-2
Brass, Tin
3-60839-1
.058 [1.47] Diameter Formed Pins
A
Dimensions
B
C
.063 or .094
1.60 or 2.39
.210
5.33
.360
9.14
.095
2.41
.062-.058
1.57-1.47
.063 or .094
1.60 or 2.39
.210
5.33
.360
9.14
.095
2.41
.063 or .094
1.60 or 2.39
.063 or .094
1.60 or 2.39
.210
5.33
.210
5.33
.360
9.14
.360
9.14
.095
2.41
.095
2.41
Phos. Brz., Pre-Tin
C
.070-.066
1.78-1.68
.050-.046
1.27-1.17
61038-1
61067-1
904554-1
D
.073-.067
1.85-1.70
.063
1.60
.210
5.33
.310
7.87
.095
2.41
Phos. Brz., Pre-Tin
Phos. Brz., Gold2
60824-1
3-60824-2
61097-1
3-61097-2
904554-2
904554-2
.050-.046
1.27-1.17
.061-.055
1.55-1.40
.063
1.60
.047
1.19
.210
5.33
.210
5.33
.310
7.87
.310
7.87
.095
2.41
.095
2.41
Phos. Brz., Gold3
640967-2
—
904554-2
Phos. Brz., Pre-Tin
641944-1
.095
2.41
Phos. Brz., Pre-Tin
Phos. Brz., Gold2
60973-1
3-60973-2
Type
Hole
Diameter
Pc Board
Thickness
B
.050-.046
1.27-1.17
B
B
E
E
E
.061-.055
1.55-1.40
.063
1.60
.210
5.33
.310
7.87
Material
and Finish
Phos. Brz., Pre-Tin
Phos. Brz., Gold2
Phos. Brz., Pre-Tin
Phos. Brz., Gold2
Phos. Brz., Tin
Part Nos.
Strip Form Loose Piece1
60802-2
60803-2
3-60802-1
3-60803-1
60809-1
60874-1
3-60809-2
3-60874-2
60809-4
—
60813-1
Phos. Brz., Gold3
61018-1
—
640394-1
—
Insertion
Head
904554-1
904554-1
904554-1
904554-1
904554-1
904554-1
—
904554-2
904554-2
1Use
Insertion Tool Part No. 689141-1 for Loose Piece Pins
[0.00076] gold plated
3.000030 [0.00076] gold plated in disconnect area
Note: All above formed pins are made from .010 [0.25] thick material
2.000030
.093 [2.36] Diameter Formed Pins
B
A
C
Hole
Diameter
Pc Board
Thickness
.073-.067
1.85-1.70
.063
1.60
Dimensions
A
B
C
.305 .410 .115
7.75 10.41 2.92
Material
and Finish
Phos. Brz., Pre-Tin
Part Nos.
Strip Form Loose Piece
61137-1
350491-1
Insertion
Machine
904558-1
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
24
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Printed Circuit Board Disconnects (Continued)
Receptacles
A
B
B
B
Type B
Type A
B
A
A
A
Type C
Type D
.058 [1.47] Diameter
Wire Size Range
AWG
mm2
Insulation
Diameter
28-26
.035-.045
0.89-1.14
Type
A
0.08-0.15
Dimensions
A
B
.155
3.94
Part Nos.
Loose
Hand
Piece
Tool
Material and Finish
Strip
Form3
.380
9.65
Phos. Brz., Pre-Tin
60354-7
—
—
60888-2
60888-1
60888-3
60888-4
60983-1
60983-2
60983-4
60983-3
90131-4
—
—
91507-1
452383-1
90221-2
—
90314-1
453850-1
A
26-22
0.15-0.4
.035-.065
0.89-1.65
.155
3.94
.380
9.65
Phos. Brz., Gold1
Phos. Brz., Pre-Tin
Be. Cu., Tin
Be. Cu., Gold1
A
26-20
0.15-0.6
.040-.110
1.02-2.79
.155
3.94
.395
10.03
Be. Cu., Tin
350196-14
—
A
24-20
0.2-0.6
.045-.070
1.14-1.78
.155
3.94
.380
9.65
A
24-20
0.2-0.6
.060-.090
1.52-2.29
.155
3.94
.395
10.03
Phos. Brz., Pre-Tin
Be. Cu., Tin
Phos. Brz., Gold
Be. Cu., Gold2
Phos. Brz., Pre-Tin
Be. Cu., Tin
60598-3
60598-4
60598-7
60598-9
60940-1
60940-2
60789-1
60789-2
60789-3
60789-8
60986-1
—
B
22-17
0.4-1.0
—
.155
3.94
.300
7.62
.160
4.06
.330
8.38
C
26-22
0.15-0.4
.035-.065
0.89-1.65
C
24-20
0.2-0.6
.045-.070
1.14-1.78
.160
4.06
.330
8.38
.030-.040
0.76-1.02
.155
3.94
.380
9.65
D
Tinsel Wire
Insertion5
Head
452383-1
Be. Cu., Tin
640259-1 -
640024-1
Be. Cu., Gold2
Phos. Brz., Pre-Tin
Be. Cu., Gold2
Phos. Brz., Pre-Tin
Be. Cu., Tin
61513-1
61513-2
61119-1
61119-2
61119-3
350189-2
350189-1
61276-1
61276-2
61276-3
Phos. Brz., Pre-Tin
350393-1 -
—
Material and Finish
Strip
Form3
Phos. Brz., Tin
35022-1
—
—
452383-1
Phos. Brz., Tin
61291-1
61260-1
90135-2
452383-3
Phos. Brz., Tin
350015-2
—
—
435850-1
90131-4
91507-1
453850-1
—
.093 [2.36] Diameter
Wire Size Range
AWG
mm2
Insulation
Diameter
A
28-26
0.08-0.15
A
22-18
0.4-0.8
.032-.057
0.81-1.45
.060-.110
1.52-2.79
B
22-18
0.3-0.9
—
Type
Dimensions
A
B
.255
6.48
.255
6.48
.255
6.48
.545
13.84
.550
13.97
.435
11.05
Part Nos.
Loose
Hand
Piece
Tool
Insertion
Head
1.000030
[0.00076] gold plated
[0.00038] gold plated
applied; applicator required. For machine and applicator part numbers, call the Tooling Assistance Center at 1-800-722-1111.
4These receptacles have an overlap insulation crimp.
5Use the listed insertion head with either the Comp-U-Sert or II Insertion Machine No. 122300-1 or MIS Bench Machine No. 66280-4.
Note: Part Nos. 350221-1, 61291-1 and 61260-1 are made from .012 [0.30] thick material. All other receptacles are made from .010 [0.25] thick material.
2.000015
3Machine
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
25
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP EDGE Single Lead Printed Circuit Terminals
Product Facts
■
Friction fitting, quick
connect/disconnects—
no insertion nor extraction
tools required
■
Excellent vibration and
shock resistance
■
Accepts wire size range
32-16 AWG [0.03-1.4 mm2]
■
Wide choice of materials
and finishes
■
High-speed machine
terminated for volume
production at lowest
installed cost
Technical Documents
Product Specification
108-1011 AMP EDGE Terminals
AMP EDGE Terminals are
quick connect/disconnect
devices that adjust
securely, through friction
fitting, to machine slots in
the type of board for which
they are designed. Friction
fitting not only precleans
the contact areas, but also
provides excellent vibration
and shock resistance even
under heavy stresses. Firm
wire insulation support is a
companion factor for
positive retention in the
board. These terminals,
wholly aerated to eliminate
moisture traps, may be
applied anywhere on the
perimeter of the board. They
eliminate the need for eyelets
and plated-through holes
on two-sided boards and
can be used back-to-back
for commoning circuits.
26
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
AMP EDGE Single Lead Printed Circuit Terminals (Continued)
Related Product Data
Application Tooling — pages 36-38
.200
[5.08]
.482
[12.24]
C
B
A
Type A
.200
[5.08]
.150
[3.81]
.482
[12.24]
.380
[9.65]
Max.
C
A
A
Type B
Type C
C
B
B
Type
Wire Size Range
AWG
mm2
Material
Finish
A
32-24
0.03-0.2
Phos. Brz.
Tin
A
30-22
0.05-0.4
Phos. Brz.
Tin
A
22-20
0.4-0.6
Phos. Brz.
Tin
B
22-18
0.4-0.8
Phos. Brz.
Tin
B
22-18
0.4-0.8
Brass
Tin
B
22-18
0.4-0.8
Brass
Tin
C
22-16
0.4-1.4
Brass
Tin
C
22-16
0.4-1.4
Brass
Tin
Stock
Thk.
Ins. Dia.
Board
Thk.
A
Dimensions
B
C
.010
0.25
.010
0.25
.010
0.25
.010
0.25
.016
0.41
.016
0.41
.012
0.30
.012
0.30
.020-.050
0.51-1.27
.075
1.91
.075
1.91
.080-.100
2.03-2.54
.080-.100
2.03-2.54
.080-.100
2.03-2.54
—
—
—
—
.062
1.57
.062
1.57
.062
1.57
.062
1.57
.062
1.57
.062
1.57
.062
1.57
.062
1.57
.045
1.14
.046
1.17
.050
1.27
.050
1.27
.052
1.32
.056
1.42
.046
1.17
.046
1.17
.080
2.03
.080
2.03
.080
2.03
.080
2.03
.088
2.24
.088
2.24
.070
1.78
.070
1.78
.153
3.89
.153
3.89
.153
3.89
.153
3.89
.160
4.06
.160
4.06
.200
5.08
.200
5.08
Strip
Form
Part Nos.7
61389-21
61455-21
42263-71
61561-22
60156-23
60704-14
61782-15
61782-26
1(2)
dimples outside (.010 high) [0.25]
dimples inside (.020 high) [0.51]
3(2) dimples inside (.014 high) [0.36]
4(2) dimples inside (.005 high) [0.13]
5(2) dimples inside (.023 high) [0.58]
6(2) dimples inside (.023 high) [0.58], reverse reeled
7Machine applied applicator required. For machine and applicator part numbers, call the Tooling Assistance Center at 1-800-722-1111.
2(2)
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
27
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Miniature AMP-IN Terminals
Product Facts
■
■
■
■
■
■
■
■
■
Eliminates manual
preparation of wires prior to
soldering into pc boards
Low applied cost
Total height above pc board
is less than most other
components
Available for 26-10 AWG,
[0.15-5.5 mm2]
Terminal locking lance
holds wire in pc board for
flow soldering
Design allows both wire and
terminal to be soldered and
assures proper solder flow
Insulation support provides
strain relief for wire and
protection of solder joint
Type A terminals will provide
both a positive board stop
and positive insulation stop
Type E terminal offers
minimum below pc board
length
Technical Documents
Product Specification
108-1081
Application Specification
114-1016
Material and Finish
008 phosphor bronze, Pre-tin plated
Pc Board Thickness — .062 [1.57]
The miniature AMP-IN
Terminal is designed not as
an electrical terminal but as
a mechanical holding device
to enhance soldering of
hookup wires to printed circuit
boards. The combination of
terminal and application
tooling eliminates costly
manual preparation of
wires prior to soldering,
and positions the wire to
achieve reliable solder
joints. Movement of the
wire during soldering is
restricted, providing for
proper solder flow.
28
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Miniature AMP-IN Terminals (Continued)
.277
[7.04]
.295
[7.49]
Type A
.260
[6.60]
Type B
Type C
.250
[6.35]
.080-.095
[2.03-2.41]
Type D
Type
Type E
Wire Size Range
AWG
mm2
Insulation
Diameter
Board Hole
Diameter
22-18
0.3-0.9
26-22
0.12-0.4
18-14
0.8-2.0
12
3.0
10
5.5
22-18
0.4-0.8
26-22
0.15-0.4
22-18
0.4-0.8
26-22
0.15-0.4
26-22
0.15-0.4
22-18
0.8-0.4
.060-.110
1.52-2.79
.040-.110
1.02-2.79
.090-.150
2.29-3.81
.090-.150
2.29-3.81
.200
5.08
.060-.110
1.52-2.79
.040-.100
1.02-2.54
.060-.110
1.52-2.79
.060-.100
1.52-2.54
.040-.070
1.02-1.78
.060-.110
1.52-2.79
.072± .003
1.83±.0.08
.055± .004
1.40±0.10
.125± .003
3.18±0.08
.125± .003
3.18±0.08
.150 Ref.
3.81 .
.073± .004
1.85±.0.10
.055± .004
1.40±0.10
.073± .004
1.85±.0.10
.055± .004
1.40±0.10
.125± .003
3.18±0.08
.072± .004
1.83±.0.10
A
B
C
D
E
Notes: 1.
2.
3.
4.
.135-.155
[3.43-2.94]
.220
[5.59]
Extension
Below
Board (Ref.)
.100
2.54
.100
2.54
.125
3.18
.125
3.18
.125
3.18
.100
2.54
.100
2.54
.125
3.18
.135
3.43
.125
3.18
.090
2.29
Strip Form
Terminal
Part Nos.3
3-794121-1
3-794122-1
3-770060-1
3-794013-1
3-794037-1
3-640311-1
3-640401-1
3-350566-1
3-640108-1
3-640663-1
3-770565-2
Higher tensile available with nose crimp type C.
Not available in loose piece.
No hand tools available.
Machine applied applicator required. For machine and applicator part numbers, call the Tooling Assistance
Center at 1-800-722-1111.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
29
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Low Profile Miniature AMP-IN Connectors
Product Facts
■
Connector housing provides
gang insertion into pc board
■
Housing insulates and provides short-circuit protection between contacts
■
Housings are available in
2 to 15 positions for .079
[2.01] and 2 to 20 for .098
[2.49] centerline spacing
■
Low profile design—
.200 [5.08]
■
Contacts available for 30-26
AWG [0.05-0.15 mm2] and
26-22 AWG [0.15-0.4 mm2]
Low Profile Miniature AMP-IN
Connectors provide an easy
means of gang inserting leads
into printed circuit boards. The
design of the crimp snap-in
contact aids in locating the pc
board hole and inserting the
contact into that hole.
Technical Documents
Product Specification—
108-5163
Application Specification—
114-5062
Material and Finish
Housing—Nylon, 94V-0 rated
Contact—See chart
Pc Board Thickness Range—
.047-.062 [1.19-1.57]
Wire Size Range
AWG
mm2
Insulation
Diameter
30-26
.043-.055
1.09-1.40
26-22
0.05-0.15
0.15-0.4
.055-.059
1.40-1.50
The low profile housing allows
compactness of leads while
providing insulation between
them to prevent short-circuits.
Housings are available in
2 to 15 positions for .079 [2.01]
centerline spacing and 2 to 20
positions for .098 [2.49] centerline spacing.
Hole
Diameter
Material
and Finish
.031
0.79
.039
0.99
.031
0.79
.039
0.99
Brass,
Pre-Tin
Brass,
Tin
Brass,
Tin
Brass,
Tin
Contacts come in 26-22 AWG
[0.15-0.4 mm2] and 30-26 AWG
[0.05-0.15 mm2] with insulation
support crimp to provide strain
relief. They accommodate a
board thickness of .047 [1.19]
to .062 [1.57].
Contact Part No.
Strip Form3
Loose Piece
172781-1
172797-1
172781-4
172797-4
172782-5
—
172782-7
—
Hand Tool
Part Nos.
755405-1
755405-1
Notes: 1. Refer to pages 36-38 for application tooling.
2. Use Extraction Tool Part No. 753760-1.
3. Machine applied applicator required. For machine and applicator part numbers, call the Tooling Assistance
Center at 1-800-722-1111.
.079 [2.01] Centerline
A
Part Nos.
.189
172890-2
4.80
.268
172890-3
6.81
.346
172890-4
8.79
.425
172890-5
10.80
.504
172890-6
12.80
.583
172890-7
14.81
.098 [2.49] Centerline
A
Part Nos.
.236
172520-2
5.99
.335
172520-3
8.51
.433
172520-4
11.00
.532
172520-5
13.51
.630
172520-6
16.00
.729
172520-7
18.52
.661
16.79
.741
18.82
.820
20.83
1-172890-0
11
—
—
12
.977
24.82
1-172890-2
13
—
—
14
—
—
15
1.214
30.84
1-172890-5
20
—
—
.827
21.01
.926
23.52
1.024
26.01
1.123
28.52
1.221
31.01
1.320
33.53
1.418
36.02
1.517
38.53
2.010
51.05
No. of
Positions
2
3
4
5
6
7
8
9
.138
[3.51]
A
.079
[2.01]
.197
[5.00]
Note: Part Numbers are RoHS
compliant except: ⽧Indicates
non-RoHS compliant.
10
172890-8
172890-9
172520-8
172520-9
1-172520-0
1-172520-1
1-172520-2
1-172520-3
1-172520-4
1-172520-5
2-172520-0
30
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Test Probe Receptacles
Product Facts
■
Leg mounts are "V" shaped
to promote solder wicking
and consistent fillets
■
Receptacle is recessed in
housing to prevent shorting
or flashover
■
Probe may be inserted in
either end of test probe
receptacle except Type C
■
Housing color is molded,
not dyed
■
Accepts .080±.001
[2.03±0.025] probes
The Tyco Electronics line of Test
Probe Receptacles is designed
to pro-vide low-cost test probe
capability of circuits on pc
boards, with-out interruption
of operating currents, with
precise reliability.
Receptacles are available with
either two or three mounting
legs. Two legs of a tri-leg mount
are not part of the live testing
circuit. Receptacles are also
available either in the standard
height, or in a taller height (to
permit probing at any position
on the board where clearance
to probe is necessary). The
three-leg mount gives maximum
stability. The two-leg mount
yields maximum density.
The present line of test probe
receptacles fits a range of board
thicknesses from 1/32 to 1/8
depending on the length of the
receptacle legs. The legs mount
in .052 [1.32] diameter holes.
Material and Finish
Housing—Nylon type 6/6
Contact—Beryllium copper
Receptacle and Legs—Brass, ASTM
B36, Alloy 6
Contact Plating—See table below
Type A
.460
[11.68]
.156
[3.96]
Type B
C
.156
[3.96]
.460
[11.68]
B Max.
B Max.
A
.400*
[10.16]
.100
[2.54]
.300*
[7.62]
.175
[4.45] Max.
A
Type D
Type C
.218
[5.54] Dia.
.561
[14.25]
B Max.
Operating Temperature—
55°C to 85°C [131°F to 185°F]
.160
[4.06]
.156
[3.96]
A
.156
[3.96]
.100
[2.54]
.200*
[5.08]
.300*
[7.62]
.047
[1.19]
.400*
[10.16]
C
.175
[4.45] Max.
*Mounting hole location for .050-.054 [1.27-1.37] dia. holes.
Type
Contact
Finish
Bright Tin
Silver
Gold
A
Gold
Color Suffix Table
Suffix
Dash Number
-0
-1
-2
-3
-4
-5
-6
-7
-8
-9
.460
[11.68]
A
.090
[2.29]
Retention Value—
16oz. [4.45 N]
B Max.
C
Performance Characteristics
Insulation Resistance—
10,000 megohms
.200*
[5.08]
.130
[3.30]
Technical Documents
Product Specification—
108-1082 Receptacle, Test Probe
C
Housing
Color
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Bright Tin
Gold
Gold
B
Gold
C
Gold
Gold
D
Bright Tin
A
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.130
3.30
.180
4.57
.180
4.57
Dimensions
B
.230
5.84
.230
5.84
.230
5.84
.230
5.84
.467
11.86
.467
11.86
.230
5.84
.467
11.86
.230
5.84
.230
5.84
.230
5.84
C
.138
3.51
.138
3.51
.138
3.51
.138
3.51
.375
9.53
.375
9.53
.138
3.51
.375
9.53
.138
3.51
.138
3.51
.138
3.51
Housing
Colors
Part Nos.*
See Table
1-521799-x
See Table
2-582118-x
See Table
3-582118-x
Natural
6-582118-9
See Table
1-521800-x
See Table
3-582340-x
See Table
3-582119-x
See Table
3-582120-x
See Table
350180-x
See Table
1-380736-x
Green
3-521801-5
*Part numbers with a numerical suffix are only for the specific color listed in the chart.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
31
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Power Taps
Product Facts
■
ACTION PIN contacts
eliminate soldering
■
Provides high current,
separable connection to pc
board traces
■
Wire-to-board connection
using common terminals
■
All metal-to-metal
assembly for long-term
integrity
■
Standard DIP outlines
(.300 x .100 [7.62 x 2.54]),
10 positions, and .250 x
.125 [6.35 x 3.18], 6 and 10
positions, plus high current
versions on .400 x .200
[10.16 x 5.08] footprint in
4 and 6 positions, .300 x
.100 [7.62 x 2.54] in 8
positions, and both 2 and 3
position in-line .100 [2.54]
tab taps
■
Low resistance interface
■
Internally threaded tap to
secure screw to terminal
■
Anti-rotational
embossments hold wire
and terminal in place
■
Standard Power Taps rated
at 2.5 amps per pin—
6 position 15 amps,
10 position 25 amps current
carrying capability
■
High Current Power Taps
rated at up to 5 amps per
pin—
2 position 10 amps,
3 position 15 amps,
4 and 6 position 20 amps
and 8 position 40 amps
Tyco Electronics Power
Taps are designed for the
growing need for power
to printed circuit board
applications required in
today's electronic industry.
The taps provide a high
current, separable
connection to a pc board.
Pin configuration is of the
standard DIP outline with
.300 x .100 [7.62 x 2.54] or
.250 x .125 [6.35 x 3.18] for
the Standard versions, plus
.400 x .200 [10.16 x 5.08],
.300 x .100 [7.62 x 2.54]
and in-line spacing for the
High Current versions.
ACTION PIN contacts
provide a low resistance
interface with tin platedthrough holes in the pc
board, thereby eliminating
the need for soldering.
density option with current
ratings from 10 amps on the
2 position in-line .250 [6.35]
tab tap up to 40 amps on
the 8 position dual .250
[6.35] tab tap.
The variety of available
power taps allow for various
installation schemes. The
Uninsulated Tap and Low
Profile Tap can be used in
bus bar pattern. The High
Profile and Low Profile Taps
offer insulation protection
from other components.
The High Current versions
provide a greater power
All Tyco Electronics Power
Tap configurations are
easily inserted into the
pc board with a simple
Tyco Electronics or
customer supplied tool.
32
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Standard Power Taps
Standard Insulated
Power Tap
Cover
Material and Finish
Connector Body and Lid—Nylon,
105°C 94V-0 rated
Contact—Copper alloy, bright
tin-lead plated and matte tin plated
Screw—Plated steel
Screw
Electrical and Mechanical
Characteristics
Anti-rotation
Embossments
Resistance—2 milliohms, max.
(stud hole to ACTION PIN contact)
Insertion Force—40 lbs. [177.9 N],
max. per pin
Retention Force—7 lbs. [31.1 N],
min. per pin
Housing
Technical Documents
.300 x .100 [7.62 x 2.54]
Low Profile Tap
10 Position
.300 x .100 [7.62 x 2.54]
High Profile Tap
10 Position
Product Specification
108-11030 Tap, Power Distribution
Application Specification
114-11000 Tap, Power Distribution
.450
[11.43]
.565
[14.35]
Handbook
5697 Guide to Application of ACTION
5697 PIN Connectors
.500
[12.70]
.275
[6.99]
.520
[13.21]
.360
[9.14]
.400
[10.16]
.180
[4.57]
.180
[4.57]
.025 x .035
[0.64 x 0.89]
Posts
.025 x .035
[0.64 x 0.89]
Posts
.100
[2.54] Typ.
.100
[2.54] Typ.
.300
[7.62]
.300
[7.62]
Part Nos.
Tin-Lead
Tin
Tap
Version
Pcb
Thickness
Description
Screw
Hole Size
High Profile
.062-.125
1.57-3.18
.062-.125
1.57-3.18
.062-.125
1.57-3.18
.062-.125
1.57-3.18
.062-.125
1.57-3.18
.062-.125
1.57-3.18
Housing and contact assembled without screw1
6-32
55557-3⽧ 5055557-3
Housing and contact assembled with screw1,2
6-32
55557-4⽧ 5055557-4
Housing and contact assembled with screw2
6-32
55556-4⽧ 5055556-4
Housing and contact assembled with screw2,3
6-32
55673-2⽧ 5055673-2
Housing and contact assembled without screw
6-32
55556-3⽧ 5055556-3
Housing and contact assembled without screw
M4
55556-9⽧ 5055556-9
High Profile
Low Profile
Low Profile
Low Profile
Low Profile
1Cover
not assembled
2Screw not assembled
3No anti-rotational embossments
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
33
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Standard Power Taps (Continued)
Standard Uninsulated
Power Taps
Screws
(6-32 X 1/4)
B
A
Material and Finish
Contact—Copper alloy, post plated
bright tin-lead and matte tin plated
Screw—Stainless steel, passivated
.450
[11.43]
Anti-rotation
Embossments
Electrical and Mechanical
Characteristics
.180
[4.57]
C
Resistance—2 milliohms, max.
(stud hole to ACTION PIN contact)
Insertion Force—40 lbs. [177.9 N]
max. per pin
Retention Force—7 lbs. [31.1 N]
min. per pin
.025 x .035
[0.64 x 0.89]
Pcb
Thickness
A
.300 x .100
7.62 x 2.54
10 Position
.062-.125
1.57-3.18
.440
11.18
.325
8.26
.100
2.54
.300
7.62
.062-.125
1.57-3.18
.320
8.13
.275
6.99
.125
3.18
.250
6.35
Without Screw
6-32
55323-5⽧
With Screw
6-32
55323-9⽧
5055323-9
.250
6.35
Without Screw
6-32
55323-6⽧
5055323-6
With Screw
6-32
1-55323-0⽧
1-5055323-0
1No
.062-.125
1.57-3.18
.570
14.48
.275
6.99
.125
3.18
Description
Screw
Size
Without Screw
With Screw
Without Screw
6-32
6-32
6-32
Part Number
Tin Lead
Tin
55558-3⽧
5055558-3
55558-4⽧
5055558-4
55558-7⽧ 1
5055558-7
Size
.250 x .125
6.35 x 3.18
6 Position
.250 x .125
6.35 x 3.18
10 Position
High Current* Power Taps
Dimensions
B
C
D
D
5055323-5
Anti-rotation Embossments
Screws
(M4)
*Up to 20 amps
Material and Finish
Contact—Phosphor bronze, tin-lead
and matte tin plated
Screw—Stainless steel, passivated
Washer—Stainless steel
.250
[6.35]
B
Electrical and Mechanical
Characteristics
Current Rating—20 amperes max.
Insertion Force—40 lbs. [180 N]
max. per pin
C
A
Retention Force—7 lbs. [30 N] min.
per pin
D
Dimensions
B
C
Size
Pcb
Thickness
A
4 Position
.062-.125
1.57-3.18
.358
9.09
.431
10.95
.200
5.08
.400
10.16
6 Position
.062-.125
1.57-3.18
.358
9.09
.431
10.95
.100
2.54
.400
10.16
D
Description
With Screw
Without Screw
With Screw
Without Screw
Part Number
Tin Lead
Tin
213815-1⽧
5-213815-1
216906-1⽧
—
213816-1⽧
5-213816-1
216907-1⽧
—
1No Anti-rotation Embossments featured on High Current Taps. Therefore, if application requires, use of Bellville lockwashers with a high surface contact area are strongly recommended.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
34
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
High Current* Power Taps
Designed to mate with
FASTON and Positive-Lock
Receptacles
*Up to 5 amps per pin
B
Material and Finish
B
Contact—Phosphor bronze, post
plated tin-lead, except as noted in chart
Screw—Stainless steel, passivated
A
A
Washer—Stainless steel
I
Electrical and Mechanical
Characteristics
II
D
Current Rating—5 amps max. per pin
Insertion Force—40 lbs. [180 N]
max. per pin
C
D
C
B
A
B
A
III
.062 x .125
1.57 x 3.18
.062 x .125
1.57 x 3.18
A
.200
5.08
.100
2.54
Dimensions
B
C
.531
—
13.49
.531
—
13.49
III
.062 x .125
1.57 x 3.18
.400
10.16
.200
5.08
.531
13.49
.431
10.95
IV
.125
3.18
.300
7.62
.100
2.54
.485
12.32
.500
12.7
Style
I
II
Pcb
Thickness
D
—
—
Configuration
IV
Part
Number
Receptacle
Mating
With Hole
216926-1⽧
Positive Lock
Description
.250 x .032
6.35 x 0.81 Tab
.250 x .032
6.35 x 0.81 Tab
1-.250 x .032 Tab
6.35 x 0.81
2-.110 x .032 Tab
2.79 x 0.81
With Hole
216843-1⽧
Positive Lock
With Hole
Without Washer
Without Screw
216905-1⽧1
Positive Lock
2-.250 x .032 Tab
6.35 x 0.81
With Dimple
With Hole
5167892-32
167892-62
FASTON Receptacle
Positive Lock
1No
Anti-rotation Embossments featured on High Current Taps. Therefore, if application requires product supplied without washer and screw, use of
lockwashers with a high surface contact area are strongly recommended.
bronze, post plated matte tin.
2Phosphor
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
35
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Application Tooling/PCB Layout
For Standard Threaded
Taps Only
A
Dimensions
B
C
.300
7.62
.100
2.54
.400
10.16
.250
6.35
.125
3.18
.250
6.35
.250
6.35
.125
3.18
.500
12.7
Size
C
.300 x .100
7.62 x 2.54
10 Position
.250 x .125
6.35 x 3.18
6 Position
250 x .125
6.35 x 3.18
10 Position
B
Recommended Pc Board
Layout
A
Drilled Hole Diameter—
.0453±.001 [1.15±0.03]
After Plating
.037-.043 [0.94-1.09]
After Reflow—
.036-.043 [0.91-1.09]
IMPACT
TOOL
(Ref)
Installation and Extraction
Tooling
Impact Insertion Tool Number
313102-1
(Insertion Tip Part No. 58133-1
required)
INSERTION
TIP
LOW-PROFILE
POWER
DISTRIBUTION
TAP (Ref)
Extraction Tool Number 68380-1
PC BOARD
(Ref)
For High Current and
FASTON Taps
C
Type
B
Recommended Pc Board
Layout
4 Position
A
Drilled Hole Diameter—
.063±.001 [1.60±0.03]
Cu Thickness—
.001-.003 [0.03-0.08]
Sn Thickness—
.0002 min.[0.004 min.]
Finished Hole—
.055-.061 [1.39-1.54]
After Reflow—
.054-.061 [1.36-1.54]
Installation Tooling
Use with Hand Press
Part No. 677430-1
6 Position
I
—
II
—
III
.400
10.16
.300
7.62
IV
Dimensions
B
.200
5.08
.100
2.54
.200
5.08
.100
2.54
.200
5.08
.100
2.54
A
.400
10.16
.400
10.16
C
.200
5.08
.200
5.08
.200
5.08
.200
5.08
.200
5.08
.300
7.62
High Current Power Tap
Type
Part Number
4 Position
6 Position
Style I
Style II
216906-1
216907-1
216926-1
216843-1
Style III
Style IV
Upper Tool
Tooling Part Number
Lower Tool
432848-1
433600-2 or
432130-2
432845-1
433600-2 or
432130-2
216905-1
432847-1
5-167892-3
167892-6
432849-1
433600-2 or
432130-2
433600-2 or
432130-2
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
36
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Application Tooling
AMPOMATOR CLS IV+
Lead-Making Machines,
Part Nos. 356500-1, -2
Fully-automatic machines
that measure, cut, strip and
terminate single leads.
Microprocessor-controlled,
and programmed and operated using an easy-to-follow,
menu-driven touch-screen.
Features include directdrive terminating units with
precision crimp height
adjustment, fully programmable setups, wire runout
and splice detection, and
motorized pre-feed with wire
straightener. Crimp quality
monitoring is also available.
AMP-O-MATIC StripperCrimper Machines,
Part Nos. 1320895-1, -2
For more information, request
Catalog 65004.
For more information, request
Catalog 124324.
AMP-O-LECTRIC Model “G”
Terminating Machines,
Part Nos. 354500-1, -9, -11
Semiautomatic bench
machines for crimping
reeled terminals and contacts, featuring a quiet and
reliable direct motor drive,
microprocessor controls for
ease of setup and operation, and guarding and
lighting designed for operator convenience. All models
are equipped with either
manual or automatic precision adjustment of crimp
height. Machine-mounted
sensors are available for
crimp quality monitoring
using conventional miniature-style applicators.
Semiautomatic bench
crimping machines that also
strip the wire, and are therefore used for terminating
jacketed cable. Feature
manual precision adjustment of crimp height, keyed
strip blades for faster, more
accurate setups, and an
efficient scrap removal system. All adjustments can be
made from the front of the
machines without special
tools. Available with crimp
quality monitoring.
AMP 3K/40 and AMP 5K/40
Terminating Machines
As a value oriented terminator, the AMP 3K/40 and
AMP 5K/40 terminators are
designed for customers that
require the increased output
and quality of a semiautomatic machine at a competitive price. By incorporating
the most commonly
requested features as standard and offering a long list
of optional equipment, these
terminators offer flexibility to
meet the specific needs of
various applications at the
lowest possible cost.
For more information, request
Catalog 1654856.
For more information, request
Catalog 65828.
Optional Stripping Module
for the AMP 3K/40,
AMP 5K/40 and
AMP-O-LECTRIC Model “G”
Terminating Machines
The combination of the
Stripping Module with the
AMP-O-LECTRIC Model “G”
Terminator or the AMP 3K/40,
and AMP 5K/40 terminating
machines provides an economical, proficient method
of stripping wire and crimping terminals on the same
machine. Wires are stripped
moments before crimping,
meaning there is virtually no
chance of damaging wire
conductors during handling
or storage. Once the wire is
fed into the start sensor, the
Stripping Module does the
rest, improving placement
accuracy.
For more information, request
Catalog 1309085.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
37
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Application Tooling (Continued)
Applicators
Applicators manufactured
from high grade tool steels,
and processed through
state-of-the-art CNC equipment for tightest tolerances.
Made for high repeatability
and fast throughput.
We offer an unmatched
selection of applicator
styles and terminals types,
with configurations for both
Tyco Electronics and other
manufacturers’ terminals.
For more information, request
Catalogs 296393 and 296393-2.
The EDGE, Electronic
Applicator Counter
The new, versatile EDGE
applicator counter tracks
wearable tool usage for the
most effective maintenance
planning. The completely
electronic counter, with clear
LCD display, indicates cycles
since installation. By performing maintenance at measured
intervals with pre-set limits,
operators avoid breakdowns
and rejects caused by tool
wear or mis-adjustment.
For more information, request
Catalog 1773385.
CERTI-CRIMP Straight
Action Hand Tools (SAHT)
Premium grade hand tools
featuring ratchet control to
provide complete crimp
cycle. Die sets close in a
straight line. Include a contact locator and wire stop,
plus an insulation crimp
adjustment lever, when
applicable. Approximate
weight 1.3 lb [0.59 kg]
For more information, request
Catalog 65780.
38
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Application Tooling (Continued)
AMP-O-MATIC "U" Frame
Machine Part No. 691679-1
(Installs Board Mount
Receptacles)
These insertion machines
install contacts into printed
circuit boards at rates to
2000 per hour. A spotlight
highlights the insertion area
and a lower tooling assures
precise board location. The
machines are actuated by a
foot pedal and are bench
mounted.
Product Specifications
Weight — 50 lbs.
Width — 18
Height — 23
Depth — 19
Air Supply — 80 psi
Electrical Power — 115 VAC, 60 Hz
Comp-U-Sertor II
Machines, Part Nos.
122300-1, -2
Microprocessor-controlled
X-Y positioning table inserts
a variety of products into pc
boards, including .0252
stamped or bandoliered
posts, mini-spring sockets,
and FASTON tabs. Insertion
heads for various products
are interchangeable, and
can be used with bench
machines. Controlled,
programmed and operated
using an interactive touchscreen. Options include
double-action clinch tooling,
powered dereeler, splice
run-out detector, take-up
winder for paper tape, and
scrap chopper.
For more information, request
Catalog 296059.
Modular Insertion System
(MIS) Bench Machines,
217600 Series, 662820
Series (shown)
Strip Form
Part Number
60802-1
60802-2
60809-1
60809-2
60809-4
60813-1
61038-1
60824-1
60824-2
640967-2
641944-1
60973-1
60973-2
61137-1
Bench machines for inserting
a variety of products into
pc boards. Uses the same
interchangeable insertion
heads as the Comp-U-Sertor
II Machines. Series 217600
features a manually-operated
X-Y positioning fixture and
locator spotlight. The
machine cycles when the
board hole is placed on the
anvil and both triggers on
the dual handles attached
to the X-Y fixture are
depressed. Series 662820,
without board fixturing, cycle
automatically when the hole
is properly located. A stabilizing disk over the anvil
helps keep the board level.
Insertion Head
Part Number
904554-1
904554-1
904554-1
904554-1
904554-1
904554-1
904554-1
904554-2
904554-2
904554-2
904554-2
904554-2
904554-2
904558-1
For more information, request
Catalog 296059.
Note: Part Numbers are RoHS compliant except: ⽧Indicates non-RoHS compliant.
39
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Part Number Index
Note: This index lists all cataloged parts
by base no. only. Complete part nos. (with
prefixes and/or suffixes) are shown on the
page(s) indicated.
Part No.
35022
42263
55323
55556
55557
55558
55673
60156
60284
60354
60598
60704
60753
60789
60802
60803
60809
60813
60824
60839
60874
60888
60940
60973
60983
60986
61018
61038
61067
61097
61119
61134
61137
61260
61276
61291
61389
61455
61513
61543
61561
61782
61907
61968
62111
62172
62199
62221
62395
62403
62409
62411
62437
62650
62669
62745
62751
62806
62977
63003
63004
63007
Page
25
27
34
33
33
34
33
27
11
25
25
27
24
25
24, 39
24
24, 39
24, 39
24, 39
24
24
25
25
24, 39
25
25
24
24, 39
24
24
25
14
24, 39
25
25
25
27
27
25
12
27
27
12
14
7
7
7
12
14
12
9
11
14
9
14
7
7, 11
7, 11
22
22
22
22
Part No.
63024
63025
63066
63067
63525
63566
63572
63603
63650
63755
63756
63794
63824
63838
63839
63849
63860
63862
63900
63949
63950
63951
63952
63968
63969
63982
63986
63994
90131
90135
90221
90314
91507
122300
167892
172520
172781
172782
172797
172890
213815
213816
216843
216905
216906
216907
216926
217600
230549
230707
231279
231890
274377
350015
350180
350189
350196
350393
350491
350566
354500
356500
Page
22
22
9
9
12
5
5
12
9
9
14
14
10
12
9
10
13
10
9
10
10
11
11
11
11
13
9
11
25
25
25
25
25
39
35, 36
30
30
30
30
30
34
34
35, 36
35, 36
34, 36
34, 36
35, 36
39
20
19
20
20
22
25
31
25
25
25
24
29
37
37
Part No.
360041
360042
380736
432130
432845
432847
432848
432849
433600
435850
452383
453850
467322
521382
521384
521799
521800
521801
552699
552714
553593
553594
553595
554935
582118
582119
582120
582340
640024
640108
640259
640311
640394
640401
640663
640967
641944
662820
691679
725963
725996
755405
770060
770565
794013
794037
794121
794122
853439
904554
904558
904608
928814
1217056
1217057
1217061
1217062
1217080
1217107
1217124
1217125
1217126
Page
13
13
31
36
36
36
36
36
36
25
25
25
7
16
16
31
31
31
18, 19, 20
20
19
19
19
18, 20
31
31
31
31
25
29
25
29
24
29
29
24, 39
24, 39
39
39
14
14
30
29
29
29
29
29
29
5
24, 39
24, 39
5
11
9
12
13
13
11
11
13
10
10
40
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Part Number Index (Continued)
Part No.
1217127
1217131
1217136
1217137
1217156
1217167
1217169
1217180
1217332
Page
10
12
10
11
13
10
10
11
13
Part No.
1217421
1217514
1217566
1217577
1217754
1217756
1320895
1742188
1742253
Page
10
14
9
14
11
13
37
10
18, 19, 20
Part No.
1742254
1742255
1742361
1742362
5055323
5055556
5055557
5055558
5055673
Page
18, 19, 20
18, 19, 20
13
13
34
33
33
34
33
41
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Printed Circuit Board Terminals and Disconnects
Engineering Notes
42
Catalog 82159
Revised 12-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
Global Contacts
Americas
Argentina – Buenos Aires
Phone:
+54-11-4733-2200
Fax:
+54-11-4733-2211
Brasil – São Paulo
Phone:
+55-11-3611-1311
Fax:
+55-11-3611-0397
Canada – Toronto
Phone:
+905-475-6222
Fax:
+905-474-5520
Product Information Center:
(Technical Support)
Phone:
+905-470-4425
Fax:
+905-474-5525
Colombia – Bogota
Phone:
+57-1-231-9398
Fax:
+57-1-660-0206
Mexico – Mexico City
Phone:
+52-55-1106-0800
+01-800-733-8926
Fax:
+52-55-1106-0901
For Latin/South American
Countries not shown
Phone:
+54-11-4733-2015
Fax:
+54-11-4733-2083
United States – Harrisburg, PA
Phone:
+717-564-0100
Fax:
+717-986-7575
Product Information Center:
(Technical Support)
Phone:
+800-522-6752
Fax:
+717-986-7575
Asia/ Pacific
Australia – Sydney
Phone:
+61-2-9554-2600
Fax:
+61-2-9502-2556
Product Information Center:
(Technical Support)
Phone:
+61-2-9840-8200
Fax:
+61-2-9634-6188
Japan – Toyko
Phone:
+81-44-844-8111
Fax:
+81-44-812-3207
Product Information Center:
(Technical Support)
Phone:
+81-44-844-8013
Fax:
+81-44-812-3200
New Zealand – Auckland
Phone:
+64-9-634-4580
Fax:
+64-9-634-4586
Singapore – Singapore
Phone:
+65-6482-0311
Fax:
+65-6482-1012
Philippines – Makati City
Phone:
+632-848-0171
Fax:
+632-867-8661
Thailand – Bangkok
Phone:
+66-2-955-0500
Fax:
+66-2-955-0505
India – Bangalore
Phone:
+91-80-285-40800
Fax:
+91-80-285-40820
Korea – Seoul
Phone:
+82-2-3415-4500
Fax:
+82-2-3486-3810
People’s Republic of China
Hong Kong
Phone:
+852-2735-1628
Fax:
+852-2735-0243
Vietnam and Indochina –
Ho Chi Minh City
Phone:
+84-8 930-5546
Fax:
+84-8 930-3443
Indonesia – Jakarta
Phone:
+65-6482-0311
Fax:
+65-6482-1012
Malaysia – Kuala Lumpur
Phone:
+60-3-78053055
Fax:
+60-3-78053066
Shanghai
Phone:
Fax:
+86-21-2407-1588
+86-21-2407-1599
Taiwan – Taipei
Phone:
+886-2-8768-2788
Fax:
+886-2-8768-2268
Europe/ Middle East/Africa
Austria – Vienna
Phone:
+43-1 90 5 60-0
Fax:
+43-1 90 5 60-1333
Belgium – Kessel-Lo
Phone:
+32-16-35-23-00
Fax:
+32-16-35-23-52
Germany – Bensheim
Phone:
+49-6251-133-0
Fax:
+49-6251-133-1600
Product Information Center:
(Technical Support)
Phone:
+49-6251-133-1999
Fax:
+49-6251-133-1988
Bulgaria – Sofia
Phone:
+359-2-971-2152
Fax:
+359-2-971-2153
Germany – Langen
Phone:
+49-6103-709-0
Fax:
+49-6103-709-1223
Czech Republic – Kurim
Phone:
+420-5-41-162-111
Fax:
+420-5-41-162-223
Germany – Speyer
Phone:
+49-6232-30-0
Fax:
+49-6232-30-2243
Denmark – Glostrup
Phone:
+45-43-480-452
Fax:
+45-43-441-414
Germany - HTS Division – Neunkirchen
Phone:
+49-2247-305-0
Fax:
+49-2247-305-122
Egypt – Cairo
Phone:
+20-2-29 04 281
Fax:
+20-2-41 92 334
Greece – Athens
Phone:
+30-210-9370-396/397
Fax:
+30-210-9370-655
Estonia – Tartu
Phone:
+372-5138-274
Fax:
+372-7400-779
Hungary – Budapest
Phone:
+36-1-289-1000
Fax:
+36-1-289-1010
Finland – Helsinki
Phone:
+358-95-12-34-20
Fax:
+358-95-12-34-250
France – Cergy-Pontoise
Phone:
+33-1-3420-8888
Fax:
+33-1-3420-8600
Product Information Center:
(Technical Support)
Phone:
+33-1-3420-8943
Fax:
+33-1-3420-8623
82159–PDF–LUG–12-07
Printed in the U.S.A.
Ireland – Dublin
Phone:
+353-1-820-3000
Fax:
+353-1-820-9790
Israel – Yokneam
Phone:
+972-4-959-0508
Fax:
+972-4-959-0506
Italy – Collegno (Torino)
Phone:
+39-011-4012-111
Fax:
+39-011-4031116
Lithuania – Vilnius
Phone:
+370-5-2131-402
Fax:
+370-5-2131-403
Netherlands – ’s-Hertogenbosch
Phone:
+31-73-624-62-46
Fax:
+31-73-621-23-65
Product Information Center:
(Technical Support)
Phone:
+31-73-6246-999
Fax:
+31-73-6246-998
Norway – Nesbru
Phone:
+47-66-77-8886
Fax:
+47-66-77-8855
Poland – Warsaw
Phone:
+48-22-45-76-700
Fax:
+48-22-45-76-720
Romania – Bucharest
Phone:
+40-21-311-3479/3596
Fax:
+40-21-312-0574
Russia – Moscow
Phone:
+7-495-926-5506/07/08/09
Fax:
+7-495-926-5505
Russia – St. Petersburg
Phone:
+7-812-718-8192
Fax:
+7-812-718-8193
Slovenia – Ljubljana
Phone:
+386-1561-3270
Fax:
+386-1561-3240
South Africa – Port Elizabeth
Phone:
+2741-503-4500
Fax:
+2741-581-0440
Spain – Barcelona
Phone:
+34-93-291-0330
Fax:
+34-93-201-7879
Product Information Center:
(Technical Support):
Phone:
+34-93-291-0330
Fax:
+34-93-200-3779
Sweden – Upplands Väsby
Phone:
+46-8-50-72-50-00
Fax:
+46-8-50-72-50-01
Switzerland – Steinach
Phone:
+41-71-447-0447
Fax:
+41-71-447-0444
Turkey – Istanbul
Phone:
+90-212-281-8181/2/3
Fax:
+90-212-281-8184
Ukraine – Kiev
Phone:
+380-044-206-2265
Fax:
+380-044-206-2264
United Kingdom – Swindon
Phone:
+44-8706-080-208
Fax:
+44-1793-572-516
Product Information Center:
(Technical Support)
Freephone GB: 0800-267-666
Phone:
+44-8706-080-208
Fax:
+44-208-420-8081
For Middle East/African Countries
Not Shown
Phone:
+33-1-3420-8866
Fax:
+33-1-3420-8300
Tyco Electronics Corporation
www.tycoelectronics.com
Printed Circuit Board
Terminals and Disconnects
Tyco Electronics Corporation
Harrisburg, PA
tycoelectronics.com
82159–PDF–LUG–12-07
工商网监
湘ICP备2023018690号
