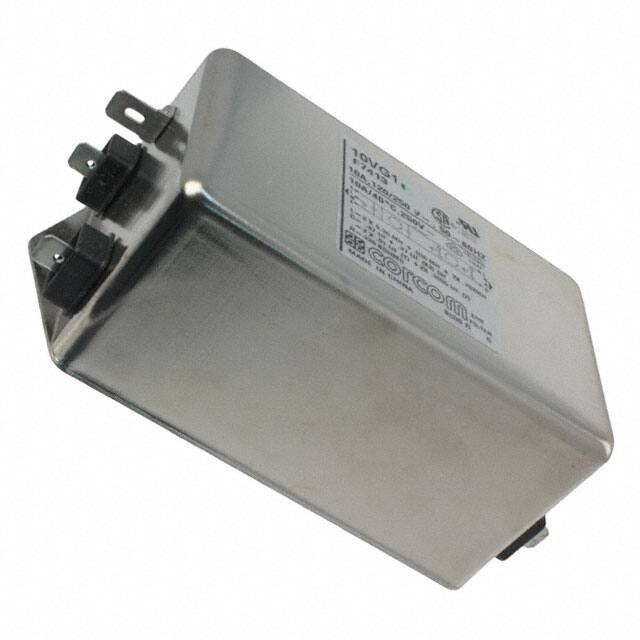

Catalog: 1654001 Issue Date: 06.2011 Corcom Product Guide High Performance RFI Filters for Switching Power Supplies G Series UL Recognized CSA Certified VDE Approved 1 10EG1 / 10VG1 RFI Power Line Filters 6EG1 / 6VG1 G Series Specifications • Designed to provide excellent attenuation for most digital electronics equipment • Broad frequency range of performance from 20kHz to 30MHz • Size and cost-effective solution • Designed to help comply with EN55022 Level A and FCC Part 15J Class B Maximum leakage current each Line to Ground: EG Models VG Models .30 mA .50 mA 1.2 mA 2.0 mA @ 120 VAC 60 Hz: @250 VAC 50 Hz: Hipot rating (one minute): Line to Ground: Line to Line: Rated Voltage (max): 250 VAC Operating Frequency: 50/60 Hz Rated Current: Ordering Information 10 E G 1 Input / Output Style 1 – .250 [6.3] spade terminals 2250 VDC 1450 VDC 6 & 10A Operating Ambient Temperature Range (at rated current Ir): -10°C to +40°C In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir (85-Ta)/45 G Series Electrical Schematics Leakage current designation E – Low leakage (
