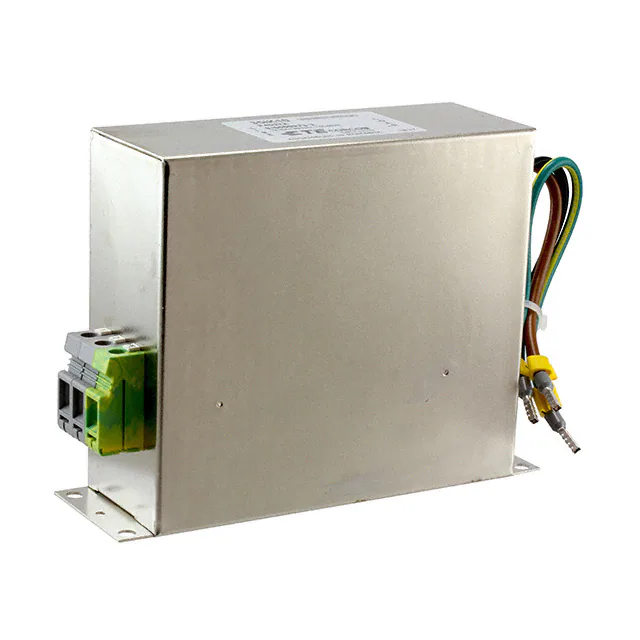

Catalog: 1654001 Issue Date: 06.2011 Corcom Product Guide Single and 2-phase RFI Filters for Industrial Applications IK Series IK Series Specifications • Excellent performance for applications with high interference levels • Designed for single or two-phase applications • Wide current range • For small to medium sized industrial equipment, power converters and variable speed motors • Touch safe terminals on the 6 to 60A product provide easy connections and prevent inadvertent contact for safety in the most demanding applications Ordering Information 1 IK 1 C Suffix C – Ground Choke Maximum leakage current each Line to Ground: @120 VAC 60 Hz: 1IK & 6IK: 0.6 mA 16, 35 & 50IK: 1.7 mA 80IK: 5.2 mA @289 VAC 50 Hz: 1IK: 1.2 mA @277 VAC 50 Hz: 6IK: 1.15 mA 16, 35 & 50IK: 3.2 mA 80IK: 9.9 mA Hipot rating (one minute): Line to Ground: Line to Line: Rated Voltage (max): Line to Ground: Line to Line: (1IK1C only) Operating Frequency: Rated Current: Input / Output Style 1 – .250 [6.3] spade terminals 10 – DIN type terminal block 16 & 35IK: DIN input / Wire leads output 50 & 80IK: DIN input / DIN output 2250 VDC 1450 VDC 1IK 289 VAC 277 VAC 6 to 80IK 500 VAC 480 VAC 50/60 Hz 1 to 80A Operating Ambient Temperature Range (at rated current Ir): -10°C to +40°C In an ambient temperature (Ta) higher than +40°C the maximum operating current (Io) is calculated as follows: Io = Ir (85-Ta)/45 IK Series Electrical Schematic Current Rating 1, 6, 16, 35, 50 & 80A LINE LOAD 2 Available Part Number 1IK1C 16IK10 50IK10 6IK1 35IK10 80IK10 1 2     46 Dimensions are in inches and millimeters unless otherwise specified. Values in italics are metric equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, please go to te.com/help corcom.com Catalog: 1654001 Issue Date: 06.2011 Corcom Product Guide Single and 2-phase RFI Filters for Industrial Applications IK Series Case Styles 1IK1C 16 & 35IK10 1 C D E A     RFI Power Line Filters B C A F Black    B 1.49 38.0 Brown E 6IK1 D        B 50 & 80IK10 D E A     C C    A F B 2.36 60.0 E D        47 Dimensions are in inches and millimeters unless otherwise specified. Values in italics are metric equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, please go to te.com/help corcom.com Catalog: 1654001 Issue Date: 06.2011 Corcom Product Guide Single and 2-phase RFI Filters for Industrial Applications IK Series Case Dimensions Part No. 1IK1C 6IK1 16IK10 35IK10 50IK10 80IK10 A B C    D   E  F                                                             Performance Data Typical Insertion Loss Measured in closed 50 Ohm system 1IK1C 6IK1 db 100 db 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 20 20 10 0 10 0.01 0.1 1 10 30 Frequency in MHz 0 0.1 1 16 & 35IK10 50 & 80IK10 db 100 db 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 20 20 10 0 10 30 Frequency in MHz 10 0.01 0.1 1 10 30 Frequency in MHz 0 0.01 0.1 1 10 30 Frequency in MHz Common Mode / Asymmetrical (L-G) Differential Mode / Symmetrical (L-L) 48 Dimensions are in inches and millimeters unless otherwise specified. Values in italics are metric equivalents. Dimensions are shown for reference purposes only. Specifications subject to change. For email, phone or live chat, please go to te.com/help corcom.com
