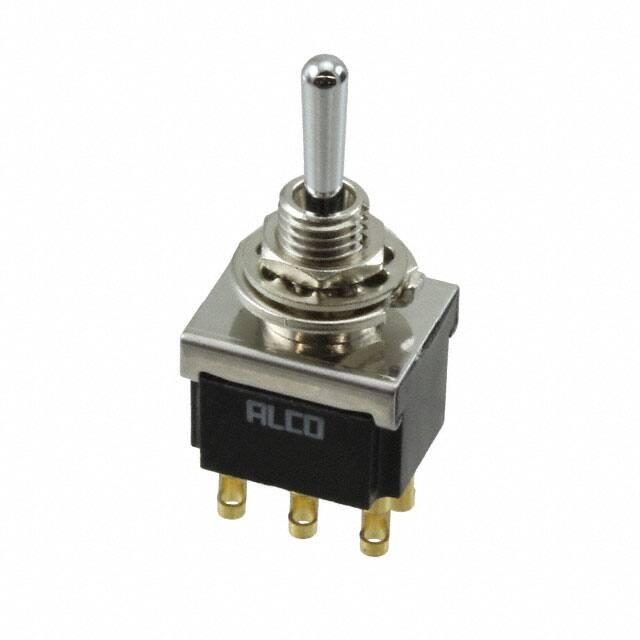

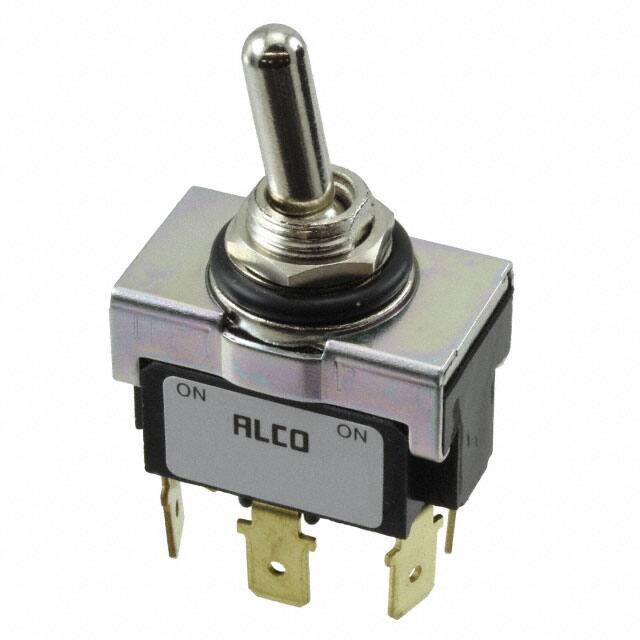

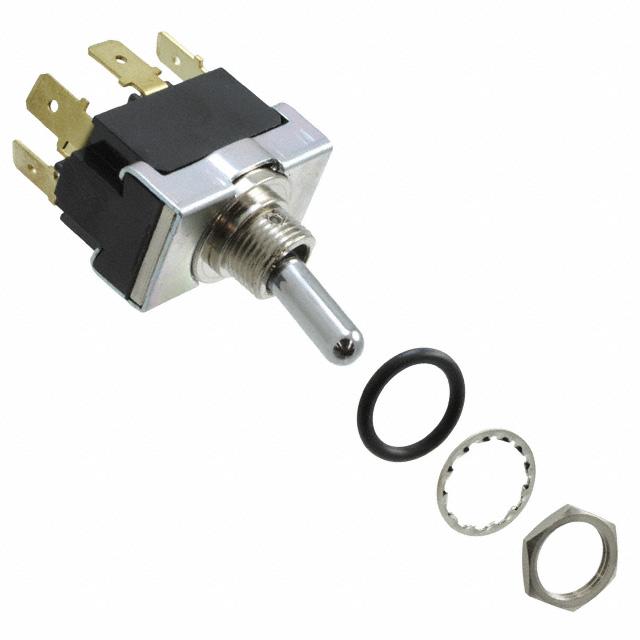

Quick Reference Guide AW Series Switches The AW Series toggle switch features many circuit configurations, including SPST, SPDT, DPST, DPDT and 4PDT, with a choice of momentary or maintained circuits. The switch provides superior switching power through brass silver alloy contacts. Electrical life is 20,000 cycles at full load. Other electrical parameters include contact resistance of 10 milliohms max., insulation resistance of 1,000 megohms and actuation force of 29.4 N max. The AW Series switches have .250 quick connect terminals and all are panel mountable with 12 mm threaded bushing which is brass with chrome plating. The series mounting design conforms to standard panel cut outs, easing the task of installation. Features Applications • • • • • These devices are ideal for any design requiring human interface via toggle-style switch in harsh environments, including: • Industrial equipment • Heavy machinery • Construction equipment • Transportation vehicles • Outdoor concert and lighting equipment • Portable power tools IP67 panel mounting seal Sleeve and Frame perfect sealed Fixed contact molded-inserting construction Wide range switch functions available Meets requirements of industrial and outdoor environments te.com/products/switches TE Connectivity AW Series Switches Typical Performance Characteristics Material Specifications Number of Poles : 1, 2 and 4 pole Contacts : Brass silver alloy finish Toggle : Brass chromium plated Terminals : Brass plate Case : Phenol resin Cover : Steel zinc plated Seal : Rubber “o” ring panel seal, insert molded internal toggle seal Switch Functions : ON-OFF, ON-ON, ON-(ON, ON-OFF-ON, ON-OFF-(ON, (ON-OFF-(ON Contact Rating : 20 A @250 VAC, 20 A @125 VAC, 20 A @30 VDC Electrical Life : 20,000 cycles Mechanical Life : 40,000 cycles Contact Resistance : Max. 10 mOhm at 2–4 VDC 1 A Insulation Resistance : Min. 1,000 MOhm Dielectric Strength : 1,500 VAC for 1 min. Actuation Force : Max. 29.4 N Panel Cut-out : D-cut, 12.5 mm Environmental Specification Operating Temperature : -20 to +70°C Other Characteristics Contact Timing : Break before Make Right Angle Versions : No Standard Number of Positions : 2 or 3 Terminals / Mounting Style : Quick connect Actuator Style : Standard toggle Dimensions Case (LxWxH) : 33 x 19.5 36.5 x 24.5 mm Packaging : Bulk Choice of momentary or maintained circuits Storage Temperature : -20 to +70°C Vibration Resistance : 1.5 mm 10-55 Hz Shock Resistance : 50 g for 11±1 msec Terminal Strength : 24.5 N Ø 12.5 11.5 1 Pole 2 Pole Panel Mounting Hole Product Key Typical Product Key Type A A Series power toggle switch, 1 & 2 pole Sealing W Waterproof Actuator Style T Toggle Switch Function & Poles A D E F G H 1 pole ON-OFF ON-ON ON-OFF-ON ON-(ON) (ON)-OFF-(ON) ON-OFF-(ON) N P R S T 2 pole ON-ON ON-OFF-ON ON-(ON) (ON)-OFF-(ON) ON-OFF-(ON) Power Rating 1 20 A @ 125/250 VAC Terminal Type 5 .250 Quick Connect Terminal Material 04 RoHS Compliant te.com/products/switches A W T T 1 5 04 TE Connectivity AW Series Switches Part Numbers Product Key Sealing Poles Switch Function Terminal Rating Part Number AWTA1504 Waterproof 1 pole ON-OFF 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-3 AWTD1504 Waterproof 1 pole ON-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-0 AWTE1504 Waterproof 1 pole ON-OFF-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-1 AWTF1504 Waterproof 1 pole ON-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-4 AWTG1504 Waterproof 1 pole (ON)-OFF-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-5 AWTH1504 Waterproof 1 pole ON-OFF-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-6 AWTN1504 Waterproof 2 poles ON-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 7-6437630-2 AWTP1504 Waterproof 2 poles ON-OFF-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 3-6437592-9 AWTR1504 Waterproof 2 poles ON-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 5-6437630-0 AWTS1504 Waterproof 2 poles (ON)-OFF-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 1-6437630-1 AWTT1504 Waterproof 2 poles ON-OFF-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 1-6437630-0 Product Key Typical Product Key Type A A 4 T K 1 5 W 04 A Series power toggle switch, 4 pole Poles 4 4 pole Actuator Style T Toggle Switch Function K N ON-OFF ON-ON P R ON-OFF-ON ON-(ON) S (ON)-OFF-(ON) Power Rating 1 20 A @ 125/250 VAC Terminal Type 5 .250 Quick Connect Terminal 4 Pole Sealing W Waterproof Material 04 RoHS Compliant Part Numbers Product Key Sealing Poles Switch Function Terminal Rating A4TK15W04 Waterproof 4 poles ON-OFF 0.250 Quick Connect Terminal 20 A at 125/250 VAC Part Number 8-6437630-0 A4TN15W04 Waterproof 4 poles ON-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 8-6437630-1 A4TP15W04 Waterproof 4 poles ON-OFF-ON 0.250 Quick Connect Terminal 20 A at 125/250 VAC 8-6437630-2 A4TR15W04 Waterproof 4 poles ON-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 8-6437630-3 A4TS15W04 Waterproof 4 poles (ON)-OFF-(ON) 0.250 Quick Connect Terminal 20 A at 125/250 VAC 8-6437630-4 te.com/products/switches How to Specify in a Switch Electrical Considerations Voltage of Applications: ______________________________ Current of Application: ______________________________ Circuitry Configuration: Number of Poles: ________________________ Number of Throws: ________________________ Number of Operations anticipated: ________________________________________________________________________ Agency Approvals or Listings Desired: _____________________________________________________________________ Mechanical Considerations Type of Switch (Actuator Type): _______ Toggle _______ Pushbutton _______ Rotary _______ Rocker _______ Other Switch Function (On/Off/On): __________________ On/Off: __________________ Momentary: __________________ Termination: ______ .Thru-Hole (PC) ______ Surface Mount ______ Wire Lug ______ Quick Connect ______ Other Sealing Contamination Requirements: _____________________________________________________________________ Product Processing Considerations Anticipated Soldering Process: ______ Hand ______ Wave ______ SMT ______ Other FOR MORE INFORMATION TE Technical Support USA: Canada: Mexico: Latin/S. America: Germany: UK: France: Netherlands: China: Center +1 (800) 522-6752 +1 (905) 475-6222 +52 (0) 55-1106-0800 +54 (0) 11-4733-2200 +49 (0) 6251-133-1999 +44 (0) 800-267666 +33 (0) 1-3420-8686 +31 (0) 73-6246-999 +86 (0) 400-820-6015 Part numbers in this brochure are RoHS Compliant*, unless marked otherwise. *as defined www.te.com/leadfree te.com © 2019 TE Connectivity. All Rights Reserved. 1-1773458-8 CIS LUG FP 1M 05/2019 JN ALCO, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks. Other logos, product and/or company names might be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications.
