701032

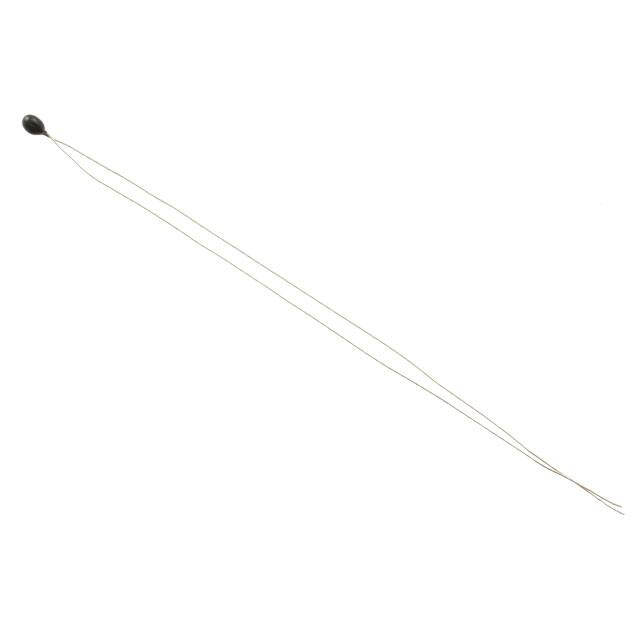

44000RC SERIES Precision Epoxy NTC Thermistors Interchangeable Thermistors – TE Connectivity (TE) provides highly accurate and stable temperature sensing for measurement, control, indication and compensation. The tight interchangeability of our precision components allows precise measurement without calibration of circuitry to match individual components. Specifications Time Constant 1 sec max when suspended by their leads in a well-stirred oil bath. In still air, 10 sec max. Dissipation Constant 8mW/ºC min when suspended by their leads in a well-stirred oil bath, or 1mW/ºC in still air. Stability TE thermistors are chemically stable and not significantly affected by aging or exposure to strong nuclear radiation. Resistance/Temperature Data A ºC resistance vs temperature table in 1ºC increments is available on www.te.com. Interchangeability Tolerance Data Tables on www.te.com show nominal resistance values, ohms per degree and tolerance at select temperatures over the operating range. TE offers two interchangeability tolerances ±0.2°C and ±0.1°C. Choose epoxy-encapsulated components for applications where cost, flexibility and a wide range of resistance values are important. Features  High sensitivity to detect small temperature changes  High density ceramic sensor provides: o Stability o ±0.2º, ±0.1º interchangeability Applications  Temperature control for DNA replication/analysis and cytology equipment  Temperature control in photocopy machines and in photo reproduction and enlargement machines  Temperature monitoring for telecommunications battery backup systems  Temperature monitoring and control in clean rooms/controlled environments  Temperature monitoring on the ocean floor  Heater monitor/control for outdoor pool/spa  Temperature monitoring for fruit growers Maximum Power 30mW at 25ºC de-rated to zero power at 125ºC TESS-ANDO-408-0000050 REV A TE SENSOR SOLUTIONS /// MEAS 44000RC SERIES Page 1 MEAS MICRO-THERMOCOUPLES Mechanical Details Performance Specifications Tolerance on Beta Time Response Value in Air Insulation Resistance (Min. of 100Mohms for 1 Sec.) % Seconds mW/°C Volts 44001RC 0.8 < 10 1 500 44002RC 0.8 < 10 1 500 44003RC 1.0 < 10 1 500 44004RC 0.8 < 10 1 500 44005RC 0.8 < 10 1 500 44007RC 0.8 < 10 1 500 44016RC 0.8 < 10 1 44006RC 0.8 < 10 1 500 44008RC 0.8 < 10 1 500 44011RC 0.8 < 10 1 500 44033RC 0.4 < 10 1 500 44030RC 0.4 < 10 1 500 44034RC 0.4 < 10 1 500 44036RC 0.4 < 10 1 500 44037RC 0.4 < 10 1 500 44031RC 0.4 < 10 1 500 44032RC 0.4 < 10 1 500 TESS-ANDO-408-0000050 REV A Dissipation Constant in Air 1 TE SENSOR SOLUTIONS /// MEAS 44000RC SERIES 500 1 Page 2 MEAS MICRO-THERMOCOUPLES Ordering Information Parameters ±0.2ºC Interchangeability Tolerance 0 to 70ºC ±0.1ºC Interchangeability Tolerance 0 to 70ºC Ordering Part Number Model Number Zero Power Resistan ce Beta 0-50(K) Ratio  25/125º Max Working Temp. Best Storage & Working Temp. Mix 701001-M 44001RC 100 2854 11.49 100°C -80°C to 50°C L 701002 44002RC 300 3118 15.15 100°C -80°C to 50°C L 701003-M 44003RC 1,000 3217 17.33 100°C -80°C to 50°C L 701004 44004RC 2,252 3891 29.26 150°C -80°C to 120°C B 701005-M 44005RC 3,000 3891 29.26 150°C -80°C to 120°C B 701007-M 44007RC 5,000 3891 29.26 150°C -80°C to 120°C B 701016-M 44016RC 10,000 3891 29.26 150°C -80°C to 120°C B 701006 44006RC 10,000 3574 23.51 150°C -80°C to 120°C B 701008-M 44008RC 30,000 3810 29.15 150°C -80°C to 120°C B 701011-M 44011RC 100,000 3988 34.82 150°C -80°C to 120°C B 701033 44033RC 2,252 3891 29.26 75°C -80°C to 75°C B 701030-M 44030RC 3,000 3891 29.26 75°C -80°C to 75°C B 701034-M 44034RC 5,000 3891 29.26 75°C -80°C to 75°C B 701036-M 44036RC 10,000 3891 29.26 75°C -80°C to 75°C B 701037-M 44037RC 6,000 3891 29.26 75°C -80°C to 75°C B 701031-M 44031RC 10,000 3574 23.51 75°C -80°C to 75°C H 701032 44032RC 30,000 3810 29.15 75°C -80°C to 75°C H NORTH AMERICA Measurement Specialties, Inc., a TE Connectivity Company Tel: 800-522-6752 customercare.ando@te.com te.com/sensorsolutions Measurement Specialties, Inc., a TE Connectivity company. Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2016 TE Connectivity Ltd. family of companies TESS-ANDO-408-0000050 REV A All Rights Reserved. TE SENSOR SOLUTIONS /// MEAS 44000RC SERIES Page 3
