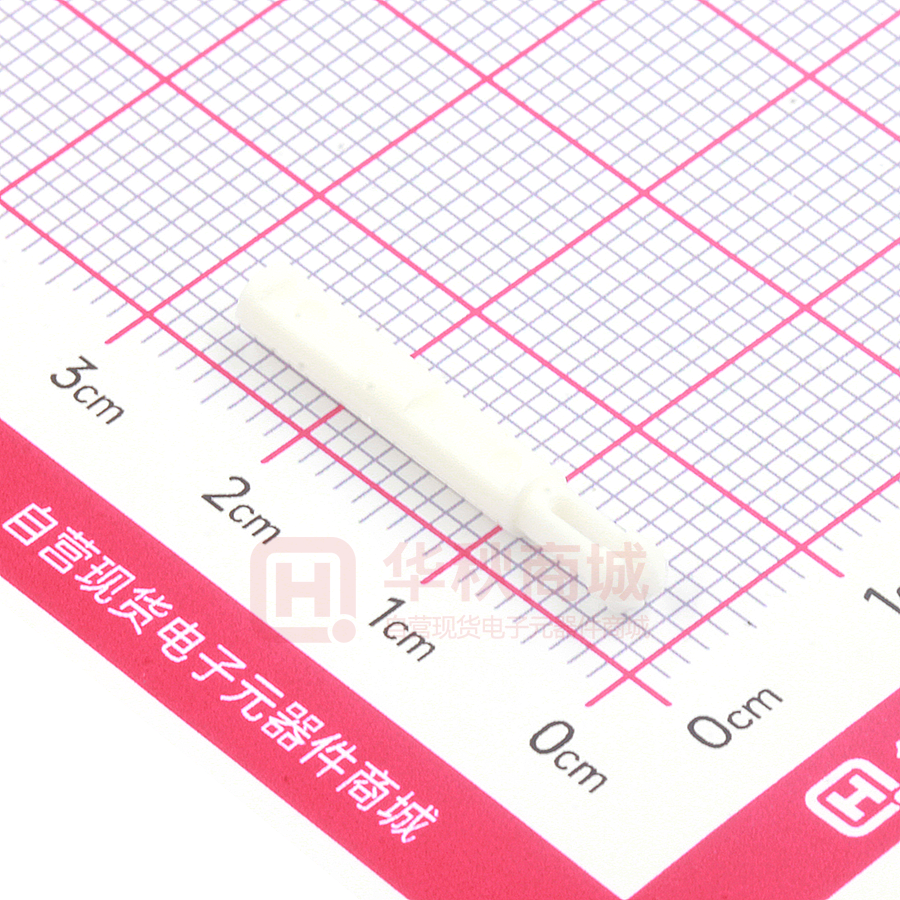

770377-1

Place hero product image here shorter square image space available. UNIVERSAL MATE-N-LOK WIRE SEAL TE Connectivity’s (TE) Universal MATE-N-LOK wire seal installs into the Universal MATE-N-LOK connector housings and accommodates Universal MATE-N-LOK contacts (socket and plug). When properly assembled, the wire seal provides water ingress protection into the connector housings at the wire entry locations. The socket and plug contacts are crimped to 18 - 10 AWG wire conductors with outside insulation diameters ranging from a 2.03 to 4.07mm. The wire seals are purchased separately and primarily used in wire-to-wire applications. An accessory interface seal provides ingress protection at the mating connectors’ interface. BENEFITS • Provides ingress protection from water when installed into the connector housing • Accommodates a wire range from 18-10AWG • Upgrades the Universal MATE-N-LOK connectors to a waterproof system APPLICATIONS • Outdoor LED Lighting • Appliances • HVAC • Fire & Security • Power Supplies INDUSTRIAL /// UNIVERSAL MATE-N-LOK WIRE SEAL Universal MATE-N-LOK Wire Seal MECHANICAL SPECIFICATIONS • Temperature rating: -55˚C to 105˚C • Product Specification: 108-133102 • Wire seal protection: IPx5/IPx7 • Application Specification: 114-133102 • Wire range: 18-10 AWG [0.82-5.26mm2] • Instruction Sheet: 408-3392 2213782-2 • Insulation diameter range: .080-.160 [2.03-4.07mm] MATERIALS • Seal: Silicone rubber, gray 2213782-3 PRODUCT INFORMATION Description Position Part Number Universal MATE-N-LOK Wire Seal 2 2213782-2 Universal MATE-N-LOK Interface Seal 2 794269-1 Universal MATE-N-LOK Wire Seal 3 2213782-3 Universal MATE-N-LOK Interface Seal 3 794271-1 Universal MATE-N-LOK Wire Seal 4 2213782-4 Universal MATE-N-LOK Interface Seal 4 794273-1 Universal MATE-N-LOK II Keying Plug - 770377-1 2213782-4 Crimp Contact Insulated Wire (socket shown for reference) Interface Seal Cap Housing Plug Housing Crimp Contact Splash Proof Wire Seal (pin shown for reference) Insulated Wire Splash Proof Wire Seal te.com MATE-N-LOK, TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. © 2018 TE Connectivity. All Rights Reserved. 1-1773934-4  12/2018   JN INDUSTRIAL /// UNIVERSAL MATE-N-LOK WIRE SEAL PAGE 2
