AMPSEAL CONNECTOR
SERIES
Terminals and Connectors
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
INDUSTRIAL & COMMERCIAL TRANSPORTATION
WE GO TO EXTREMES
TO MAKE SURE EVERY
CONNECTION COUNTS.
TE Connectivity (TE) Industrial & Commercial Transportation is a reliable provider of solutions for even the
harshest environment. With a focus on employee expertise and durable products, we deliver the solutions
and support our customers can count on.
2,000+
Employees
10,000+
Customers
20,000+
Different Parts
Years ago, tractors, construction equipment, trucks, and boats had simple electrical systems that might have
included electrical starting and a basic lighting package. Today, ECUs, joysticks, fuel-efficient engines, LED lights,
and CAN systems are standard equipment. The need to protect sensitive electrical systems from vibration,
moisture, dust, dirt, salt, and airborne particles has never been greater. TE Industrial & Commercial Transportation
is a leader in supporting today’s increasingly complex and sophisticated equipment and applications.
Our comprehensive line of products includes an unparalleled portfolio of rugged sensors, terminals, connectors,
relays, and hybrid electric mobility solutions. These solutions are designed to withstand the harshest environmental
conditions and to help vehicles operate safer, cleaner, and smarter.
Our solutions adapt to
virtually any harsh environment
application, including:
Motors and
Gearboxes
PAGE 2
ABS/EBS
Brake Units
Telematics
Units
Sensors
Wire-To-Wire
Coupling at
the Chassis
Infotainment
Applications
TE.COM/ICT
MARKETS WE SERVE
ON-HIGHWAY
RECREATIONAL
TRANSPORTATION
OFF-HIGHWAY
ONLINE RESOURCES
To learn more about TE Connectivity Industrial & Commercial
te.com/ict
Transportation, its products, and their corresponding
documents and videos, please check out
the following pages on TE.com:
te.com/ictliterature
te.com/ictvideos
PRODUCT INFORMATION CENTER (PIC)
You can rely on TE Connectivity’s PIC team to provide support
for answers to your general information or technical questions
in an efficient and effective manner.
Connect with our PIC staff at:
te.com/support
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
PAGE 3
INDUSTRIAL & COMMERCIAL TRANSPORTATION
AMPSEAL CONNECTOR SERIES
Our AMPSEAL connectors are designed for cable-to-board harsh environment applications.
Environmentally sealed for rugged reliability, these connectors are available in cable plugs
and PCB mount headers engineered to withstand extreme temperature and moisture,
including high-temperature underhood applications. The pre-assembled receptacle housing
connector features built-in contact sealing and an integral interfacial seal that protects
mated connectors. Rated to IP6K9K, AMPSEAL connectors are offered in arrangements
from 8 to 35 positions. Available accessories are backshells and sealing plugs.
PAGE 4
TE.COM/ICT
AMPSEAL
CONNECTORS
Product Benefits........................................................ 6
Product Applications............................................... 6
Product Documentation..........................................7
Performance Specifications...................................7
Material Specifications.............................................7
Housings and Headers........................................ 8-9
Wire Seal Range..................................................... 10
Accessories.................................................................10
Contacts....................................................................... 11
Tooling.......................................................................... 12
How To Instructions............................................... 13
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
PAGE 5
INDUSTRIAL & COMMERCIAL TRANSPORTATION
AMPSEAL CONNECTOR SERIES
BENEFITS
• Secure positive contact seating through secondary contact locking and lanceless contacts.
• Protect from dust, water, and overspray with up to IP6K9K rugged sealing capabilities.
• Reduce tangling during storage and handling thanks to lanceless receptacle contacts.
• Reduce wire strain with backshells available for all housing sizes.
• Minimize mismating and misidentification with different connector colors and mechanical
polarized keyings.
KEY INDUSTRIES
AMPSEAL products
can be utilized
in the truck, bus,
construction,
agriculture, special,
marine and twowheeler vehicle
industries.
Truck
Bus
Construction
Agriculture
Special
Marine
Two-Wheeler
APPLICATIONS
AMPSEAL products
can be utilized in
the following
applications:
PCB
Connections
PAGE 6
TE.COM/ICT
AMPSEAL
CONNECTORS
PRODUCT DOCUMENTATION
Additional product documentation is available for assistance with AMPSEAL products.
The following documentation may be helpful:
108-1329 (Product Specification, AMPSEAL Connectors)
114-16016 (Application Specification, AMPSEAL Connectors)
PERFORMANCE SPECIFICATIONS
MATERIAL SPECIFICATIONS
Current:
Up to 17 A gold, up to 8 A tin
Wire Seal:
Silicone rubber
Operating at temperatures
-40° C to +125° C for gold plated,
-40° C to +105° C for tin plated
Mating Seal:
Silicone rubber
Temperature:
Cover:
Glass-filled PBT
Mating Durability:
See note. Mate and unmate
specimens for 10 cycles at maximum
rate of 600 cycles per hour.
Locking Wedge:
PBT
Insulation Resistance:
100 megohms minimum.
TE Spec 109-28-4. Test between
adjacent contacts of mated specimens.
Immersion:
Leakage current not to exceed 50
micro-amperes at 48 volts DC.
TE Spec 109-74-5. Immerse specimens
to a depth of 100 mm in 5%.
Salt water at a temperature of
23 ± 5° C for 1 hour. Check between
adjacent circuits and each surface
to reference electrode.
Random Vibration:
See note. TE Spec 109-21-7, Condition G,
except 10-500 Hz frequency
range. Subject mated specimens
to 10 Gs for 8 hours each plane.
Voltage:
250 V ac
Flammability:
UL 94-V0-rated material
Note: Shall meet visual requirements, show no physical damage
and shall meet requirements of additional tests as specified
in Test Sequence in Figure 3 of TE product document 108-1329.
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
PAGE 7
INDUSTRIAL & COMMERCIAL TRANSPORTATION
AMPSEAL HOUSINGS AND HEADERS
CONFIGURATIONS
8 Positions
8 size 1.3 mm
14 Positions
14 size 1.3 mm
23 Positions
23 size 1.3 mm
35 Positions
35 size 1.3 mm
E
B
C
A
E
F
DIMENSIONS
AMPSEAL
Receptacle Housing
F
D
G
AMPSEAL
Header
Cavity
Overall Length
A
Overall Height
B
Overall Width
C
Overall Length
Straight
D
Overall Height
E
Overall Width
F
Overall Length
90°
G
8
1.32 (33.6)
1.36 (34.6)
1.08 (27.4)
1.35 (34.3)
1.26 (32.1)
1.61 (40.8)
1.49 (37.9)
14
1.32 (33.6)
1.36 (34.6)
1.39 (35.4)
1.35 (34.3)
1.26 (32.1)
1.92 (48.8)
1.49 (37.9)
23
1.32 (33.6)
1.36 (34.6)
1.87 (47.4)
1.35 (34.25)
1.26 (32.1)
2.39 (60.8)
1.49 (37.9)
35
1.32 (33.6)
1.36 (34.6)
2.50 (63.4)
1.35 (34.25)
1.26 (32.1)
3.03 (76.9)
1.49 (37.9)
Dimensions are for reference only
PAGE 8
TE.COM/ICT
AMPSEAL HOUSINGS AND HEADERS
ORDERING INFORMATION
Black
8
Natural
Black
Natural
14
Gray
Blue
Black
Natural
23
Gray
Blue
Black
Natural
35
Gray
Blue
Orange
Right-Angle PCB Header
Contact
Finish
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Tin plated
Gold plated
Gold plated
Receptacle
Housing
776286-1
776286-2
776273-1
776273-2
776273-4
776273-5
770680-1
770680-2
770680-4
770680-5

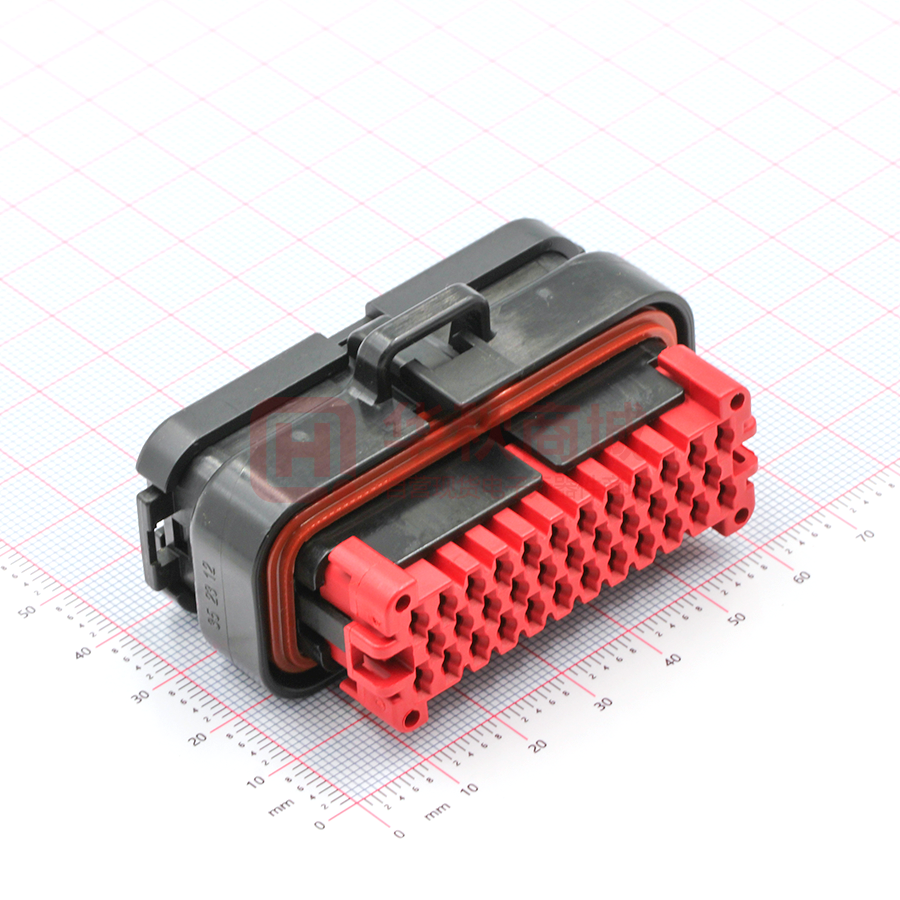

776164-1
776164-2
776164-4
776164-5
776164-6
Vertical PCB Header
Without Seal
With Seal
Without Seal
With Seal
776279-1
776280-1
776275-1
776276-1
1-776279-1
1-776280-1
1-776275-1
1-776276-1
776279-2
776280-2
776275-2
776276-2
1-776279-2
1-776280-2
1-776275-2
1-776276-2
776266-1
776267-1
776261-1
776262-1
1-776266-1
1-776267-1
1-776261-1
1-776262-1
776266-2
776267-2
776261-2
776262-2
1-776266-2
1-776267-2
1-776261-2
1-776262-2
776266-4
776267-4
776261-4
776262-4
1-776266-4
1-776267-4
1-776261-4
1-776262-4
776266-5
776267-5
776261-5
776262-5
1-776266-5
1-776267-5
1-776261-5
1-776262-5
770669-1
776087-1
776200-1
776228-1
1-770669-1
1-776087-1
1-776200-1
1-776228-1
770669-2
776087-2
776200-2
776228-2
1-770669-2
1-776087-2
1-776200-2
1-776228-2
770669-4
776087-4
776200-4
776228-4
1-770669-4
1-776087-4
1-776200-4
1-776228-4
770669-5
776087-5
776200-5
776228-5
1-770669-5
1-776087-5
1-776200-5
1-776228-5
776180-1
776163-1
776230-1
776231-1
1-776180-1
1-776163-1
1-776230-1
1-776231-1
776180-2
776163-2
776230-2
776231-2
1-776180-2
1-776163-2
1-776230-2
1-776231-2
776180-4
776163-4
776230-4
776231-4
1-776180-4
1-776163-4
1-776230-4
1-776231-4
776180-5
776163-5
776230-5
776231-5
1-776180-5
1-776163-5
1-776230-5
1-776231-5
1-776180-6
1-776163-6
–
1-776231-6
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
PAGE 9
AMPSEAL
CONNECTORS
Position
Keyed
Housing
Color
INDUSTRIAL & COMMERCIAL TRANSPORTATION
AMPSEAL WIRE SEALING RANGE
The wire sealing range is the recommended outside diameter of the wire insulation required to maintain an
environmental seal in the rear connector cavities.
Contact Size
Standard Seal
1.3 mm
16-20 AWG (1.5-0.5 mm2)
.067-.106
(1.7-2.7)
AMPSEAL ACCESSORIES
The accessory items available to complement the AMPSEAL connectors, are backshells and sealing plugs.
BACKSHELLS
AMPSEAL backshells offer a high level of protection and help reduce wire strain. They are made of heavy-duty
thermoplastic and provide enhanced aesthetics for AMPSEAL connector applications.
Part Number
8
14
23
35
Description
2138529-1
(one half, two halves required
per receptacle housing)
2138530-1
Vertical, sealed receptacle housing wire relief
(a wire tie is recommended around the end of the
backshell to aid in securing the halves together)
(one half, two halves required
per receptacle housing)
776464-1
(one half, two halves required
per receptacle housing)
776463-1
Vertical, sealed receptacle
housing wire relief
(accepts no. 4 self-tapping screw)
(one half, two halves required
per receptacle housing)
SEALING PLUGS
Open cavities provide pathways for contaminates to enter the connectors. To maintain seal integrity, any unused
cavity that has been pierced must be filled with the appropriate size sealing plug.
PAGE 10
Color
Part Number
Contact Size
Wire Gauge Range
Material
White
770678-1
1.3 mm
16-20 AWG
Nylon
TE.COM/ICT
AMPSEAL CONTACTS
The AMPSEAL connectors commonly use the 1.3 mm three contact beam lanceless stamped & formed contact
system.
AMPSEAL
CONNECTORS
1.3 MM CONTACT PERFORMANCE SPECIFICATIONS
Durability
Crimp Tensile Strength
10 cycles (tin & gold)
Contact Size
Tensile Strength
1.3 mm
Current Rating
20 AWG
≥ 80 N
Contact Size
Max Current
18 AWG
≥ 90 N
1.3 mm (tin)
Up to 8 A
16 AWG
≥ 150 N
1.3 mm (gold)
Up to 17 A
Contact Retention
Contact Size
1.3 mm
Min. Load
Apply an axial load of
115 N to contacts in the axial
direction with
Wedge Lock in locked position.
Contacts shall not dislodge.
1.3 MM STAMPED AND FORMED CONTACTS FOR AMPSEAL
Receptacle Part Numbers
Size
Strip Form
Package
Quantity
Loose Piece
Package
Quantity
770520-1
5000
770854-1
1000
770520-3
5000
770854-3
1000
1.3 mm
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
Wire Size
AWG (mm2)
Insulation
Diameter (mm)
16-20
.067-.106
(1.5-0.5)
(1.7-2.7)
Finish
Pre-tin plated
Selective
gold plated
PAGE 11
INDUSTRIAL &
& COMMERCIAL
COMMERCIAL TRANSPORTATION
TRANSPORTATION
INDUSTRIAL
AMPSEAL CONNECTORS
TOOLING
Tools are specific to each contact style. To create a proper crimp and
achieve the highest performance specifications, contacts must be
crimped with the recommended tooling.
HAND TOOLS FOR 1.3 MM CONTACTS
PRO-CRIMPER III CERTI-CRIMP II
Receptacle
Strip Form
770520-1
770520-3
Receptacle
Loose Piece
Tool P/N
Description
58529-1
PRO-CRIMPER III hand tool
and die set assembly
2217748-1
CERTI-CRIMP II straight
action hand tool
770854-1
770854-3
Note: Base PRO-CRIMPER III tool part number with -2 suffix is the part number for the die set, which can be ordered separately
AUTOMATED TOOLING FOR 1.3 MM CONTACTS
Receptacle
Strip Form
770520-1
770520-3
Applicator P/N
Description
2151376-1
OCEAN end feed applicator
with mechanical feed
2151376-2
OCEAN end feed applicator
with pneumatic feed
Note: Applicators with additional feed styles are available, contact your representative
PAGE 12
TE.COM/ICT
AMPSEAL CONNECTORS
HOW-TO INSTRUCTIONS
Step 1:
Grasp crimped contact
approximately one inch
behind the contact barrel.
AMPSEAL
CONNECTORS
CONTACT INSERTION
Step 2:
Check that the wedgelock of
the plug assembly is in open
position. Align the contact
with the applicable cavity.
Step 3:
Insert the contact into the
connector cavity until there
is an audible and tactile click.
A slight tug will verify the
contact is locked in place.
Note
AMPSEAL connector grommet
is solid until pierced.
Step 4:
After all the contacts have
been inserted, close the
wedgelock by simultaneously squeezing locking latches
inward and pushing the wedgelock into the housing.
CONTACT REMOVAL
Step 1:
Insert the tip of a screwdriver (2-5 mm wide blade)
between the edge of the
plug assembly housing and
one corner of the wedgelock.
Step 2:
Gently pry the edge of the
wedgelock until it is released
from (but not completely removed) the housing. Repeat
these steps for the opposite
corner of the wedge.
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
Step 3:
Gently pull the wire of the
contact to be removed while
rotating the wire (a quarter
turn each direction) back
and forth until the contact is
removed from the housing.
PAGE 13
INDUSTRIAL & COMMERCIAL TRANSPORTATION
PAGE 14
TE.COM/ICT
INDUSTRIAL & COMMERCIAL TRANSPORTATION /// AMPSEAL CONNECTOR SERIES
PAGE 15
TE Connectivity Ltd. is a $14 billion global technology and manufacturing leader creating a safer, sustainable,
productive, and connected future. For more than 75 years, our connectivity and sensor solutions, proven in the
harshest environments, have enabled advancements in transportation, industrial applications, medical technology,
energy, data communications, and the home. With 80,000 employees, including more than 8,000 engineers,
working alongside customers in approximately 140 countries, TE ensures that EVERY CONNECTION COUNTS.
te.com/ict
LET’S CONNECT
We make it easy to connect with our experts and are ready to provide all the support you need. For additional information
or product assistance, please contact your field representative or our customer service department. Additional information
is also available on the website te.com/ict.
TECHNICAL SUPPORT
te.com/support
United States .................... +1 800 522 6752
China ................................ +86 400 820 6015
Germany ......................... +49 6151 607 1999
Japan .............................. +86 044 844 8052
te.com
AMPSEAL, PRO-CRIMPER, CERTI-CRIMP, TE, TE Connectivity, TE connectivity (logo),
and EVERY CONNECTION COUNTS are trademarks.
Other logos, products and/or company names referred to herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration
purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or
completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be
as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will
TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use
or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the
suitability of each such product for the specific application.
© 2019 TE Connectivity Ltd. family of companies All Rights Reserved.
1-1773979-2 06/19
TE Connectivity
4849 Hempstead Station Drive
Kettering, OH 45429
USA
www.te.com
